Description

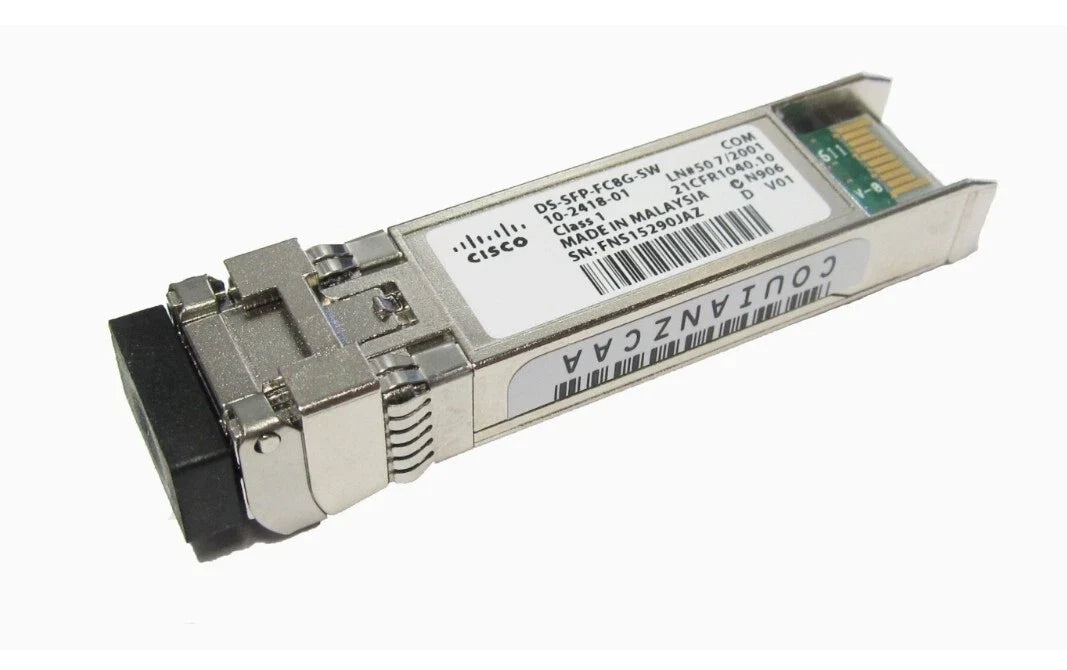

The DS-SFP-FC8G-SW is an 8G Fibre Channel SFP+ optical transceiver designed for short-wave multimode fiber connectivity. It delivers high-speed data transmission up to 150 meters over duplex LC connections at 850nm.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
DS-SFP-FC8G-SW
|
| Subcatecory |
Optical Transceivers / Fibre Channel Modules
|
| Form Factor |
SFP+ |
| Max Data Rate |
8.5 Gbps |
| Wavelength |
850nm |
Optical Components
|
VCSEL |
| Media Type |
Multimode Fiber (MMF)
|
| Max Cable Distance |
150m 8.5Gbps (OM3 MMF)
|
| DOM Support |
Yes
|
| TX Power |
-6 to -1 dBm
|
| Receiver Sensitivity |
< -11.1 dBm
|
| Operating Temperature |
0°C to 70°C (32°F to 158°F)
|
Information About DS-SFP-FC8G-SW
The DS-SFP-FC8G-SW is a Cisco-compatible shortwave optical transceiver module, designed for 8.5Gbps Fibre Channel (FC) links over multimode fiber (MMF). Built with a VCSEL laser operating at 850nm, it supports communication over distances up to 150 meters using OM3 MMF cabling and features a duplex LC/UPC connector for reliable two-way optical data transmission.
Key Features:
-
High-Speed FC Support: Provides 8.5Gbps Fibre Channel performance over MMF infrastructure.
-
Shortwave 850nm VCSEL: Ideal for high-throughput, short-distance communication up to 150m.
-
Duplex LC Interface: Ensures stable and secure bidirectional optical communication.
-
DOM Monitoring: Supports real-time digital diagnostics for proactive link management.
-
Cisco Compatible & MSA Compliant: Interoperable with Cisco switches and multi-vendor equipment.
The DS-SFP-FC8G-SW transceiver offers dependable shortwave fiber connectivity for SANs, storage networks, and enterprise backbones requiring 8G Fibre Channel speed and reliability.
