Description

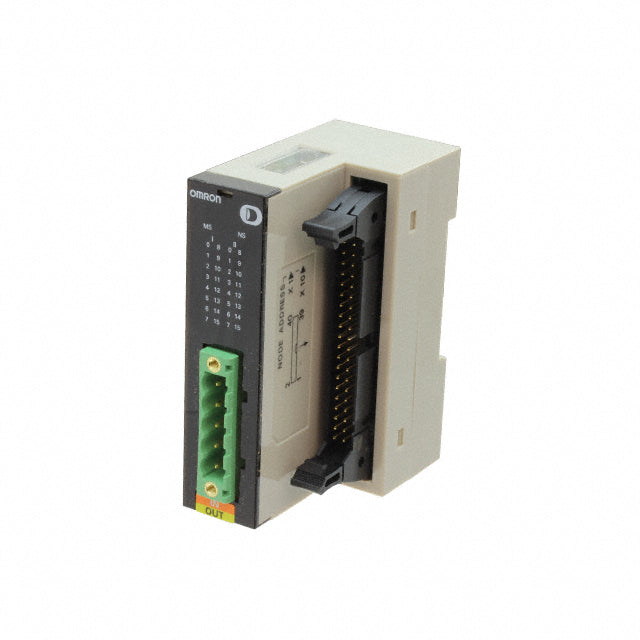

The Omron DRT2-MD32ML is a compact 32-point mixed I/O remote terminal designed for DeviceNet systems. Featuring an NPN configuration and a ribbon connector interface, it supports both inputs and outputs for flexible industrial automation control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
DRT2-MD32ML |
| Subcategory |
Mixed I/O Modules |
| Series |
DRT2 |
| Product Type |
Remote terminal |
| I/O Configuration |
32 mixed points |
| Output Type |
NPN |
| Connector Type |
Ribbon connector |
| Supply Voltage |
24 VDC |
| Power Consumption |
1.5 W |
| Communication Current Consumption |
6 mA |
| Output Current Capacity |
3 A total |
| Dimensions (W x D x H) |
35 × 60 × 80 mm |
| Mounting Mode |
DIN rail |
| Weight |
0.24 lbs |
Information About DRT2-MD32ML
The DRT2-MD32ML is part of Omron’s DRT2 series of high-density remote terminals, engineered to provide versatile mixed I/O functionality within a small footprint. It features 32 total I/O points in an NPN configuration, allowing a combination of input and output signals for greater application flexibility. The unit uses a ribbon connector interface, enabling quick connection to interface conversion boards, such as D-Sub types, for compatibility with a variety of devices. Operating at 24 VDC with a power consumption of only 1.5 W, it supports up to 3 A output capacity while maintaining a low 6 mA communication current draw, making it efficient for large-scale distributed control networks.
Key Features:
-
32 Mixed I/O Points: Supports both digital inputs and outputs in a single compact unit for flexible system design.
-
NPN Output Configuration: Provides reliable sinking output control for various industrial devices.
-
Ribbon Connector Interface: Allows quick connection to interface conversion boards for compatibility with multiple wiring formats.
-
Compact Housing: Measures only 35 × 60 × 80 mm for efficient use of control panel space.
-
Low Power Consumption: Operates at just 1.5 W with 24 VDC supply for energy-efficient performance.
-
High Output Capacity: Supports up to 3 A total output load for robust device control.
-
Low Communication Load: Requires only 6 mA communication current for efficient DeviceNet network operation.
-
DIN Rail Mounting: Enables easy installation and maintenance within control cabinets.
-
Lightweight Design: Weighs just 0.24 lbs for simple handling and installation.
The DRT2-MD32ML delivers the reliability and precision required for versatile mixed I/O management in distributed DeviceNet control systems.
