| Technical Specifications |

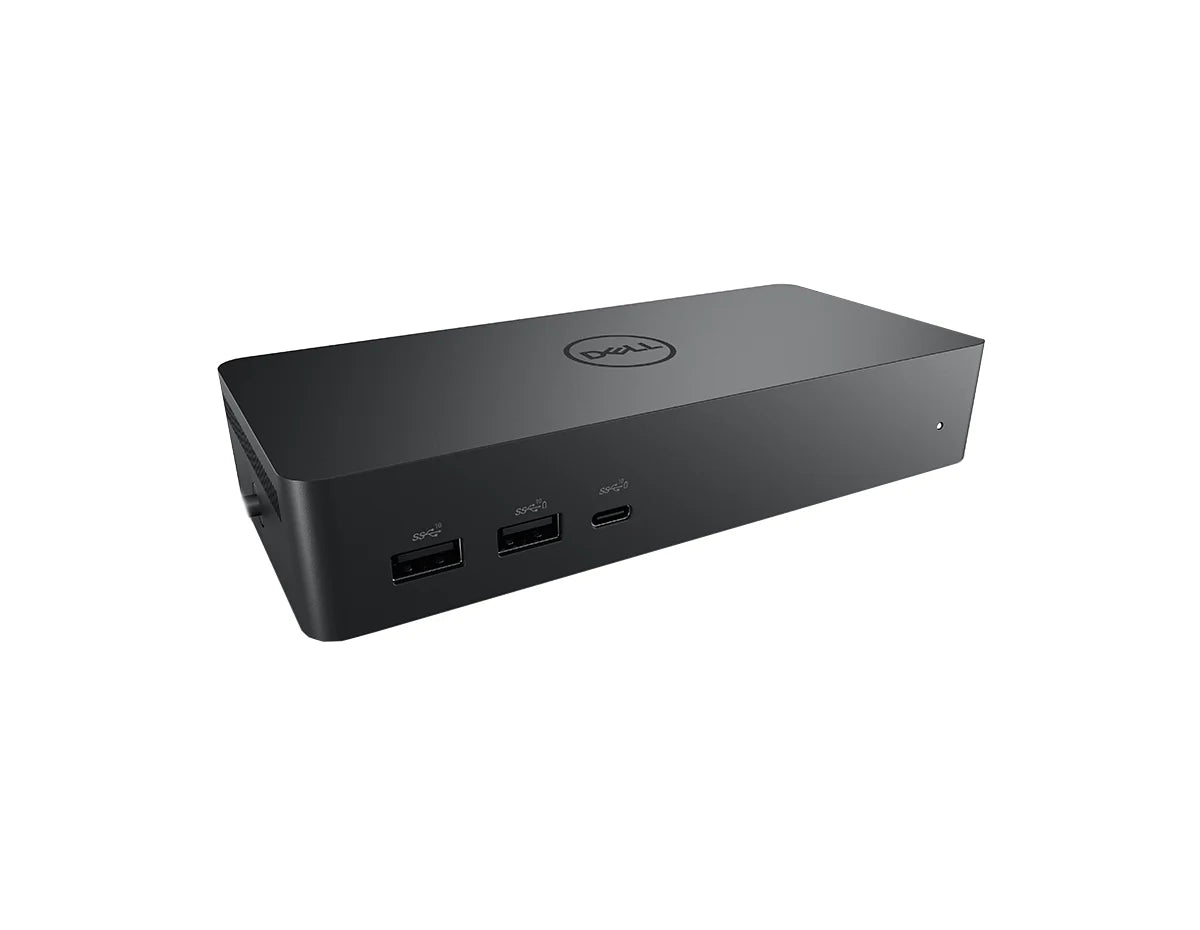

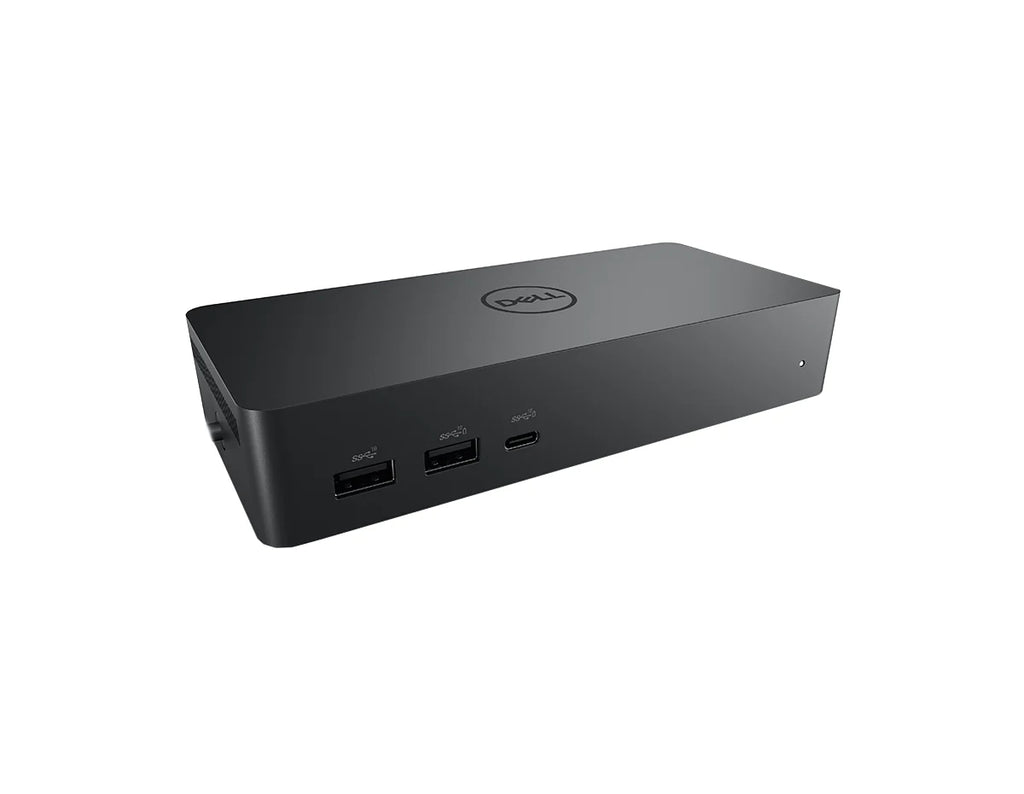

UD22 Universal Dock |
| Product Type |
Docking Station |
| Display Support with Dual USB-C input |
If PC has DisplayLink drivers installed:
For a HBR2* PC
2 x 4K @ 60Hz + 2 x FHD @60Hz
2 x 4K @ 60Hz + 1 x 4K @30Hz
For a HBR3 PC
2 x 4K @ 60Hz + 2 x QHD @60Hz
2 x 4K @ 60Hz + 1 x 4K @30Hz
For HBR3 PC (supporting Display Stream Compression)
4 x 4K @ 60Hz
If PC does not have DisplayLink drivers installed1:
For a HBR2 PC
2 x FHD @60Hz
1 x 4K @ 30Hz
For a HBR3 PC
2 x QHD @60Hz
2 x 4K @ 30Hz
For HBR3 PC (supporting Display Stream Compression)
2 x 4K @ 60Hz |
| Max Resolution |
5K @ 60Hz with HBR3 systems supporting
Display Stream Compression |

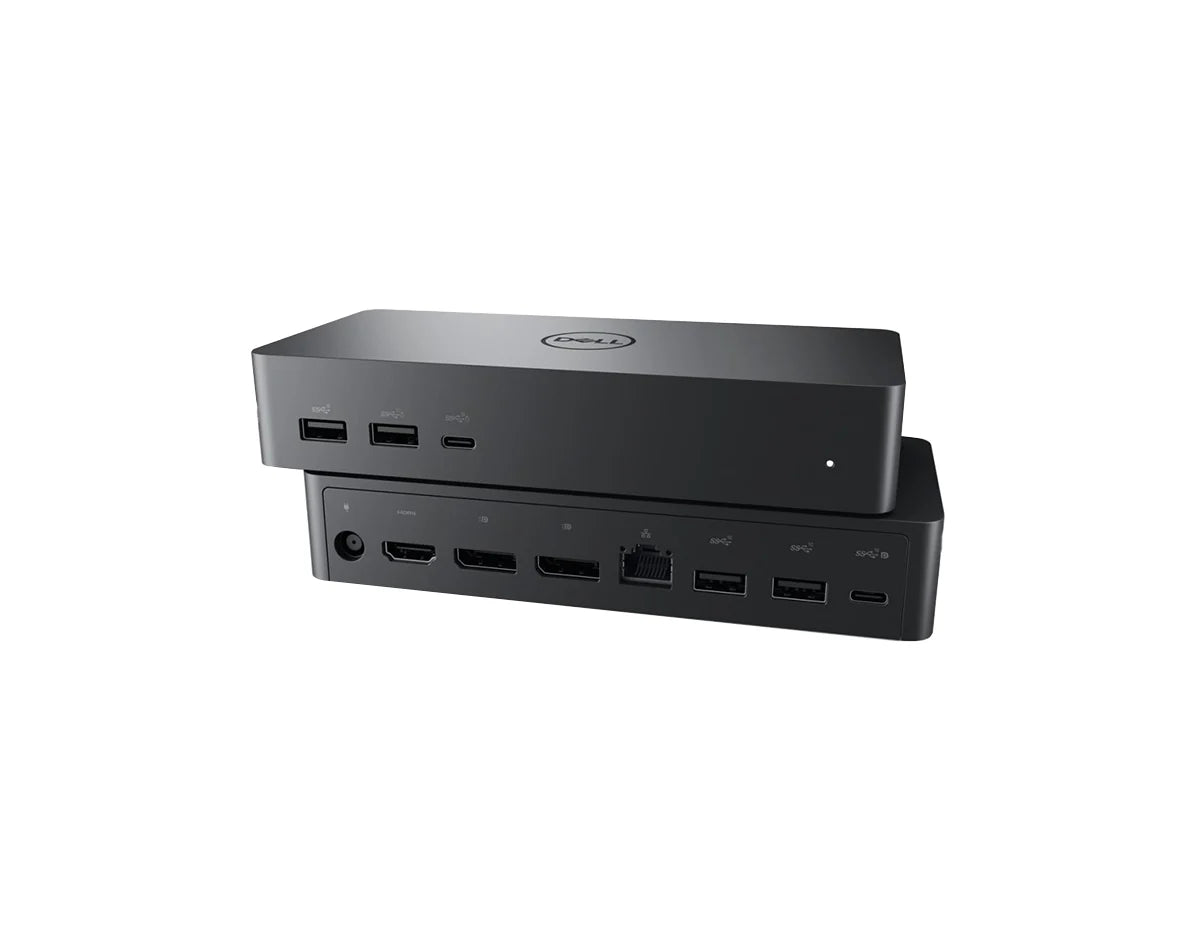

| Video interfaces |
1 x HDMI 2.0
2 x DP 1.2
1 x USB-C 3.2 Gen2 with DisplayPort 1.4 Alt Mode |
| USB Ports |
USB-A: 4 x USB 3.2 Gen 2 (1 with PowerShare)
USB-C: 1 x USB 3.2 Gen 2 with PowerShare; 1 x USB 3.2
Gen 2 with DisplayPort 1.4 Alt Mode |
| Networking |
Gigabit Ethernet |
| Security Slot Type (cable lock sold separately |
1 x Kensington security-cable slot
1 x Kensington nano lock slot |
| LED Indicators |
Power Adapter LED
Dock Status Indicator
RJ45 LEDs |
| Power |
Power Adapter 130 Watt AC with up to 96 Watt power delivery
to any USB-C Notebook |
| Dimensions |
6.53in x 2.99in x 1.26in |
| Dock Weight (without power adapter) |
416 g (0.92 lb) |
| Operating Systems |
Windows 10
Windows 11
Ubuntu 20.04 and later
Mac OS 12.2.1 and later
ChromeOS R100 and later |
| Systems Management |
Wireless vPro supported by the notebook, tablet, or
workstation
Kernel Direct Memory Access (DMA) protection |
| Docking Interface |
Type-C Connector |
| MAC Address |
Pass Through MAC Address |
| Management Features |
Wake-On-LAN3
MAC address pass-through |
[/specifications] [accesories] [/accesories]
Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
