[shortdesc]Short-depth 1U rack server powered by Intel Xeon Scalable processors, supporting DDR5 RDIMM, 4 x 25GbE SFP+ LOM, and a rugged edge design managed via iDRAC9.[/shortdesc]

[properties]

Brand	Dell Technologies
Model	PowerEdge XR5610
SKU	XR5610
Product Type	Edge server
Form Factor	1U rack server
Processor	One 5th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 16 cores per processor; one 4th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 32 cores per processor
Memory	8 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 5600 MT/s
Drive Bays	Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs max 30.72 TB
Embedded NIC	4 x 25 GbE SFP+ LOM
Cooling	Air cooling
Fans	6 Standard cold swap fans
Operating Temperature	-5C to 55C

[/properties]

[specifications]

Memory Type	Registered ECC DDR5 DIMMs only
Storage Controllers	Internal Controllers: PERC H965i, PERC H965e, PERC H755, PERC H355, HBA3551
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
External HBA	HBA355e
Software RAID	S160
Power Supplies	1800 W Titanium 200 to 240 VAC or 240 HVDC; 1400 W Platinum 100 to 240 VAC or 240 HVDC; 1100 W Titanium 100 to 240 VAC or 240 HVDC; 1100 W -48 to (-60) VDC; 800 W Platinum 100 to 240 VAC or 240 HVDC
Dimensions	Rear Accessed configuration: 42.8 mm x 482.6 mm x 400 mm ear to rear wall, 487.7 mm with bezel, 463 mm without bezel
Weight	Rear Accessed configuration: 11.27 kg (24.84 pounds)
Dimensions	Front Accessed configuration: 42.8 mm x 482.6 mm x 400 mm ear to rear wall, 566.05 mm with bezel, 472.7 mm without bezel
Weight	Front Accessed configuration: 11.37 kg (25.06 pounds)
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator
OpenManage Software	CloudIQ for PowerEdge plug in, OpenManage Enterprise, OpenManage Enterprise Integration for VMware vCenter, OpenManage Integration for Microsoft System Center, OpenManage Integration with Windows Admin Center, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	BMC Truesight, Microsoft System Center, OpenManage Integration with ServiceNow, Red Hat Ansible Modules, Terraform Providers, VMware vCenter and vRealize Operations Manager
Security	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Network Options	1 x OCP card 3.0, 2 x RAN DPU
Rear Accessed Front Ports	1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x USB 2.0

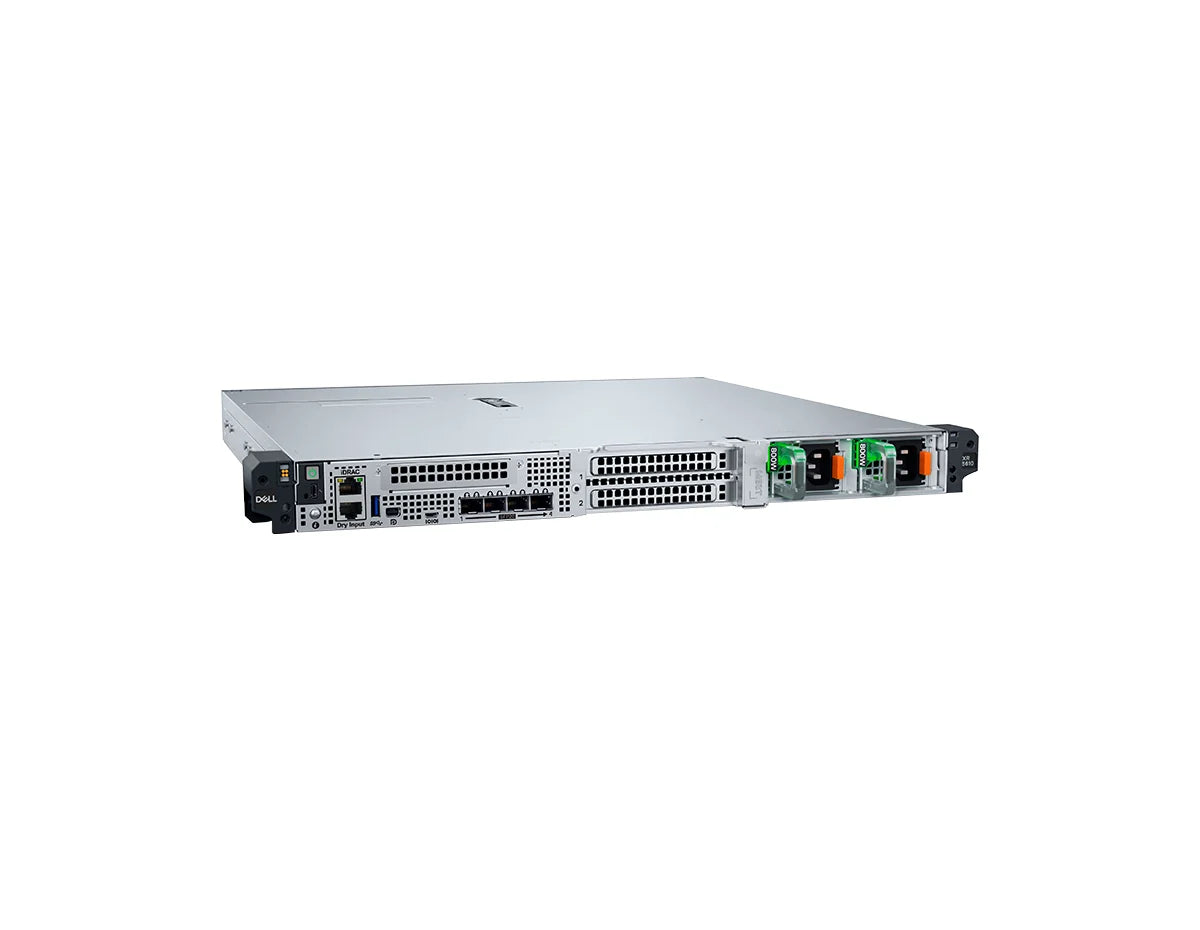

Rear Accessed Rear Ports	1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port, 1 x Mini-DisplayPort, 1 x RJ45 for dry contact, 4 x 25 GbE SFP+ LOM
Front Accessed Front Ports	1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port, 1 x Mini-DisplayPort, 4 x 25 GbE SFP+ LOM, 1 x RJ45 for dry contact
PCIe	1 CPU configuration: Up to 2 PCIe slots (2 x16 Gen5)
GPU	Up to 2 x 75 W GPUs (single-width, full-height, half-length)
Operating System and Hypervisors	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESX, Dell NativeEdge OS
Compliance	MIL 810H, NEBS Level 3 (SR3580), IEC 61850-3 compliant

[/specifications]

[accesories]

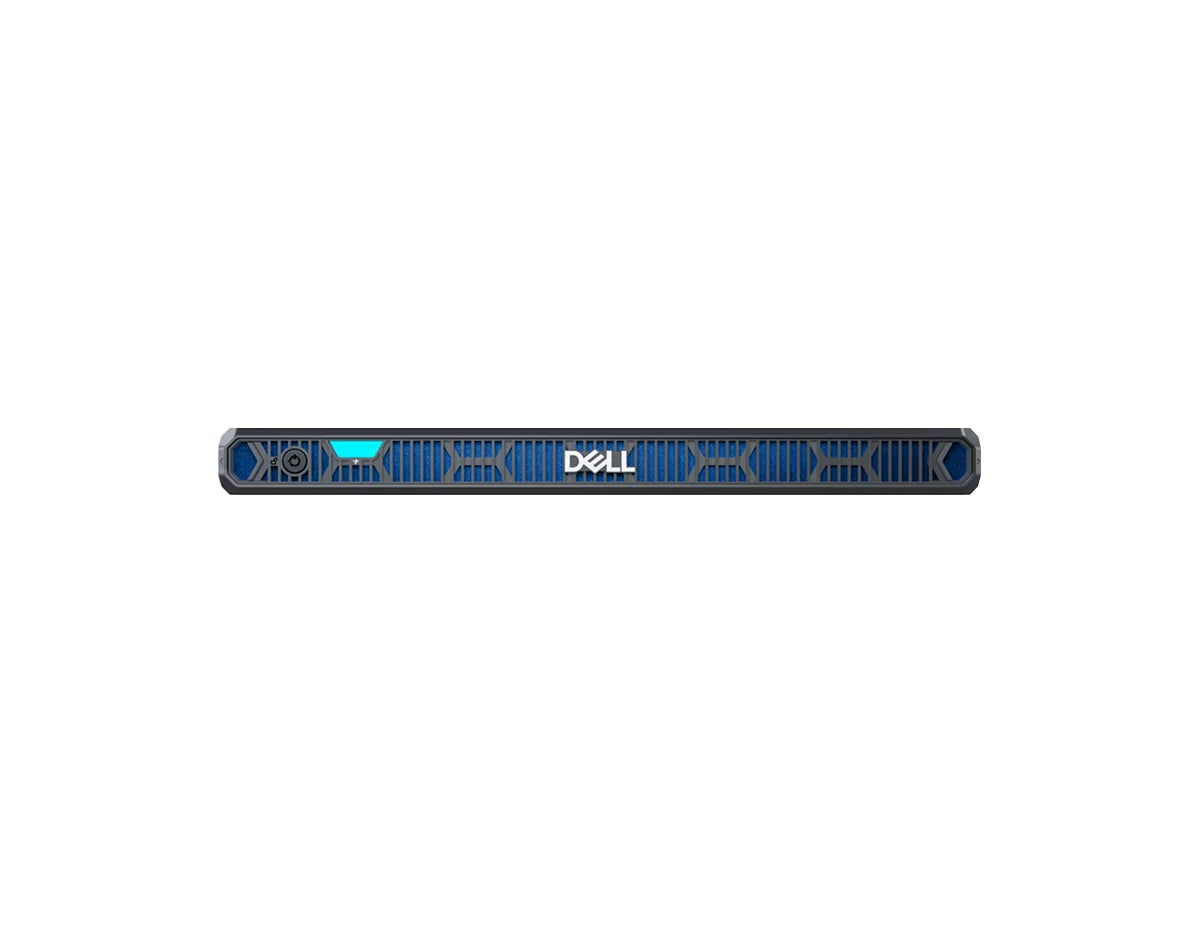

Compatible Accessories	Optional bezel or security bezel with dust filter
Optional Module	1 x OCP card 3.0
Optional Module	2 x RAN DPU

[/accesories]

Rugged 1U Compute for Edge Deployments

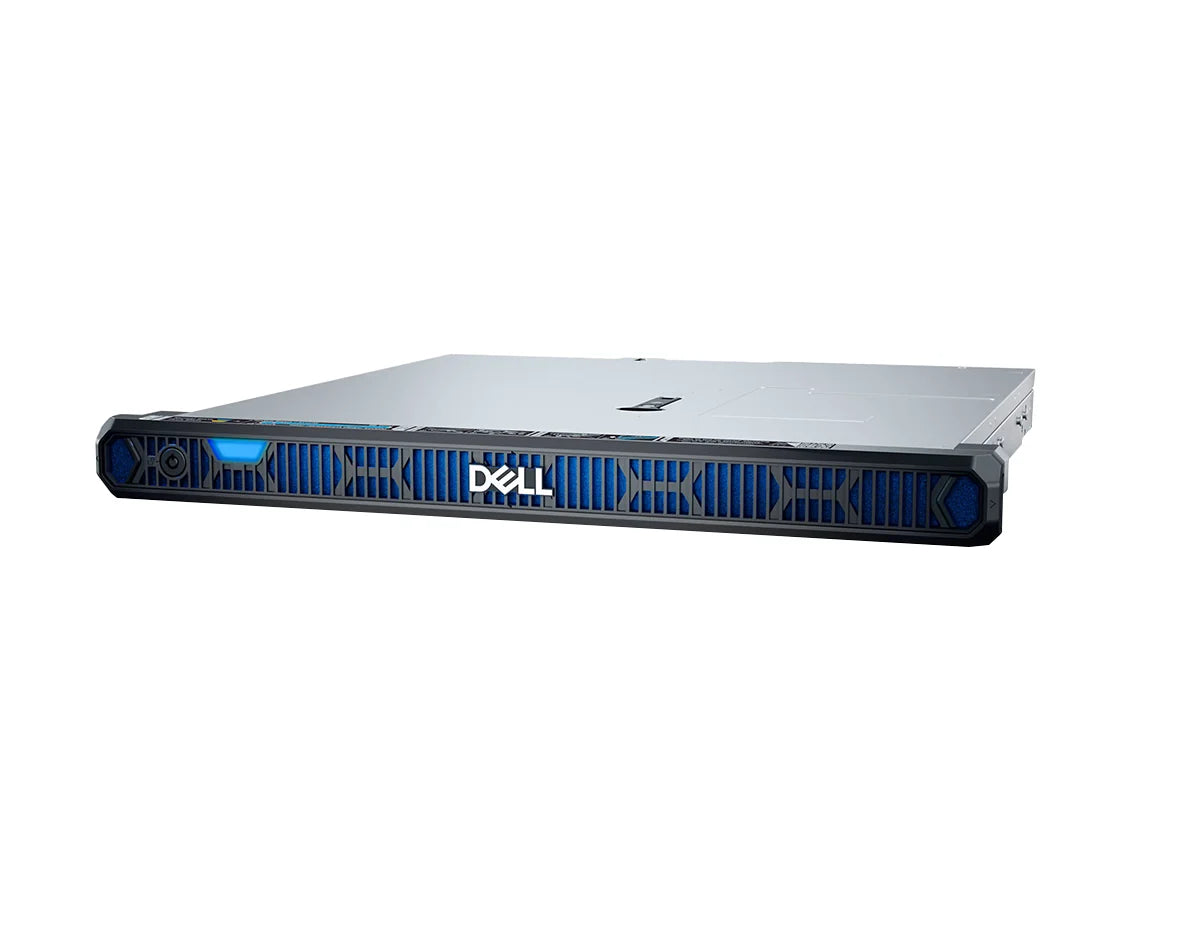

The Dell PowerEdge XR5610 is a short-depth 1U edge server designed for demanding telecom, defense, retail, manufacturing, and distributed IT environments. Built in a compact chassis, it supports high-performance compute at the edge while helping organizations deploy reliable infrastructure in space-constrained locations.

Key Benefits and Features

• Purpose-built 1U edge platform for telecom, retail, manufacturing, and military workloads.
• Supports Intel Xeon Scalable and Edge-Enhanced processors for edge compute performance.
• DDR5 RDIMM memory support helps increase bandwidth for demanding applications.
• Embedded 4 x 25GbE SFP+ LOM supports high-speed network connectivity.
• Rugged design supports operation in harsh and space-limited edge environments.

Ideal Use Cases

• Telco and 5G deployments including vRAN and ORAN workloads.
• Retail analytics, point of sale analytics, and video monitoring.
• IoT device aggregation and analytics in distributed locations.
• Military, defense, remote field operations, and reconnaissance support.
• Manufacturing edge applications that require compact rack infrastructure.

Technical Specifications

• Brand: Dell Technologies
• SKU: XR5610
• Product Type: 1U rack server
• Processor: One 5th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 16 cores, or one 4th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 32 cores
• Memory: 8 DDR5 DIMM slots, RDIMM support, 1 TB maximum, speeds up to 5600 MT/s
• Drive Bays: Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs, maximum 30.72 TB
• Embedded NIC: 4 x 25 GbE SFP+ LOM
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator
• Cooling: Air cooling with 6 standard cold swap fans
• PCIe: Up to 2 PCIe slots, 2 x16 Gen5 in 1 CPU configuration

Deploy Dell XR5610 Edge Performance with Confidence

Choose the Dell PowerEdge XR5610 for compact, ruggedized 1U compute designed for edge workloads where performance, serviceability, and network connectivity matter.
