[shortdesc]Intel Xeon 6 processors, NVIDIA HGX B300 NVL8 GPUs, liquid cooling, IR7000 rack, iDRAC10 management[/shortdesc]

[properties]

Brand	Dell Technologies
Model	PowerEdge XE9780L
SKU	XE9780L
Product Type	Server
Series	PowerEdge XE series
Rack	IR7000 required
Rack Height	3 OU compute node installed in IR7000 = 44 or 50 OU (Open Rack Units)
Processor	Two Intel Xeon 6 Processors with up to 86 cores per processor
Memory Capacity	32 DDR5 RDIMM slots (4 TB)
GPU	8 NVIDIA HGX B300 NVL8 270 GB 1100 W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology
Dimensions	140.5 mm (5.53 in.) H x 537 mm (21.14 in.) W x 1047.95 mm (41.26 in.) D for UBB, 889.65 mm (35.03 in.) D for HPM
Weight	107.2 kg (236.33 lb)

[/properties]

[specifications]

Internal Boot	Embedded BOSS: HWRAID 0/1, 2 x M.2 NVMe SSDs; Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 2 x M.2 SSDs
Embedded OSFP	B300: 8 x CX8 OSFP (default)
Drives	16 x E1.S (122.88 TB); 8 x U.2 NVMe + 2 x U.2 NVMe drives by PCIe CEM (307.2 TB)
Power Supplies	6 x 5500 W AC PSUs installed in the power shelf (33 kW)
Cooling Options	Liquid cooled CPUs, CX8, GPUs, and NVLink Switches
PCIe Slots	Up to 4 PCIe Gen5 x16 full-height, half-length slots
Network Options	1 x OCP NIC card 3.0 (x16 PCIe lanes)
Hot-swappable Fans	4 STD on UBB + 8 STD on HPM
Embedded Management	iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module
Tools	IPMI
OpenManage Integrations	Red Hat Ansible Modules, Terraform Providers
Integrated Security	Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (Hardware integrity check), Secure Erase, Silicon Root of Trust, System Lockdown, Soldered down TPM on Mezzanine DC-CSM, Chassis Intrusion Detection
Front Ports	1 x USB 3.0 Type-A port, 1 x Mini-DisplayPort, 1 x USB 2.0 Type-C port, 2 x RJ45 dedicated iDRAC Ethernet port
Internal Port	1 x USB 3.1 Type-A
Operating Systems	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux

[/specifications]

Liquid Cooled AI Compute for Dense Workloads

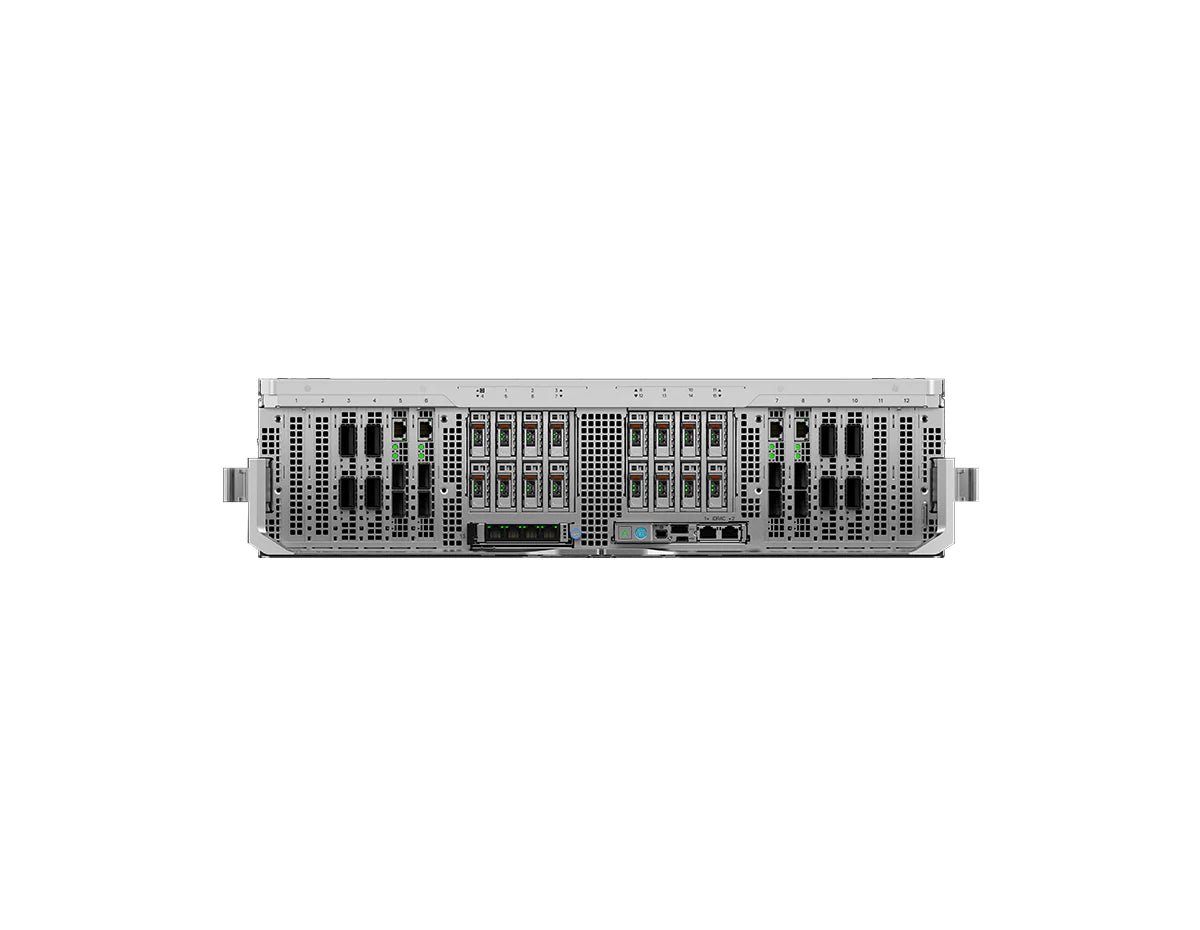

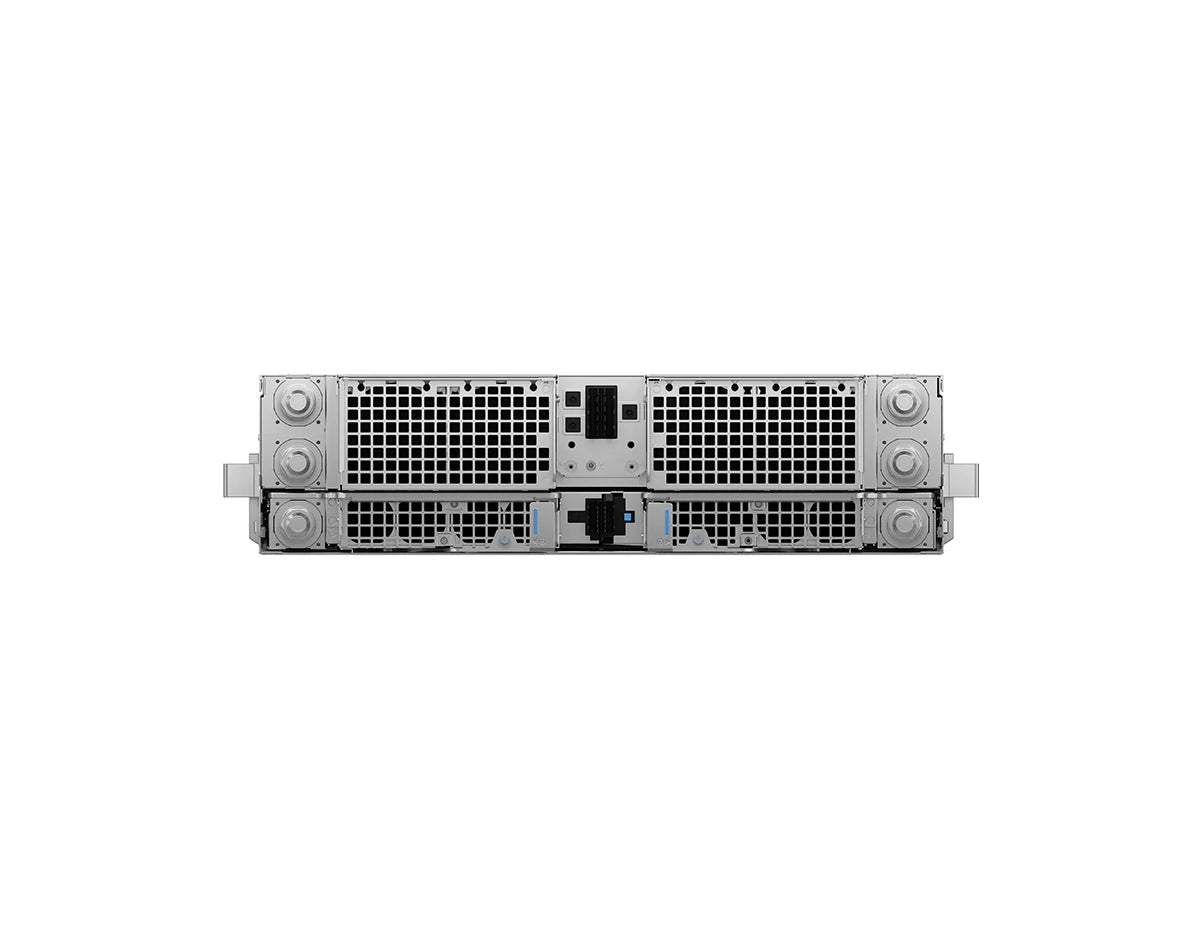

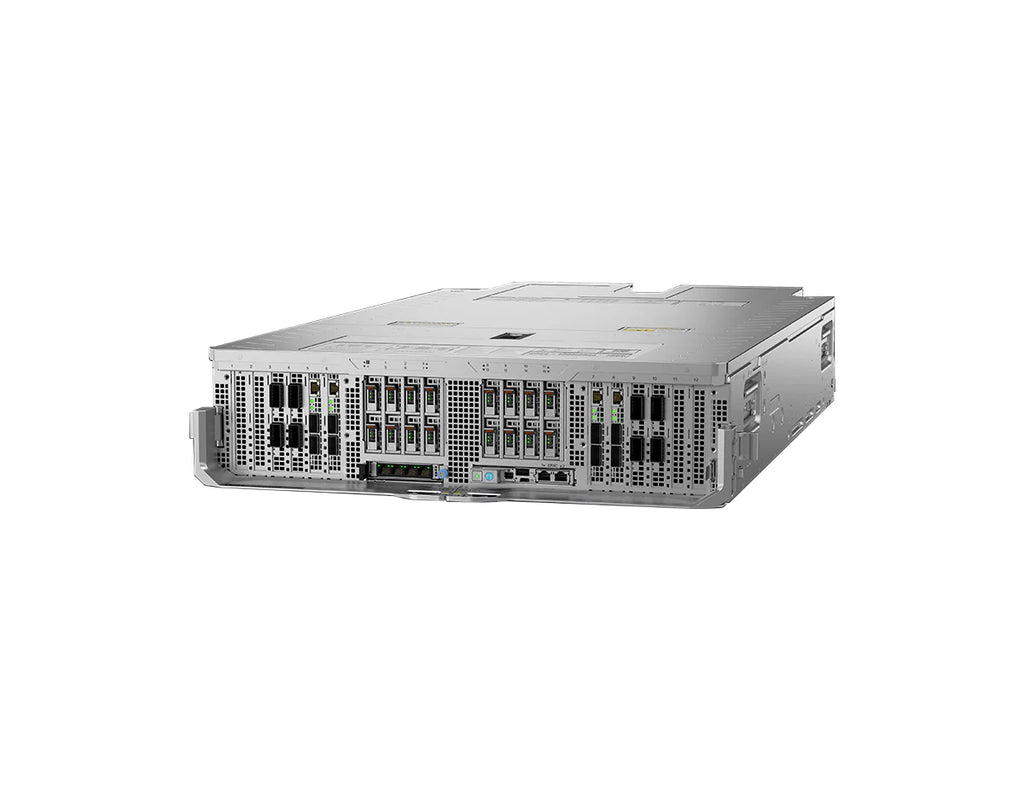

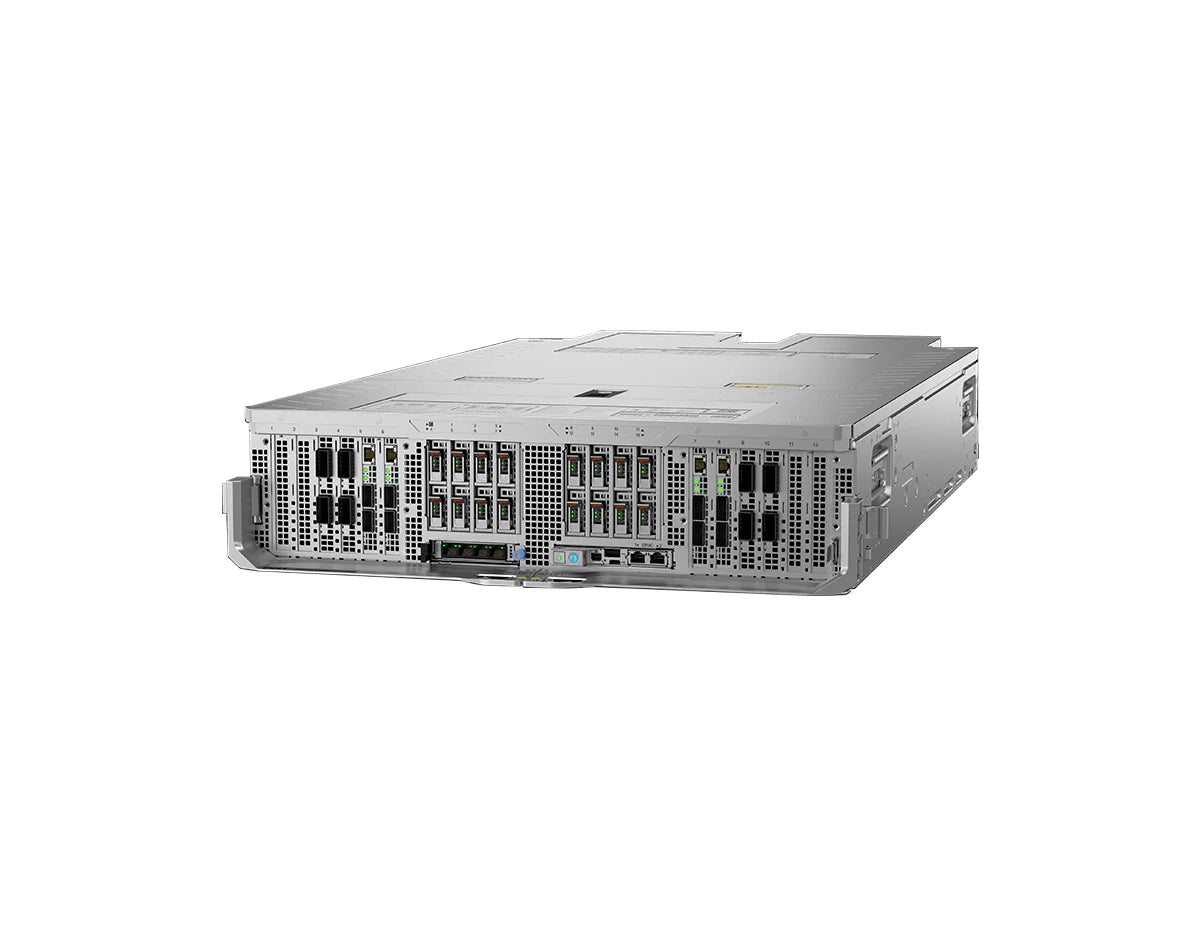

The Dell PowerEdge XE9780L is a high-density AI server built for demanding accelerated computing environments. It supports two Intel Xeon 6 processors, NVIDIA HGX B300 NVL8 GPUs, liquid cooling, and IR7000 rack deployment for scalable AI infrastructure.

Key Benefits and Features

• Designed for AI training, HPC, and data-intensive compute workflows.
• Supports 8 NVIDIA HGX B300 NVL8 270 GB SXM6 GPUs interconnected with NVIDIA NVLink technology.
• Uses liquid cooling for CPUs, CX8, GPUs, and NVLink switches.
• Includes iDRAC10 management with iDRAC Direct, Redfish API, RACADM CLI, and iDRAC Service Module.
• Supports Dell OpenManage integrations with Red Hat Ansible Modules and Terraform Providers.

Ideal Use Cases

• Enterprise AI model training infrastructure.
• GPU accelerated high-performance computing clusters.
• Dense data center environments using IR7000 rack architecture.
• Organizations standardizing on Dell PowerEdge remote management and automation tools.

Technical Specifications

• Brand: Dell
• Model: PowerEdge XE9780L
• Processors: Two Intel Xeon 6 processors with up to 86 cores per processor
• Memory Slots: 32 DDR5 RDIMM slots, up to 4 TB maximum capacity
• GPU Configuration: 8 NVIDIA HGX B300 NVL8 270 GB 1100 W SXM6 GPUs with NVIDIA NVLink technology
• Rack Requirement: IR7000 required
• Internal Boot: Embedded BOSS HWRAID 0/1 with 2 x M.2 NVMe SSDs or NVMe BOSS-N1 HWRAID with 2 x M.2 SSDs
• Drive Support: 16 x E1.S up to 122.88 TB, or 8 x U.2 NVMe plus 2 x U.2 NVMe drives by PCIe CEM up to 307.2 TB
• Power Supplies: 6 x 5500 W AC redundant hot-swap PSUs installed in the power shelf, 33 kW
• Operating Systems: Canonical Ubuntu Server LTS and Red Hat Enterprise Linux

Build Scalable AI Infrastructure with Dell XE9780L

Choose the Dell PowerEdge XE9780L for liquid cooled, GPU-dense AI compute in IR7000 rack environments. Contact us for availability, configuration guidance, and B2B pricing.
