[shortdesc] AMD EPYC 9005, 4U rack server, PCIe Gen5 GPU support, 3 TB DDR5, NVMe SSD storage [/shortdesc]

[properties]

Brand	Dell
Model	PowerEdge XE7745
SKU	XE7745
Product Type	Server
Series	PowerEdge XE series
Form Factor	4U
Processor	Two 5th Generation AMD EPYC™ 9005 Series processors with up to 192 cores per processor
Memory	24 DDR5 RDIMM slots, up to 3 TB
Dimensions	174.3 mm x 482 mm x 899.56 mm with bezel
Weight	68.5 Kg (151.02 lb)

[/properties]

[specifications]

GPU Support	8x PCIe Gen 5 x16 DW-FHFL up to 600 W or 16x PCIe Gen 5 x16 SW-FHFL up to 75 W
Supported GPUs	NVIDIA RTX Pro™ 6000 Blackwell Server Edition, NVIDIA H200 NVL, NVIDIA H100 NVL, NVIDIA L40S, NVIDIA L4
Internal Boot	BOSS-N1: HWRAID 1, 2 x M.2 NVMe SSDs
Drives	8 x 2.5” NVMe/SAS/SATA SSDs, up to 122.88 TB
Power Supplies	3200 W Titanium 200-240 VAC or 240 VDC, 3200 W Titanium 277 VAC or 336 VDC, 2400 W Titanium 200-240 VAC or 240 VDC
Cooling	Air cooling
PCIe Slots	Up to 8 PCIe Gen5 x16 SW-FHHL cards, each up to 150 W
Network Options	1 x OCP NIC card 3.0 (x8 PCIe lanes)
Fans	4 sets HPR in mid tray + 12 HPR on the front
Embedded Management	iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, RACADM CLI
Front Ports	1 x USB 2.0 Type-A optional, 1 x Mini-Display port optional, 1 x USB 2.0 Type-C dual mode Host/iDRAC Direct port
Rear Ports	1 x Dedicated iDRAC/BMC Direct Ethernet port, 2 x USB 3.1 Type-A port, 1 x VGA
Internal Ports	1 x USB 3.1 Type-A
Operating Systems	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

[/specifications]

Built for Dense AI and GPU Acceleration

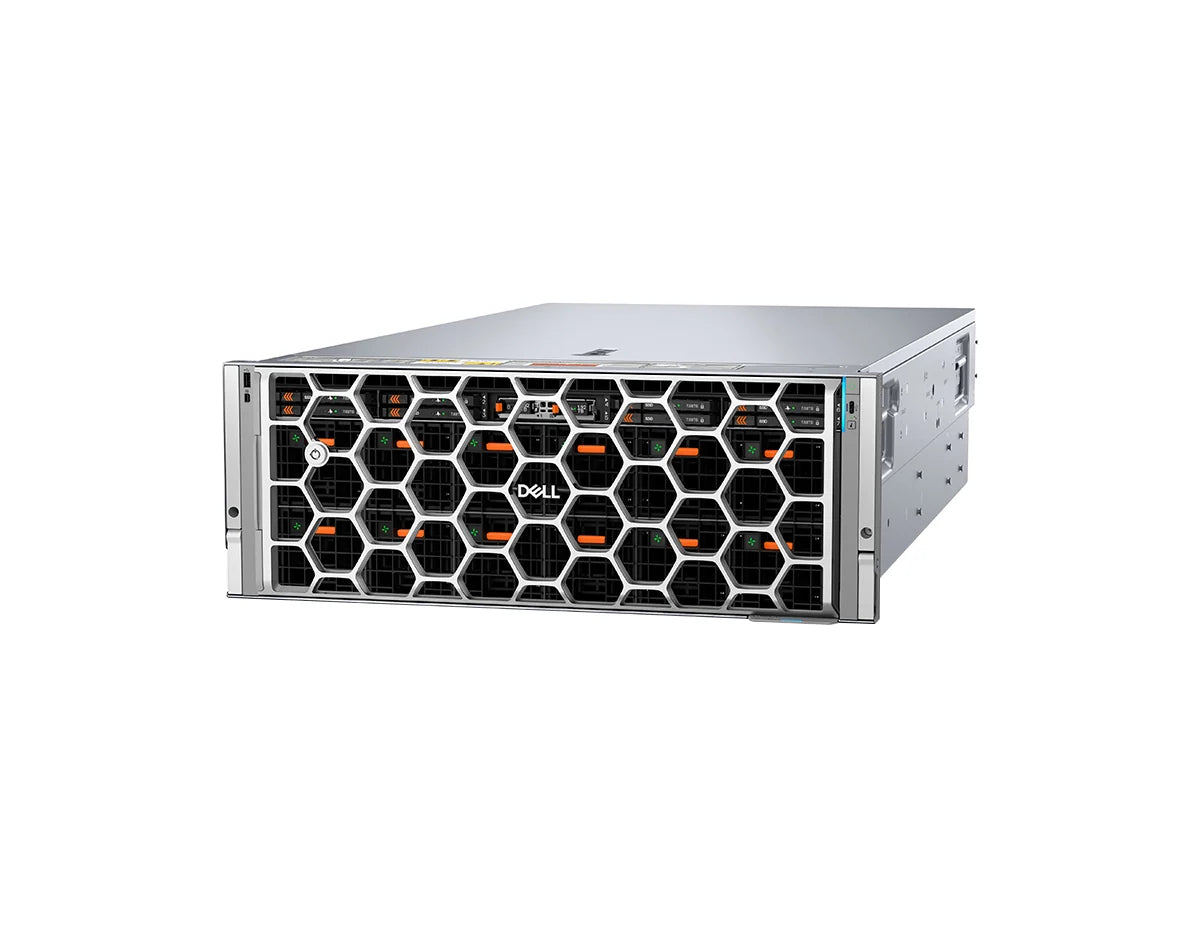

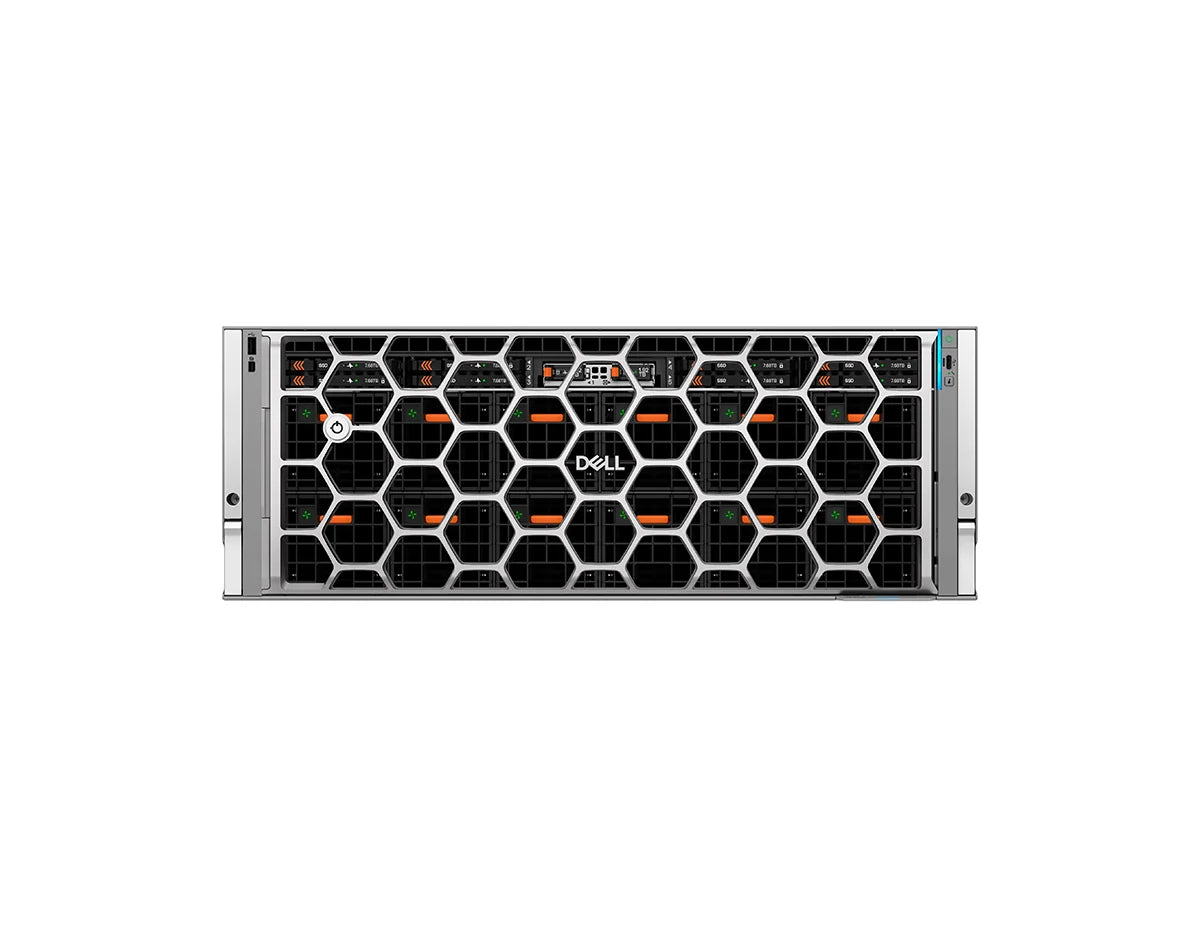

The Dell PowerEdge XE7745 is a 4U rack server designed for demanding AI, HPC, and accelerated computing environments. It supports two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor and high-density PCIe Gen5 GPU configurations.

Key Benefits and Features

• Supports up to 8 double-width PCIe Gen5 x16 GPUs up to 600 W.
• Supports up to 16 single-width PCIe Gen5 x16 GPUs up to 75 W.
• Designed with air cooling and hot-swappable HPR fan architecture.
• Includes iDRAC10 management with RESTful API and Redfish support.
• Supports OpenManage Enterprise and automation integrations.

Ideal Use Cases

• AI model training and accelerated computing workloads.
• High-performance computing environments.
• GPU-dense rack deployments for enterprise data centers.
• Linux and VMware-based infrastructure requiring scalable compute.

Technical Specifications

• Brand: Dell
• Model: PowerEdge XE7745
• Processor Support: Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor
• Memory: 24 DDR5 RDIMM slots with up to 3 TB maximum capacity
• GPU Support: 8x PCIe Gen5 x16 DW-FHFL up to 600 W or 16x PCIe Gen5 x16 SW-FHFL up to 75 W
• Internal Boot: BOSS-N1 HWRAID 1 with 2 x M.2 NVMe SSDs
• Drive Support: 8 x 2.5 inch NVMe, SAS, or SATA SSDs up to 122.88 TB
• Rack Height: 4U
• Management: iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, RACADM CLI
• Operating Systems: Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Configure Dell PowerEdge XE7745 for Your AI Infrastructure

Choose the Dell PowerEdge XE7745 for GPU-dense enterprise compute where AMD EPYC processing, PCIe Gen5 expansion, and rack-ready 4U deployment are required.
