[shortdesc] 2U dual-socket rack server powered by Intel Xeon 6 processors, supporting up to 32 DDR5 DIMMs, versatile EDSFF E3.S Gen5 NVMe storage arrays [/shortdesc]

[properties]

Brand	Dell
Model	PowerEdge R770
SKU	R770
Product Type	Rack Server
Series	PowerEdge
Form Factor	2U rack server
Processor	Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory Capacity	32 DDR5 DIMM slots, supports RDIMM up to 8 TB maximum
Memory Speed	Up to 6400 MT/s
Power Configurations	Hot-swap Platinum/Titanium redundant power supplies
Dimensions	Height: 86.8 mm (3.42"), Width: 482 mm (18.97")
Weight	28.53 kg (62.89 lb)

[/properties]

[specifications]

Memory Type	Supports registered ECC DDR5 DIMMs only
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
Internal Controllers	Front PERC H9651, Front PERC H9751, Front PERC H3651
Drive Bays (Front/Rear)	- Up to 40 x EDSFF E3.S Gen5 NVMe (Max 2457.6 TB) - Up to 32 x EDSFF E3.S Gen5 NVMe (Max 1966.08 TB) - Up to 16 x EDSFF E3.S Gen5 NVMe (Max 983.04 TB) - Up to 8 x EDSFF E3.S Gen5 NVMe (Max 491.52 TB) - Up to 24 x 2.5-inch SATA (Max 92.16 TB) - Up to 16 x 2.5-inch SATA + 8 x 2.5-inch NVMe (Max 552.96 TB) - Up to 16 x 2.5-inch SATA (Max 61.44 TB) - Up to 8 x 2.5-inch Universal (Max 491.52 TB) - Up to 8 x 2.5-inch SATA/NVMe (Max 491.52 TB) - Rear: Up to 4 x EDSFF E3.S Gen5 NVMe (Max 245.76 TB)
Power Supplies	- 3200 W Titanium 200-240 VAC or 240 VDC - 3200 W 277 VAC and 336 HVDC Titanium - 2400 W Titanium 100-240 VAC or 240 VDC - 1800 W HLAC Titanium 200-240 VAC or 240 VDC - 1500 W Titanium 100-240 VAC or 240 VDC - 1500 W 277 VAC and 336 HVDC Titanium - 1100 W Titanium 100-240 VAC or 240 VDC - 1100 W Platinum 100-240 VAC or 240 VDC - 800 W Titanium 100-240 VAC or 240 VDC - 800 W Platinum 100-240 VAC or 240 VDC - 1400 W -48VDC
Cooling Options	Air cooling and Direct Liquid Cooling (DLC requires rack manifolds and a cooling distribution unit)
Fans	High performance Silver (HPR SLVR) fans or High performance Gold (HPR GOLD) fans; up to 6 hot-swappable fans
Embedded Management	iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module (ISM), Quick Sync 2 wireless module, NativeEdge Endpoint, NativeEdge Orchestrator
Security Features	Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secured Component Verification (Hardware integrity check), Silicon Root of Trust, System Lockdown, Chassis Intrusion Detection, TPM 2.0 FIPS, CC-TCG certified
Network Options	OCP NIC card 3.0: Two slots on the front or two slots on the rear
BOSS Slot	Slot 34: Front BOSS slot OR Slot 6: Rear BOSS slot
GPU Options	Up to 6 x 75 W FHHL or up to 2 x 450 W DWFL
DPU Options	NVIDIA BlueField-3 2x200 GbE B3220, NVIDIA BlueField-3 1x400 GbE B3140H
Front Ports	1 x USB 2.0 Type C port, 1 x Dedicated ethernet port for iDRAC management
Rear Ports	1 x USB 3.1 Type A port, 1 x Dedicated ethernet port for iDRAC management, 1 x VGA, 2 x USB 3.0 Type A ports, 1 x DB9 Serial (available with front I/O configuration)
Internal Ports	1 x USB 2.0 Type A port (optional), 1 x Mini-DisplayPort (optional)
PCIe Expansion	Up to two PCIe slots (x16 connectors) on front Riser OR up to eight PCIe slots (x8 and x16 connectors)
Operating Systems & Hypervisors	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V (P-Core only), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Dell NativeEdge OS

[/specifications]

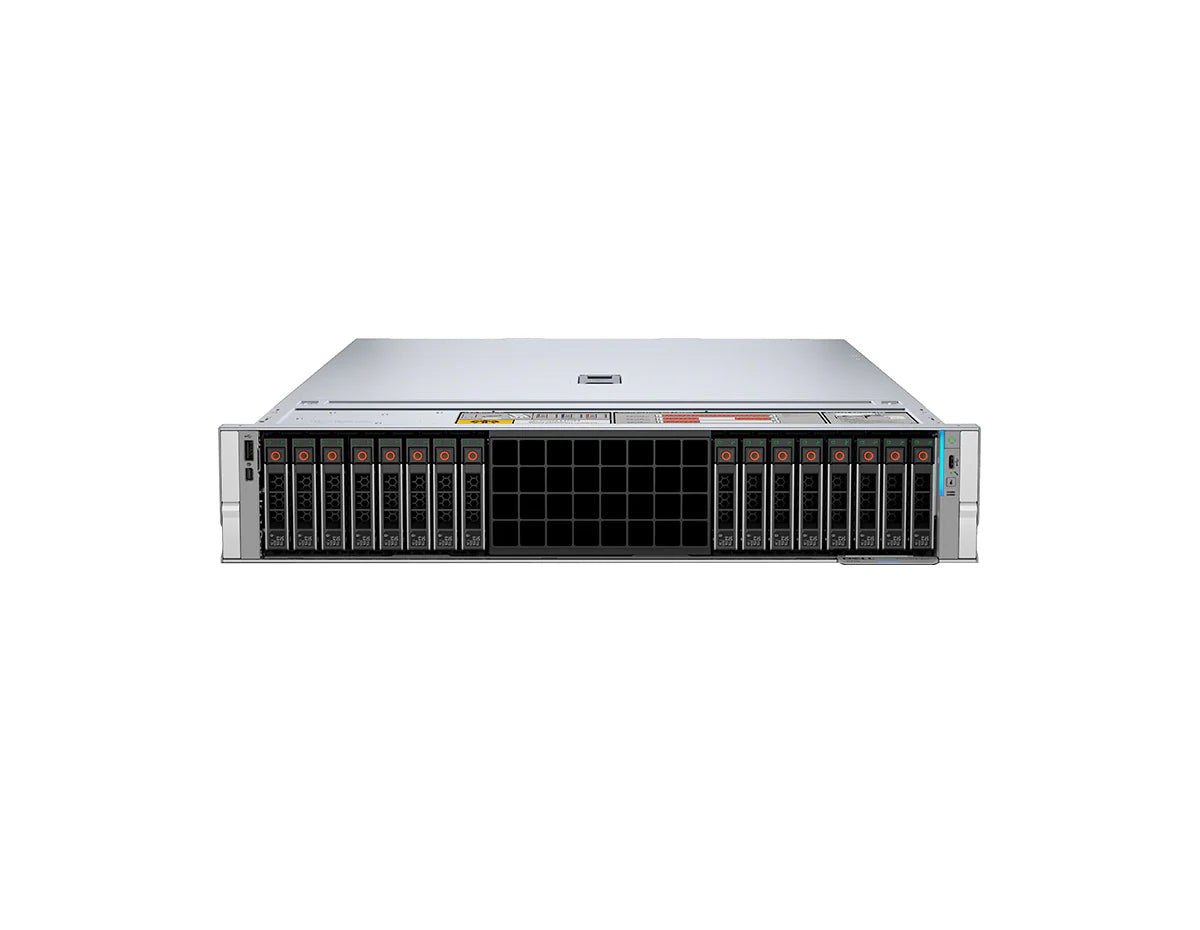

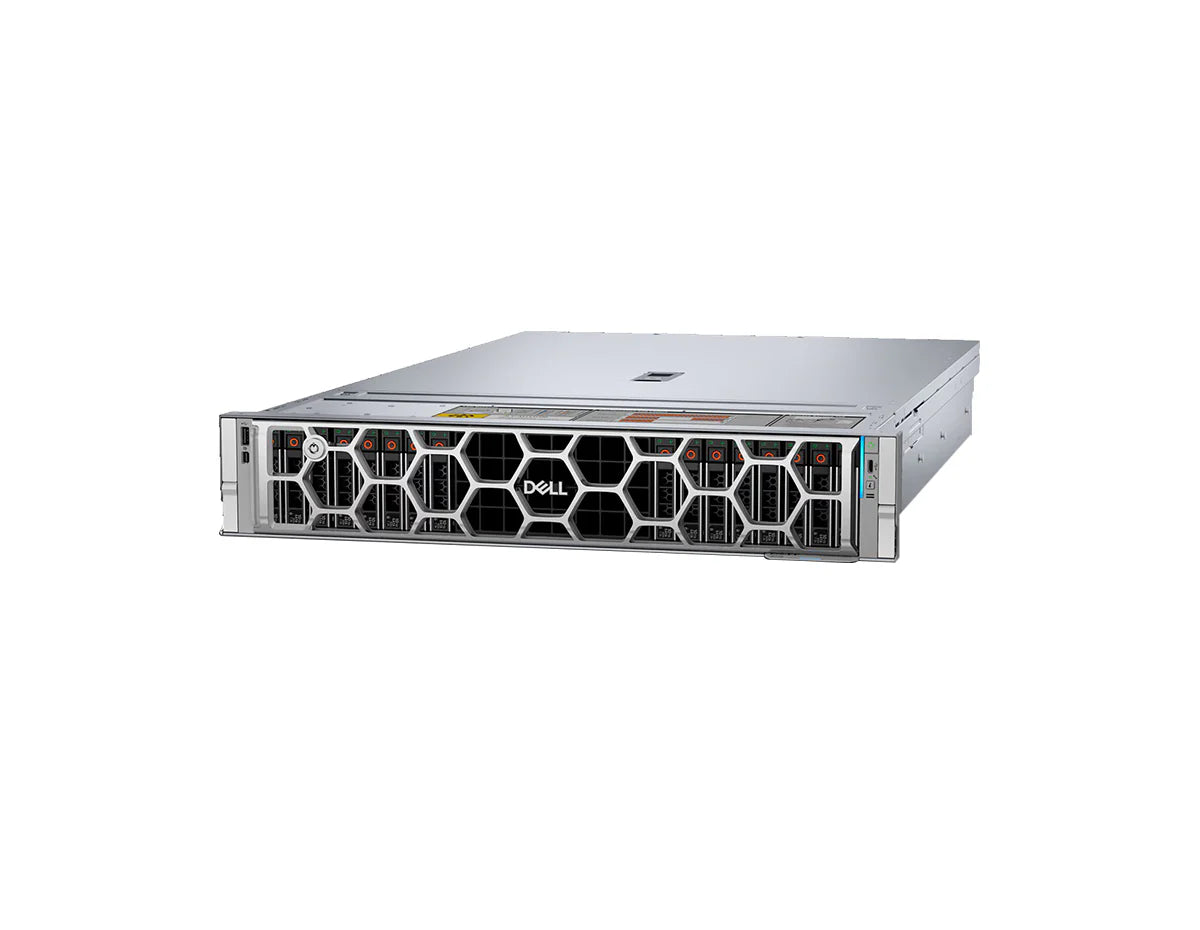

Dell PowerEdge R770 for Dense Enterprise Compute

The Dell PowerEdge R770 is a 2U dual-socket rack server engineered for next-generation enterprise data centers demanding extreme performance, advanced power efficiency, and balanced scale out resource allocation. Powered by dual Intel Xeon 6 processors, high-frequency DDR5 architecture, and scalable EDSFF Gen5 NVMe storage arrays, the R770 drives complex workloads seamlessly across virtualization, machine learning/AI inferencing, cloud-native deployments, and massive databases.

Key Benefits and Features

• Intel Xeon 6 Architecture: Accommodates up to two Intel Xeon 6 processors with up to 144 E-cores or 86 P-cores per processor for workload-optimized processing.
• Next-Gen Density & Thermal Efficiency: Available in rear I/O hot-aisle and front I/O cold-aisle layouts, reducing facility maintenance while maximizing airflow via Smart Power and Cooling tech.
• Massive Memory Footprint: 32 DDR5 DIMM slots supporting up to 8 TB RDIMM max with operational speeds climbing to 6400 MT/s.
• High-Performance Storage Options: Fully configurable for high-capacity EDSFF E3.S Gen5 NVMe links or standard 2.5-inch configurations, pushing system local data throughput limits.
• Autonomous Systems Management: Leverages the OpenManage ecosystem and integrated iDRAC systems for comprehensive, Zero Trust-secured infrastructure deployments.

Ideal Use Cases

• Virtualized enterprise environments and hypervisors
• Artificial Intelligence (AI) and Machine Learning inferencing workloads
• Containerized cloud-native applications
• Hyperscale database computing and big data nodes
• Scale-out corporate relational databases

Technical Specifications Summary

• Brand: Dell
• Model: PowerEdge R770
• Form Factor: 2U rack server
• Processor Support: Dual Intel Xeon 6 processors with E-core or P-core varieties
• Memory Infrastructure: 32 DDR5 RDIMM slots, 8 TB max, up to 6400 MT/s speeds
• Memory Safeguards: Registered ECC DDR5 DIMMs only
• Storage Interconnects: EDSFF E3.S Gen5 NVMe, 2.5-inch Universal bays, and backplane-free versions
• Systems Control: iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module, and NativeEdge Endpoint/Orchestrator integration
• Cooling Infrastructure: Smart Air Cooling and Direct Liquid Cooling (DLC) architectures
• Hardware Acceleration Support: Up to 6 x 75 W FHHL or up to 2 x 450 W DWFL GPU accelerators alongside NVIDIA BlueField-3 DPUs

Deploy Scalable Dell PowerEdge Performance

Opt for the Dell PowerEdge R770 to deliver dense 2U compute clusters, extensive hardware accelerator expansions, modern DDR5 parity, and integrated infrastructure security for your high-performance enterprise deployments.
