Description

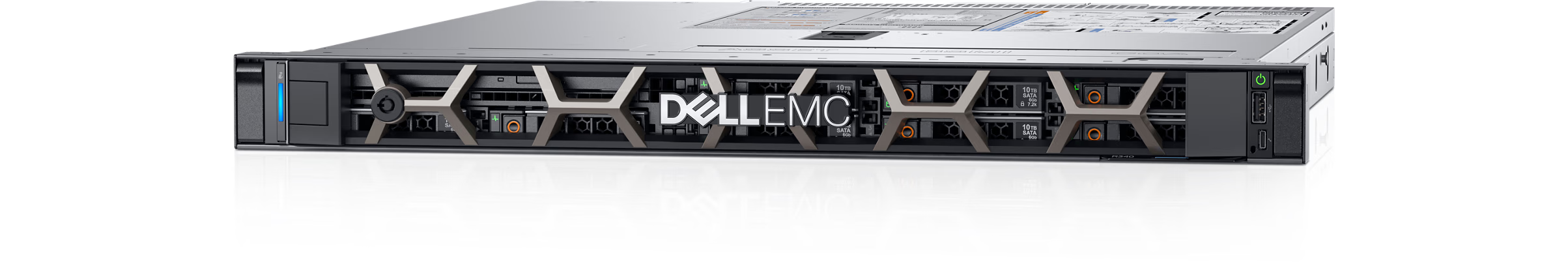

Cloud Ninjas' Dell PowerEdge R340 Specifications
Chassis
The Dell PowerEdge R340 server is perfect for automation. This 1U rackmount server has two different chassis options to choose from: 4 Bay LFF and 8 Bay SFF.
4 Bay LFF
The 4 Bay LFF chassis for the PowerEdge R340 supports up to four 3.5 SAS/SATA drives. 2.5" HDDs and SSDs can be plugged into the backplane via a 2.5" to 3.5" drive adapter. This chassis supports hot swap drives, meaning that drives can be installed or removed while the system is powered on. The rear of the chassis consist of one low-profile PCIe slot, one full-height PCIe slot, a serial connector, a VGA port, a dedicated iDRAC LAN port, two 1GbE RJ45 LAN ports, two type A USB 3.0 ports, and two hot-swap power supply bays.
8 Bay SFF
The 8 Bay SFF chassis is nearly identical to the 4 Bay LFF chassis, however the 8 Bay SFF supports up to eight 2.5" SAS/SATA hard drives or solid-state drives. The rear of the 8 Bay SFF chassis is the exact same as the 4 Bay LFF, and includes one low-profile PCIe slot, one high-profile PCIe slot, a serial connector, a VGA port, a dedicated iDRAC LAN port, two 1GbE RJ45 LAN ports, two USB type A USB 3.0 ports, and two hot-swap power supply bays.
Processing Power
The Dell PowerEdge R340 server has a single CPU socket that accepts Intel Xeon E-2100, Intel Xeon E-2200, Intel Pentium, Intel Core i3, or Intel Celeron processors. A maximum of 8 CPU cores are supported.
Supported Intel Xeon E-2100 Processors
| CPU | Step Code | Cores | Frequency | Cache |
|---|---|---|---|---|
| E-2104G | SR3WV | 4 | 3.2 GHz | 8 MB |
| E-2124 | SR3WQ | 4 | 3.3 GHz | 8 MB |
| E-2124G | SR3WL | 4 | 3.4 GHz | 8 MB |
| E-2126G | 6 | 3.3 GHz | 12 MB | |
| E-2134 | SR3WP | 4 | 3.5 GHz | 8 MB |
| E-2136 | SR3WW | 6 | 3.3 GHz | 12 MB |
| E-2144G | SR3WM | 4 | 3.6 GHz | 8 MB |
| E-2146G | SR3WT | 6 | 3.5 GHz | 12 MB |
| E-2174G | SR3WN | 4 | 3.8 GHz | 8 MB |
| E-2176G | SR3WS | 6 | 3.7 GHz | 12 MB |
| E-2186G | SR3WR | 6 | 3.8 GHz | 12 MB |
Supported Intel Xeon E-2200 Processors
| CPU | Step Code | Cores | Frequency | Cache |
|---|---|---|---|---|
| E-2224 | SRFAV | 4 | 3.4 GHz | 8 MB |
| E-2224G | SRFAW | 4 | 3.5 GHz | 8 MB |
| E-2226G | SRF7F | 6 | 3.4 GHz | 12 MB |
| E-2234 | SRFAX | 4 | 3.6 GHz | 8 MB |
| E-2236 | SRF7G | 6 | 3.4 GHz | 12 MB |
| E-2244G | SRFAY | 4 | 3.8 GHz | 8 MB |
| E-2246G | SRF7N | 6 | 3.6 GHz | 12 MB |
| E-2274G | SRFDE | 4 | 4.0 GHz | 8 MB |
| E-2276G | SRF7M | 6 | 3.8 GHz | 12 MB |
| E-2278G | SRFB2 | 8 | 3.4 GHz | 16 MB |
| E-2286G | SRF7C | 6 | 4.0 GHz | 12 MB |
| E-2288G | SRFB3 | 8 | 3.7 GHz | 16 MB |
Supported Intel Core i3 Processors
| CPU | Step Code | Cores | Frequency | Cache |
|---|---|---|---|---|
| i3-8100 | 4 | 3.6 GHz | 6 MB | |
| i3-9100 | 4 | 3.60 GHz | 6 MB |
Supported Intel Celeron/Pentium Processors
| CPU | Step Code | Cores | Frequency | Cache |
|---|---|---|---|---|
| Celeron G4900 | 2 | 3.10 GHz | 2 MB | |
| Celeron G4930 | 2 | 3.20 GHz | 2 MB | |
| Pentium G5420 | 2 | 3.80 GHz | 4 MB | |
| Pentium G5500 | 2 | 3.80 GHz | 4 MB |
Memory
DIMM Slots & Channels
The Dell PowerEdge R340 Server has a total of 4 DIMM slots. There is a total of two memory channels, each consisting of two DIMM slots.
Memory Types & Module Capacities
This system accepts DDR4 memory. ECC Unbuffered (ECC UDIMM) memory is the only type of memory that can be used with the R340. Capacities of 4GB, 8GB, and 16GB can be used with the PowerEdge R340.
Max Configurations
The R340 server allows for a maximum memory configuration of 64GB with 4x16GB ECC UDIMMs.
Supported Memory Speeds
The Dell R340 supports memory speeds of 2133MT/s, 2400MT/s, 2666MT/s. The processor you have installed will determine the max memory speed that you can use with your system. For example, if your processor supports a max memory speed off 2400MT/s and you install a 2666MT/s module, the module will clock down to 2400MT/s. 2666MT/s is the fastest possible speed for this system.
Storage
Supported Drives (2.5”)
| Type | Speeds | Max Capacity (Per Drive) |
|---|---|---|
| SAS | 7.2K, 10K, 15K | 2.4TB |
| SATA | 7.2K | 2TB |
| SSD | 6Gb/s, 12Gb/s | 7.68TB |
Supported Drives (3.5")
| Type | Speeds | Max Capacity (Per Drive) |
|---|---|---|
| SAS | 7.2K | 18TB |
| SATA | 7.2K | 16TB |
| SSD | 6Gb/s, 12Gb/s | 7.68TB |
Power Supplies
How Many Power Supplies does the R340 Support?
The PowerEdge R340 server supports up to two hot-swap power supply units (PSUs). Hot-swap means that PSUs can be removed or added while the system is powered on as long a one unit remains plugged in the system.
Power Supply Options
There are two power supply options for the PowerEdge R340: Platinum 350W and Platinum 550W. For higher-end applications, it is best to go with the 550W option. For lower-end applications, the 350W option is fine.
RAID Options
| RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
|---|---|---|---|---|---|
| S140 onboard software | 0,1,5,10 | None | 6 Gb/s SATA/NVMe | N/A | Software |
| HBA330 | Passthrough | None | 6 Gb/s SAS/SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
| 12Gbps SAS Ext. HBA | Passthrough | None | 12 Gb/s SAS | PCIe 3.0 | Hardware |
| H330 | 0, 1, 5, 10, 50 | None | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
| H730P | 0, 1, 5, 6, 10, 50, 60 | 2 GB NV | 6 Gb/s SATA 12 Gb/s SAS |
PCIe 3.0 | Hardware |
Network Interface Card Options
Daughter Cards
| Broadcom 5720/57412 Quad Port 2x1GbE RJ45 + 2x10GbE SFP+ |
| Broadcom 5720 Quad Port 4x1GbE RJ45 |
| Broadcom 57414 Dual Port 2x10/25GbE SFP28 |
| Intel i350/X550 Quad Port 2x1GbE RJ45 + 2x10GbE RJ45 |
| Intel X550 Quad Port 4x10GbE RJ45 |
| Intel X710 Quad Port 4x10GbE SFP+ |
| Mellanox ConnectX-4 Lx Dual Port 10/25GbE SFP28 V2 |
| Mellanox ConnectX-4 Lx Dual Port 10/25GbE SFP28 |
PCIe Cards
| Broadcom 5719 Quad Port 4x1GbE RJ45 |
| Broadcom 5720 Dual Port 2x1GbE RJ45 |
| Broadcom 57412 Dual Port 2x10GbE SFP+ |
| Broadcom 57414 Dual Port 2x10/25GbE SFP28 |
| Broadcom 57416 Dual Port 2x10GbE RJ45 |
| Broadcom 57508 Dual Port 2x100GbE QSFP |
| Intel X550 Dual Port 2x10GbE RJ45 |
| Intel X710-T2L Dual Port 2x10GbE RJ45 |
| Intel X710-T4L Quad Port 4x10GbE RJ45 |
| Intel E810-XXV Dual Port 2x10/25GbE SFP28 |
| Mellanox ConnectX-4 LX Dual Port 2x10/25GbE SFP28 V2 |
| Mellanox ConnectX-4 LX Dual Port 2x10/25GbE SFP28 |
| Mellanox ConnectX-5 Dual Port 2x10/25GbE SFP28 V2 |
| Emulex LPE 35002 Dual Port 2x32Gb FC HBA |
| Emulex LPE 35000 Single Port 1x32Gb FC HBA |
| Emulex LPe31002 Dual Port 2x16Gb FC HBA V2 |
| Emulex LPe31000 Single Port 1x16Gb FC HBA V2 |
| QLogic 2690 Single Port 1x16Gb FC HBA V2 |
| QLogic 2772 Dual Port 2x32Gb FC HBA V2 |
Systems Management Solutions
The Dell PowerEdge R340 Server utilizes the Integrated Dell Remote Access Controller 9 (iDRAC9), which allows you to easily manage your Dell server. The iDRAC9 web interface provides a variety of useful information and features, that make managing your Dell server an easy task. Features include, but are not limited to hardware monitoring, power control, remote console, control over system settings, firmware update control, storage management, and much more. You can access the iDRAC9 web interface, by setting the iDRAC IP in system setup, and searching the IP in a web browser.
Supported Operating Systems:
The PowerEdge R340 supports a wide variety of operating systems which ranges from different distributions of Linux, VMware, and Windows Server. These operating systems are:
- ⦿ Citrix XenServer 7.1
- ⦿ Red Hat® Enterprise Linux 7
- ⦿ Red Hat® Enterprise Linux 8
- ⦿ Red Hat® Enterprise Linux 9
- ⦿ SUSE Linux ES 15
- ⦿ Ubuntu Server 18.04 LTS
- ⦿ Ubuntu Server 20.04 LTS
- ⦿ VMware ESXi 6.5
- ⦿ VMware ESXi 6.7
- ⦿ VMware ESXi 7.0
- ⦿ VMware ESXi 8.0
- ⦿ Window Server 2012 R2
- ⦿ Window Server 2016
- ⦿ Window Server 2019 LTSC
