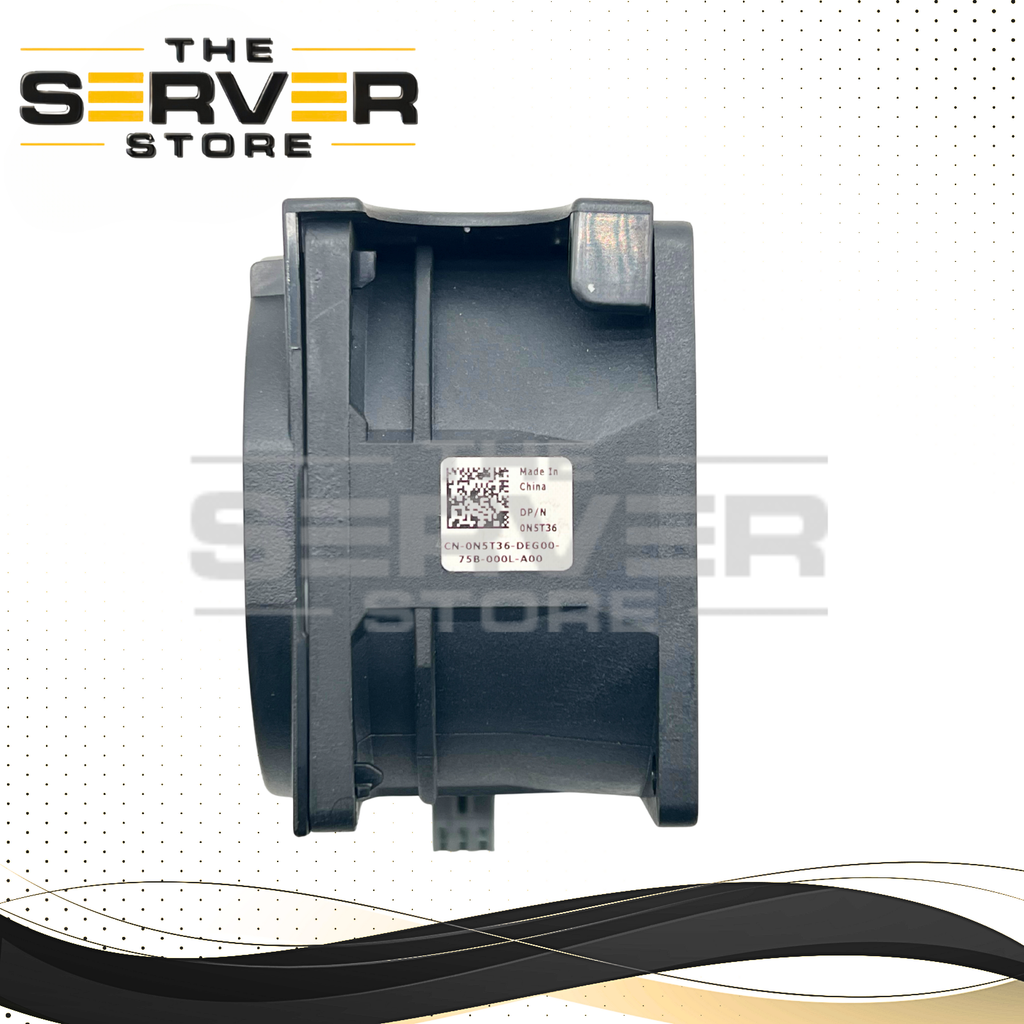

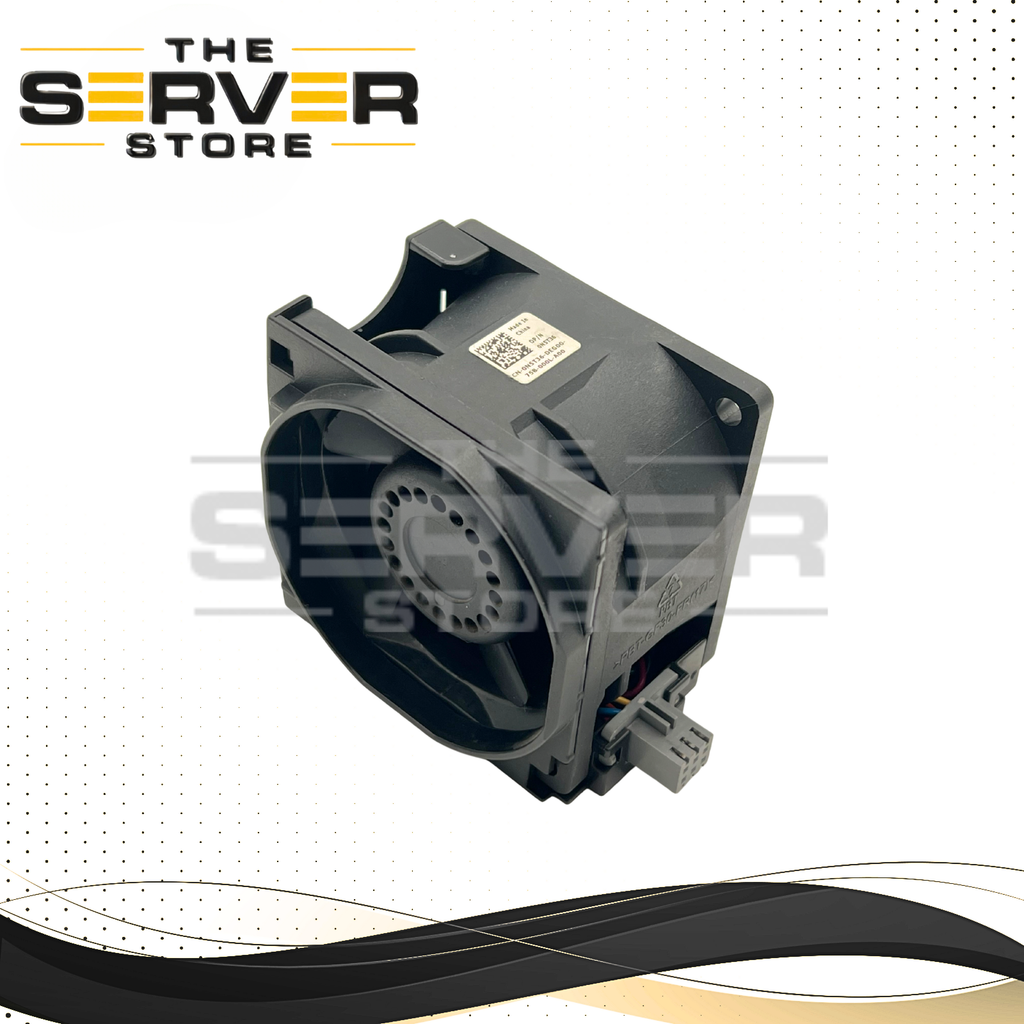

Dell EMC Standard Performance Cooling Fan 14th Gen Server PowerEdge 0N5T36 N5T36

The Dell N5T36 (also listed as 0N5T36) is a standard performance, hot-swappable cooling fan module designed for 14th Generation Dell PowerEdge servers, specifically the R740 and R740xd platforms. Engineered for efficient thermal management in standard system configurations, this module is ideal for servers without high-TDP CPUs (above 150W) or dense NVMe storage deployments. NOTE: Our manufacturer model may vary according to our inventory.

---

Technical Specifications

• Part Number: 0N5T36 / N5T36

• Related Part Numbers: 0N5T36, CT3RT-A00, PFR0612DHE-C, VF60381B1-Q70-SS9, WX75H-A00

• Fan Speed: Up to 7,200 RPM

• Airflow: Approx. 46.5 CFM

• Noise Level: 17 dBA

• Voltage: 12V DC

• Current Rating: Typically 0.98A (some OEM variants up to 1.8A)

• Power Consumption: Approx. 11.76W

• Connector: 6-pin fan header (midplane connection)

• Dimensions: 60mm x 60mm x 38mm

• Bearing Type: Single Rotor Ball Bearing

---

Operational Features

• Hot-Swappable: Replace without powering down the server

• PWM Controlled: Intelligent speed adjustment via iDRAC thermal management

• Redundancy Support: Designed for N+1 redundancy configurations

• OEM Variants: May be manufactured by Nidec, Sunon, Delta, or NMB (Dell-qualified modules)

---

Full Compatibility List

Fully compatible with the following Dell enterprise systems:

• Dell PowerEdge R740 – Standard 2U rack server

• Dell PowerEdge R740xd – Storage-dense 2U rack server

• Dell PowerEdge R7425 – AMD-based 2U platform

• Dell PowerEdge R840 – High-density 2U four-socket server

• Dell PowerEdge R940 – 3U four-socket enterprise server

• Dell PowerVault NX3240 – NAS solution based on the R740xd chassis

• Dell Precision 7920 Rack – Rack workstation platform

---

This Dell N5T36 standard performance cooling fan module provides reliable airflow, low noise operation, and enterprise-grade thermal control across multiple 14th Generation Dell server platforms.
