Product Description:

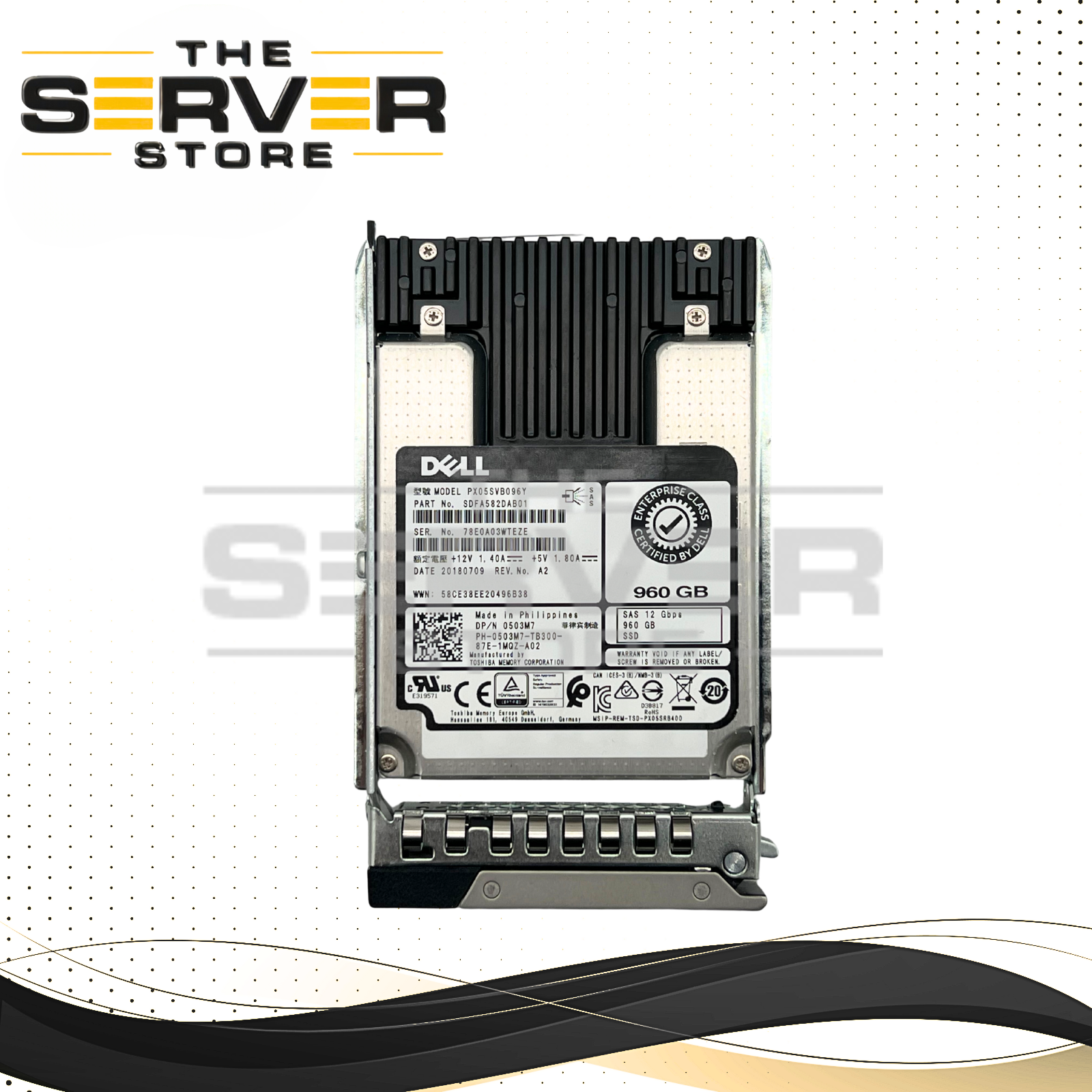

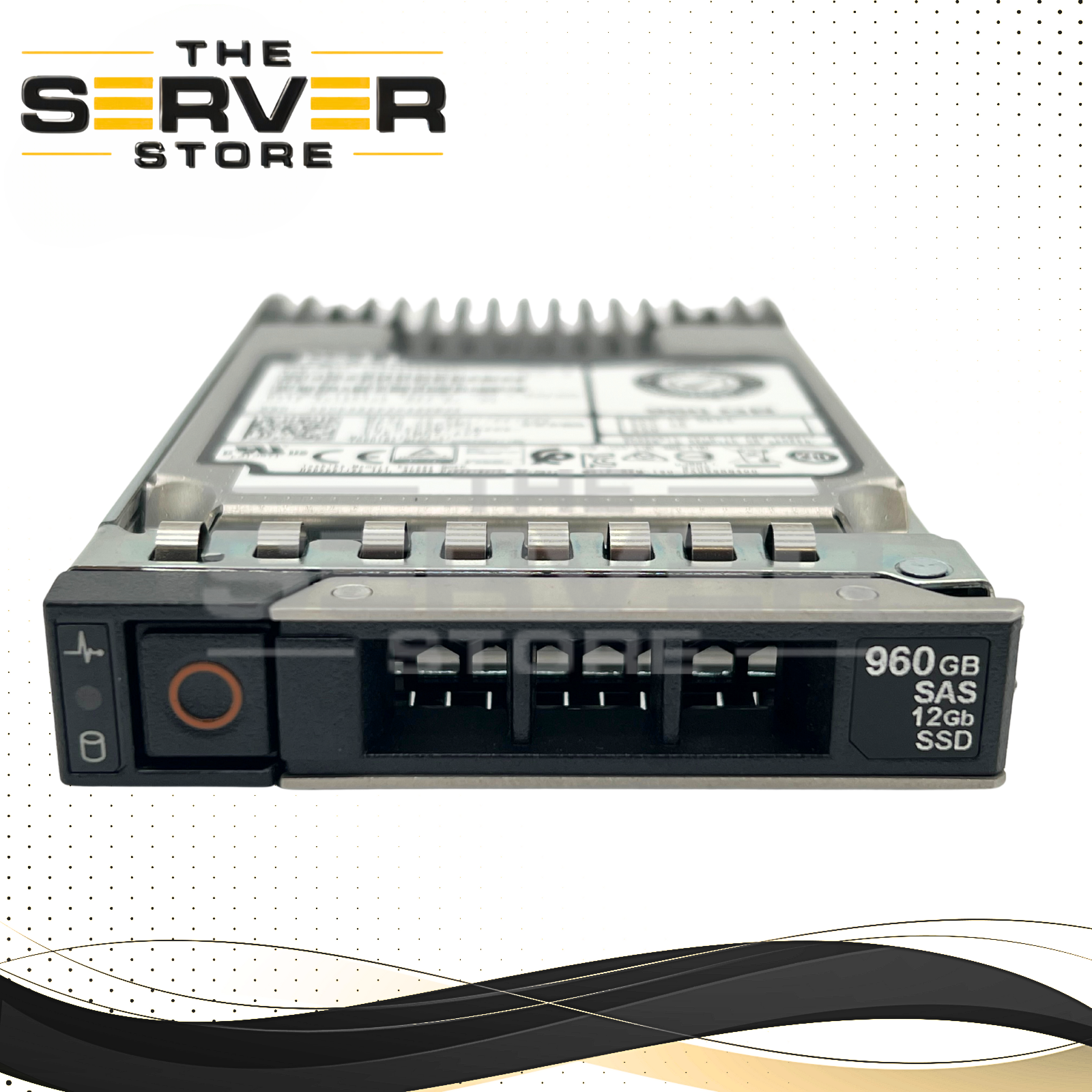

The Dell 960GB SAS 12Gbps Mixed Use (MU) 2.5" Solid State Drive delivers enterprise-class speed, durability, and reliability for demanding storage environments. Powered by the Toshiba PX05SV Series, with model PX05SVB096Y and Dell part numbers 0503M7, 503M7, and SDFA582DAB01, this SSD is engineered for mixed-use workloads that require strong performance in both read and write operations.

With a 960GB capacity, a robust SAS-3.0 12Gbps interface, and 3 DWPD endurance, this drive is ideal for applications that require a balance of high throughput and consistent write activity. It features advanced enterprise protections including Power Loss Protection, End-to-End Data Protection, and support for Pin-3 Power Disable for enhanced system safety.

Designed for servers and storage arrays using 2.5-inch SAS bays, the Toshiba PX05SV Series provides exceptional performance, long service life, and outstanding reliability with an MTTF of 2,000,000 hours.

---

Key Specifications:

• Model Number: PX05SVB096Y

• Series: Toshiba PX05SV Series

• Dell Part Numbers: 0503M7, 503M7, SDFA582DAB01

• Capacity: 960 GB

• Form Factor: 2.5-inch SFF, 15mm Z-Height

• Interface: SAS-3.0 (12Gbps, backward compatible with 6.0/3.0/1.5Gbps)

• Memory Type: Multi-Level Cell (MLC)

• Endurance Class: Mixed Use (MU)

• Endurance Rating: 3 Drive Writes Per Day (DWPD) for 5 years

Performance:

• Sequential Read: 1,900 MiB/s

• Sequential Write: 850 MiB/s

• Random Read (4KB): 270,000 IOPS

• Random Write (4KB): 60,000 IOPS

Reliability & Protection:

• MTTF: 2,000,000 hours

• Power Loss Protection: Yes

• End-to-End Data Protection: Yes (includes data path protection)

• Security: Supports Sanitize operations, Pin-3 Power Disable

• Operating Temperature: 0°C to 55°C

• Power Consumption (Ready): 3.2 W typical

---

Ideal Workload Applications:

This drive is optimized for mixed-use enterprise environments such as:

• Virtualization

• Online transaction systems

• High-performance application servers

• Database workloads

• Multi-user enterprise platforms

• Write-intensive cloud and data center environments requiring both speed and endurance

---

Why This Drive Is a Strong Choice:

The combination of 3 DWPD durability, high sequential and random I/O performance, and enterprise-grade power and data protection makes this SSD a reliable and long-lasting upgrade for Dell servers requiring exceptional mixed-use capability. The Toshiba PX05SV Series is built for environments where uptime, speed, and consistency matter.
