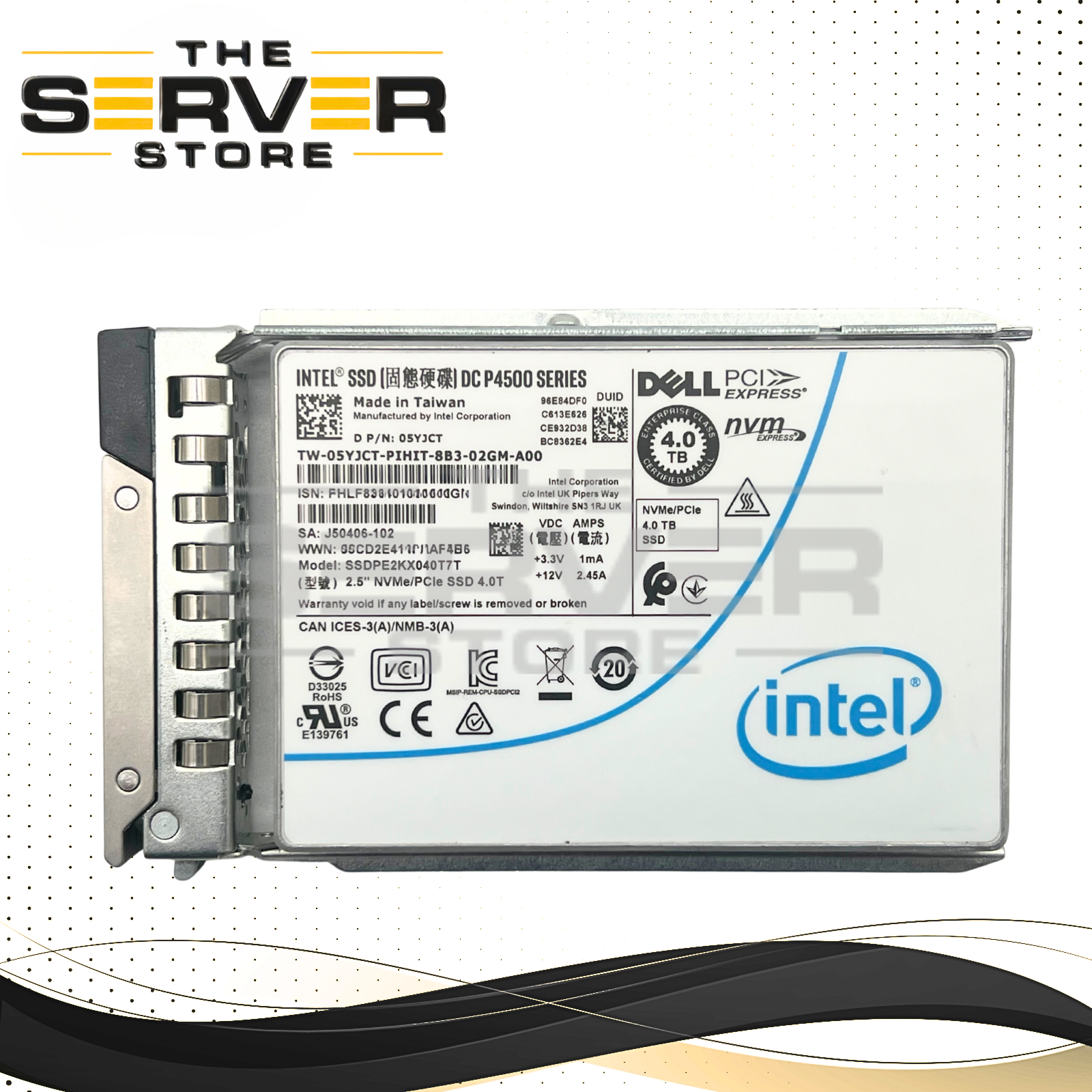

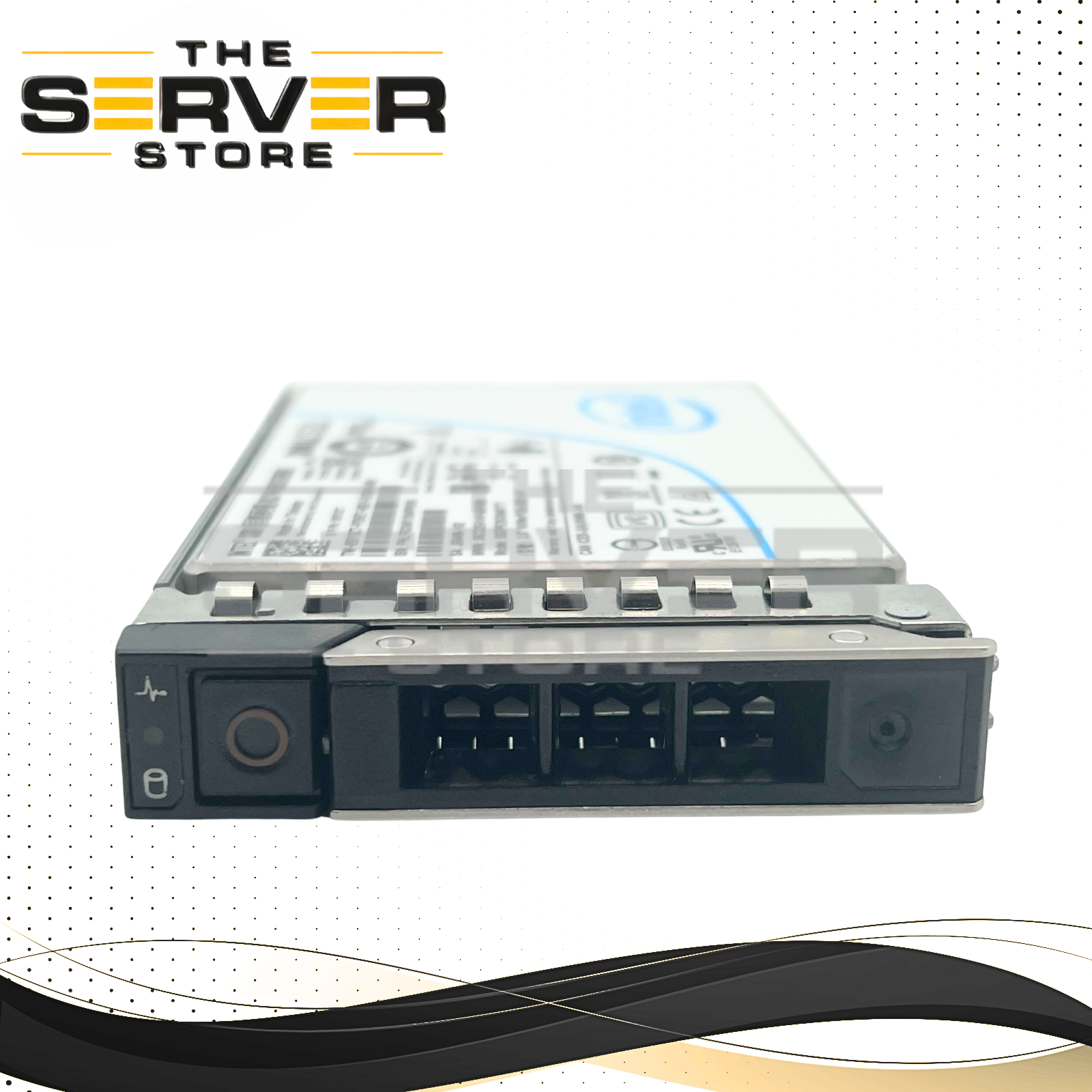

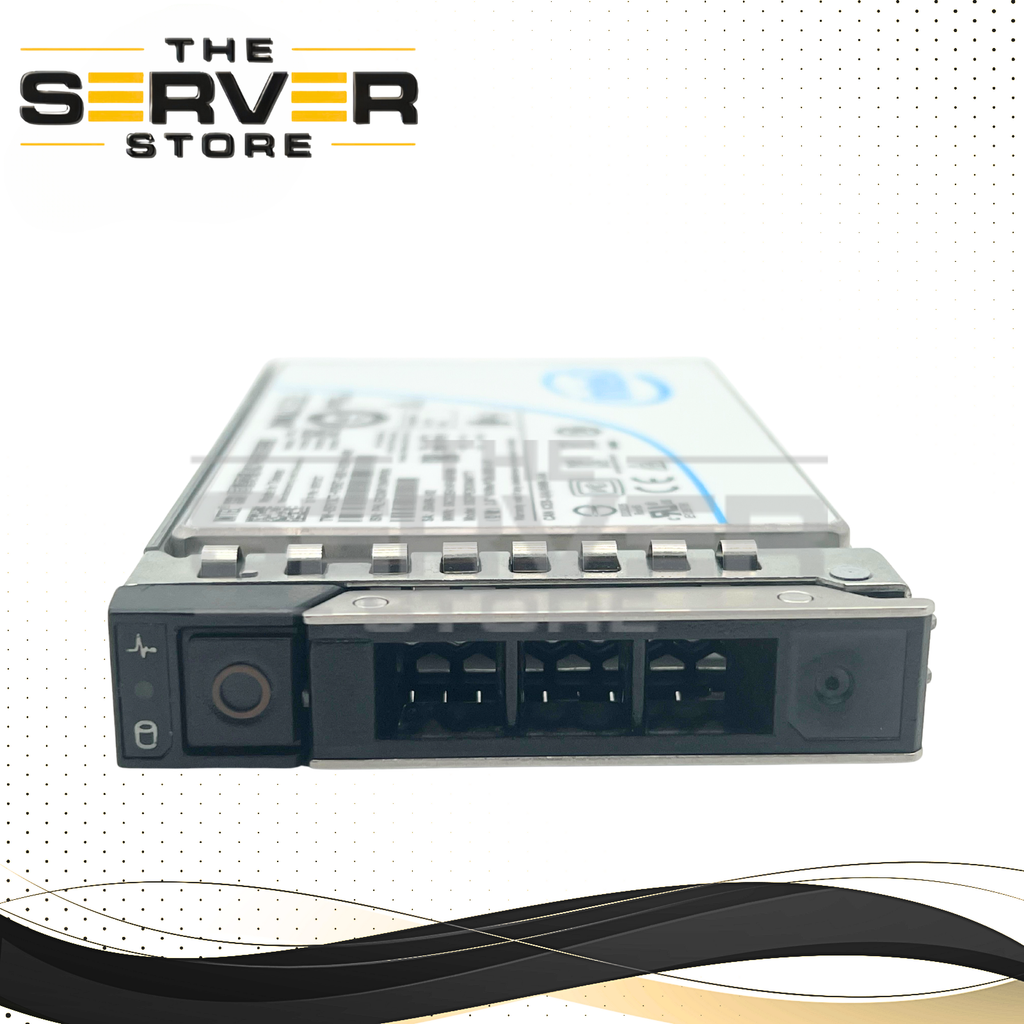

Dell 4TB NVMe U.2 PCIe Gen3 x4 RI SFF SSD – Intel DC P4500 Series with Tray
Model: SSDPE2KX040T7T | Dell P/N: 05YJCT / 5YJCT
The Dell Intel DC P4500 Series 4TB NVMe SSD is an enterprise‑class Read Intensive (RI) solid‑state drive designed for Dell PowerEdge servers, PowerVault storage arrays, and NVMe‑enabled enterprise platforms.
Built with Intel 3D TLC NAND and leveraging the NVMe protocol over PCIe Gen 3.0 x4, this drive delivers high throughput, ultra‑low latency, and enterprise‑grade reliability, making it ideal for cloud, virtualization, databases, analytics, and high‑performance workloads.
Key Specifications
-
Manufacturer: Dell / Intel
-
Series: Intel DC P4500
-
Capacity: 4TB
-
Form Factor: 2.5" SFF (15mm)
-
Interface: U.2 NVMe (PCIe Gen3 x4)
-
Protocol: NVMe
-
NAND Type: Intel 3D TLC
Performance
- Sequential Read: Up to 3,270 MB/s
- Sequential Write: Up to 1,860 MB/s
- Random Read: Up to 645,000 IOPS
- Random Write: Up to 48,000 IOPS
Endurance & Reliability
- Endurance: 4.84 PBW
- DWPD: 0.65 – 0.75
- MTBF: 2 Million Hours
- UBER: < 1 error per 10¹⁷ bits read
Features
- Hot‑Swap Supported
- Power‑Loss Protection
- AES‑256 Hardware Encryption (SED)
- SMART & Thermal Monitoring
Power
- Idle: ~5W
- Active: Up to 25W
Compatible Dell PowerEdge Servers
13G
R630, R730, R730xd, R930
14G
R440, R540, R640, R740, R740xd, R840, R940, R940xa, R6415, R7415, R7425, T440, T640, FC640, M640, PowerVault ME4024, ME4084, ME5024, ME5084
15G
R450, R550, R650, R650xs, R750, R750xs, R750xa, R850, R950, R6515, R6525, R7515, R7525, T550, MX740c, MX750c
16G
R660, R660xs, R760, R760xs, R760xd2, R860, R960, R6615, R6625, R7615, R7625, T560
17G
R670, R770, R970
Compatible Dell Precision Workstations
5810, 7810, 7910, 5820, 7820, 7920, 7920 Rack, 7960 Rack
Compatible HPE Servers
DL360 Gen9/Gen10/Gen11, DL380 Gen9/Gen10/Gen11, DL385 Gen10/Gen11, DL560 Gen10, Synergy 480 Gen10
Compatible Lenovo ThinkSystem Servers
SR630, SR650, SR850, SR950, ST550, SN550, SR630 V3, SR650 V3, SR655 V3, SR665 V3, SR645, SR665
Compatible Cisco UCS Servers
C220 M5/M6/M7, C240 M5/M6/M7, C480 M5, B200 M5/M6
Compatible Supermicro Systems
1028U, 6028U, 1029U Series, 2029U Series, SYS‑1029P‑WTR, SYS‑2029BT, BigTwin, FatTwin, SuperStorage 6049P, 2029P, SYS‑120U‑TNR, SYS‑220U‑TNR, SYS‑120P‑WTR, Hyper Series, AS‑2124US, AS‑1124US, SYS‑221H‑TNR, SYS‑121H‑TNR, SYS‑221GE‑TNRT
Important Deployment Notes
- Requires NVMe U.2 backplane or PCIe NVMe connectivity
- Not compatible with SATA or SAS‑only bays
- Requires proper PCIe lane mapping (OCuLink / SlimSAS / direct PCIe)
- Not supported by traditional SAS RAID controllers
- Recommended for:
- NVMe passthrough
- Software RAID
- Tri‑Mode RAID environments
