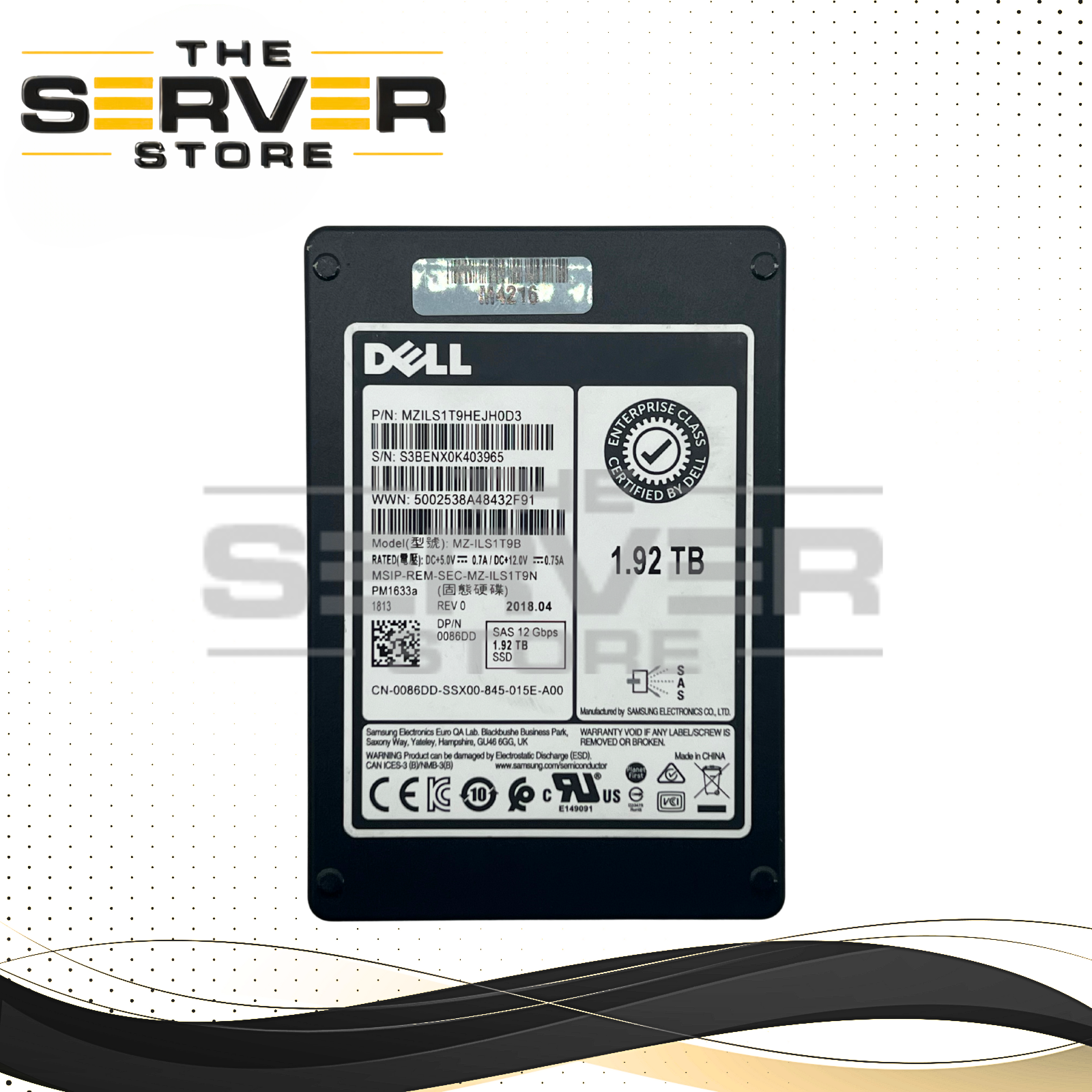

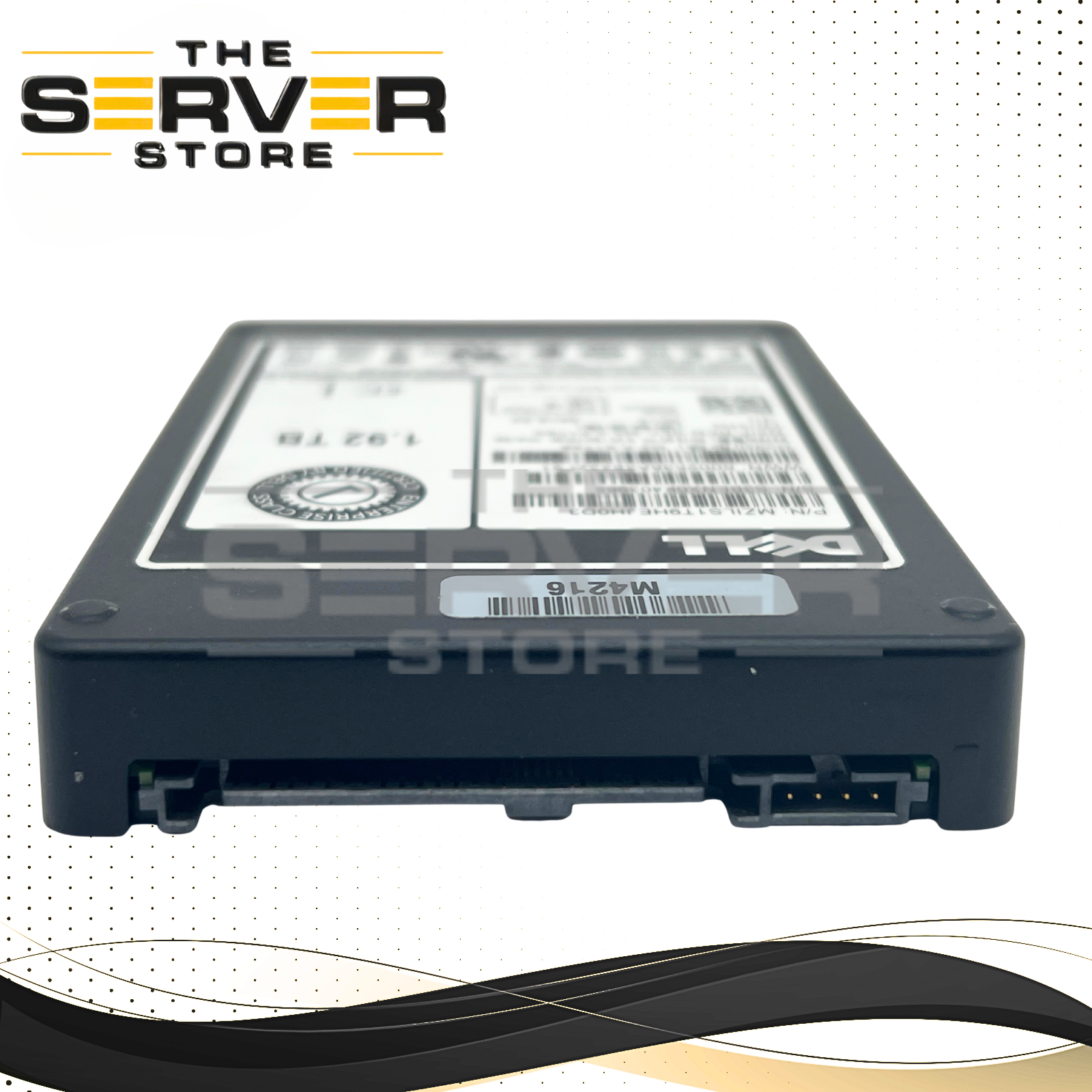

Dell 1.92TB SAS 12G RI 2.5" SSD – Samsung PM1633a (MZILS1T9HEJH0D3 / MZILS1T9B) – 0086DD / 086DD
Upgrade your enterprise storage with the Dell 1.92TB SAS 12Gbps 2.5" Read-Intensive SSD, built on Samsung’s reliable PM1633a platform. Featuring model numbers MZILS1T9HEJH0D3 and MZILS1T9B, and Dell part numbers 0086DD / 086DD, this drive delivers high performance, efficiency, and long-term reliability for read-intensive workloads.
Ideal for Dell PowerEdge servers and enterprise storage systems, this hot-pluggable SSD ensures fast data access, low latency, and improved uptime in mission-critical environments.
Key Specifications:
-
Capacity: 1.92TB
-
Interface: SAS 12Gbps (Serial Attached SCSI)
-
Form Factor: 2.5" SFF (Small Form Factor)
-
Performance Class: Read-Intensive (RI)
-
Samsung Model Numbers: MZILS1T9HEJH0D3, MZILS1T9B
-
Dell Part Numbers: 0086DD, 086DD
-
NAND Type: Samsung 3D V-NAND MLC (Multi-Level Cell)
-
Sequential Read: Up to 1,250 MB/s.
-
Sequential Write: Up to 1,250 MB/s.
-
Random Read (4K): Up to 200,000 IOPS.
-
Random Write (4K): Up to 35,000 IOPS.
-
Endurance: Optimized for RI workloads (~1 DWPD)
-
MTBF: 2 million hours
-
Encryption Support: TCG Enterprise (SED) – model dependent
-
Power-Loss Protection: Yes
-
Hot-Swap Support: Yes
Compatible With:
This drive is fully compatible with a wide range of Dell PowerEdge servers and PowerVault storage systems that support 2.5" SAS 12G drives, including:
-
PowerEdge Servers: R630, R640, R730, R740, R740xd, R750, T640
-
PowerVault Systems: MD series, ME4 series
Use Cases:
Get enterprise-grade performance, endurance, and compatibility with the Dell 1.92TB SAS 12G SSD, powered by Samsung PM1633a (MZILS1T9HEJH0D3 / MZILS1T9B). Designed for reliability and optimal uptime in today’s demanding data centers.
This SSD can be used as a replacement for the following part numbers:
345-BBYK, PWNR4, 0PWNR4, 400-AUJJ, 400-AQOY, 400-AQNC, TDNP7, 0TDNP7, 4CN85, 04CN85, D2N1D, 0D2N1D, 400-BBQP, 320R0, 0320R0, 345-BCFT, 5T45M, 05T45M, 345-BBWE, XVKFM, 0XVKFM, 345-BBVJ, KKVXM, 0KKVXM, 345-BBWX, XMHXK, 0XMHXK, 345-BCWP, 105-002-603.
