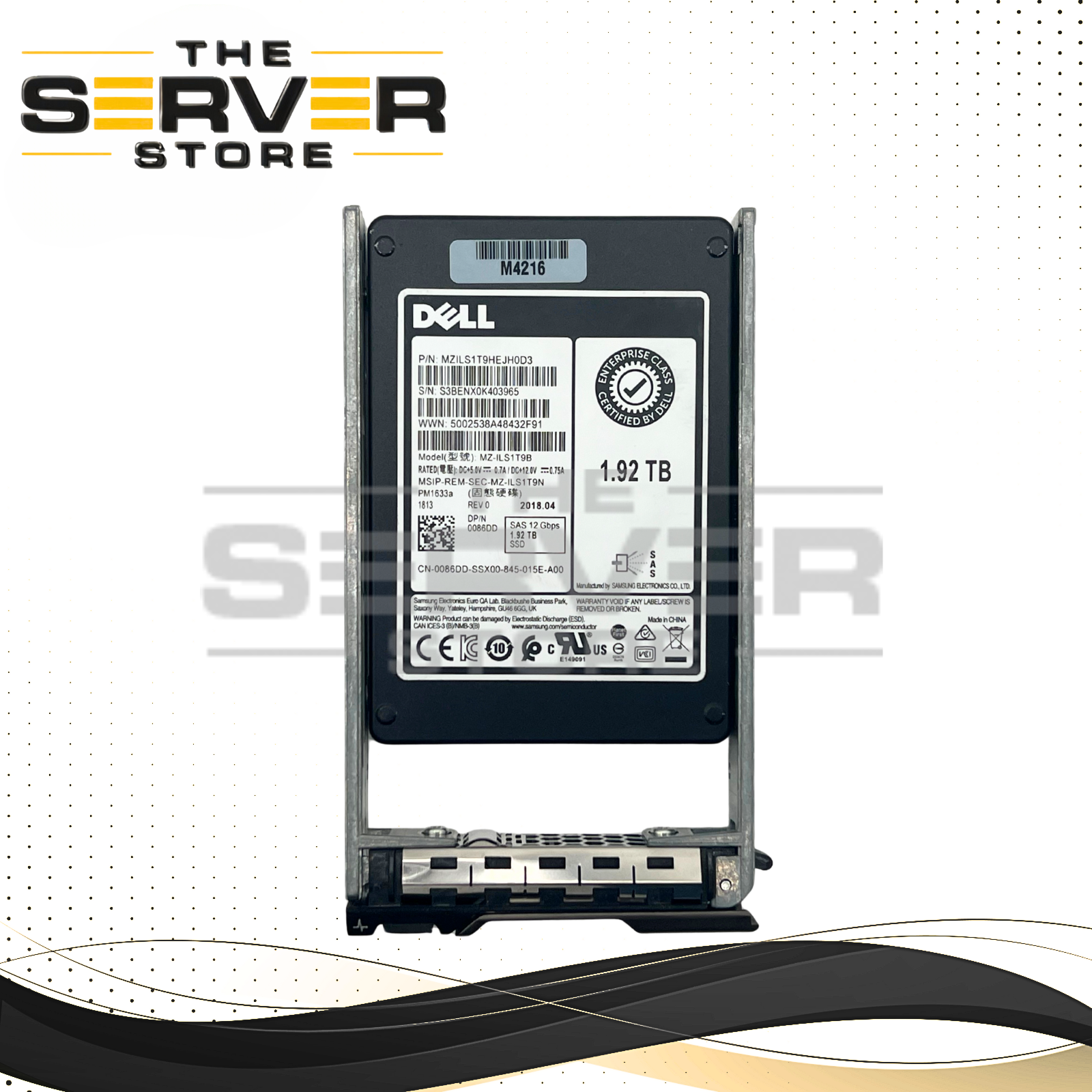

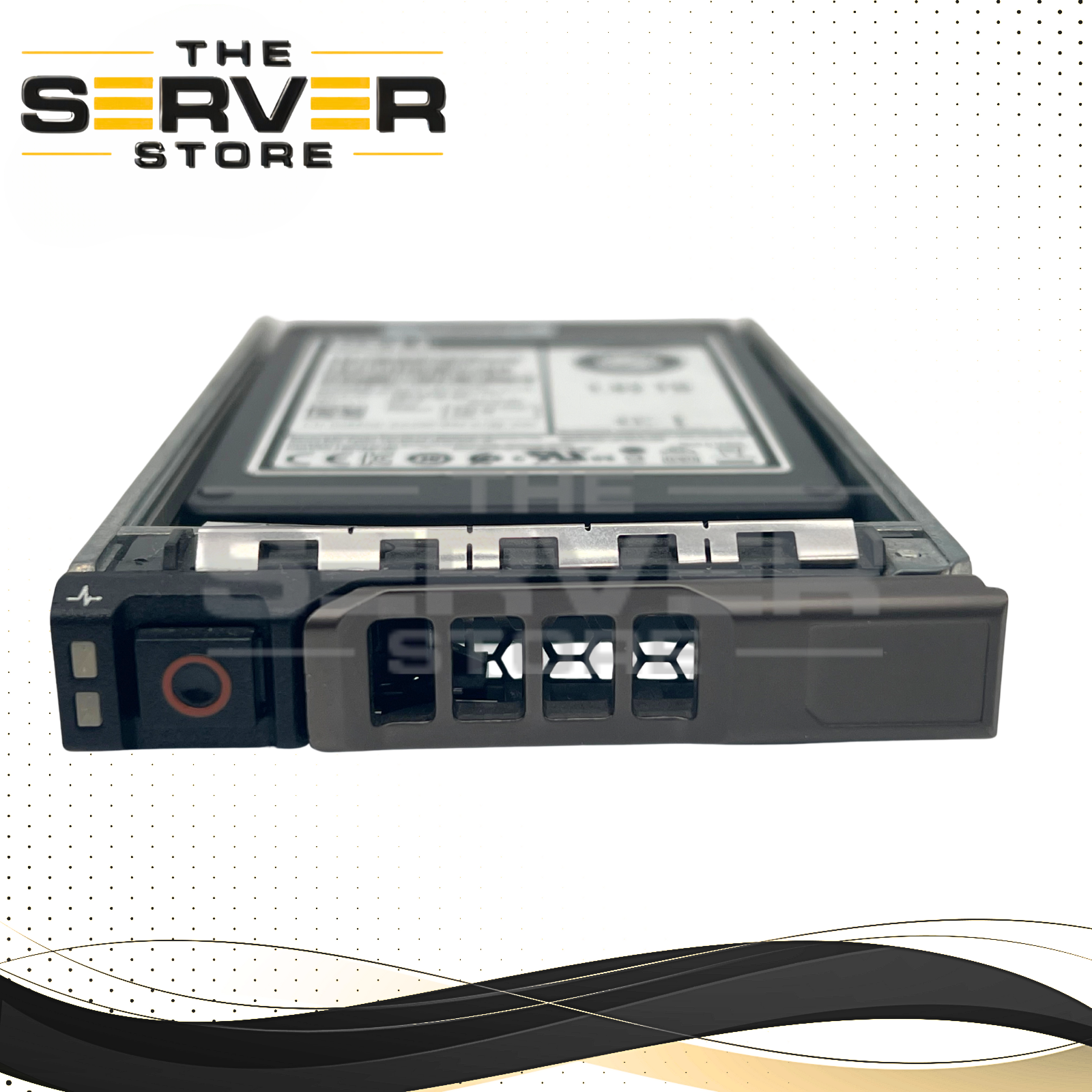

Dell 1.92TB SAS 12G RI 2.5" SSD – Samsung PM1633a (MZILS1T9HEJH0D3 / MZILS1T9B)

Upgrade your enterprise storage with the Dell 1.92TB SAS 12Gbps 2.5" Read-Intensive SSD, built on Samsung’s reliable PM1633a platform. Featuring model numbers MZILS1T9HEJH0D3 and MZILS1T9B, and Dell part numbers 0086DD / 086DD, this drive delivers high performance, efficiency, and long-term reliability for read-intensive workloads.

Ideal for Dell PowerEdge servers and enterprise storage systems, this hot-pluggable SSD ensures fast data access, low latency, and improved uptime in mission-critical environments.

---

 Key Specifications:

• Capacity: 1.92TB

• Interface: SAS 12Gbps (Serial Attached SCSI)

• Form Factor: 2.5" SFF (Small Form Factor)

• Performance Class: Read-Intensive (RI)

• Samsung Model Numbers: MZILS1T9HEJH0D3, MZILS1T9B

• Dell Part Numbers: 0086DD, 086DD

• NAND Type: Samsung 3D V-NAND MLC (Multi-Level Cell)

• Sequential Read: Up to 1,250 MB/s.

• Sequential Write: Up to 1,250 MB/s.

• Random Read (4K): Up to 200,000 IOPS.

• Random Write (4K): Up to 35,000 IOPS.

• Endurance: Optimized for RI workloads (~1 DWPD)

• MTBF: 2 million hours

• Encryption Support: TCG Enterprise (SED) – model dependent

• Power-Loss Protection: Yes

• Hot-Swap Support: Yes

---

Compatible With:

This drive is fully compatible with a wide range of Dell PowerEdge servers and PowerVault storage systems that support 2.5" SAS 12G drives, including:

• Dell Servers 14th Generation: PowerEdge T340, T440, T640

• Dell Servers 13th Generation: PowerEdge R330, T330, R430, T430, R530, T630, R730, R730XD, R930 / PowerVault MD1420, MD3420

• Dell Servers 12th Generation: PowerEdge R320, T320, R420, T420, R520, T620, R720, R720XD

• Dell Servers 11th Generation: PowerEdge R310, R410, R415, R510, R515, R610, T610, R710, T710

---

Use Cases:

• Virtualization

• Cloud infrastructure

• Data warehousing

• Web servers

• Business intelligence / analytics

• Read-intensive applications

Get enterprise-grade performance, endurance, and compatibility with the Dell 1.92TB SAS 12G SSD, powered by Samsung PM1633a (MZILS1T9HEJH0D3 / MZILS1T9B). Designed for reliability and optimal uptime in today’s demanding data centers.

---

These SSD Can Use these tray part number: 8FKXC, 08FKXC, 0G176J, G176J, 0KG7NR, KG7NR, NTPP3, 0NTPP3.
