Description

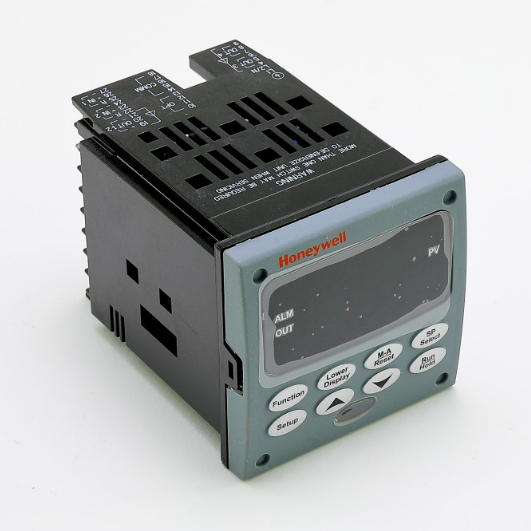

The Honeywell DC2500-EE-0L0R-200-10000-E0-0 is a discontinued 1/4 DIN universal digital controller designed for flexible temperature and process control in industrial environments. It includes dual relay outputs, limit control functionality, and a broad range of input compatibility for thermocouples, RTDs, analog signals, and more.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DC2500-EE-0L0R-200-10000-E0-0 |
| Subcategory |
Temperature/Process Control |
| Series |
UDC2500 |
| Controller Type |
Universal Digital Controller |
| Input Type |
TC, RTD, mV, 0–5 V, (0)4–20 mA |
| Output #1 |
Relay Output 1 |
| Output #2 |
Relay Output 2 / Alarm |
| Limit Function |
Included (Limit Control Model) |
| Voltage Supply |
90–264 VAC |
| Display Type |
Dual digital display |
| Interface |
Infrared |
| Communication |
None (base model; expandable via options) |
| Sampling Rate |
166 ms |
| Accuracy |
±0.25% |
| Mounting Style |
1/4 DIN Panel Mount |
| Front Panel Rating |
NEMA 4X / IP66 |
| Certifications |
CE, UL, CSA, FM |
| Language |
English |
| Product Status |
Discontinued |
| Weight |
1.20 lbs |
Information About DC2500-EE-0L0R-200-10000-E0-0
The DC2500-EE-0L0R-200-10000-E0-0 is part of the UDC2500 series by Honeywell, a cost-effective yet feature-rich line of universal digital controllers. Operating on 90–264 VAC, this model supports a primary universal input and a high-level analog input for precision control of variables such as temperature, pressure, or flow. It includes two relay outputs — one for control and one for alarm or auxiliary signaling — and is configured with built-in limit control. The unit features an infrared interface for configuration via PC or handheld device, supports multilingual prompts, and complies with CE, UL, CSA, and FM standards. With IP66/NEMA 4X-rated protection on the front panel, the controller is suited for harsh industrial environments like ovens, chambers, plastics, and packaging systems.
Key Features:
- Dual Relay Outputs: Provides control and alarm functions with two discrete SPDT relays.
- Universal Input + High-Level Input: Accepts TC, RTD, mV, 0–5 V, and (0)4–20 mA signals.
- Limit Control Capability: Built-in limit functionality for safety and regulatory compliance.
- Wide Voltage Range: Operates from 90–264 VAC, making it globally adaptable.
- Infrared Configuration: Allows for contactless setup via IR-enabled devices.
- Fast Sampling Rate: 166 ms scanning ensures quick response to input changes.
- Multilingual Display: Menu prompts available in multiple languages for global use.
- NEMA 4X / IP66 Front Panel: Sealed against dust, water, and environmental exposure.
- Easy Field Upgrades: Designed for jumper-free configuration and backward compatibility.
- Standards Certified: Approved to CE, UL, CSA, and FM standards for process safety.
The DC2500-EE-0L0R-200-10000-E0-0 delivers robust control performance and safety assurance for industrial temperature and process systems.
