Description

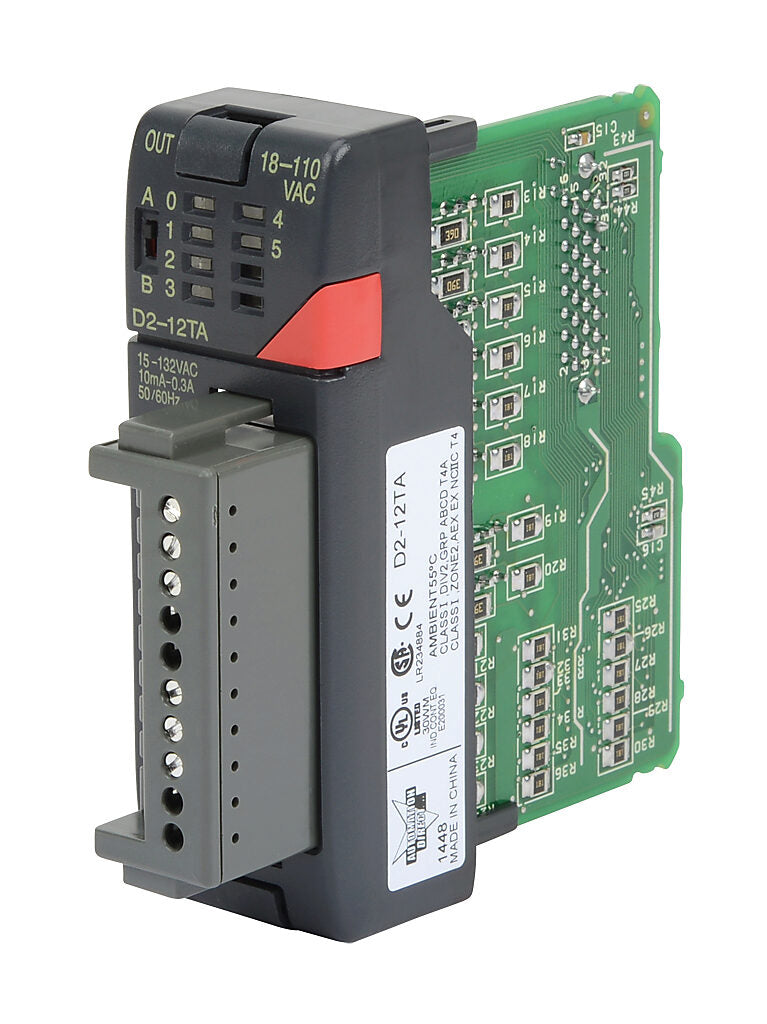

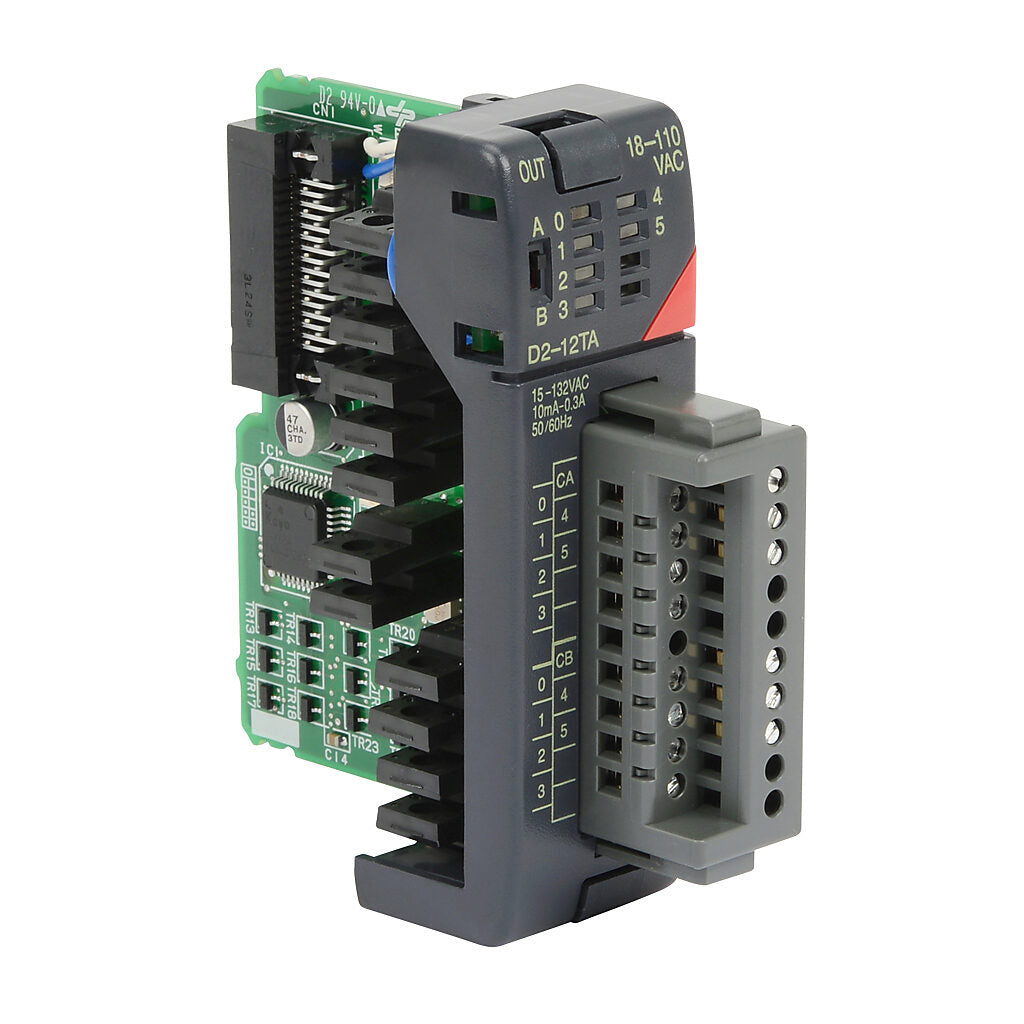

The Automation Direct D2-12TA is a DirectLOGIC DL205 discrete output module designed for switching AC loads in PLC-controlled systems. It provides 12 triac-based output points rated for 24–120 VAC applications. The D2-12TA is engineered for reliable control of lighting, solenoids, and other AC devices in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
PLCs & I/O |
| Part Number |
D2-12TA |
| Subcategory |
Discrete Output Modules |
| Series |
DirectLOGIC DL205 |
| I/O Module Type |
Discrete output |
| Number of Output Points |
12 |
| Nominal Output Voltage |
24–120 VAC |
| Number of Isolated Commons |
2 |
| Points per Common |
6 |
| Load Current |
0.3A/point, 1.8A/common |
| Output Type |
Triac (AC switching) |
| Fuse Type |
Replaceable fuse |
| Includes |
Removable terminal block |
| Programming Software |
DirectSOFT v4.0 or later |
| Mounting |
DL205 base unit slot |
| Weight |
0.7 lb |
Information About D2-12TA
The D2-12TA is part of the DirectLOGIC DL205 series of modular PLC I/O components. It features 12 discrete AC output channels organized into two isolated commons, allowing segmented load control. Each group of six outputs shares a common connection, simplifying wiring and distribution. Designed for use with DL205 base units and programmed using DirectSOFT v4.0 or later, this module supports dependable AC load switching with built-in replaceable fuse protection.
Key Features:
- 12 Discrete AC Outputs: Provides twelve triac output points for 24–120 VAC loads.
- Dual Isolated Commons: Two commons with six points each for flexible load grouping.
- AC Voltage Switching: Rated for nominal 24–120 VAC output applications.
- Load Capacity: Supports 0.3A per point and 1.8A per common.
- Replaceable Fuse Protection: Integrated fuse design for field serviceability.
- DL205 Compatibility: Designed for use with DirectLOGIC DL205 PLC systems.
- Removable Terminal Block: Simplifies installation and module replacement.
The D2-12TA delivers the reliability and precision required for AC discrete output control in industrial PLC systems.
