Description

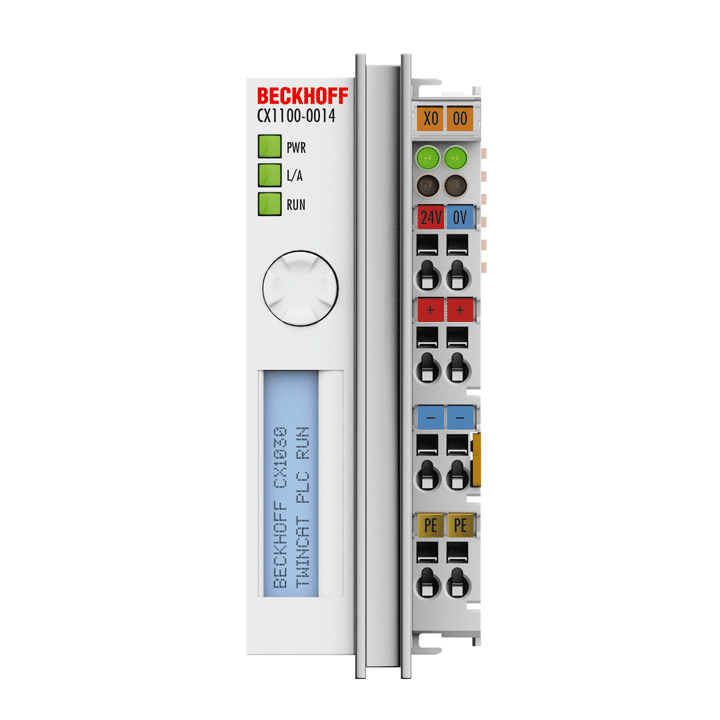

The Beckhoff CX1100-0014 is a power supply and I/O interface module designed for CX1030 Embedded PC systems. It provides 24 V DC input with E-bus connectivity for EtherCAT Terminals, featuring an integrated 8 kB NOVRAM for data retention and a two-line illuminated LC display for system and user messages.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
CX1100-0014 |
| Subcategory |
Power Supply Unit |
| Compatible Systems |
CX1030, CX1020, CX1010 |
| Power Supply |
24 V DC (-15% / +20%) |
| Current Supply (E-bus) |
2 A (max. 1.75 A for EtherCAT Terminals) |
| I/O Connection |
E-bus (adapter terminal) |
| NOVRAM |
8 kB integrated |
| Display |
FSTN LC display, 2 lines × 16 characters, illuminated |
| Diagnostics LEDs |
PWR, L/A, Run |
| Connection Type |
Spring-loaded terminal |
| Cooling |
Passive, with internal heat sink and ventilation apertures |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-25°C to +85°C |
| Relative Humidity |
95%, non-condensing |
| Protection Class |
IP20 |
| Dimensions (W × H × D) |
42 × 109 × 92 mm |
| Weight |
Approx. 235 g |
Information About CX1100-0014
The CX1100-0014 belongs to Beckhoff’s CX1100 power supply family, tailored for Embedded PC systems such as the CX1030. Beyond supplying 24 V DC power to the CPU and connected modules, this variant serves as an E-bus interface, enabling direct connection of Beckhoff EtherCAT Terminals (ELxxxx). It supports up to 1.75 A of E-bus current, providing a robust backbone for complex I/O architectures. The integrated 8 kB NOVRAM ensures fail-safe storage of process data, while its backlit two-line LC display facilitates system diagnostics and user interaction. Equipped with internal heat dissipation and spring-loaded connections, the CX1100-0014 offers secure performance and ease of installation in industrial environments.
Key Features:
- E-bus Connectivity: Allows direct connection of EtherCAT Terminals, extending the I/O capabilities of CX1030-based systems.
- Integrated NOVRAM: Provides 8 kB of non-volatile memory for reliable process data retention during power interruptions.
- Visual System Feedback: Features a backlit FSTN display (2×16 characters) for displaying system and user messages.
- Comprehensive Diagnostics: Includes LEDs for power (PWR), link/activity (L/A), and run status to simplify monitoring.
- Efficient Power Distribution: Supplies 24 V DC input and delivers up to 2 A for E-bus components, ensuring stable system performance.
- Compact, Modular Design: Fits seamlessly into Beckhoff’s CX system architecture with easy field replacement capability.
- Enhanced Cooling and Ventilation: Integrated heat sink design ensures long-term operation in control cabinet environments.
- High Environmental Tolerance: Operates reliably from 0°C to +55°C and up to 95% humidity for industrial-grade durability.
The CX1100-0014 delivers the reliability and precision required for continuous operation of CX1030 Embedded PC systems with EtherCAT I/O expansion.
