Description

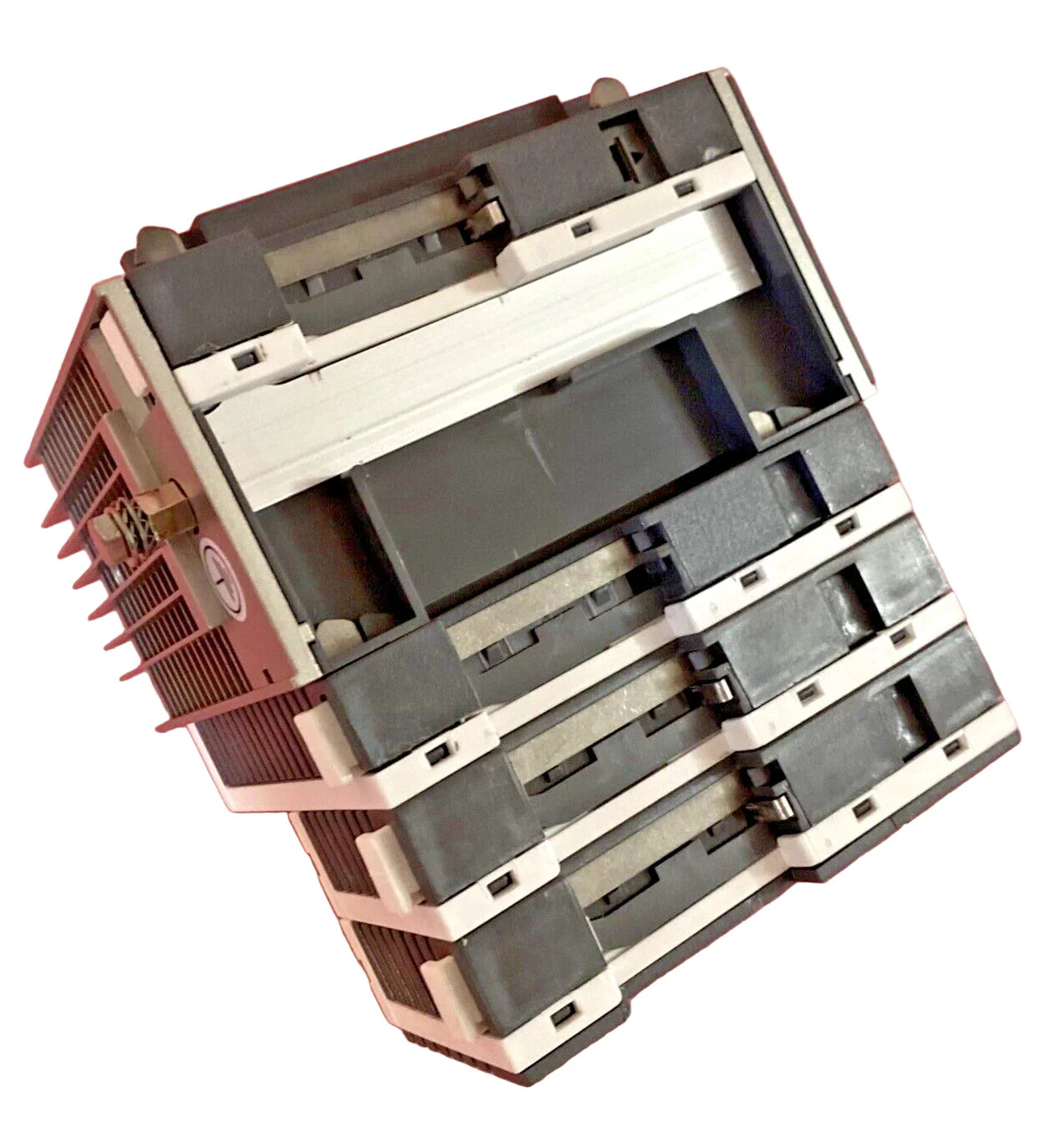

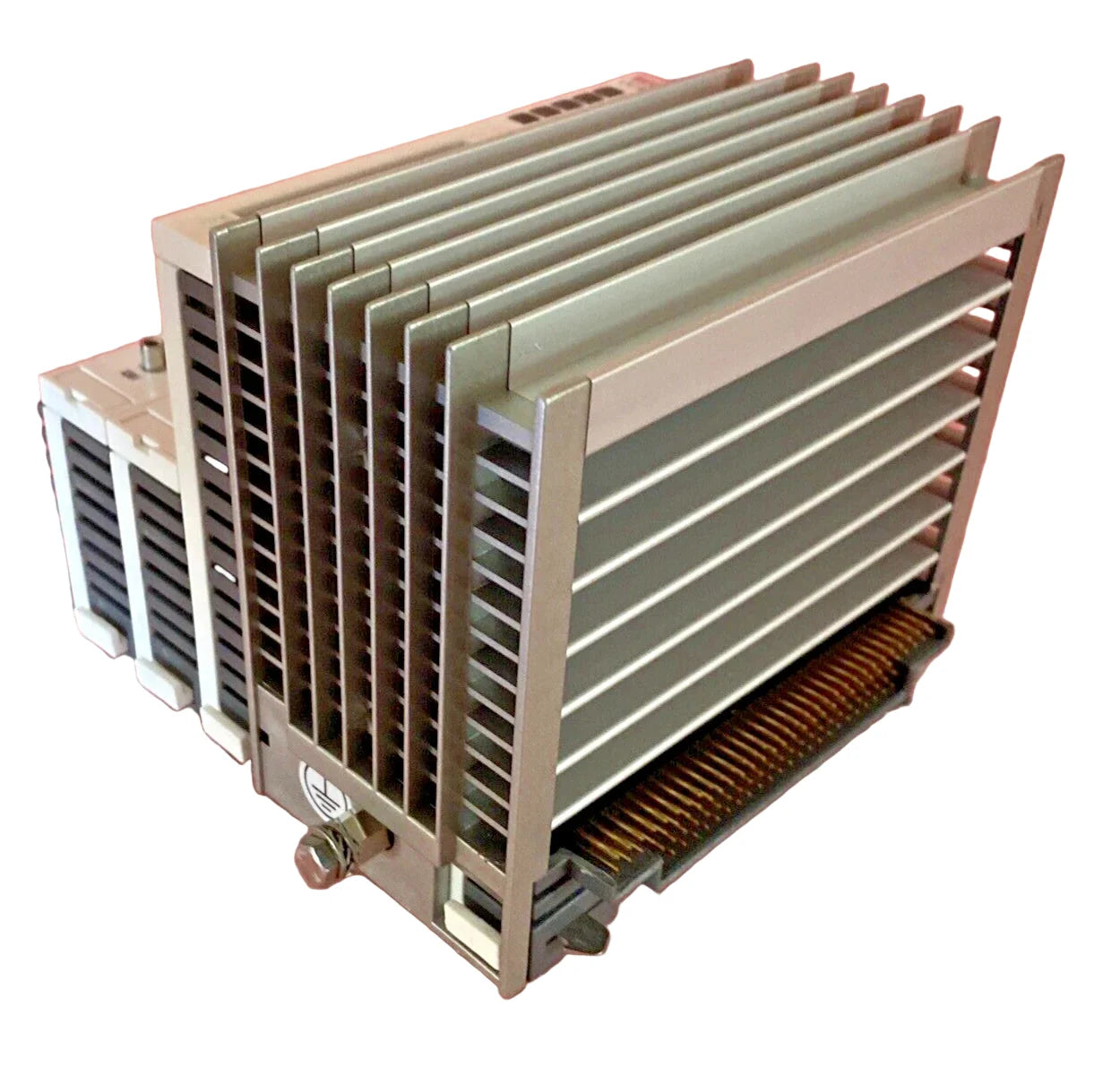

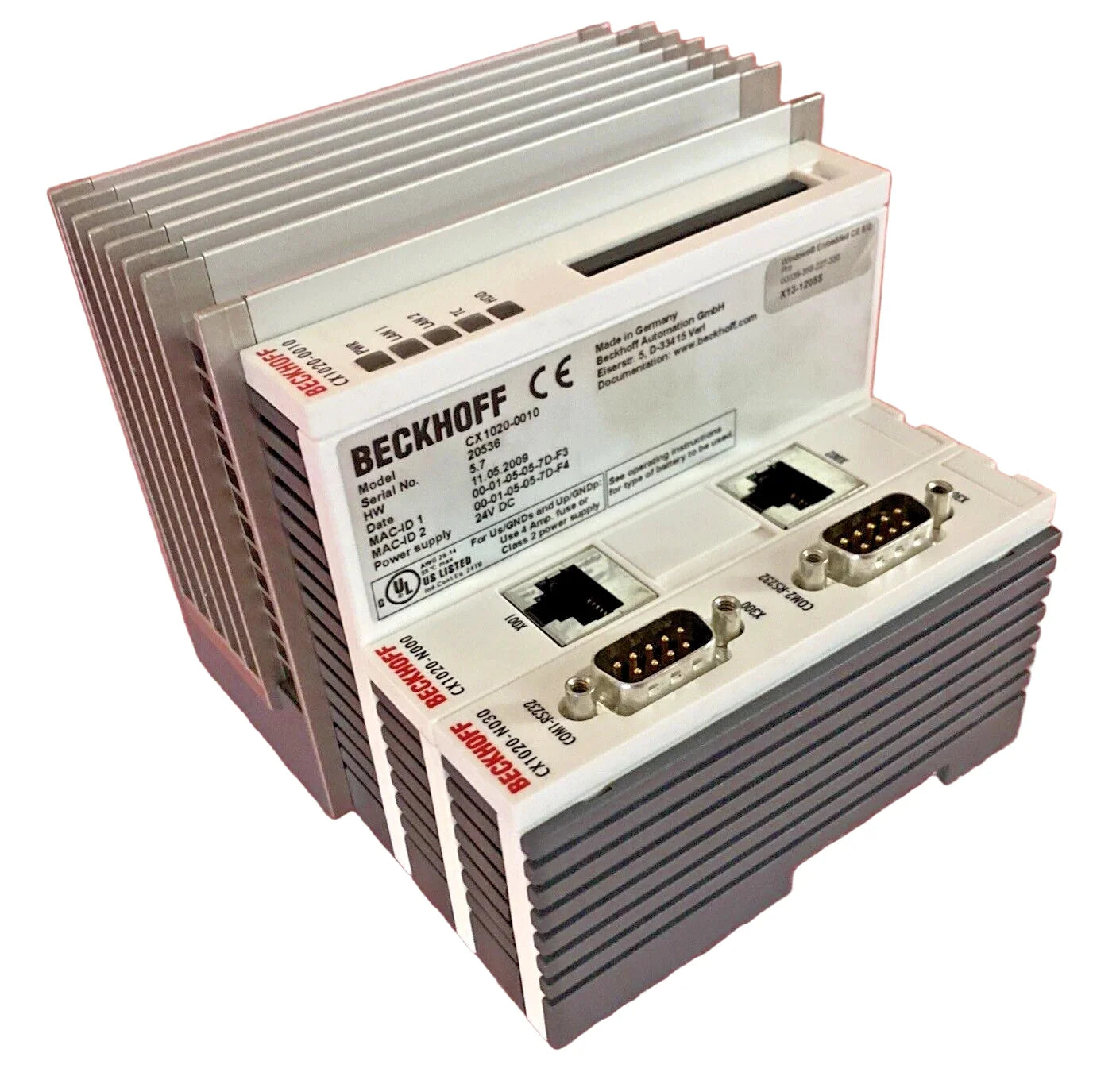

The Beckhoff CX1020-0010 is a basic embedded PC module from the CX series, equipped with a 1 GHz Intel® Celeron® M ULV processor. With passive cooling, dual Ethernet interfaces, and modular I/O expansion, it provides compact and efficient computing power for automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Embedded PCs |
| Part Number |
CX1020-0010 |
| Subcategory |
CPU Modules |
| Processor |
Intel® Celeron® M ULV, 1 GHz |
| CPU Cores |
1 core |
| Main Memory |
256 MB DDR RAM (expandable up to 1 GB) |
| Flash Memory |
Compact Flash slot, 128 MB CF card included |
| Expansion Slot |
1 × CF I/II with eject mechanism |
| Operating System |
Windows CE 6 / Windows Embedded Standard 2009 |
| Control Software |
TwinCAT 2 PLC, NC PTP, NC I runtimes |
| Cooling |
Passive (optional active factory-installed) |
| System Bus |
16-bit ISA (PC/104) |
| Interfaces |
2 × RJ45 Ethernet 10/100 Mbps (internal switch) |
| I/O Connection |
Via power supply module: E-bus, K-bus, IP-Link |
| Diagnostics LEDs |
Power, LAN (2× Link/Act), TwinCAT status, Flash access |
| Clock |
Battery-backed RTC, exchangeable battery |
| Max Power Consumption |
11 W |
| Power Supply |
Via system bus (CX1100-xxxx modules) |
| Enclosure Protection |
IP20 |
| Operating Temperature |
0…+50 °C |
| Storage Temperature |
-25…+85 °C |
| Relative Humidity |
Max. 95%, non-condensing |
| Dimensions (W × H × D) |
96 mm × 112 mm × 99 mm |
| Weight |
1.21 lbs |
Information About CX1020-0010
The CX1020-0010 belongs to Beckhoff’s CX1020 Embedded PC series, offering scalable performance for industrial control applications. This version integrates a 1 GHz Intel® Celeron® M processor, 256 MB DDR RAM, and a Compact Flash slot with 128 MB included. It is designed for modular expandability, supporting E-bus, K-bus, and IP-Link I/O systems, allowing flexibility in system configuration. With dual Ethernet ports, integrated TwinCAT runtime support, and low 11 W power consumption, it provides an efficient control platform for a wide range of automation environments.
Key Features:
-
Intel Celeron M Processor: Operates at 1 GHz with a single-core architecture for stable automation performance.
-
Expandable Memory and Storage: Includes 256 MB DDR RAM and a 128 MB Compact Flash card, expandable via CF slot.
-
Integrated Communication: Equipped with two 10/100 Mbps Ethernet ports with internal switch functionality.
-
Flexible I/O Connectivity: Compatible with Beckhoff E-bus, K-bus, and IP-Link modules for scalable expansion.
-
Reliable Cooling Concept: Passive cooling design with optional factory-installed active cooling.
-
Low Power Consumption: Consumes only 11 W, making it suitable for energy-conscious control applications.
-
Comprehensive Software Support: Compatible with TwinCAT 2 PLC, NC PTP, and NC I runtimes for versatile automation control.
-
Industrial-Grade Design: Compact IP20 housing, battery-backed RTC, and diagnostics LEDs for reliable operation.
The CX1020-0010 delivers the reliability and precision required for modular embedded PC control in industrial automation systems.
