Description

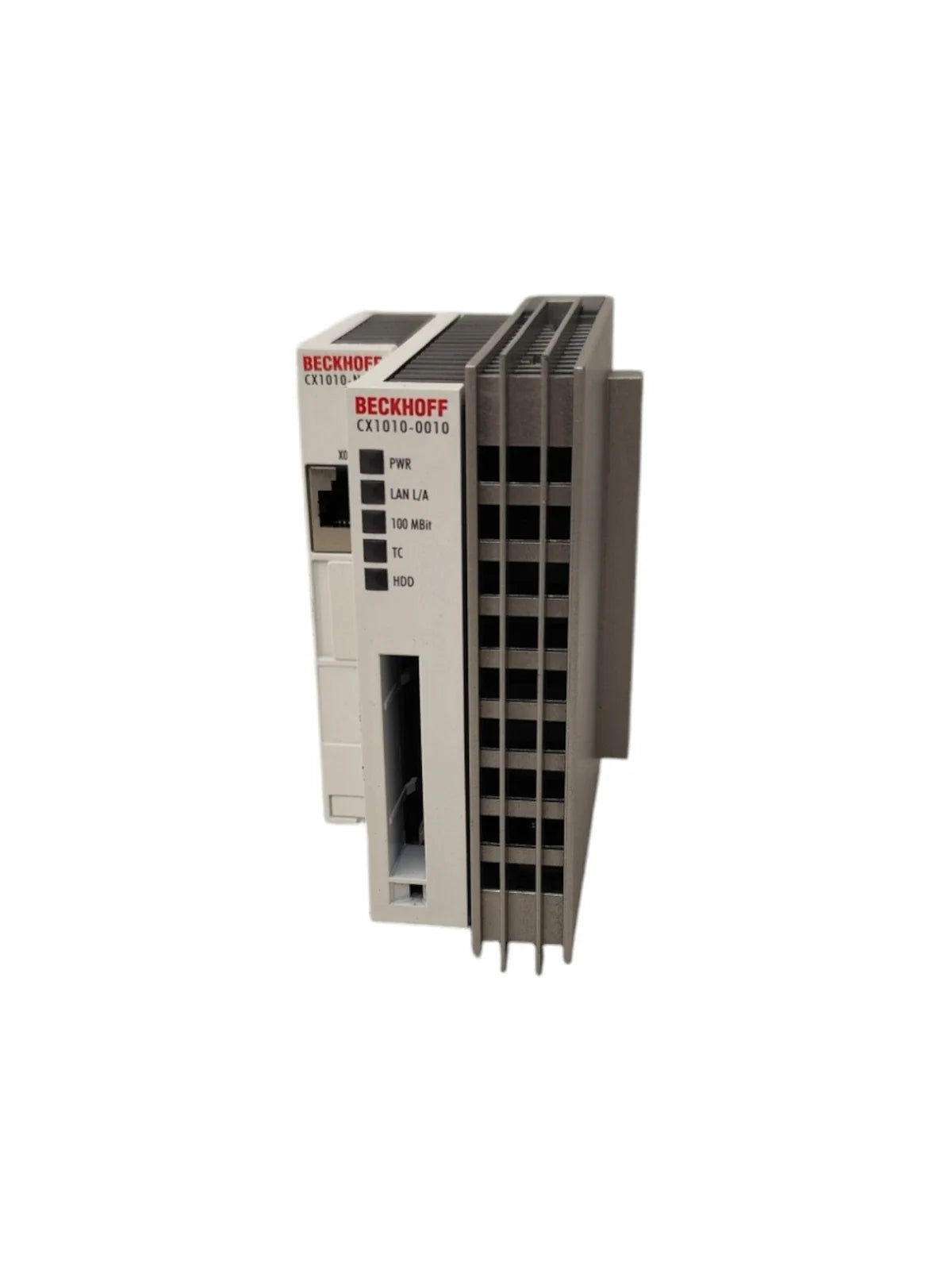

The Beckhoff CX1010-0010 is a BASIC CPU module designed for simple industrial control and communication tasks without integrated TwinCAT runtime. It features a single Ethernet interface, COM1 serial communication, and operates on Windows Embedded CE for lightweight embedded applications. The module is intended for DIN-rail-mounted automation systems requiring basic CPU functionality and low power consumption.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation Controllers |
| Part Number |
CX1010-0010 |
| Subcategory |
CPU Modules |
| Controller Type |
BASIC CPU Module |
| Processor |
Intel Pentium MMX compatible |
| Processor Clock Speed |
500 MHz |
| Processor Cores |
1 |
| Operating System |
Windows Embedded CE 6.0 |
| Control Software |
None (no TwinCAT) |
| Main Memory |
256 MB DDR RAM (not expandable) |
| Flash Memory |
128 MB CompactFlash included |
| Storage Expansion |
1 × CompactFlash Type II slot |
| Ethernet Interface |
1 × RJ45, 10/100 Mbit/s |
| Serial Interface |
COM1 |
| Diagnostics LEDs |
Power, LAN speed, LAN activity, TC status, Flash access |
| I/O Connection |
Via power module (E-bus, K-bus, IP-Link) |
| System Bus |
16-bit ISA (PC/104) |
| Real-Time Clock |
Battery-backed, exchangeable battery |
| Power Supply |
Via system bus (CX1100 power modules) |
| Max Power Consumption |
8 W |
| Operating Temperature |
0 to +50 °C |
| Storage Temperature |
−25 to +85 °C |
| Relative Humidity |
Up to 95%, no condensation |
| Protection Rating |
IP20 |
| Approvals |
CE, UL |
| Dimensions (W×H×D) |
58 × 120 × 91 mm |
| Weight |
Approx. 355 g |
Information About CX1010-0010
The CX1010-0010 is an entry-level BASIC CPU module from Beckhoff’s CX embedded controller series, developed for modular automation architectures. It uses a processor compatible with Intel Pentium MMX technology and operates under Windows Embedded CE 6.0 without preinstalled TwinCAT control software. The module connects to Beckhoff I/O systems via E-bus, K-bus, or IP-Link through compatible CX1100 power supply modules. Its compact design, battery-backed real-time clock, and industrial compliance make it suitable for basic control, monitoring, and communication tasks in control cabinets.
Key Features:
- Basic Embedded CPU Design: Intended for control and communication tasks without integrated TwinCAT runtime.
- Intel-Compatible Processor: Single-core CPU compatible with Intel Pentium MMX architecture at 500 MHz.
- Ethernet and Serial Communication: Includes one 10/100 Mbit/s Ethernet port and COM1 serial interface.
- Windows Embedded CE Operating System: Lightweight and stable OS for embedded industrial applications.
- CompactFlash Storage Support: Type II CompactFlash slot with 128 MB card included and expandable capacity.
- Integrated Diagnostics: Status LEDs for power, LAN speed, LAN activity, TwinCAT status, and flash access.
- Industrial Environmental Compliance: Designed for operation in controlled industrial environments with IP20 protection.
The CX1010-0010 delivers the reliability and precision required for basic embedded control and industrial communication applications.
