Description

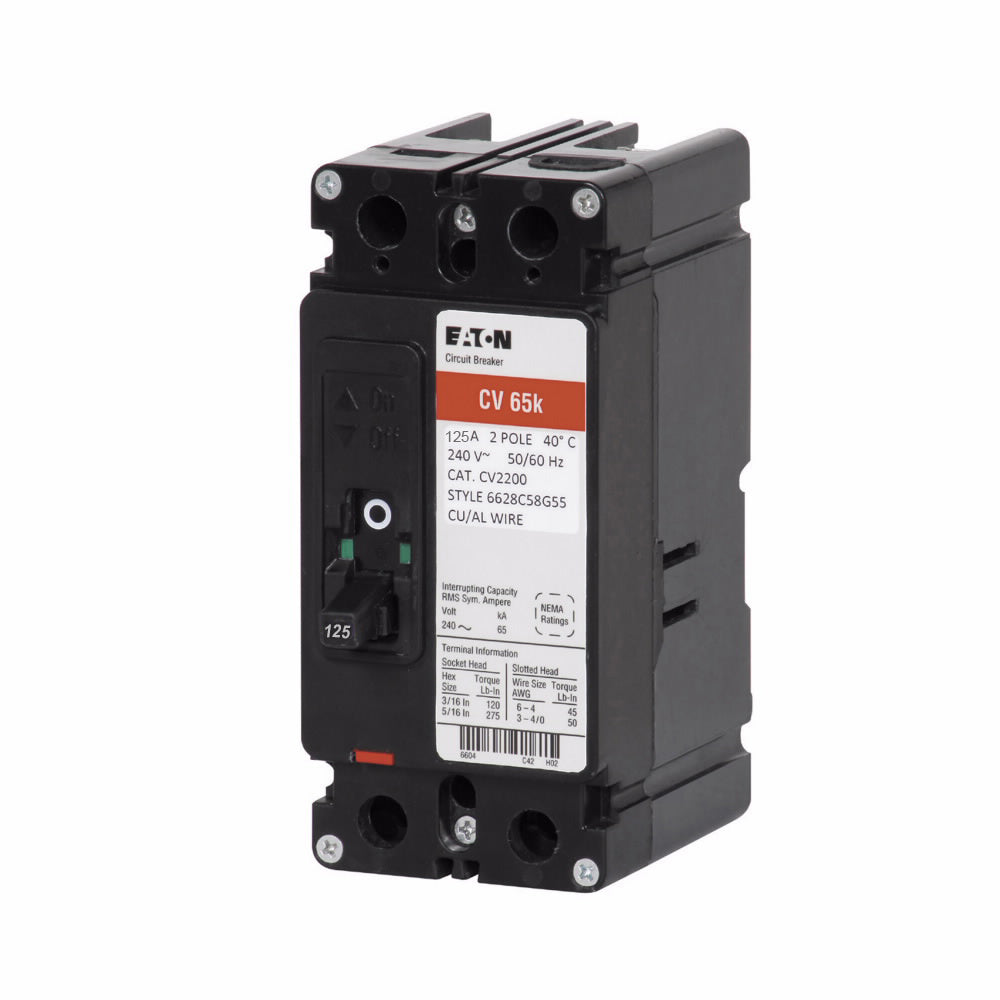

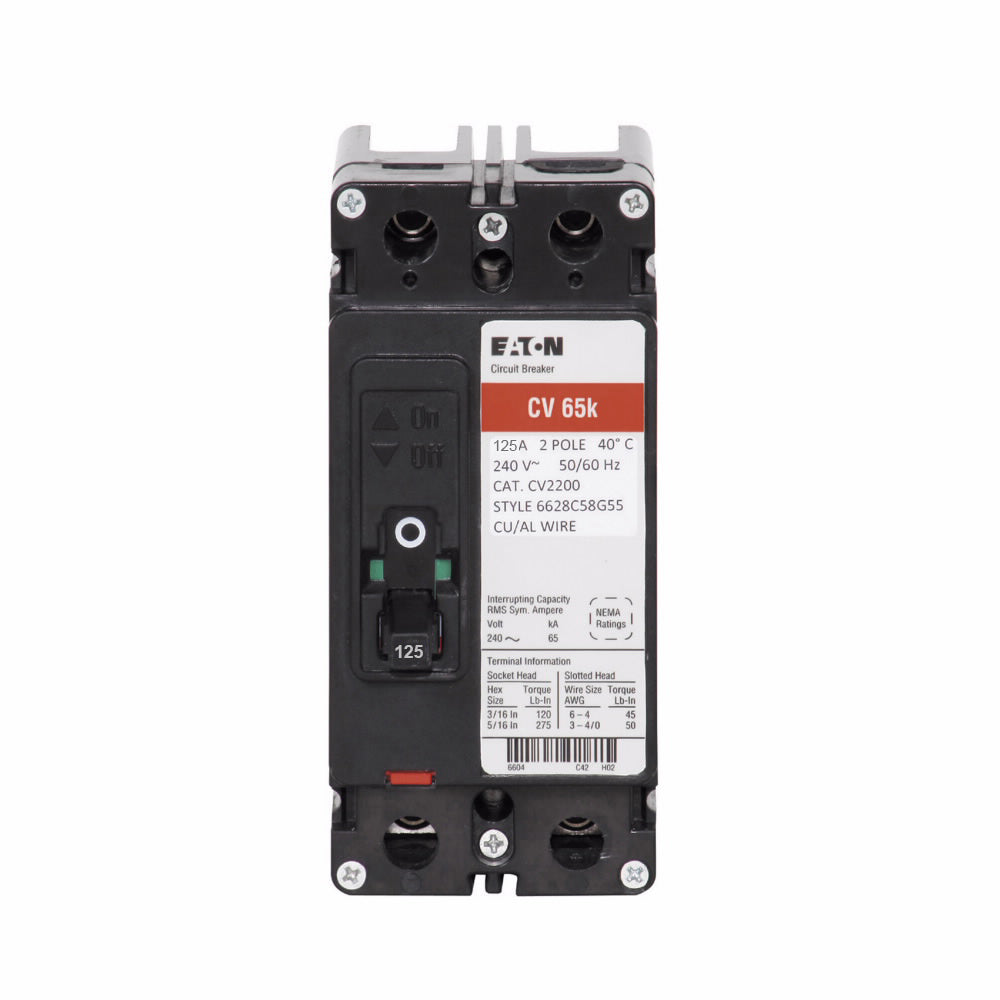

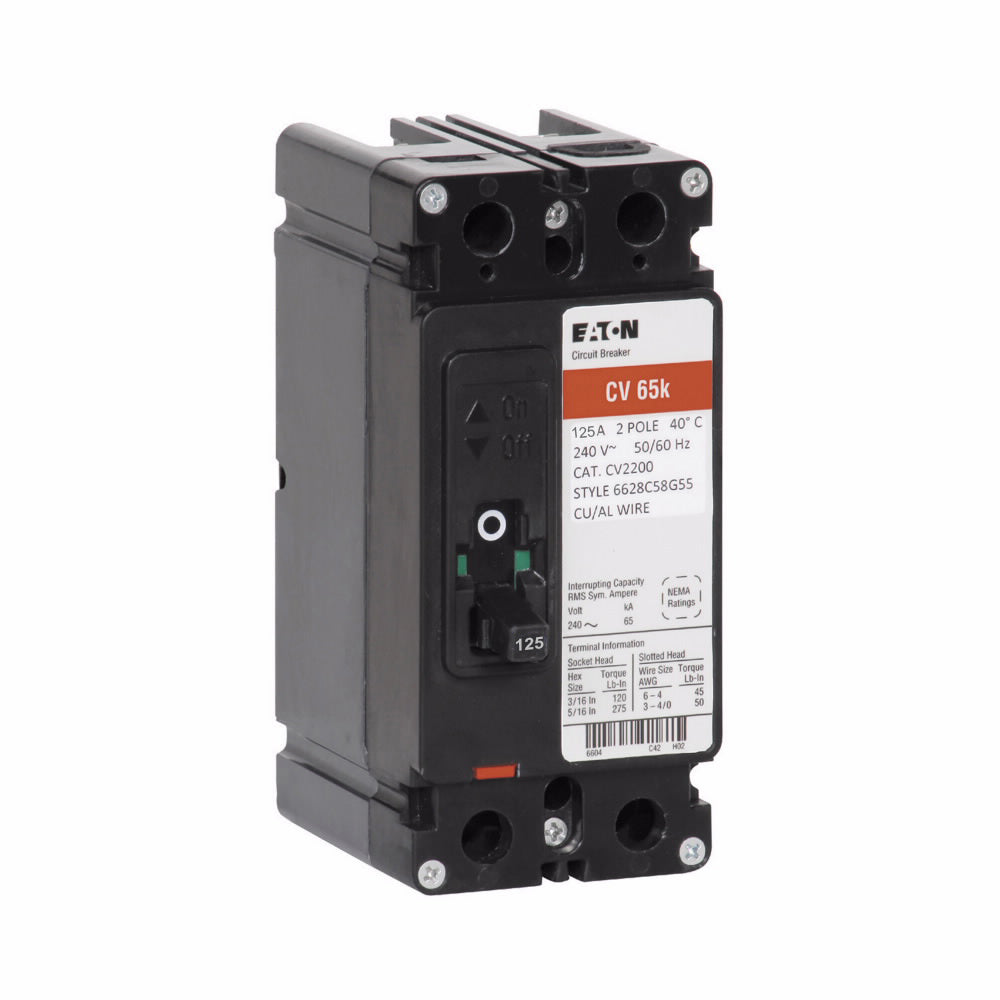

The Eaton CVS2125XMM is a two-pole, 125A molded case circuit breaker designed to provide dependable thermal-magnetic protection for 240V electrical systems. This breaker offers long-time and instantaneous trip functions suited for demanding branch-circuit and main-breaker applications. Its bolt-on configuration and durable CVS-series construction support stable installation in commercial, industrial, and energy-generation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
CVS2125XMM |
| Subcategory |
Molded Case |
| Amperage Rating |
125A |
| Voltage Rating |
240V AC |
| Number of Poles |
2 |
| Interrupt Rating |
25 kAIC @ 240V |
| Trip Functions |
Long-Time & Instantaneous (Thermal Magnetic) |
| Series / Type |
CVS Series / CVS |
| Connection Type |
Bolt-On |
| Application Use |
Renewable energy, conventional generation, marine systems, data centers |
| Terminal Capacity |
#6 – 4/0 Al/Cu |
| Mounting Hardware |
Included |
| Phase |
1-Phase |
| Standards |
UL 489, CSA C22.2 No. 5 |
| Country of Origin |
Dominican Republic |
| Dimensions (H×W×D) |
5.0" × 3.5" × 7.5" |
| Weight |
2.75 lb |
Information About CVS2125XMM
The CVS2125XMM is part of Eaton’s CVS Series, a line of molded case breakers built for secure bolt-on mounting and high interrupting performance. It incorporates a thermal-magnetic trip system that supports long-time overload response and instantaneous short-circuit protection. This breaker is compatible with a variety of panel and distribution systems, including applications in renewable energy, marine equipment, and data-center infrastructure. Supplied with a mounting hardware kit, it is suitable for use as a main breaker in installations requiring 125A protection at 240V.
Key Features:
- 125A Protection Capacity: Provides reliable current handling for higher-load circuits and main-breaker applications.
- Thermal-Magnetic Trip: Ensures long-time overload and instantaneous short-circuit protection in one unit.
- Bolt-On Connection: Offers secure attachment to compatible panelboards for stable electrical performance.
- 25 kA Interrupt Rating: Supports safe fault-clearing capability at 240V for commercial installations.
- CVS Series Construction: Built within Eaton’s robust CVS platform for consistent performance in demanding environments.
- Two-Pole Configuration: Supports 240V circuits requiring dual-pole protection.
- Includes Mounting Hardware: Supplied with installation hardware for straightforward panel integration.
- CSA and UL Rated: Certified to UL 489 and CSA C22.2 standards for broad compliance.
The CVS2125XMM delivers the reliability and precision required for molded case protection in commercial and industrial power systems.
