Description

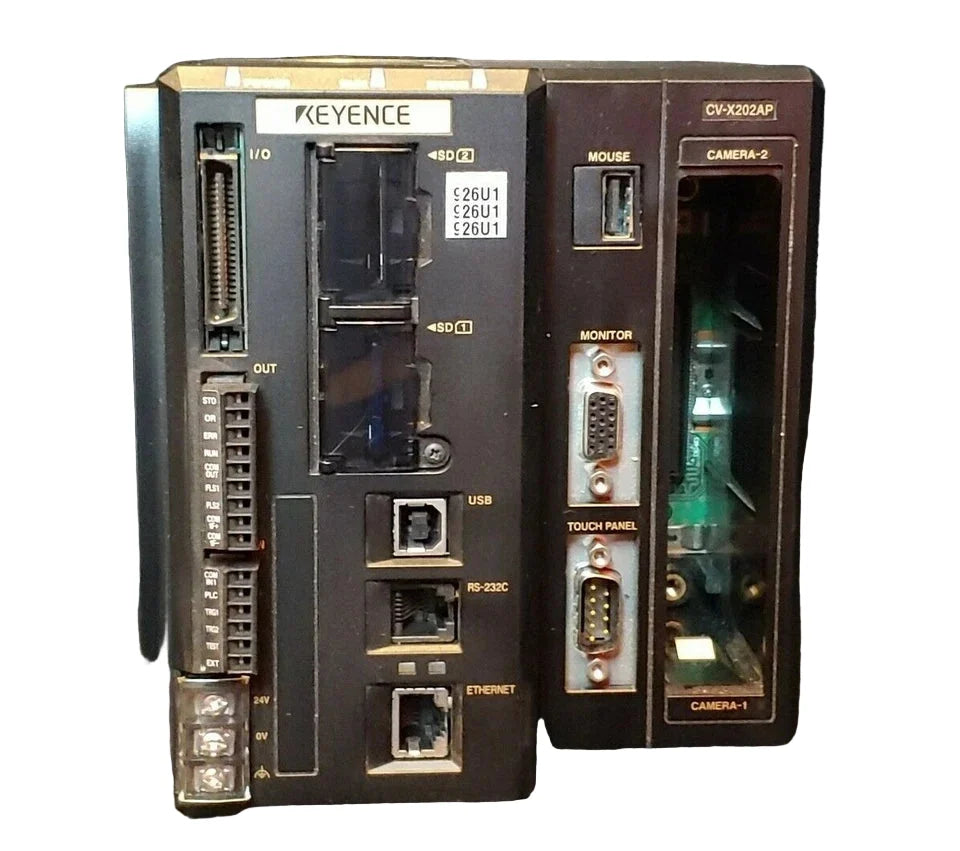

The Keyence CV-X202AP is an intuitive machine vision controller designed for advanced image processing and inspection automation. As a PNP-type US specification model, it provides fast processing, flexible camera connectivity, and a user-friendly interface optimized for high-performance visual inspection tasks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Camera & Vision |
| Part Number |
CV-X202AP |
| Subcategory |
Controller for Camera |
| Series |
CV-X200 Series |
| Type |
Vision Controller (PNP Type, US Specification) |
| Image Processing Speed |
High-speed multi-core processor |
| Camera Compatibility |
Keyence CV-X Series digital cameras |
| Supported Functions |
Measurement, defect inspection, pattern matching, OCR |
| I/O Configuration |
PNP input/output |
| Communication Interfaces |
Ethernet, RS-232C, USB 3.0, GigE |
| Display Output |
HDMI / DVI for external monitor |
| Storage |
Internal SSD with data logging capability |
| Power Supply |
24 VDC ±10% |
| Operating Temperature |
0 to +50 °C (32 to 122 °F) |
| Operating Humidity |
35 to 85% RH (no condensation) |
| Enclosure Rating |
IP20 (for control cabinet installation) |
| Cooling Method |
Forced air (internal fan) |
| Mounting Method |
DIN rail or panel mount |
| Material |
Aluminum housing |
| Weight |
6.22 lbs (approx. 2.82 kg) |
Information About CV-X202AP
The CV-X202AP is part of Keyence’s CV-X200 Series of high-speed, high-accuracy vision system controllers. It supports multiple Keyence cameras and lighting configurations for simultaneous image acquisition and analysis. Equipped with an intuitive GUI and integrated vision algorithms, the CV-X202AP enables users to perform complex inspections such as defect detection, measurement, and positioning with minimal setup time. Designed for factory automation, it features network compatibility, high-speed I/O, and robust industrial-grade construction for dependable operation in production environments.
Key Features:
- High-Speed Vision Processing: Delivers rapid image analysis for real-time quality inspection.
- Multi-Camera Support: Compatible with multiple Keyence digital cameras for parallel inspection setups.
- PNP-Type I/O Configuration: Simplifies integration into existing PNP control systems.
- User-Friendly Interface: Intuitive graphical programming for easy configuration and teaching.
- Advanced Inspection Tools: Includes measurement, presence detection, and pattern matching functions.
- Network Connectivity: Ethernet, RS-232C, and USB interfaces for data transfer and remote control.
- Compact Industrial Design: Durable housing suitable for panel or enclosure mounting.
- Flexible Compatibility: Supports integration with lighting controllers and external devices.
- Stable Operation: Designed for continuous use in demanding manufacturing environments.
The CV-X202AP delivers the reliability and precision required for automated visual inspection, positioning, and quality control processes.
