Description

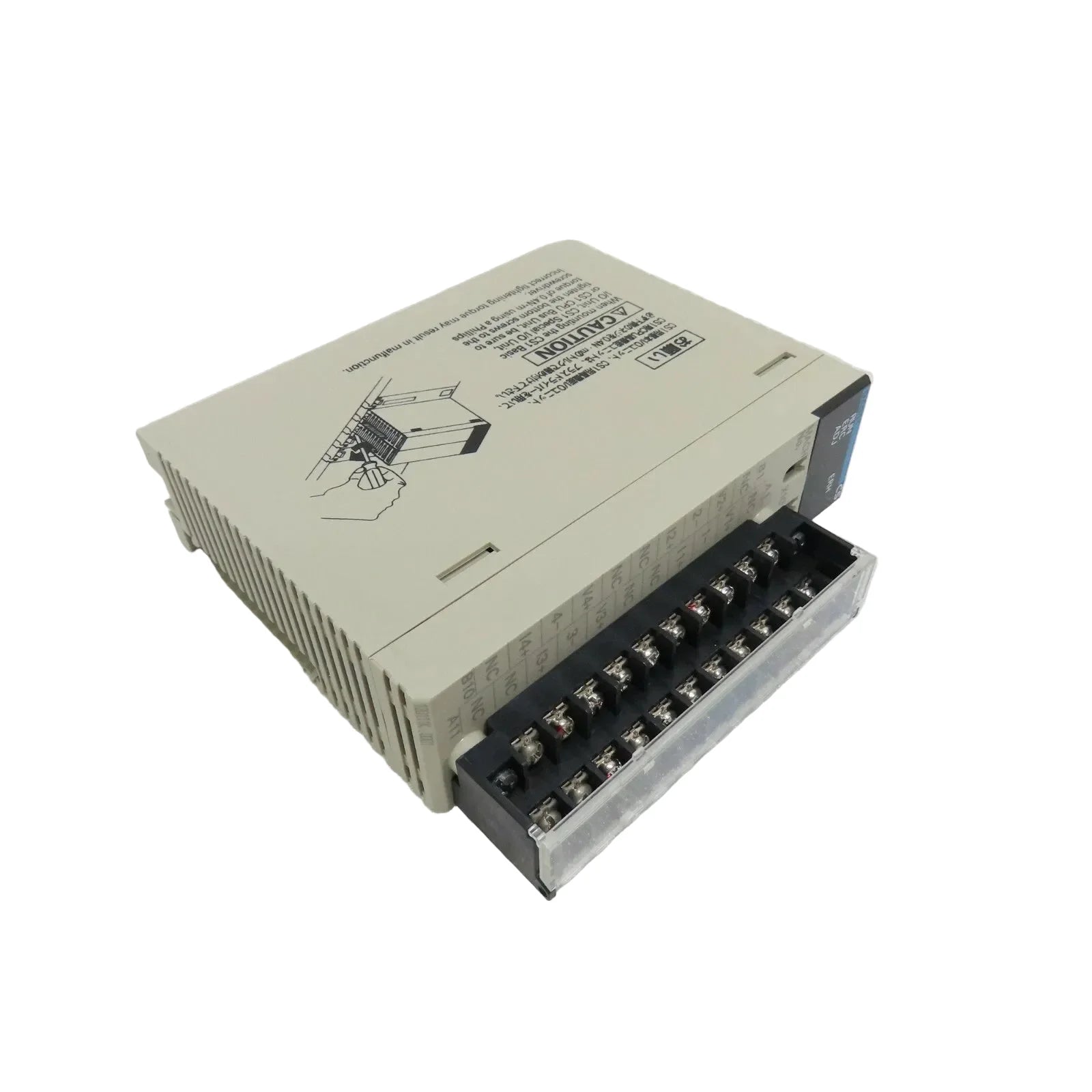

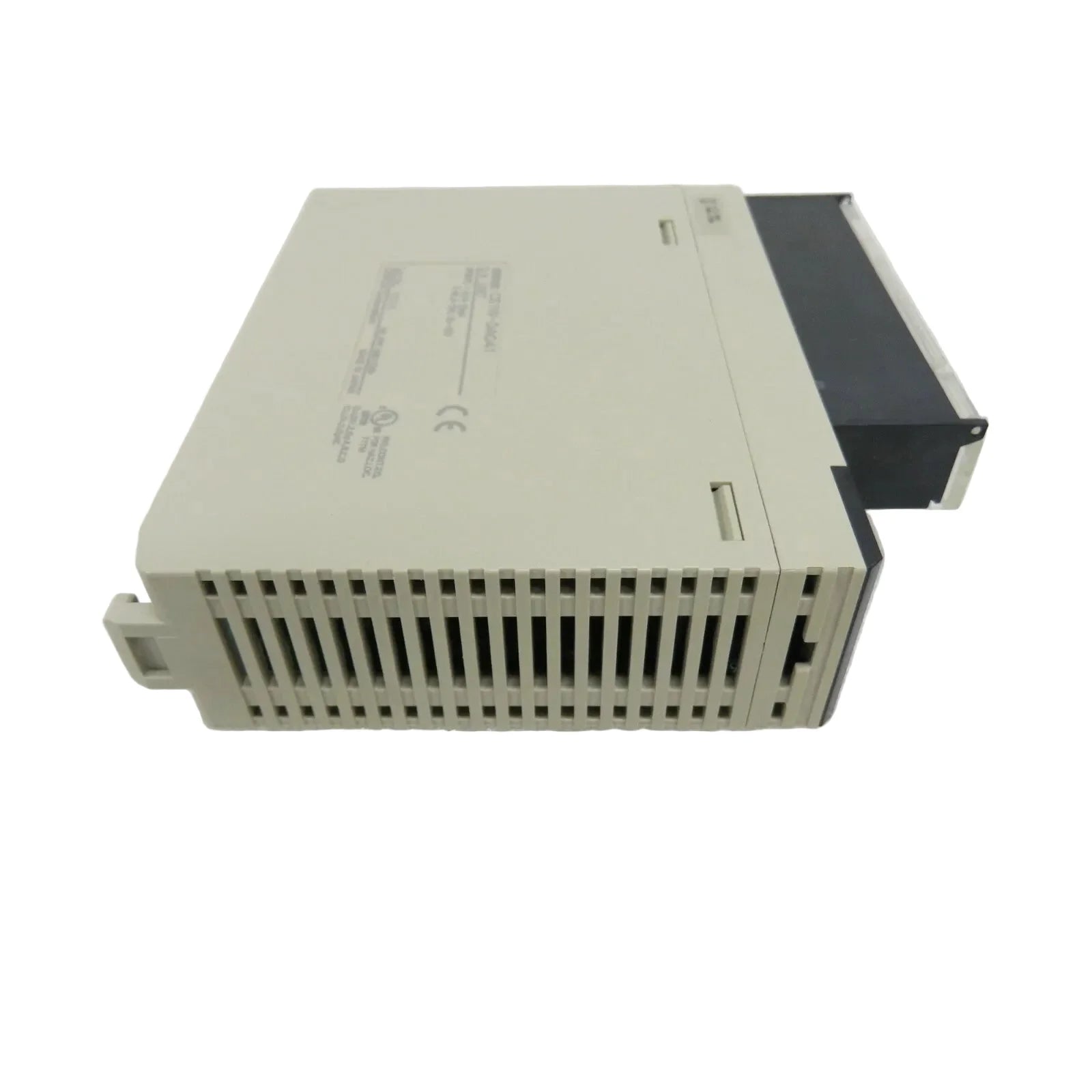

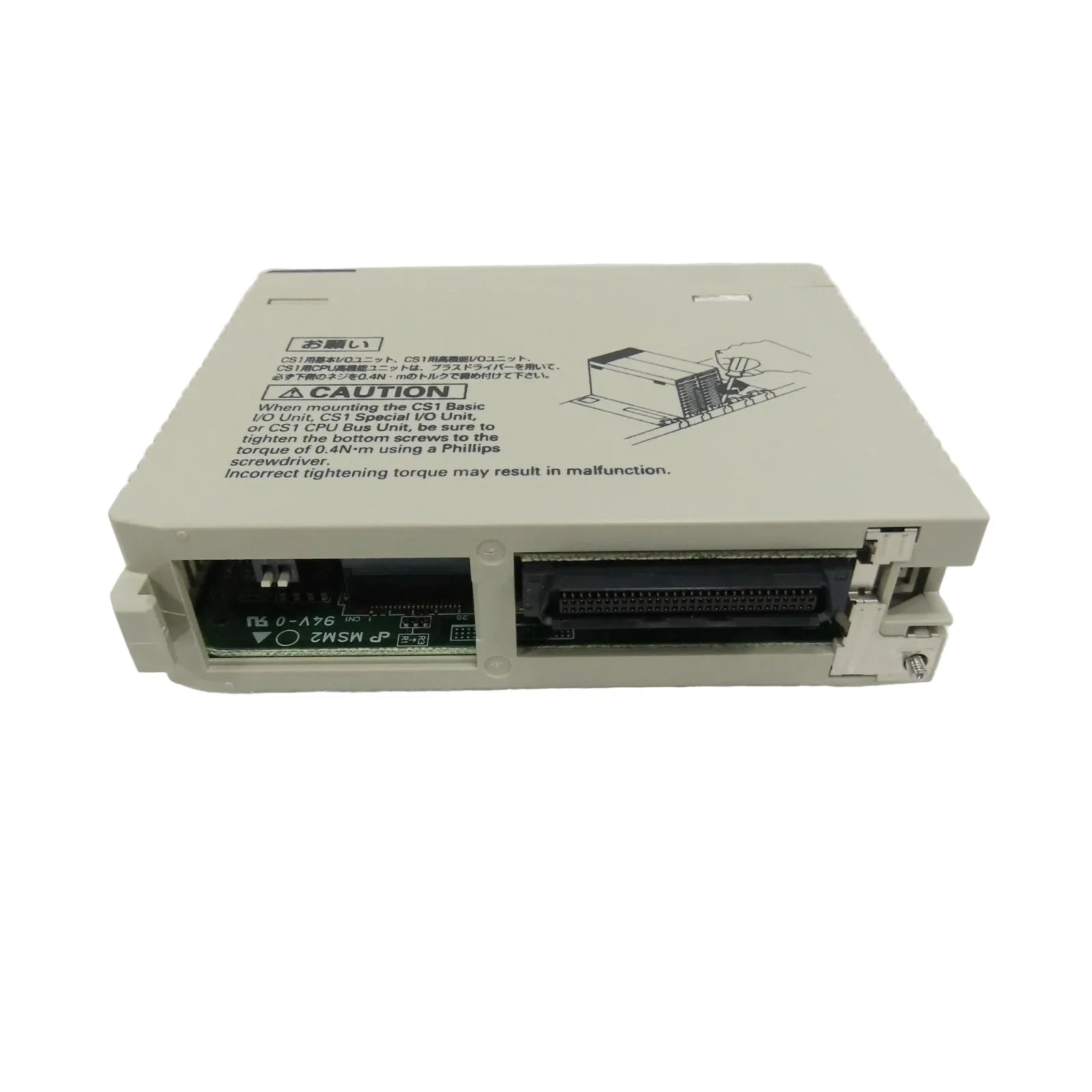

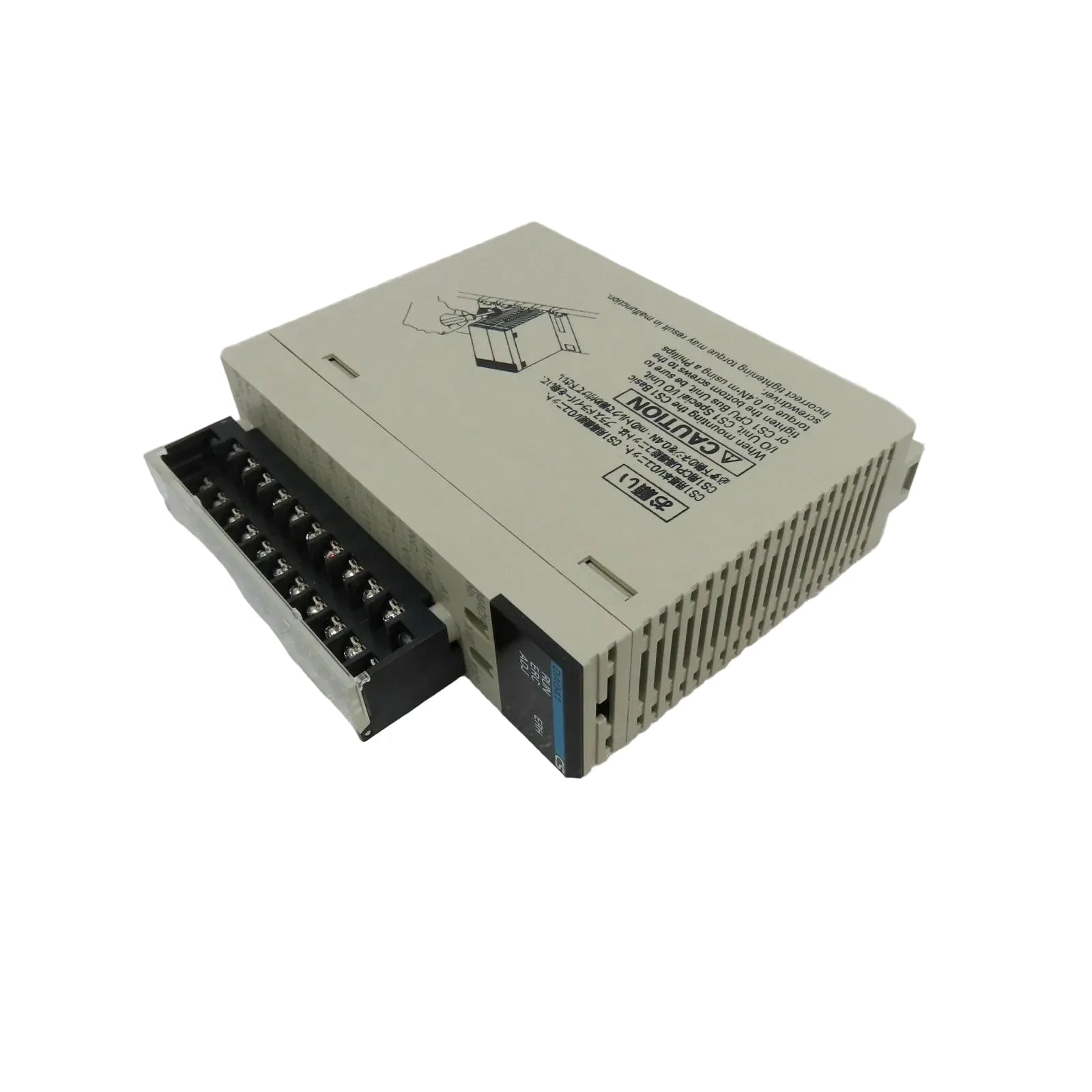

The Omron CS1W-DA041 is an analog output module designed for use with Omron CS1 series programmable logic controllers in industrial automation systems. The CS1W-DA041 provides four analog output channels supporting both voltage and current signal ranges for precise process and machine control. It is intended for PLC-based applications requiring stable analog control of actuators, drives, and instrumentation devices.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron Automation and Safety |
| Category |
Automation Control Modules |
| Part Number |
CS1W-DA041 |
| Subcategory |
Analog Output Modules |
| Series |
CS1W Series |
| Module Type |
Analog Output Unit |
| Number of Outputs |
4 Channels |
| Output Signal Voltage Ranges |
–10 to +10 V, 0–10 V, 0–5 V, 1–5 V |
| Output Signal Current Range |
4–20 mA |
| Max Output Current (Voltage Mode) |
12 mA per Point |
| Output Impedance |
0.5 Ω Max |
| Max Load Resistance |
600 Ω |
| Resolution |
4000 Full Scale |
| Set Data Format |
16-Bit Binary |
| Terminal Block Type |
21-Point Detachable Block (M3 Screws) |
| Rack Compatibility |
CS-Series CPU Rack / Expansion Rack |
| Current Consumption |
130 mA at 5 VDC, 180 mA at 26 VDC |
| Product Dimensions (W × H × D) |
35 mm × 130 mm × 126 mm |
| Weight |
0.45 kg |
Information About CS1W-DA041
The CS1W-DA041 is part of the Omron CS1W Series output module lineup, engineered to expand CS1 PLC systems with high-resolution analog output capability. It supports configurable voltage ranges from –10 to +10 V and current output up to 4–20 mA, enabling compatibility with industrial control equipment. The module mounts directly into CS-series CPU or expansion racks and connects through a detachable 21-point terminal block for secure field wiring. With 16-bit binary set data and 4000 full-scale resolution, it is designed for accurate analog regulation in industrial automation and process control environments.
Key Features:
-
CS1 Series Analog Output Expansion Module: Designed for Omron CS1 PLC control and analog signal output applications.
-
Four Analog Output Channels: Provides 4 independent analog output points for multi-device control.
-
Configurable Voltage Output Ranges: Supports –10 to +10 V, 0–10 V, 0–5 V, and 1–5 V signals.
-
Standard Current Output Capability: Includes 4–20 mA analog output for industrial instrumentation interfaces.
-
High Output Resolution Performance: Rated at 4000 full-scale resolution for precise analog regulation.
-
Detachable Terminal Block Wiring: Uses a 21-point removable terminal block with M3 screw connections.
-
Rack-Mount Module Integration: Installs into CS-series CPU or expansion racks for modular PLC systems.
-
Stable Load Handling Support: Maximum permissible load resistance up to 600 Ω for current output devices.
The CS1W-DA041 delivers the reliability and precision required for analog output control in modular Omron PLC automation systems.
