Description

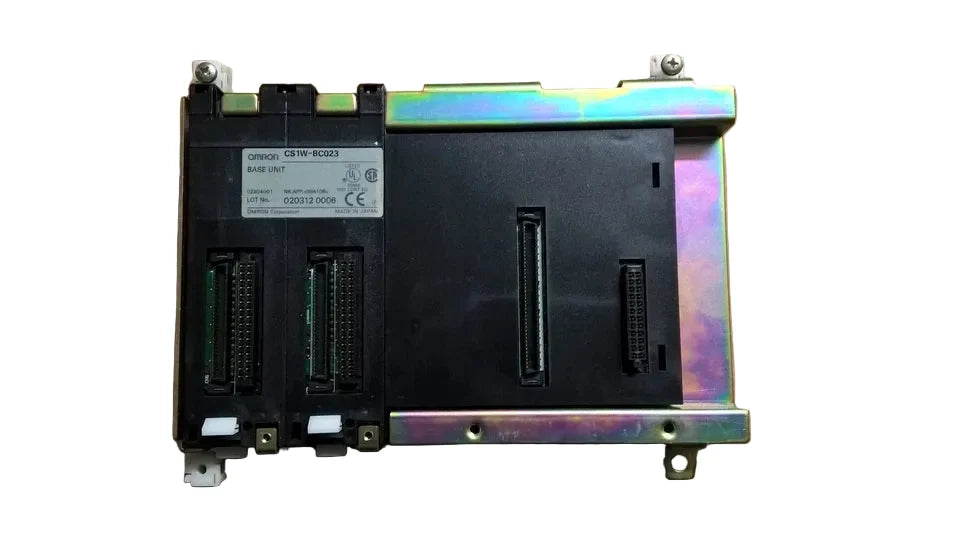

The Omron CS1W-BC023 is a 2-slot CPU backplane designed for CS-Series and C200H Series PLC systems. It provides the structural and electrical interface required to mount and interconnect PLC modules within a control panel. This backplane supports reliable module communication and stable system expansion in industrial automation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
CS1W-BC023 |
| Subcategory |
PLC Backplanes |
| Product Type |
Central Processing Unit Backplane |
| Product Line |
CS1 |
| Number of Slots |
2 Slots |
| Compatibility |
CS-Series, C200H Series |
| Mounting Mode |
Panel Surface |
| Operating Temperature Range |
-20°C to +55°C |
| Storage Temperature Range |
-40°C to +85°C |
| Compliance Standards |
Lloyd, EC Directives, UL, CSA |
| Material |
Industrial-Grade Metal or Durable Plastic |
| Power Supply |
Dependent on Installed System Modules |
| Application |
PLC Module Mounting and Interconnection |
| Weight |
1.00 lbs (0.45 kg) |
Information About CS1W-BC023
The CS1W-BC023 is a central processing unit backplane developed for Omron CS-Series and compatible C200H Series programmable controllers. It features two module slots that allow installation of a CPU and an additional expansion or support module within a compact system configuration. Designed for panel surface mounting, the backplane ensures secure mechanical support and consistent electrical connectivity between installed PLC components. Constructed from durable industrial-grade materials and compliant with Lloyd, EC Directives, UL, and CSA standards, it is suitable for operation in environments ranging from -20°C to +55°C.
Key Features:
- 2-Slot Configuration: Supports installation of a CPU and one additional module.
- CS and C200H Compatibility: Designed for integration with Omron CS-Series and C200H PLC platforms.
- Panel Surface Mounting: Enables secure attachment within industrial control enclosures.
- Reliable Module Interconnection: Provides stable electrical and communication pathways between modules.
- Industrial Temperature Range: Operates from -20°C to +55°C for demanding environments.
- Wide Compliance Standards: Certified to Lloyd, EC Directives, UL, and CSA requirements.
- Durable Construction: Built from robust materials for long-term industrial use.
The CS1W-BC023 delivers the reliability and precision required for stable PLC module mounting and system integration in industrial control systems.
