Description

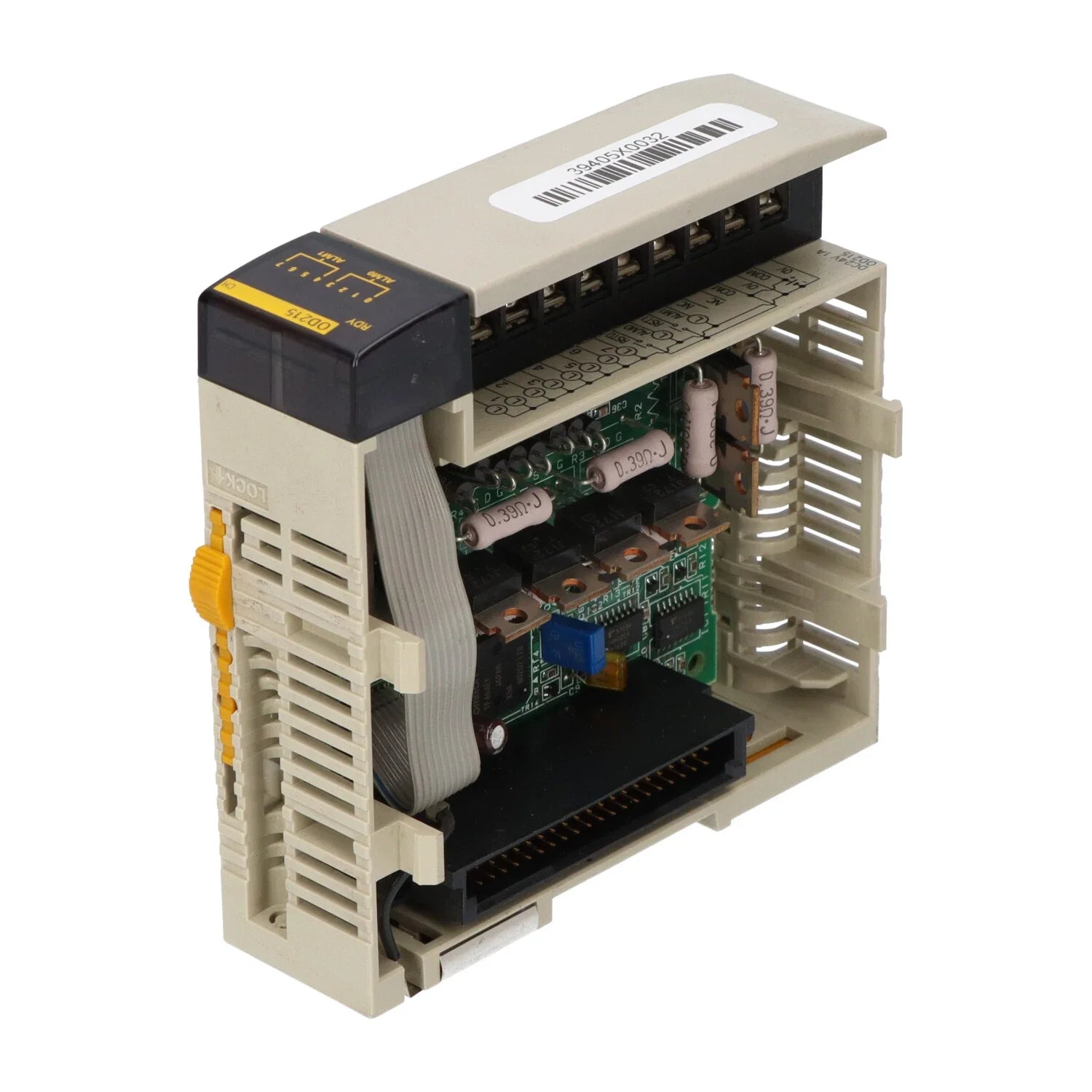

The Omron CQM1-OD215 is a solid-state output module designed for use with CQM1H series programmable controllers. It provides eight 24 VDC PNP transistor outputs rated at 1 A per point. The module is intended for high-speed DC load switching in industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs/Machine Control |
| Part Number |
CQM1-OD215 |
| Subcategory |
PLC Module/Rack |
| Series |
CQM1 |
| Module Type |
Output Module |
| Number of Outputs |
8 |
| Output Type |
Transistor (PNP) |
| Rated Output Voltage |
24 VDC |
| Rated Output Current |
1 A per point |
| Max ON Delay |
0.2 ms |
| Max OFF Delay |
0.8 ms |
| Maximum Leakage Current |
0.1 mA |
| Backplane Current Consumption |
110 mA at 5 VDC |
| Mounting Type |
DIN Rail |
| Termination Style |
Screw Terminal |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-20°C to 75°C |
| Relative Humidity |
10% to 90% (Non-condensing) |
| Country of Manufacture |
Japan |
| Weight |
0.53 lbs |
Information About CQM1-OD215
The CQM1-OD215 belongs to the Omron CQM1 series of PLC expansion modules. It features eight solid-state PNP transistor outputs for controlling DC loads in control panels and machine automation applications. The unit mounts on a DIN rail and connects via screw terminals for secure field wiring. Designed for industrial environments, it operates within a temperature range of 0°C to 55°C and supports reliable switching with short ON and OFF delay times.
Key Features:
-
8 Solid-State Outputs: Provides eight independent 24 VDC transistor outputs.
-
PNP Transistor Type: Suitable for sourcing DC output control applications.
-
1 A Output Rating: Supports DC loads up to 1 A per output point.
-
Fast Switching Performance: 0.2 ms ON delay and 0.8 ms OFF delay.
-
DIN Rail Mounting: Designed for standard control panel installation.
-
Screw Terminal Connection: Secure and stable wiring interface.
-
Low Leakage Current: Maximum 0.1 mA leakage current.
-
CQM1 Series Compatibility: Designed for use with Omron CQM1H PLC systems.
The CQM1-OD215 delivers the reliability and precision required for high-speed DC output control in industrial PLC systems.
