Description

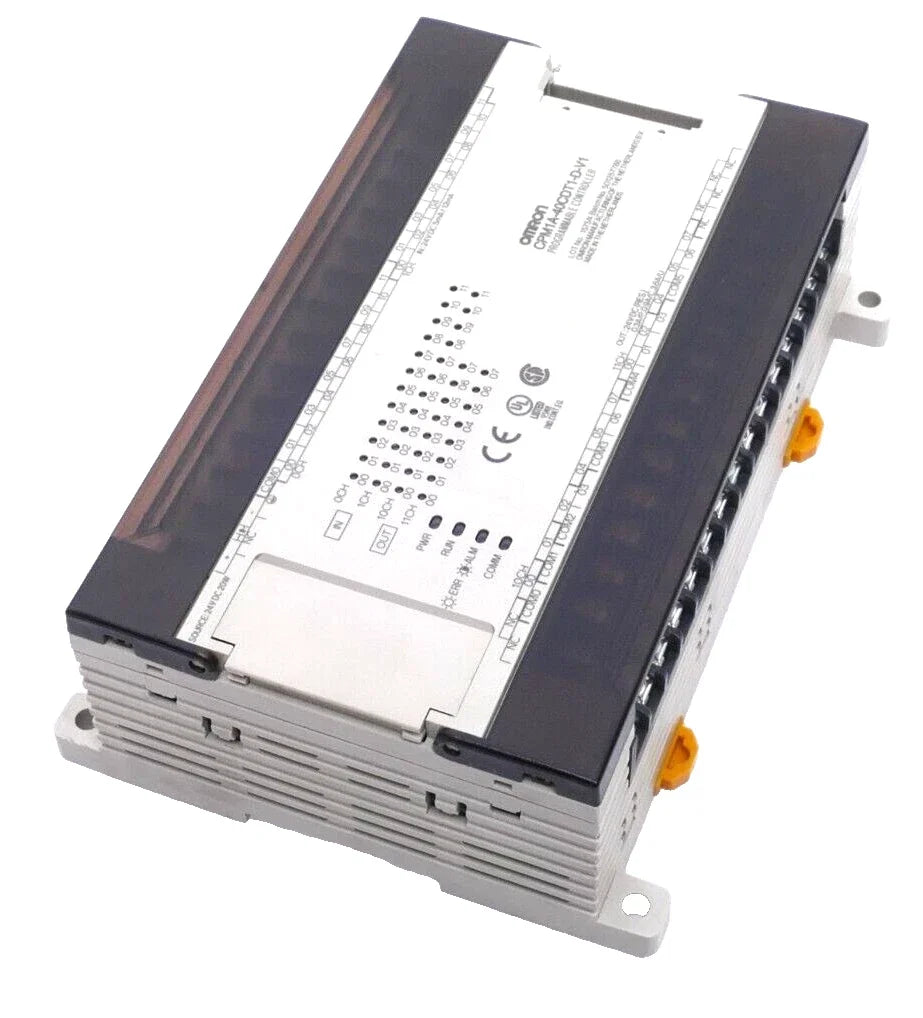

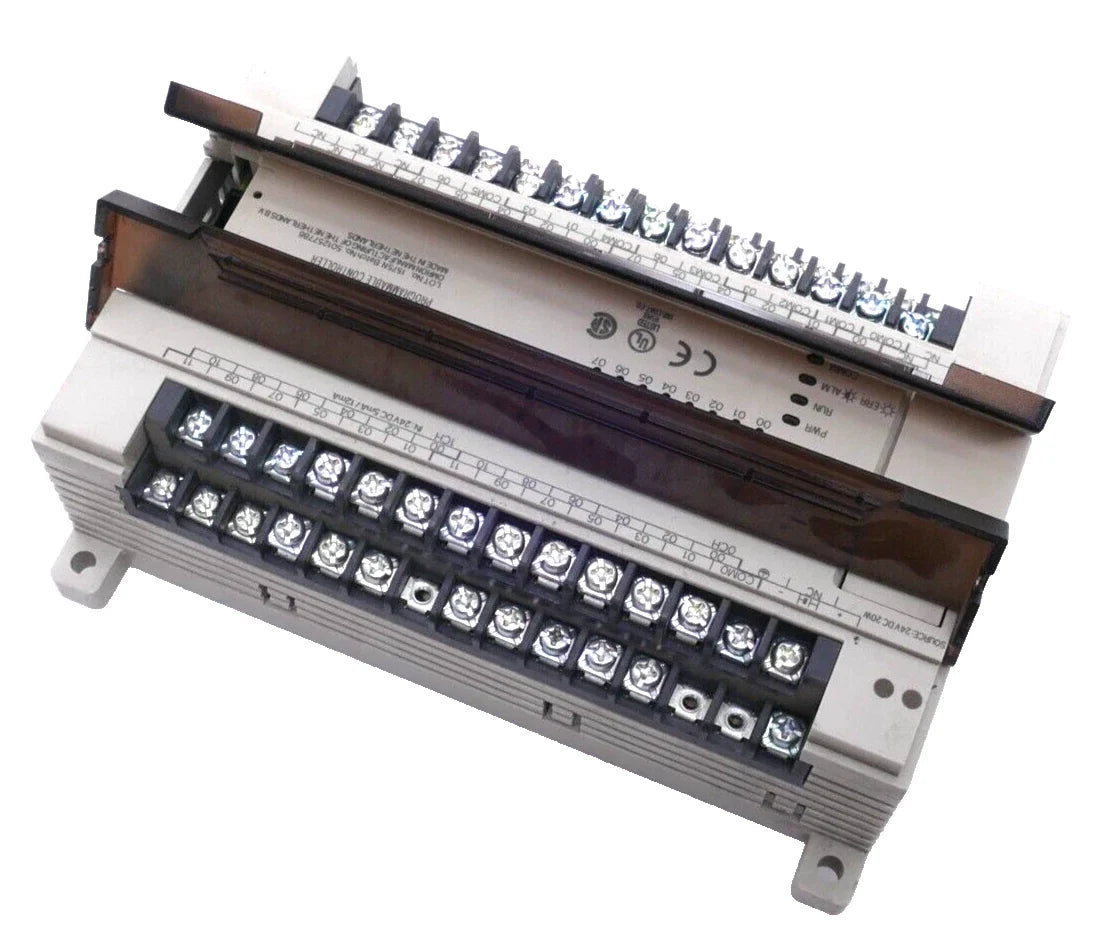

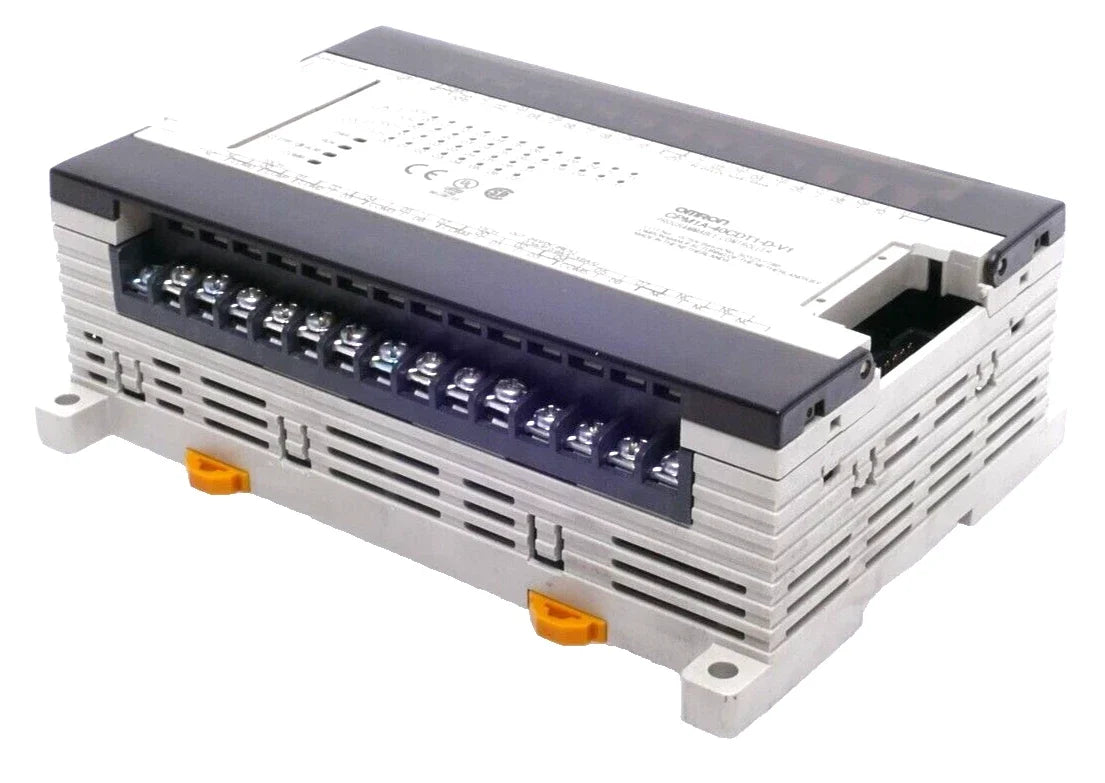

The Omron CPM1A-40CDT1-D-V1 is a programmable controller featuring 24 DC input points and 16 PNP transistor outputs for compact automation systems. Powered by a 24 VDC supply, it delivers reliable control performance with a 0.3 A output current rating. This DIN rail mount unit is designed for integration into CPM1A series industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLCs |
| Part Number |
CPM1A-40CDT1-D-V1 |
| Subcategory |
Programmable Controllers |
| Product Line |
CPM1A Series |
| Total I/O Points |
40 Points |
| Digital Inputs |
24 × 24 VDC Inputs |
| Digital Outputs |
16 × Transistor Outputs |
| Output Type |
PNP (Sourcing) |
| Output Current |
0.3 A per Output |
| Supply Voltage |
24 VDC |
| Mounting Type |
DIN Rail Mount |
| Operating Temperature |
0°C to 55°C |
| Application |
Industrial Machine and Process Control |
| Weight |
0.14 kg |
Information About CPM1A-40CDT1-D-V1
The CPM1A-40CDT1-D-V1 belongs to the Omron CPM1A series of compact PLCs engineered for small to mid-sized machine control tasks. It integrates CPU processing, digital inputs, and transistor outputs within a single housing to optimize panel space. The controller supports 24 × 24 VDC input channels and 16 PNP (sourcing) transistor outputs for direct interfacing with field devices. Designed for DIN rail mounting, it operates within a 0°C to 55°C temperature range, making it suitable for industrial automation environments.
Key Features:
- 24 Digital DC Inputs: Accepts 24 × 24 VDC input signals from sensors and switches.
- 16 PNP Transistor Outputs: Provides sourcing outputs rated at 0.3 A per point.
- 24 VDC Power Supply: Operates on standard industrial DC control voltage.
- Integrated CPU and I/O: Combines processing and I/O in one compact controller.
- DIN Rail Mounting: Enables efficient installation inside control panels.
- CPM1A Series Compatibility: Designed for use within Omron CPM1A automation systems.
- Industrial Operating Range: Rated for 0°C to 55°C environments.
The CPM1A-40CDT1-D-V1 delivers the reliability and precision required for compact PLC-based industrial automation and machine control applications.
