Description

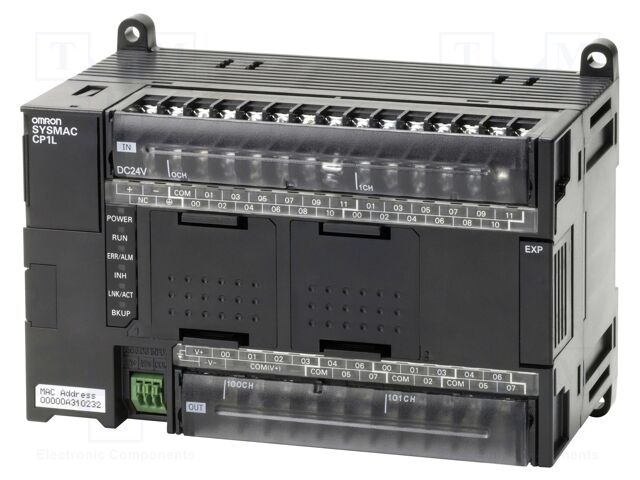

The Omron CP1L-EM40DR-D is a compact PLC CPU with built-in Ethernet, designed for efficient control of small to mid-sized automation systems. It provides 24 digital inputs and 16 relay outputs in a single all-in-one unit powered by 24 VDC. This controller combines fast processing, flexible expansion, and network connectivity for modern machine control applications.

Technical Specifications

Information About CP1L-EM40DR-D

The CP1L-EM40DR-D is part of Omron’s CP1L series, which bridges the gap between micro-PLCs and modular PLC platforms. It shares a common architecture with the CP1H, CJ1, and CS1 series, enabling program compatibility and easier system migration. The CPU includes embedded Ethernet with TCP/IP socket services for monitoring, logging, and remote access. Designed for panel mounting, it supports expansion I/O and optional communication or analog boards to adapt to growing system requirements.

Key Features:

• CP1L Series PLC CPU: Compact all-in-one controller for machine automation applications.
• Built-In Ethernet Port: Supports TCP/IP communication for monitoring, diagnostics, and data exchange.
• 24 Digital Inputs: Supports PNP/NPN 24 VDC input signals for flexible field wiring.
• 16 Relay Outputs: Relay-type outputs rated up to 2 A for direct control of loads.
• High-Speed Processing: Logic execution time of 0.55 µs ensures responsive control.
• 20K Step Program Capacity: Handles complex control logic and automation routines.
• 32K Word Data Memory: Provides ample space for data handling and process variables.
• Expansion Capability: Supports up to 3 expansion units and a maximum of 160 local I/O points.
• High-Speed Counter Support: Includes 4 encoder input channels up to 100 kHz.
• Battery-Free Memory Backup: Ensures program and data retention without battery maintenance.

The CP1L-EM40DR-D delivers the reliability and precision required for compact machine control and networked industrial automation.
