Description

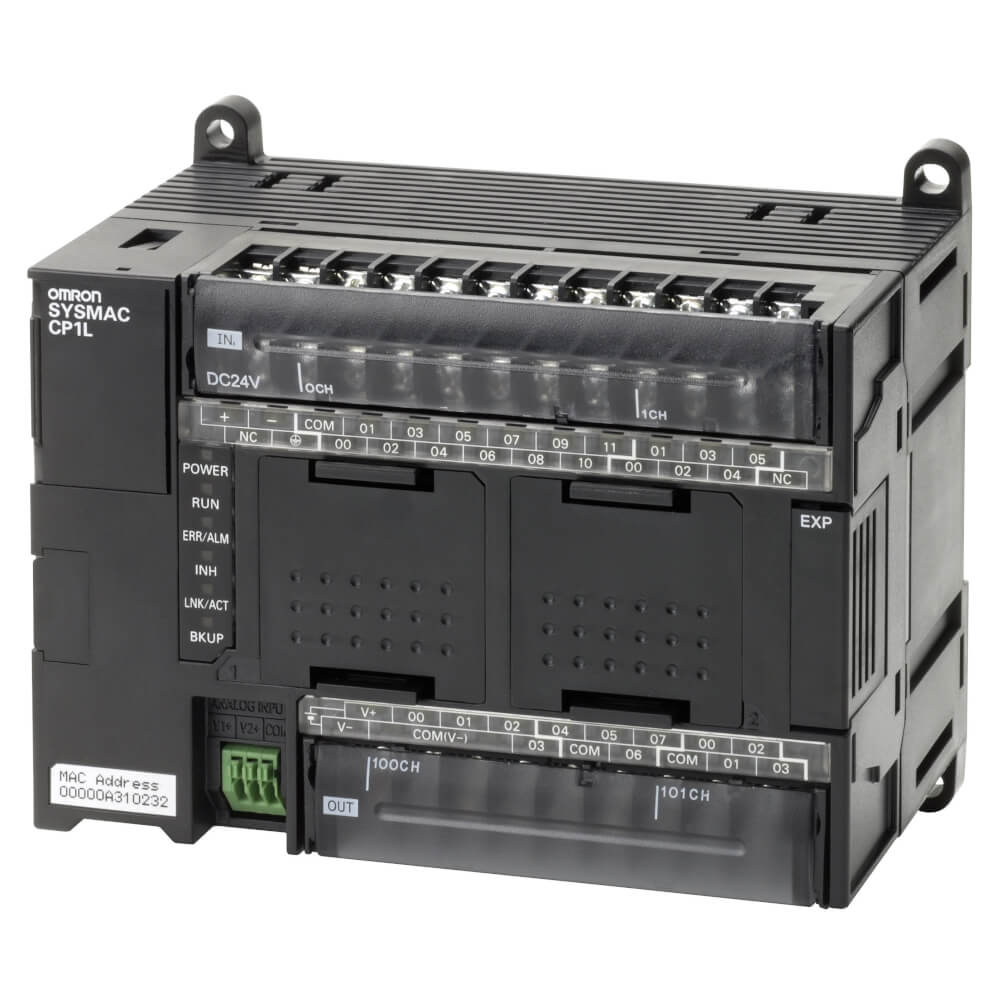

The Omron CP1L-EM30DT1-D is a compact programmable logic controller designed for machine control and automation tasks requiring Ethernet connectivity. It features built-in digital I/O, high-speed processing, and support for motion control functions in space-efficient installations. This PLC is suitable for compact machines requiring reliable control and network integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Automation Control Modules |
| Part Number |
CP1L-EM30DT1-D |
| Subcategory |
Programmable Logic Controllers |
| Supply Voltage |
24 VDC |
| Digital Inputs |
18 (PNP/NPN) |
| Digital Outputs |
12 (PNP transistor) |
| Program Capacity |
20 K steps |
| Data Memory |
32 K words |
| Logic Execution Time |
0.55 µs |
| Communication Interface |
Ethernet TCP/IP |
| Encoder Inputs |
4 channels |
| Max. Pulse Output Frequency |
100 kHz |
| Expansion Units |
Up to 3 |
| Mounting Type |
DIN Rail / Chassis Mount |
| Operating Temperature Range |
0°C to 55°C |
| Weight |
455 g |
Information About CP1L-EM30DT1-D
The CP1L-EM30DT1-D is part of Omron’s CP1L series, which combines the size of a micro-PLC with the functionality of modular controllers. It is built with integrated Ethernet TCP/IP communication for monitoring, data exchange, and remote access. The controller supports expansion units and optional boards to increase I/O capacity and communication flexibility. Its architecture is compatible with Omron CP1H, CJ1, and CS1 series, allowing program reuse and standardized instruction sets.
Key Features:
-
All-in-One PLC Design: Combines CPU, power supply, and I/O in a compact housing.
-
Integrated Ethernet Port: Enables TCP/IP communication for monitoring and data exchange.
-
Digital I/O Capacity: Includes 18 digital inputs and 12 PNP transistor outputs.
-
High-Speed Processing: Logic execution time of 0.55 µs ensures fast response.
-
Motion Control Support: Provides encoder inputs and pulse outputs for positioning tasks.
-
Expandable Architecture: Supports up to 3 expansion units and additional I/O modules.
-
Battery-Free Memory Backup: Retains programs and data without battery maintenance.
The CP1L-EM30DT1-D delivers the reliability and precision required for compact PLC-based machine automation systems.
