Description

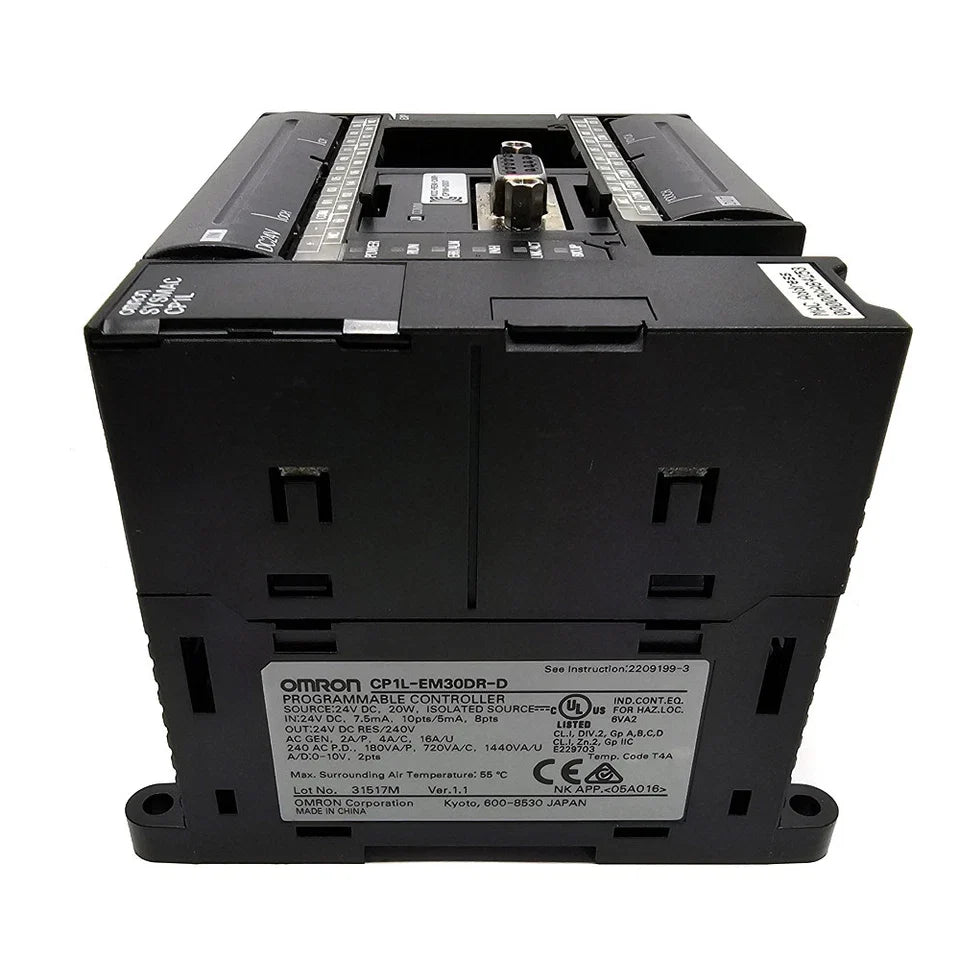

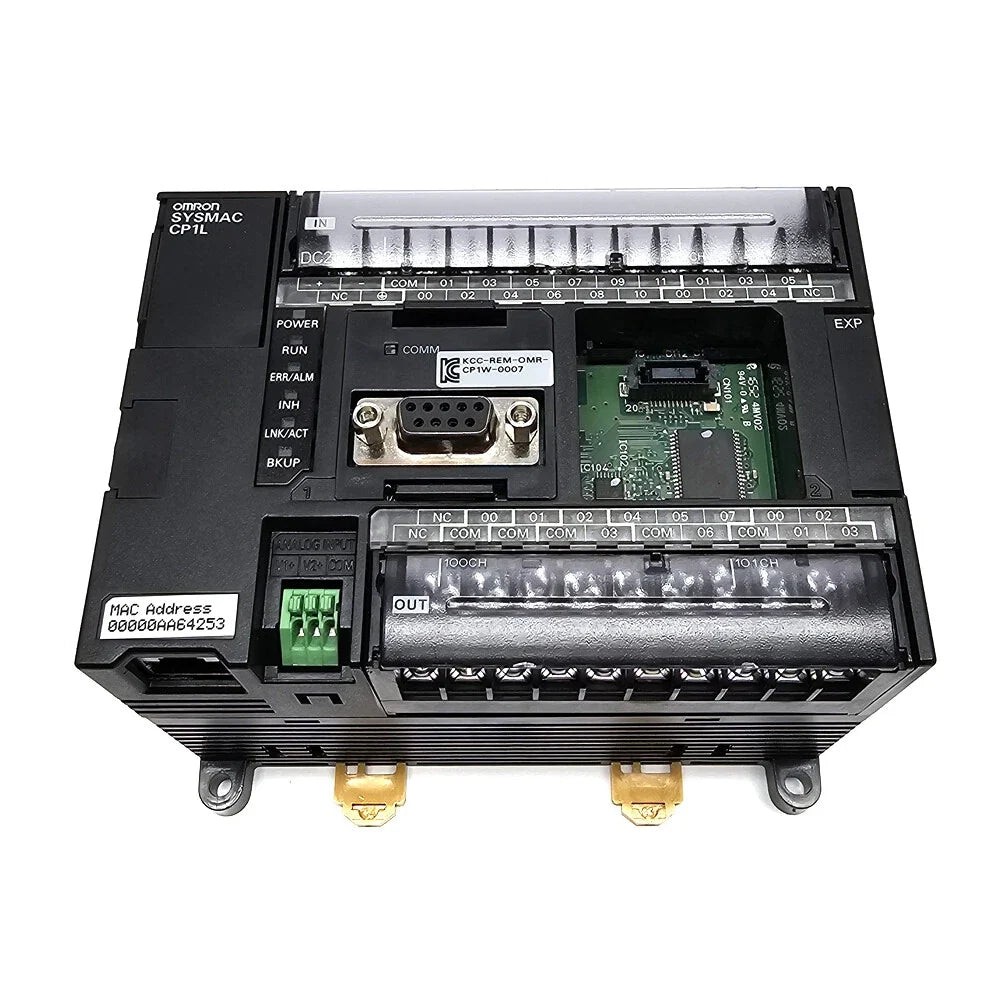

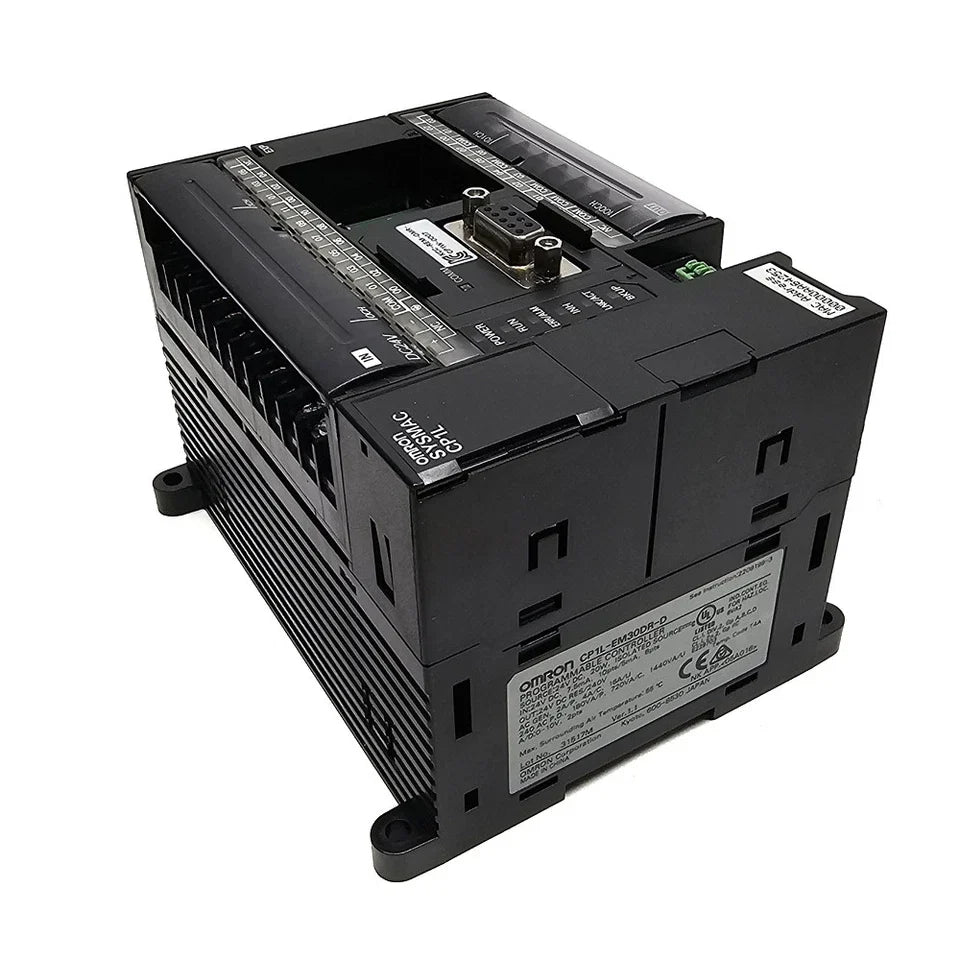

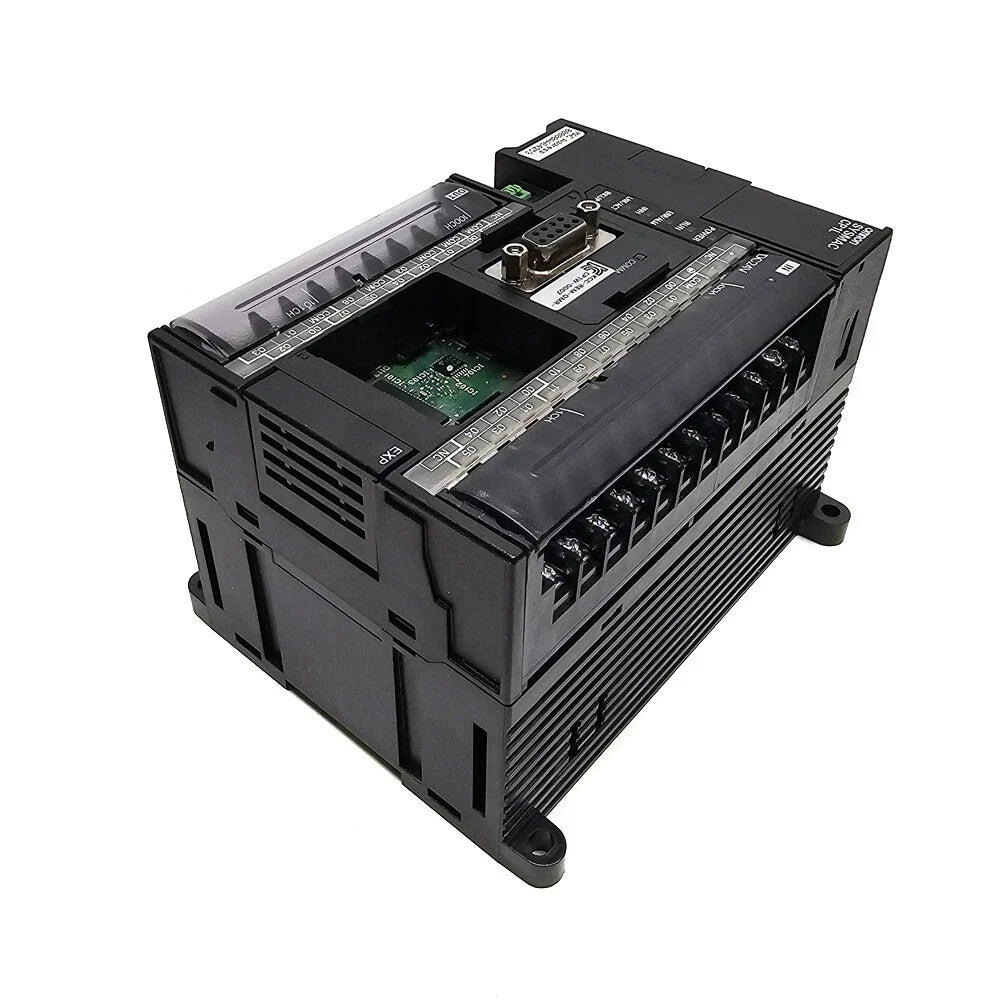

The Omron CP1L-EM30DR-D is a compact PLC designed for reliable machine control and flexible automation tasks. It features built-in Ethernet communication, relay outputs, and fast logic execution for responsive control performance. This controller is well suited for small to mid-scale automation systems requiring expansion capability and stable operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLC Controllers |
| Part Number |
CP1L-EM30DR-D |
| Subcategory |
Compact PLCs |
| Series |
CP1L |
| Product Type |
Programmable Logic Controller |
| Supply Voltage |
24 VDC |
| Digital Inputs |
18 (PNP/NPN) |
| Digital Outputs |
12 (Relay) |
| Program Capacity |
20K Steps |
| Data Memory |
32K Words |
| Logic Execution Time |
0.55 µs |
| Communication Ports |
Ethernet TCP/IP |
| Ethernet Ports |
1 |
| Encoder Input Channels |
4 |
| Max. Encoder Frequency |
100 kHz |
| Max. Expansion Units |
3 |
| Max. Local I/O Points |
150 |
| Operating Temperature Range |
0°C to 55°C |
| Mounting Type |
DIN Rail / Chassis Mount |
| Software |
CX-One |
| Approval Agency |
CE |
| Dimensions (H x W x D) |
90 mm x 130 mm x 85 mm |
| Weight |
1.1 lbs (499 g) |
Information About CP1L-EM30DR-D
The CP1L-EM30DR-D is part of Omron’s CP1L series, which is engineered to provide cost-effective yet powerful PLC functionality in a compact form factor. It supports DC power input and includes a combination of digital inputs and relay outputs for versatile I/O handling. The controller integrates Ethernet TCP/IP communication and supports optional serial communication through expansion modules. With expandable I/O capacity and battery-free memory backup, it is designed for dependable long-term use in industrial environments.
Key Features:
- Compact PLC Design: Optimized for space-efficient control panel installations.
- Integrated Ethernet Port: Enables network communication via Ethernet TCP/IP.
- High-Speed Logic Processing: Executes logic with a 0.55 µs instruction time.
- Flexible I/O Configuration: Includes 18 digital inputs and 12 relay outputs.
- Expandable Architecture: Supports up to three expansion modules and increased I/O capacity.
- Encoder Input Support: Provides four high-speed encoder input channels up to 100 kHz.
- Battery-Free Memory Backup: Ensures data retention without maintenance requirements.
The CP1L-EM30DR-D delivers the reliability and precision required for compact PLC control in industrial automation systems.
