Description

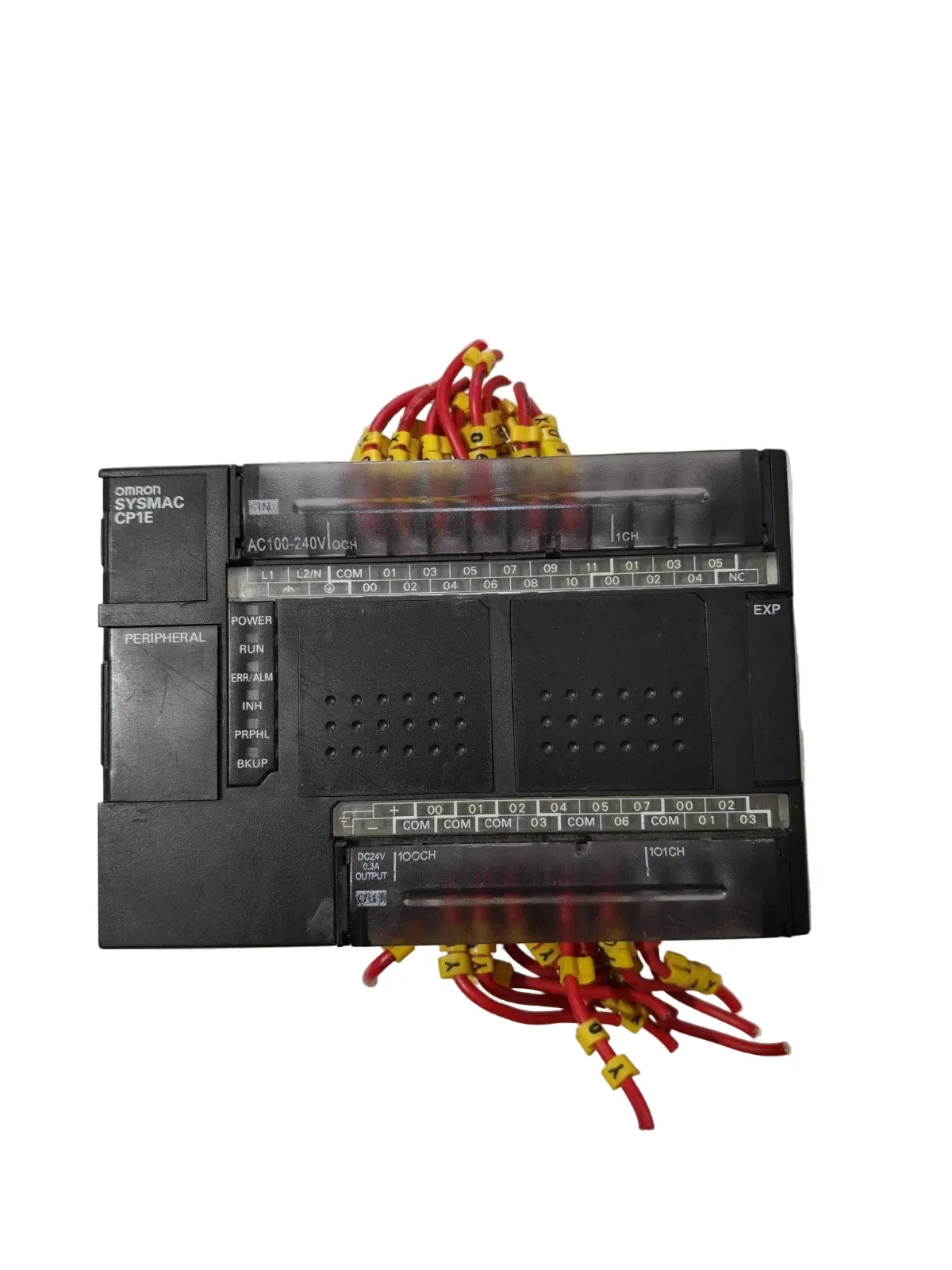

The Omron CP1E-E30DR-A is a compact programmable logic controller designed for basic machine control and automation tasks. It features relay outputs, integrated USB communication, and a built-in power supply for AC operation. This PLC is suitable for small to mid-sized control applications requiring reliable digital I/O performance.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Omron Automation and Safety
Category	Programmable Logic Controllers
Part Number	CP1E-E30DR-A
Subcategory	Brick PLC
Series	CP1E
Power Supply	100–240 VAC
Digital Inputs	18
Digital Outputs	12
Output Type	Relay
Program Capacity	2K steps
Data Memory	2K words
Communication Port	USB
Mounting Type	DIN Rail / Chassis Mount
Operating Temperature	0°C to 55°C
Software	CX-One
Weight	1.3 lbs (0.59 kg)





Information About CP1E-E30DR-A

The CP1E-E30DR-A is an entry-level PLC from the Omron CP1E series, developed for cost-effective industrial automation. It operates on a 100–240 VAC power supply and provides a combination of digital inputs and relay outputs for flexible control logic. The unit supports USB communication for programming and diagnostics using Omron CX-One software. Its compact design allows mounting on DIN rail or chassis, making it suitable for control panels with limited space.

Key Features:

• Integrated AC power supply: Operates directly from 100–240 VAC without external power modules

• Digital input capacity: Supports 18 digital inputs for field device connections

• Relay output configuration: Provides 12 relay outputs rated up to 2 A for direct load control

• Compact PLC design: Suitable for small automation systems and control panels

• USB communication port: Enables programming and monitoring via CX-One software

• Built-in memory: Supports control logic with 2K steps program capacity

• Flexible mounting: Can be installed on DIN rail or chassis

The CP1E-E30DR-A delivers the reliability and simplicity required for basic machine and process control applications.
