Description

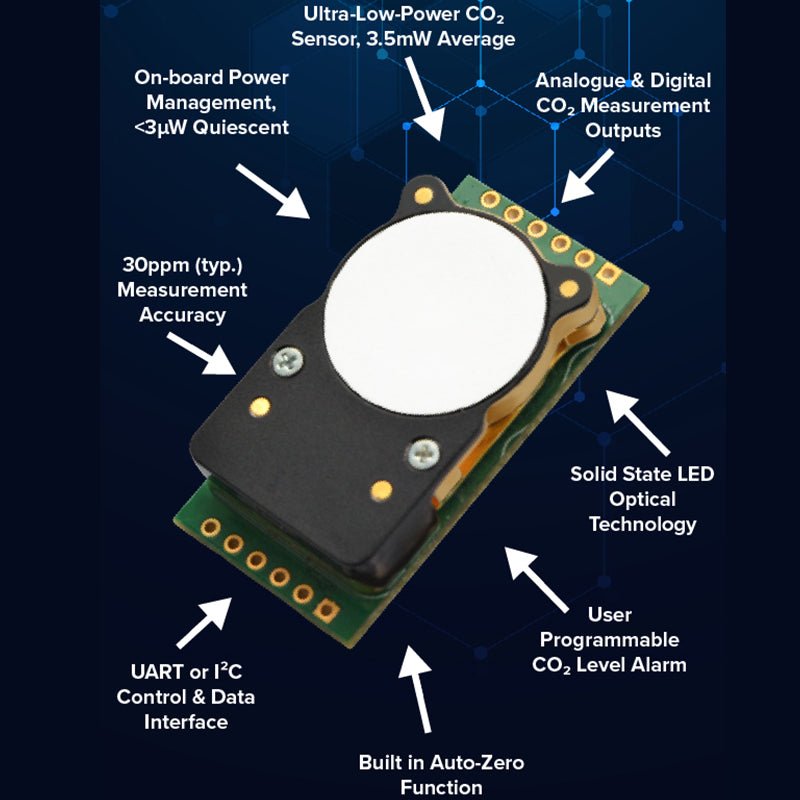

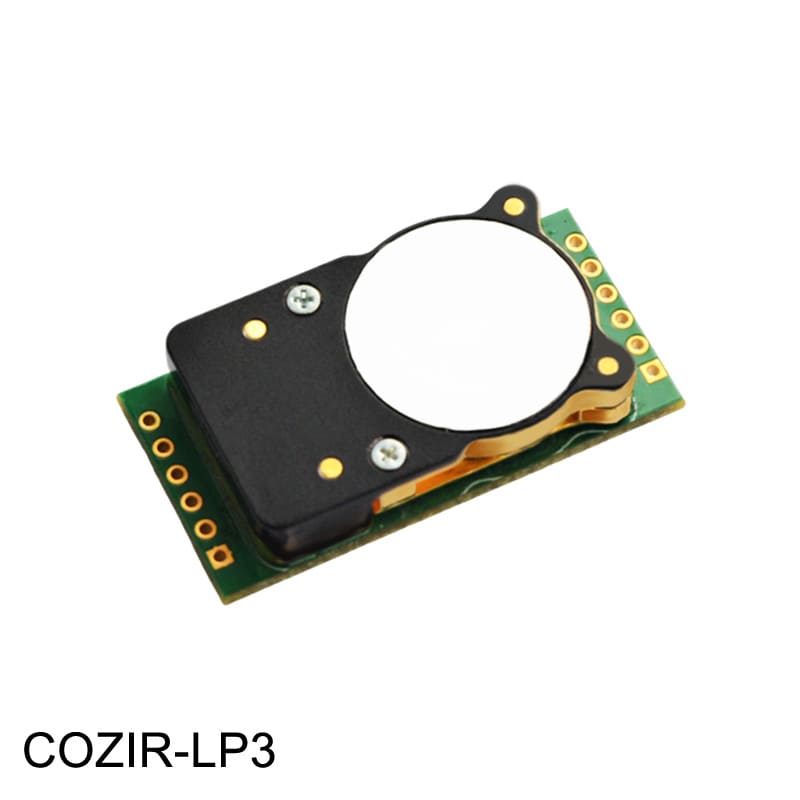

The CozIR®-LP3 Low Power CO2 Sensor (formerly known as the GC-0036) holds ultra low power consumption capabilities, with temperature stability, automatic adjustment for altitude, digital alarm, and PWM output.
Features
- Analogue and digital CO2 measurement outputs
- User-programmable CO2 level alarm
- Built-in auto-zero function
- Miniature, compact size for wireless, portable, wearable, self-powered systems
Models
COZIR-LP3 – designed for low concentration CO2 environments with measurement ranges from 0-5000 ppm.
Specifications
- CO2 Measurement: NDIR (Non-Dispersive Infrared)
- Sample Method: Solid-state LED NDIR Diffusion
- Measurement range: 0-2000ppm, 0-5000ppm, 0-1%
- Accuracy: ±(30ppm, +3% of reading)
- Time to 1st Reading: 0.8 seconds minimum
- Response Time: <30 seconds (diffusion limited)
- Sampling Method: Solid-state LED NDIR diffusion
- Measurement Output: Analogue or Digital (UART and I2C)
- Ultra-low-power: <3.5mW average
- Resolution: 1 ppm
-
Operating Conditions - Temperature: 32° F to 122° F (0° C to 50° C)
Operating Conditions - Humidity: 0-95% RH, non-condensing - Storage Conditions - Temperature: -40° F to 158° F (-40° C to 70° C)
- Operating Pressure: 500 mbar - 2 bar
- Environmental Compliance: RoHS3 and REACH
-
Sensor Life Expectancy: > 15 years
Electrical/Mechanical
- Measurement Output: Analogue or Digital (UART and I2C)
- Supply Voltage: 3.25 V - 5.5 V
- Power Consumption: 3.5 mW active, 3 µW in low-power mode
- Dimensions: 1.5 in. x 0.7 in. x 0.4 in. (38.62mm x 19.5mm x 9.3mm)
- Weight: 0.005 lbs. (~2.5g)
Warranty
-
- 90 days - See CO2Meter Terms and Conditions.
