Description

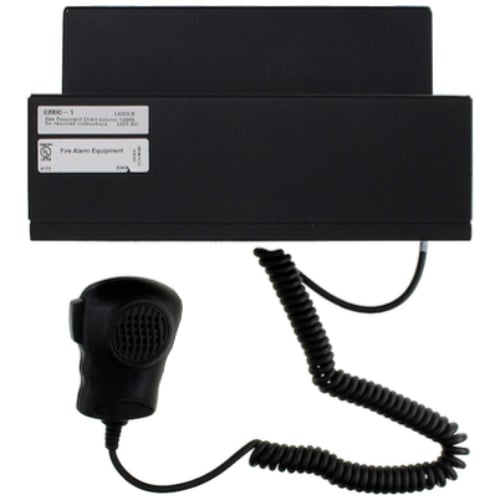

The Notifier CMIC-1 Fire Alarm System Chassis with Paging Microphone is a compact audio control and communication module designed for Notifier voice evacuation systems. It integrates a high-quality paging microphone with essential audio circuitry for live announcements and emergency communication.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Alarm Equipment |
| Part Number |
CMIC-1 |
| Subcategory |
Microphone Chassis Assembly |
| Mounting Type |
Rack or cabinet mount |
| Microphone Type |
Push-to-talk dynamic microphone |
| Enclosure Material |
Steel chassis with mounting hardware |
| Power Source |
Supplied from Notifier control system |
| Operating Voltage |
24 VDC nominal |
| Audio Output |
Balanced, preamplified signal to system input |
| Compatibility |
Notifier DVC and compatible voice evacuation systems |
| Communication Function |
Live voice paging and announcements |
| Control Features |
Keyed enable and status indication |
| Standards Compliance |
UL Listed; NFPA 72 compliant |
| Operating Temperature Range |
32°F to 120°F (0°C to 49°C) |
| Dimensions |
Approx. 14" W × 8" H × 3" D |
| Weight |
7.2 lb (3.27 kg) |
Information About CMIC-1
The CMIC-1 is an integrated microphone chassis assembly used within Notifier’s fire alarm and emergency voice evacuation systems. It combines a paging microphone, preamplifier, and control interface within a single metal housing for efficient installation. Designed to operate as part of the Digital Voice Command (DVC) or equivalent Notifier audio systems, the CMIC-1 supports live voice paging and system-wide announcements. Its durable construction and standardized mounting make it suitable for installation in commercial, institutional, and industrial fire alarm systems where reliability and clarity are essential.
Key Features:
- Integrated Design: Combines microphone, amplifier, and control circuitry in a single chassis.
- High-Quality Paging: Provides clear, intelligible live voice paging across connected fire alarm zones.
- Notifier Compatibility: Fully compatible with Notifier DVC and other voice evacuation components.
- Durable Construction: Steel chassis ensures long-term reliability in demanding environments.
- Easy Installation: Standard rack or cabinet mounting simplifies setup and maintenance.
- Secure Operation: Includes push-to-talk microphone with keyed activation for authorized use.
- System Integration: Supports both local and system-wide paging capabilities.
- UL and NFPA Compliance: Meets regulatory standards for fire alarm and emergency communication systems.
The CMIC-1 delivers the reliability and precision required for critical fire alarm voice paging and system communication.
