Description

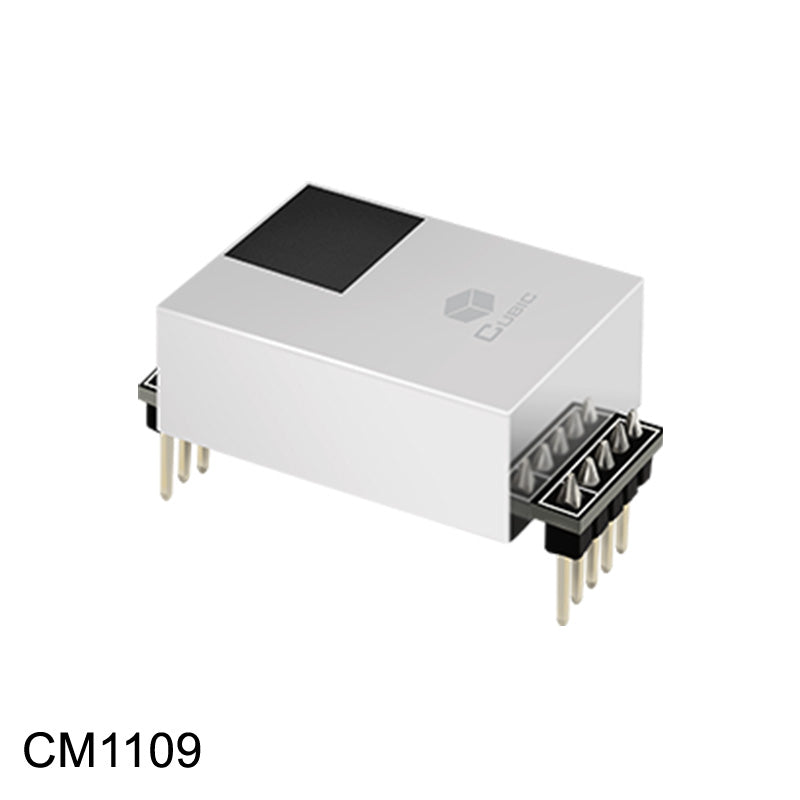

The CM1109 Dual IR Source NDIR CO2 Sensor is designed to measure CO2 for safety, beverage, agriculture, industrial or cold chain storage applications.
The advantage of a dual source, dual beam sensor is that over time it self-compensates for the influence of temperature and humidity, light source aging and other factors that impact the sensor's accuracy. This results in better stability over its lifetime.
Features
- Superior Stability & Accuracy
- Temperature and Humidity Compensation
- High Accuracy Supports WELL, RESET, ASHRAE 62.1-2019 Addendum aa & California Title 24 Application
Applications
- Indoor Air Quality (IAQ)
- HVAC controller
- Central Air Conditioning
- Agriculture
Models
- CM1109 - Dual IR Source NDIR CO2 Sensor - designed for long-term stability.
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here.
We recommend that all first time users purchase both this sensor and the CM-200 Development Kit for fastest and easiest results.
Specifications
- Target gas: Carbon Dioxide (CO2)
- Operating principle: Non-dispersive infrared (NDIR)
- Measurement range: 0-5,000ppm
- Accuracy: ± (50ppm+3% of reading) @ 0°C ~ 50°C , 50±10%RH
- Working Humidity: 0-95%RH (non-condensing)
- Storage Temperature: -30°C ~ 70°C
- Storage Humidity: 0-95%RH (non-condensing)
-
Sampling frequency: 2s
- Time to first reading: ≤30s
- Power supply: 4.5V-5.5 VDC
-
Supply current: <50mA
- Communication Interfaces: UART and I²C
- Life span: >10 years
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Accessories
Gas Sensor Development Kit (CM-200)- designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
