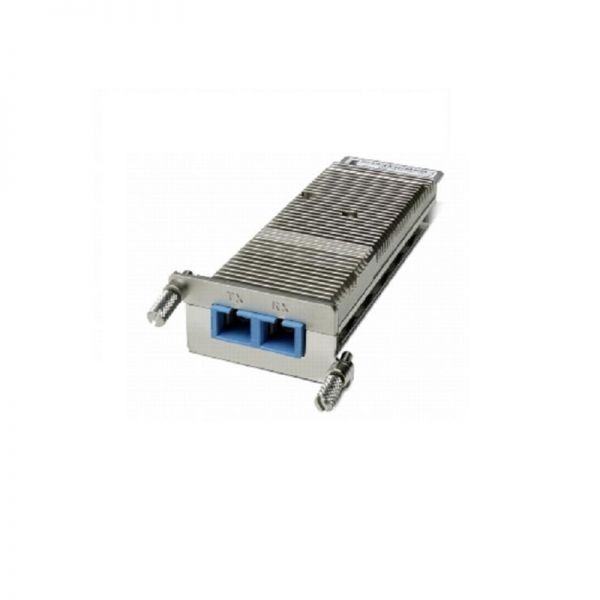

XENPAK, 10 Gigabit Ethernet, Short-Range, Optical Transceiver.
[properties]
| Product Name |
Cisco XENPAK-10GB-SR Optical Transceiver |
| Product Description |
High-performance 10 Gigabit Ethernet short-range optical transceiver for multimode fiber applications. |
| Compatibility |
Cisco networking equipment with XENPAK ports |
| Data Transfer Rate |
10 Gbps |
| Form Factor |
XENPAK |
| Connector Type |
Dual SC/PC |
| Wavelength |
850 nm |
| Maximum Distance |
300 meters over 2000 MHz*km multimode fiber (OM3) |
| Hot-Swappable |
Yes |
| Fiber Type |
Multimode Fiber (MMF) |
| Core Size |
50.0 µm |
| Modal Bandwidth |
2000 MHz*km (OM3) |
[/properties]
[specifications]
| Standards Compliance |
IEEE 802.3ae 10GBASE-SR |
| Transmit Power Range |
-1.2 to -7.3 dBm |
| Receive Power Range |
-1.0 to -9.9 dBm |
| Operating Temperature Range |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range |
-40°C to 75°C (-40°F to 167°F) |
| Dimensions (W x D x H) |
36 x 121 x 18 mm (1.42 x 4.76 x 0.71 inches) |
| Weight |
< 300 g |
| Power Consumption |
< 8W |
| Regulatory Compliance |
GR-20-CORE, GR-326-CORE, GR-1435-CORE |
| Safety Standards |
Laser Class 1 21CFR-1040 LN#50 7/2001, Laser Class 1 IEC60825-1 |
[/specifications]
The XENPAK-10GB-SR is a high-performance optical transceiver designed for use with 10 Gigabit Ethernet networks. It supports short-range connectivity with a maximum distance of up to 300 meters over multimode fiber, making it an ideal solution for data center and campus networking environments. The XENPAK-10GB-SR provides reliable and high-speed data transfer rates of up to 10 Gbps, ensuring fast and efficient data transmission. Its hot-swappable design makes it easy to install and manage, while its compact size ensures optimal use of space in network equipment. The XENPAK-10GB-SR is compatible with a wide range of Cisco networking equipment, providing businesses with flexibility in their network design. Whether you need to upgrade an existing network or build a new one, the XENPAK-10GB-SR is an ideal choice for businesses seeking reliable and high-speed connectivity in their networking infrastructure.
