[shortdesc]
- Unmanaged, Rack-mountable, 16 x 1G ports, No PoE (Data Only), Layer 2
[/shortdesc]
[specifications]
| Device type |
Switch - 16 ports - unmanaged |
| Enclosure type |
Desktop, rack-mountable |
| Ports |
16 x 10/100/1000 |
| Power over Ethernet (PoE) |
N/A |
| Performance |
Switching capacity: 32 Gbps Forwarding performance (64-byte packet size) : 23.8 Mpps |
| MAC address table size |
8000 entries |
| Jumbo frame support |
Yes |
| Features |
Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet |
| Compliant standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x |
| Status indicators |
Power, link/activity, cable diagnostics, loop detection |
| Interfaces |
16 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Power device |
Power supply - internal |
| Voltage required |
100-240V AC/50-60 Hz universal input |
| Electric current required |
N/A |
| Width |
11 in |
| Depth |
6.7 in |
| Height |
1.7 in |
| Weight |
3.2 lbs |
| Fanless |
Yes |
| Compliant standards |
UL 60950, FCC CFR47 Part 15, CSA 22.2 |
| Localization |
Chinese (simplified), German, French, Italian, Spanish, Japanese |
| OS required |
N/A |
| Min operating temperature |
32 F |
| Max operating temperature |
104 F |
| Humidity range operating |
10 - 90% (non-condensing) |
| Min storage temperature |
-4 F |
| Max storage temperature |
158 F |
| Humidity range storage |
10 - 90% (non-condensing) |
[/specifications]

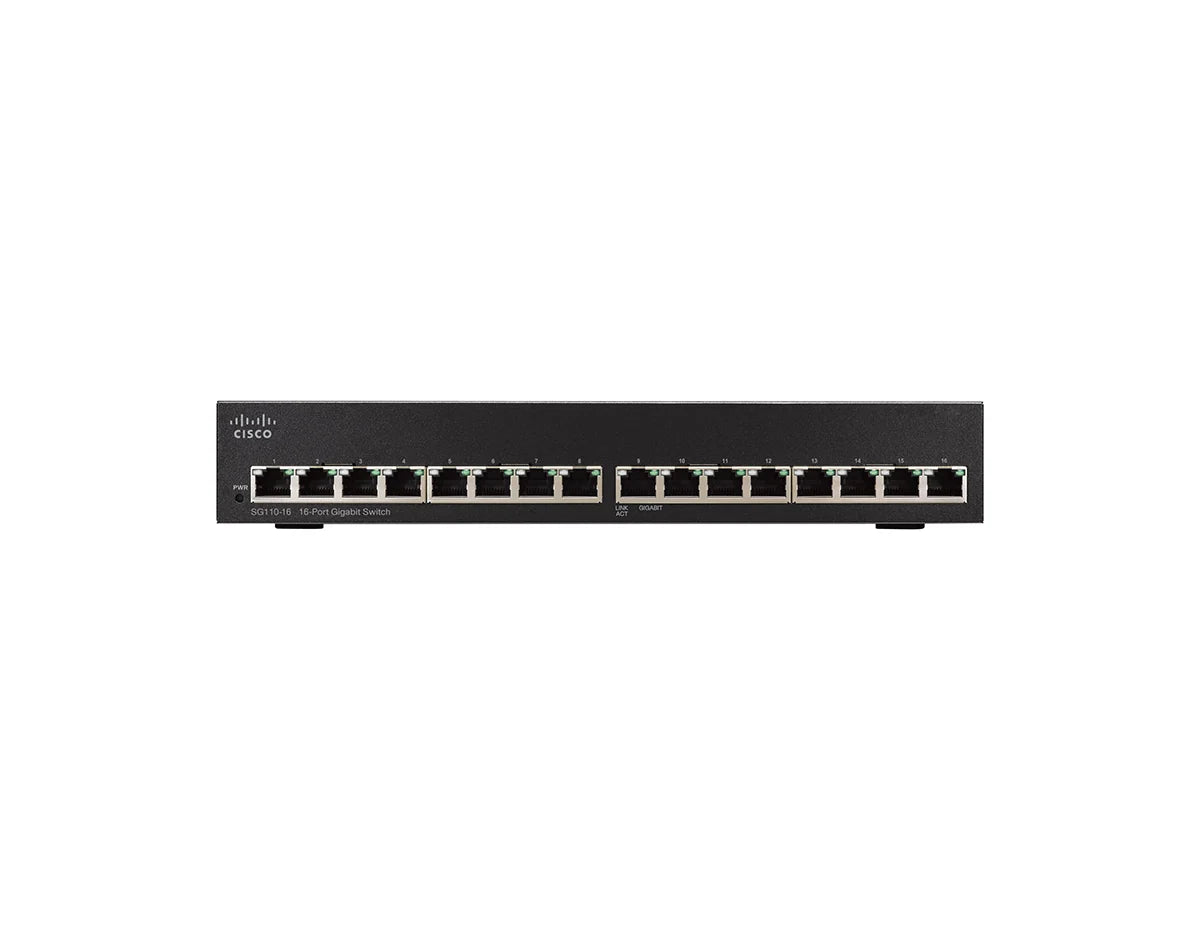

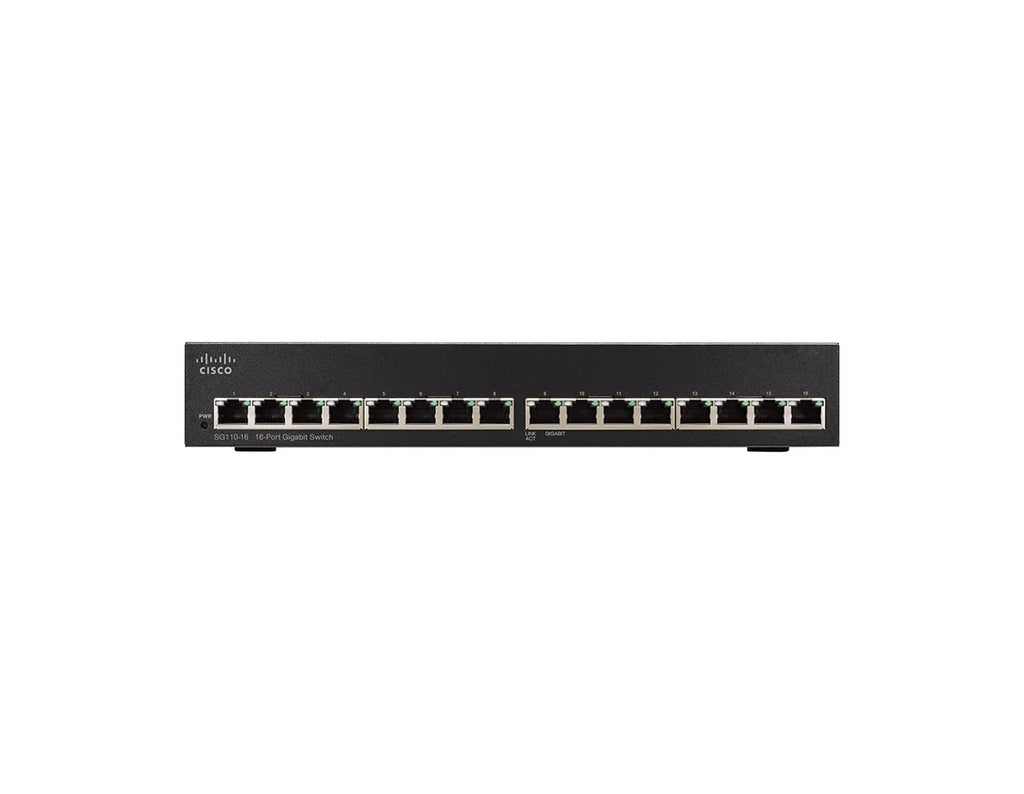

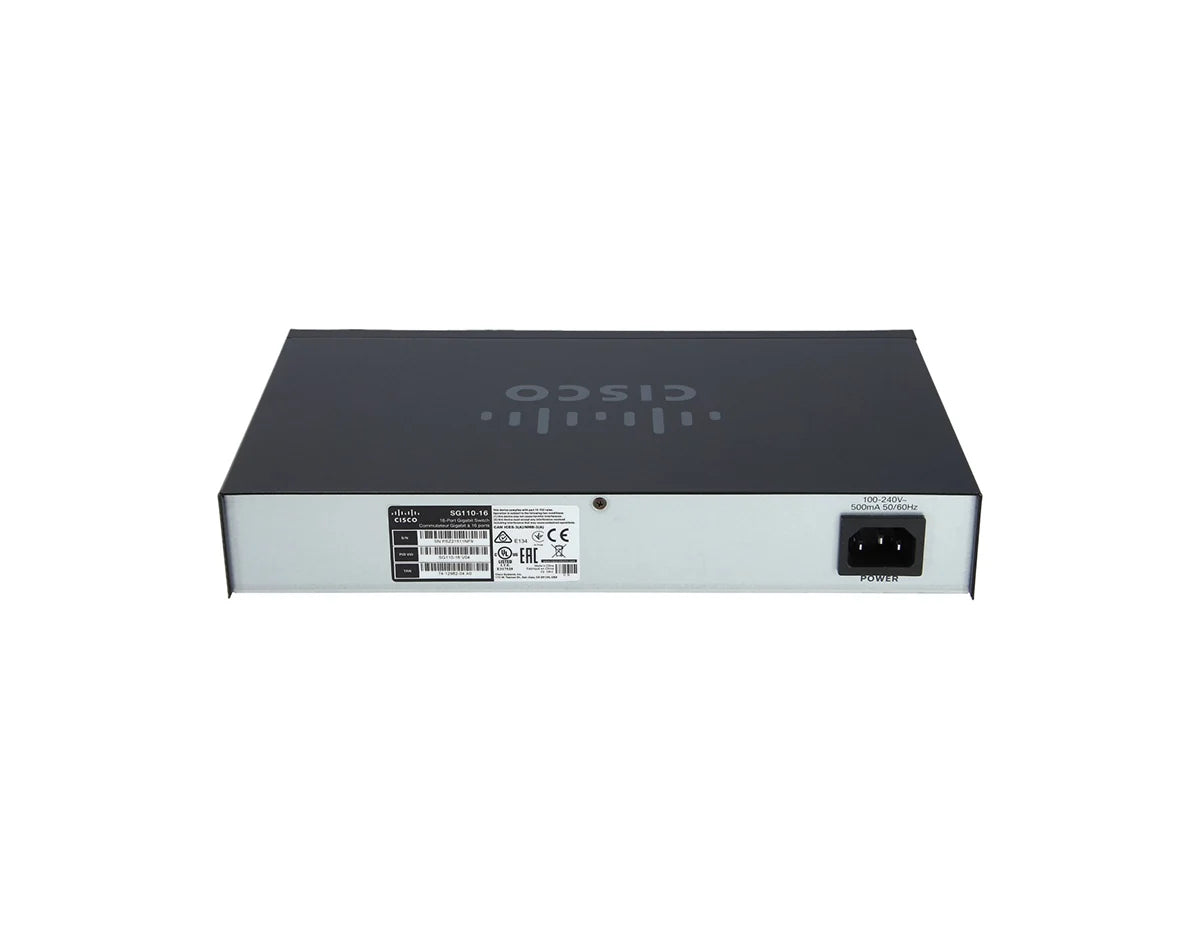

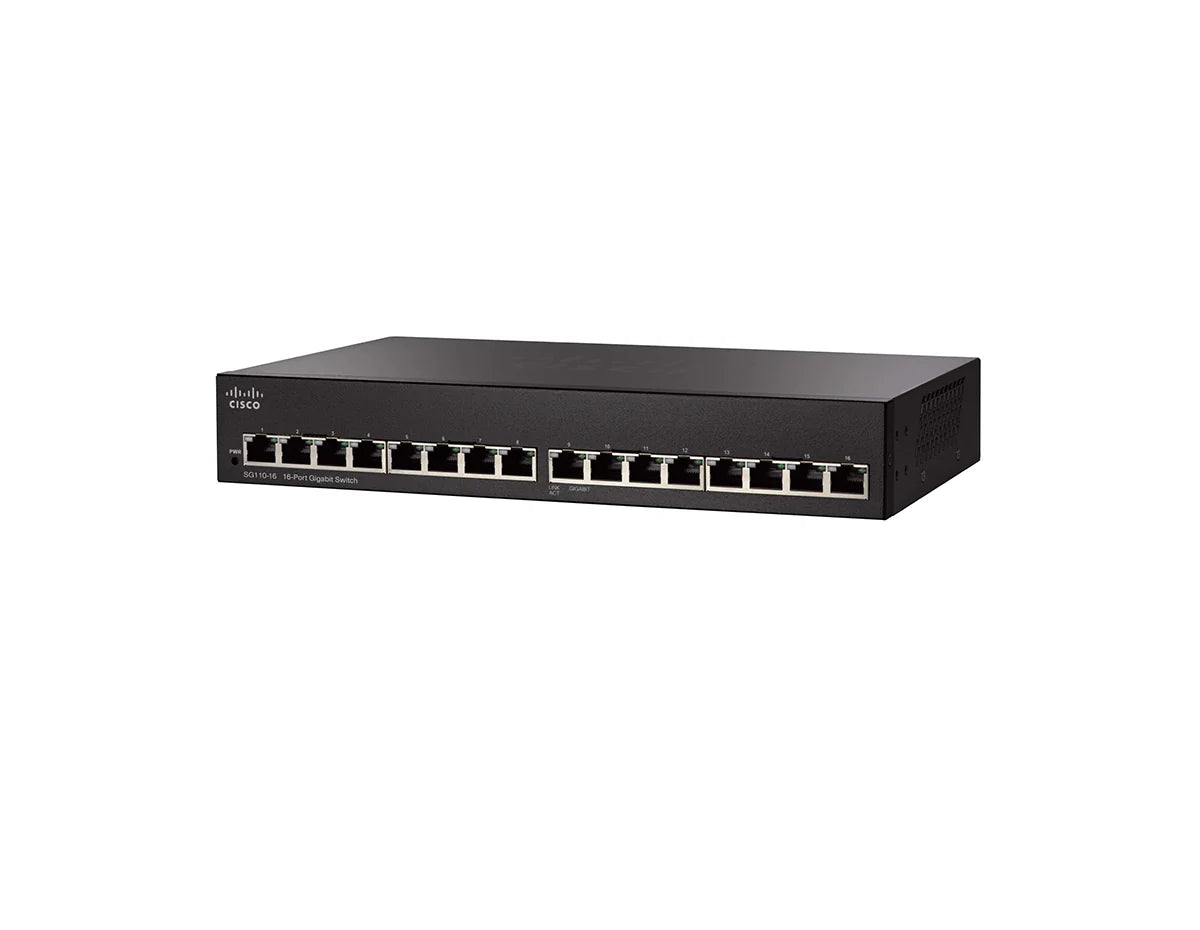

Cisco SG110-16 Switch
The Cisco SG110-16 is a 16-port Gigabit Ethernet switch that offers affordable, high-speed networking for small businesses. With plug-and-play functionality, the SG110-16 delivers reliable performance without the need for complex setup. It provides the essential features you need to connect computers, printers, and other devices, all while optimizing power consumption with energy-efficient technologies.
Key Features:
- 16 x Gigabit Ethernet Ports: Delivers fast, reliable network connectivity for various devices, including PCs, printers, and IP phones.
- Plug-and-Play Operation: No configuration required; simply connect and use.
- Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption during periods of low network activity.
- Fanless Design: Operates silently, making it ideal for noise-sensitive environments like offices and retail spaces.
- High Performance: Supports up to 32 Gbps of switching capacity for fast and smooth data transfers.
Technical Overview:
- Recommended for: Small businesses, retail environments, and branch offices.
- Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Switching Capacity: 32 Gbps.
- Forwarding Rate: 23.8 Mpps.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-saving performance.
You can check the related tab for the SG110-16 datasheet.
