[shortdesc]

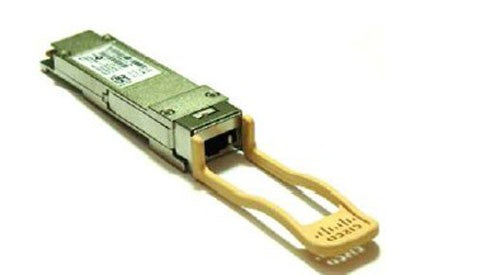

- QSFP+ transceiver module
- 40 Gigabit LAN
- 40GBASE-SR4
- MPO multi-mode
- Up to 492 ft
- 850 nm
- for ASR 9000 Series; Nexus 2248PQ 10GE
[/shortdesc]
[specifications]
| Specifications |
QSFP-40G-SR4 |
| Description |
Cisco 40GBASE-SR4 QSFP Module with 4 lanes for MMF |
| Product Type |
Transceiver |
| Connector |
MPO-12 |
| Fiber Type |
MMF |
| Transmit Power Range (dBm) |
-7.6 to -1 |
| Receive Power Range (dBm) |
-9.5 to -2.4 |
| Wavelength Range (nm) |
850 |
| Power consumption (W) |
1.5 |
| Temperature Range |
0 to 70°C (32 to 158°F) |
| Dimensions |
13.5 x 18.4 x 72.4 mm |
[/specifications]
The Cisco 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.
The Cisco 40GBASE-SR4 QSFP+ Module supports link lengths of 100 m and 150 m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over ribbon fiber cables terminated with multi-fiber connectors, and could also be used along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces.
