[properties]
| Properties |
Cisco PWR-IE240W-PCAC-L |
| Description |
240W AC to DC power supply |
| Product Family |
Industrial Ethernet 4000 |
| Product Type |
Power Supply |
| Rated nominal input operating range |
AC 100-240V/3.5A, 50-60Hz |
| Supported input voltage operating range |
AC 90-264V |
| Typical efficiency |
91% |
| Inrush current at 25C ambient |
< 35A @ 115VAC and 230VAC |
| Remarks |
Not approved for hazardous location installations |
| PoE / PoE+ support |
Yes |
| Nominal output voltage / adjustment range |
54VDC / 48-56VDC, 4.5A |
| Max output power |
240W |
| Holdup time at 100% load |
20ms |
| Dimensions (W x H x D) |
85 mm x 121 mm x 124.1 mm
3.34 in x 4.76 in x 4.88 in |
| Weight |
2.11 lb (0.96 kg) |
| MTBF |
1,579,900 hours |
[/properties]
[specifications]
| Specifications |
PWR-IE240W-PCAC-L |
| Protections |
Over voltage protection
Over current protection
Over temperature protection
Short circuit protection |
| IP rating |
IP20 |
| Operating temperature |
-40°C to +80°C |
| Storage temperature |
-40°C to +85°C |
| Power de-rating |
Vertical mounting:
> 50°C de-rate power by 2.5%/°C
Horizontal mounting:
> 40°C de-rate power by 2.5%/°C |
| Operating humidity |
5 to 95% RH (non-condensing) |
| Electric safety |
SIQ Bauart to EN 60950-1
UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1
UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA C22.2 No. 107.1-01 (File No. 181564) |
| EMC/ Industry standards |
EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A)
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A |
[/specifications]

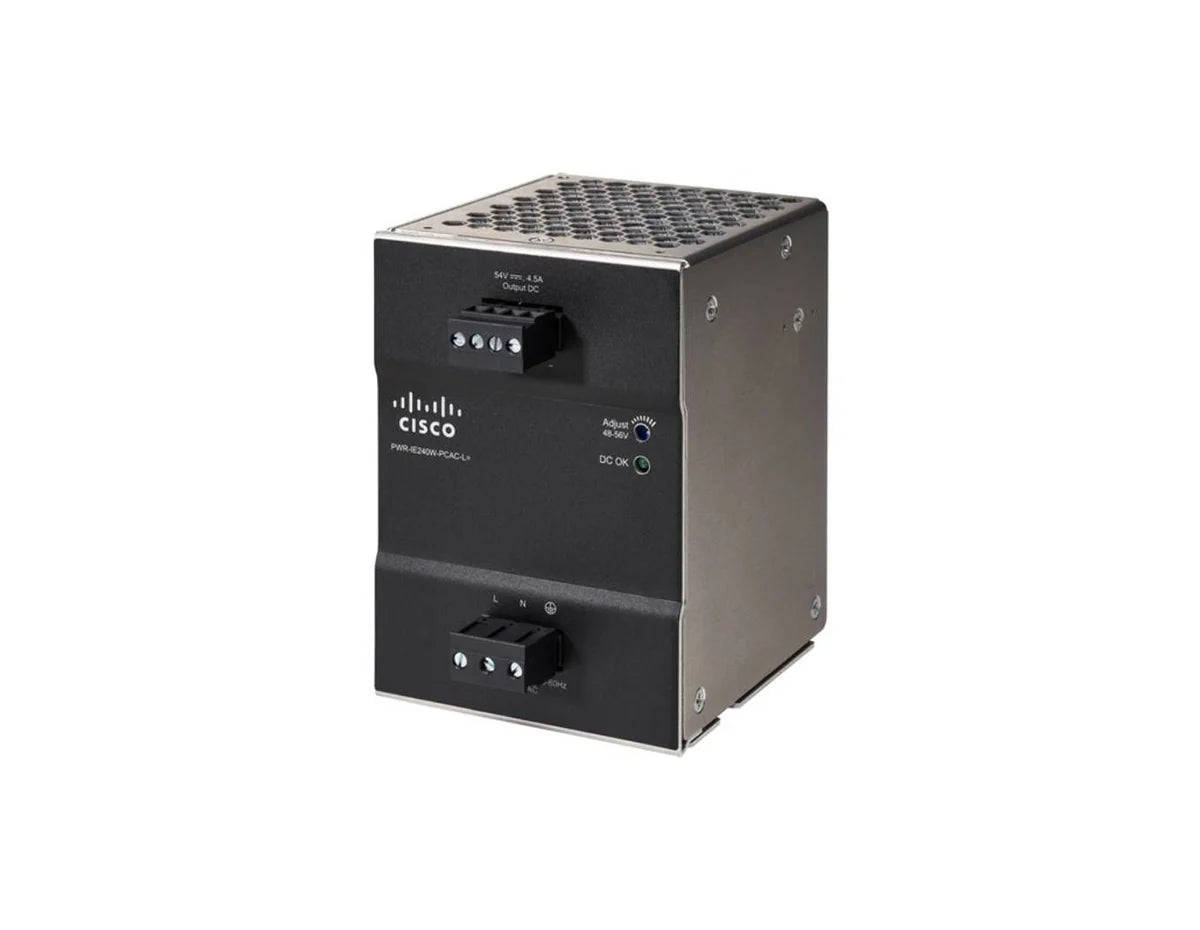

Cisco PWR-IE240W-PCAC-L Power Supply
Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. The PWR-IE240W-PCAC-L= delivers a power of 240 watts. Key features comprise operating, din-rail mountable designs, support for high-capacity Power over Ethernet (PoE), options for conformal coating,
Key Features:
- 240W
- High-capacity PoE
- Din-rail
For detailed specifications, refer to the Cisco PWR-IE240W-PCAC-L datasheet in the tabs.
