[shortdesc]
- Cisco PWR-CC1-650WDC is a high-efficiency 650W DC power supply designed for Cisco Catalyst 8300 Series Edge Platforms, providing reliable and stable power with 80 Plus Gold certification
[/shortdesc]
[properties]
| Properties |
|
| Model |
PWR-CC1-650WDC |
| Product Type |
Internal DC Power Supply Unit |
| Compatible Platform |
Cisco Catalyst 8300 Series (2RU models) |
| Redundancy Support |
Yes (Dual PSU supported) |
| Input Voltage Range |
-40 to -72V DC |
| Input Connector |
Terminal Block |
| Power Cord Rating |
20A (#14 wire) |
| Power Supply Efficiency |
80 Plus Gold |
| Hot-Swappable Design |
Yes |
[/properties]
[specifications]
| Specification |
|
| Maximum Power Output |
650W |
| Output Ratings |
12V / 54A |
| Output Hold-up Time |
4 ms |
| PoE Support |
Yes |
| PoE Power Budget |
650W |
| Typical Use Case |
High-performance SD-WAN and enterprise routing |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Field Replaceable |
Yes |
[/specifications]

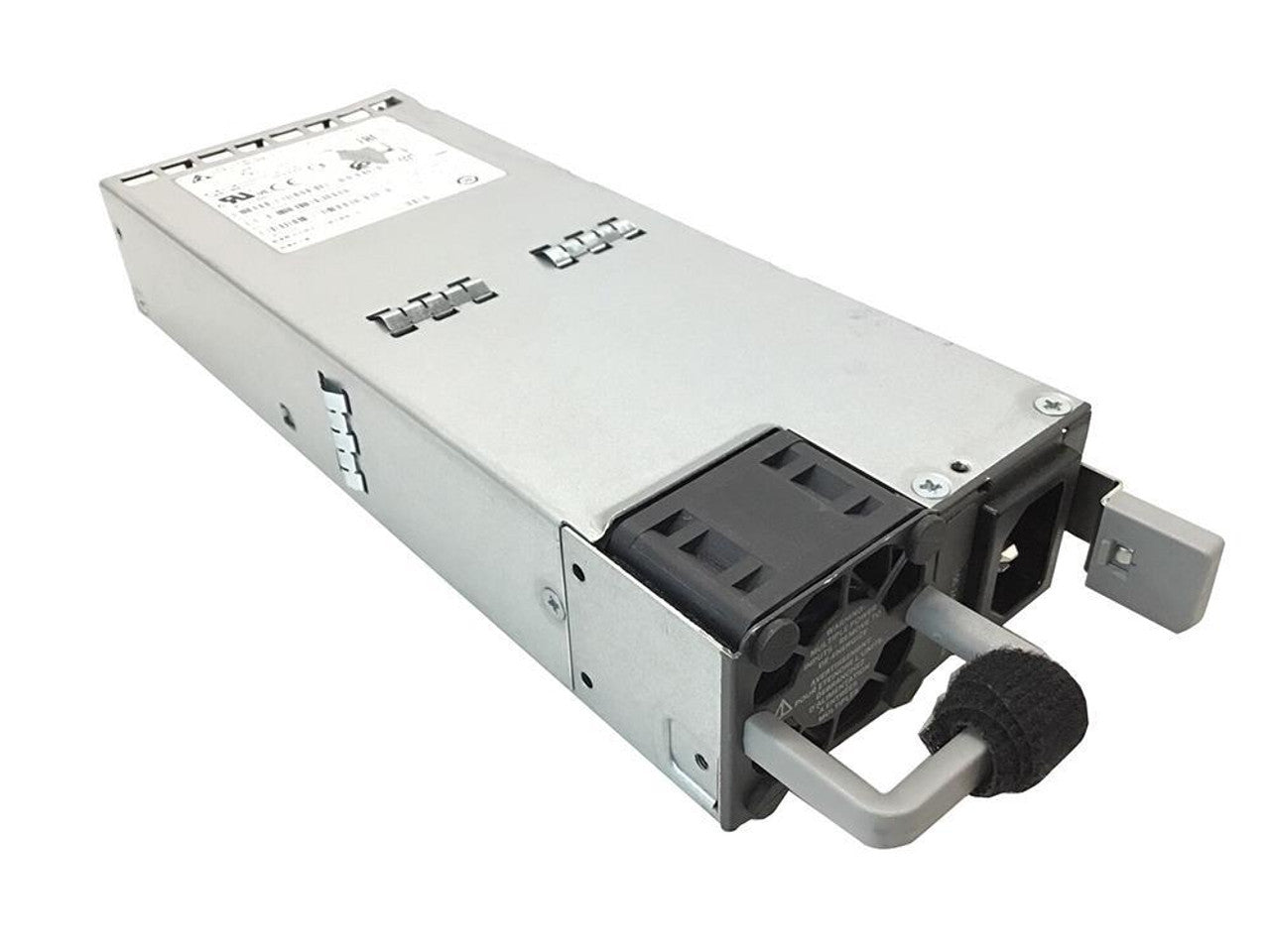

Cisco PWR-CC1-650WDC Power Supply 650W DC
The Cisco PWR-CC1-650WDC is a powerful and energy-efficient DC power supply unit, ensuring continuous and stable power delivery for network hardware. Designed for compatibility with Cisco Catalyst 8300 Series Edge Platforms, this unit features a 650W maximum power rating, 80 Plus Gold efficiency, and a wide input voltage range of -40V to -72V DC. With a terminal block input connector and rugged build quality, it is ideal for enterprise and data center applications.
Key Features:
-
High Power Output: Delivers 650W of reliable power.
-
Wide Input Voltage Range: Supports DC input from -40V to -72V.
-
80 Plus Gold Efficiency: Optimized for energy efficiency and low heat generation.
-
Durable Design: Built for continuous operation in demanding environments.
-
Terminal Block Input Connector: Ensures secure and stable power connections.
-
Fast Power Recovery: 4 ms output holdup time ensures stability during voltage fluctuations.
-
Compact and Modular: Plug-in module design for easy installation and maintenance.
-
Compatible with Cisco Catalyst 8300 Series: Designed specifically for Cisco networking hardware.
Technical Specifications:
-
Power Maximum Rating: 650W
-
Input Voltage Range: DC -40V to -72V
-
Power Supply Efficiency: 80 Plus Gold
-
Input Current: 18A – 10A
-
Output Ratings: 12V 54A
-
Output Holdup Time: 4 ms
-
Power Supply Input Receptacle: Terminal Block
-
Power Cord Rating: 20A #14 Wire
-
Form Factor: Plug-in Module
-
Compatibility: Cisco Catalyst 8300 Series Edge Platforms
-
Environmentally Friendly: Yes
