[shortdesc]
- 66 Watts AC power, Compatible with Cisco 800 Series ISR, Optimized for C890 platforms
[/shortdesc]
[properties]
| Product Name |
PWR-66W-AC-V2 |
| Description |
CISCO 66 Watt AC V2 power supply, designed for use with Cisco C890 and C1100 series routers, providing reliable power in networking environments. |
| Input Voltage |
100-240V AC, 50-60 Hz |
| Output Voltage |
12V DC |
| Output Power |
66W |
| Output Current |
5.5A |
| Connector Type |
2.5mm x 5.5mm barrel connector, center-positive |
| Cable Length |
1.8 meters (5.9 feet) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% non-condensing |
| Dimensions |
12.7 cm x 5.1 cm x 3.3 cm (5.0 in x 2.0 in x 1.3 in) |
| Weight |
0.3 kg (0.66 lb) |
| Compatibility |
Compatible with Cisco C890 and C1100 series routers |
| Usage |
Provides power for routers in office, industrial, or data center environments |
| Durability |
Tested to deliver consistent performance for over 100,000 hours |
[/properties]
[specifications]
| Certifications |
UL, CE, FCC, RoHS compliant |
| Environmental Safety |
Complies with the RoHS directive 2011/65/EU for hazardous substances |
| EMC Compliance |
EN 55032, EN 55024, and FCC Part 15 for electromagnetic compatibility |
| Efficiency Level |
Level VI efficiency rating (meets DOE and EU efficiency standards) |
| Power Protection |
Includes overcurrent, overvoltage, and short-circuit protection |
| MTBF |
>150,000 hours at 25°C |
| Shock Resistance |
Operational: 30 G, Non-operational: 50 G |
| Vibration Resistance |
Operational: 2.2 Grms, Non-operational: 4.4 Grms (5-500 Hz) |
| Power Factor |
>0.9 at full load |
| Installation |
Plug-and-play installation with compatible Cisco routers |
| Heat Dissipation |
<10 BTU/hr |
| Firmware Compatibility |
Not applicable |
| Deployment |
Suitable for various environments, including enterprise and industrial use |
| Safety Standards |
Complies with IEC/EN 60950-1 and IEC/EN 62368-1 for power supply safety |
| Reliability |
Rated for continuous operation with rigorous quality control testing |
[/specifications]

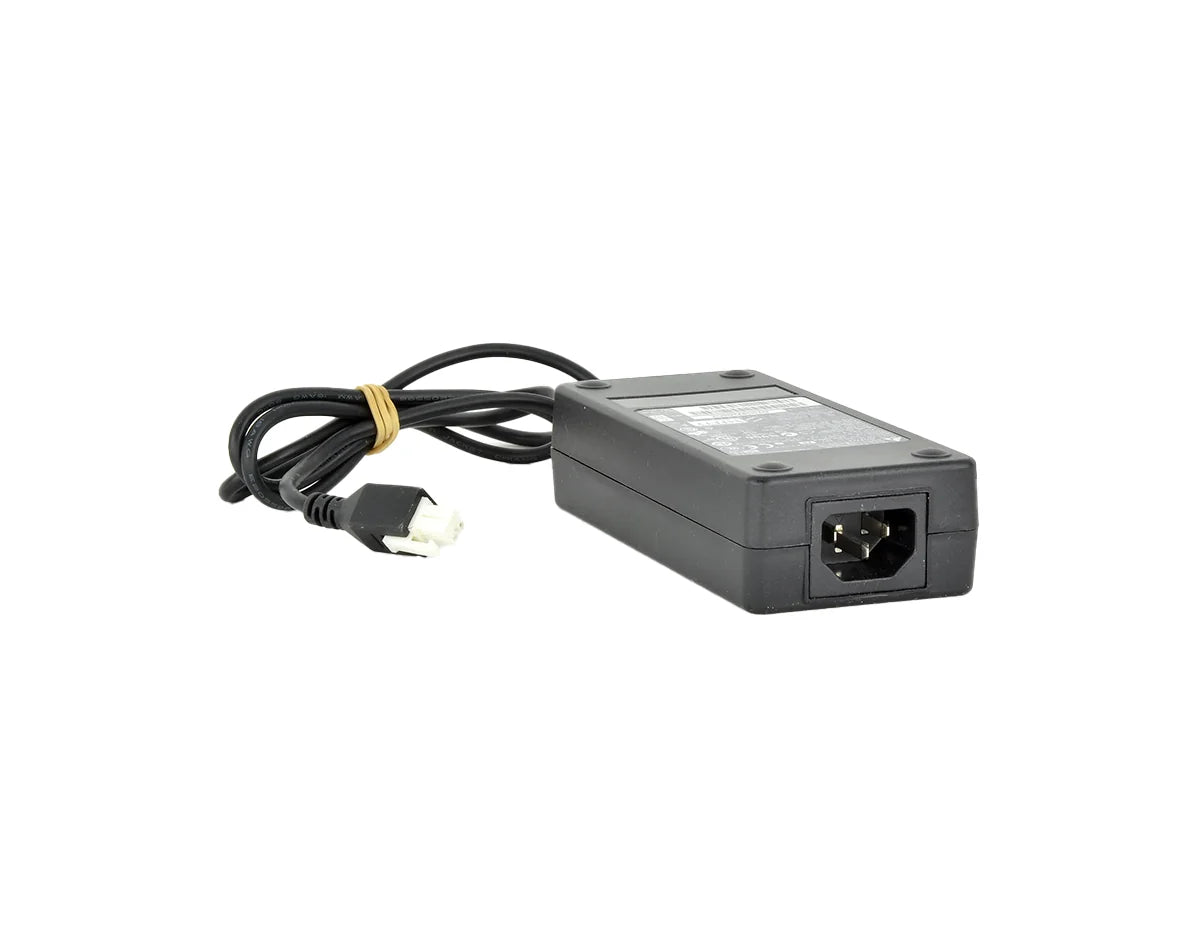

CISCO Power Supply 66 Watt AC V2 for C890 and C1100 series (PWR-66W-AC-V2)
The Cisco PWR-66W-AC-V2 Power Supply is designed for the Cisco 800 Series Integrated Services Routers (ISR). It provides 66 watts of power, ensuring reliable performance and efficiency for your network devices. This version 2 power supply is optimized for the C890 platforms, offering enhanced compatibility and support for various applications in network environments.
Quick Specs:
- 66 Watts AC power
- Compatible with Cisco 800 Series ISR
- Optimized for C890 platforms
- Reliable and efficient performance
- Support for various network applications
Please see the related tabs for the PWR-66W-AC-V2 datasheet and compatible accessories.
