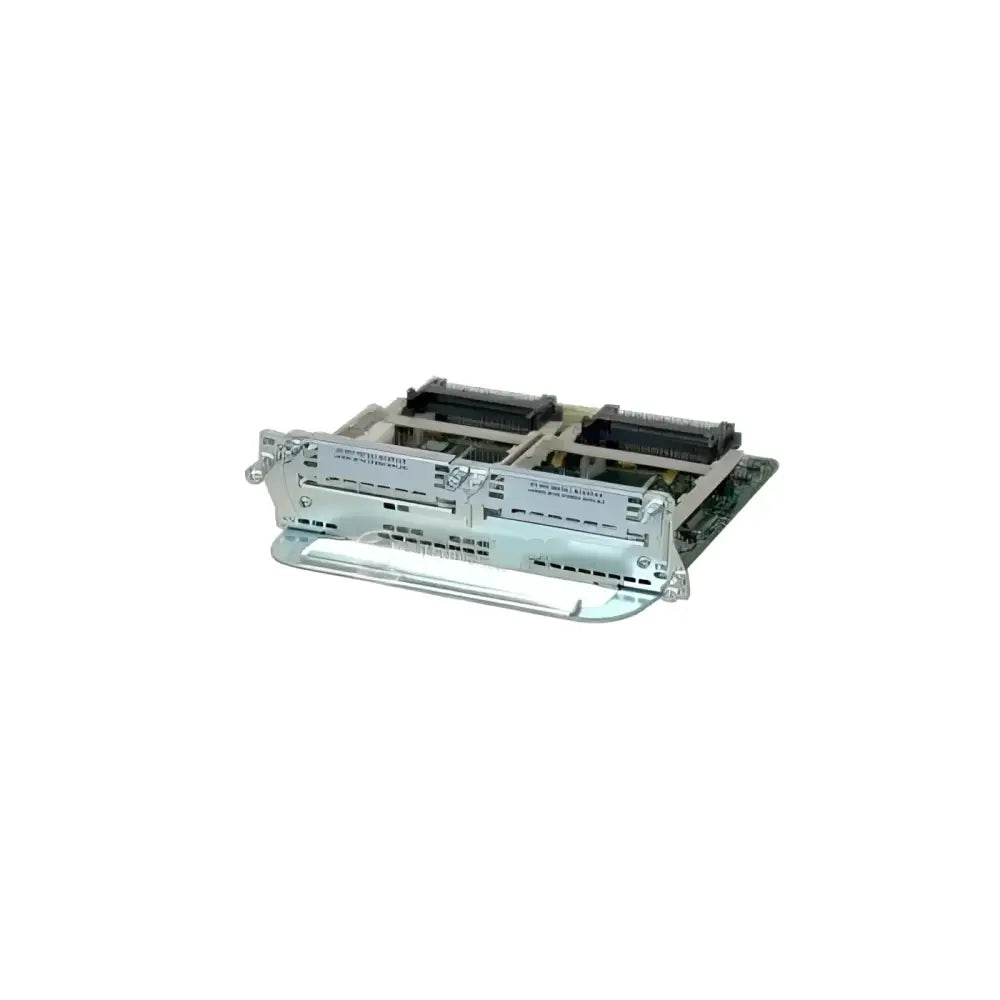

Cisco NM-2W 2-Port WAN Card Slot Network Module
Expand your Cisco router's WAN connectivity with the Cisco NM-2W network module. This versatile module provides two WAN Interface Card (WIC) expansion slots, allowing you to add T1/E1, serial, DSL, or ISDN interfaces — all backed by Reef Telecom's industry-leading 10-year warranty and free shipping on orders over $300.
Key Specifications
-
Part Number: NM-2W
-
Module Type: 2-Slot WAN Interface Card Carrier (No LAN Ports)
-
WIC/VWIC Support: Supports all current WICs and VWICs including WIC-1T, WIC-2T, WIC-1DSU-T1, WIC-1B-S/T, VWIC-1MFT-T1, VWIC-2MFT-E1, and more
-
WAN Technologies: T1/E1, Serial, ISDN BRI, 56K/64K DSU/CSU, ADSL2+
-
TDM Support: Time-Division Multiplexing on supported chassis
-
Dimensions: 2.9 x 10.5 x 0.9 in (7.4 x 26.7 x 2.3 cm)
-
Weight: Under 0.5 lbs (0.23 kg)
-
Power: Under 5W (chassis only; varies with installed WICs)
-
Operating Temp: 32°F to 104°F (0°C to 40°C)
-
Condition: Fully refurbished and tested
Router Compatibility
- Cisco 2600 / 2600XM Series
- Cisco 2800 Series (2811, 2821, 2851)
- Cisco 3600 Series (3620, 3640, 3660)
- Cisco 3700 Series (3725, 3745)
- Cisco 3800 Series (3825, 3845)
The Cisco NM-2W is ideal for branch office WAN expansion, multi-carrier failover configurations, and increasing WIC density in Cisco ISR platforms. Every module from Reef Telecom is professionally tested and ships with our 10-year warranty for complete peace of mind.
