[shortdesc]
- Serial adapter
- RS-232/449/530/V.35/X.21 x 2
[/shortdesc]
[specifications]
| Device Type |
Serial adapter |
| Form Factor |
Plug-in module |
| Ports |
RS-232/449/530/V.35/X.21 x 2 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
RS-232, RS-530, X.21, V.35, RS-449, RS-530A |
| Data Transfer Rate |
8 Mbps |
| Interfaces |
2 x RS-232/449/530/V.35/X.21 |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, CNS 13438 |
| Width |
3.5 in |
| Depth |
7.2 in |
| Height |
1.3 in |
| Min Operating Temperature |
32 F |
| Max Operating Temperature |
104 F |
| Humidity Range Operating |
10 - 90% (non-condensing) |
[/specifications]

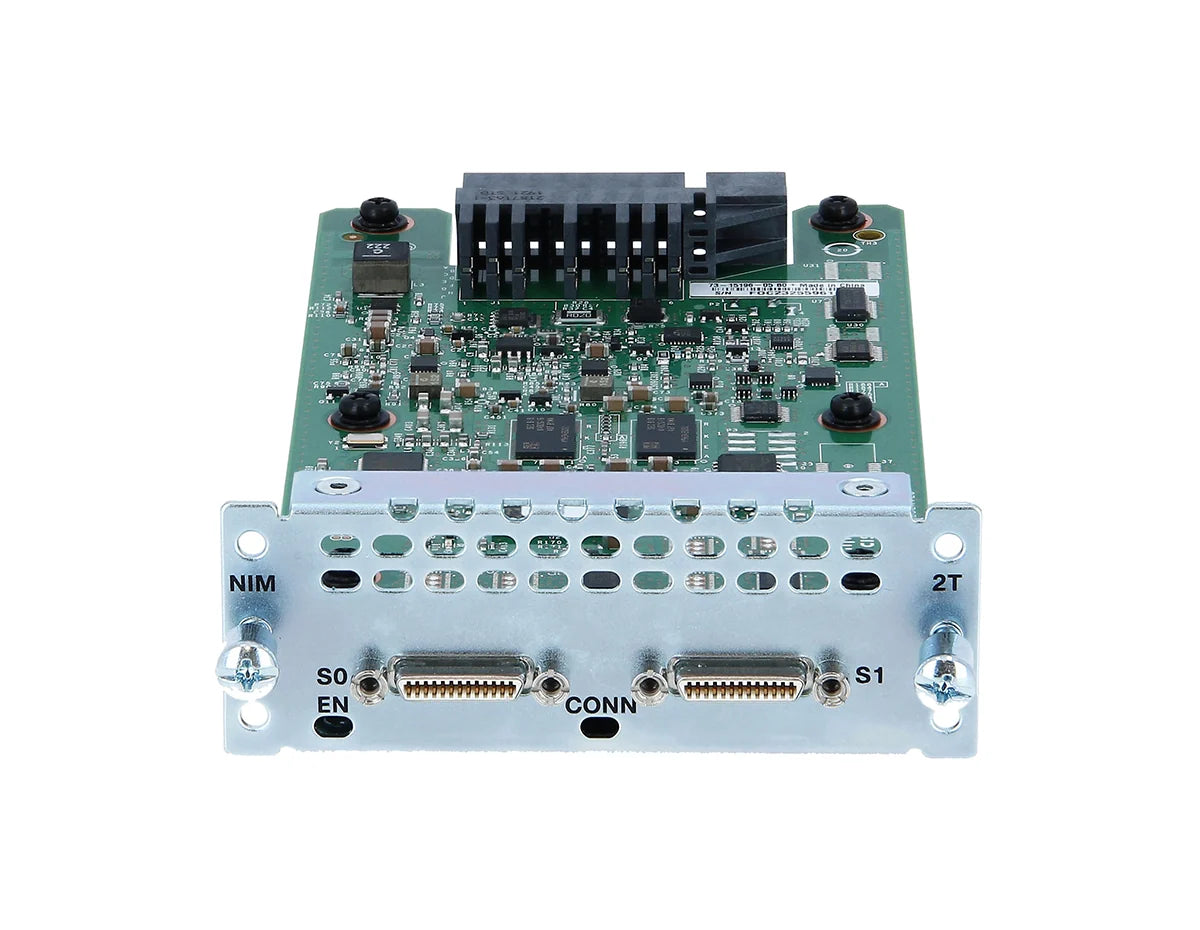

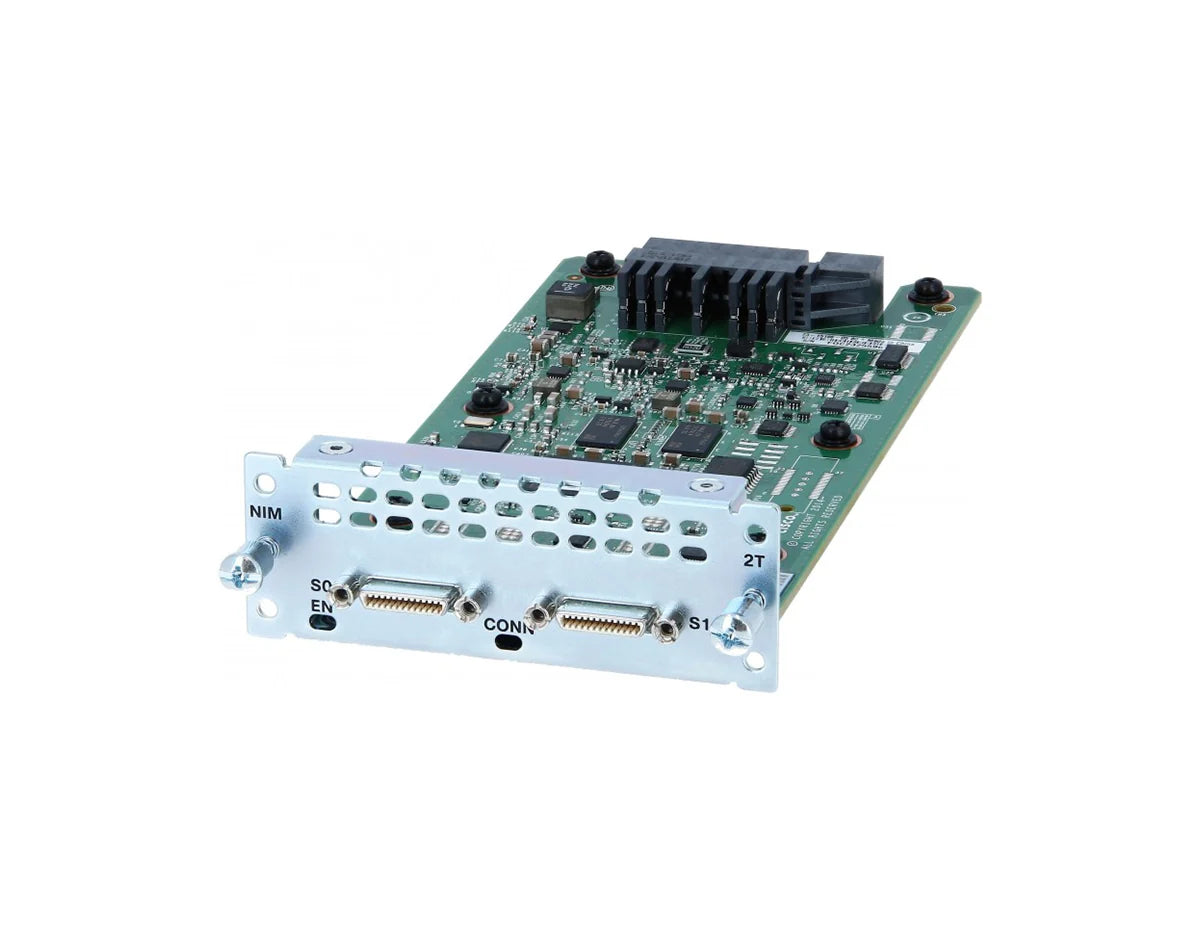

Cisco NIM-2T Expansion Module
The Cisco Gigabit Ethernet High-Speed WAN Interface Card (HWIC) brings Gigabit Ethernet connectivity to Cisco Integrated Services Routers routers to accelerate applications. The NIM-2T is a 2-Port Serial WAN Interface card that provides Gigabit Ethernet optical and copper connectivity in a compact form factor for all Cisco Integrated Service Routers (ISRs).
Key Features:
- Synchronous maximum speed per port: 8 Mbps
- Plug-in module
The tabs contain the Cisco NIM-2T datasheet with all the specifics you need.
