Properties	Cisco IE-5000-16S12P
Description	IE5000 with 12GE Copper PoE+, 12FE/GE SFP and 4 1G SFP uplinks
Product Family	Industrial Ethernet 5000
Product Type	Ethernet Switch
Switches
Total Ports	28
SFP Uplinks	4 1GE
SFP fiber ports (S)	12 FE/GE
Copper PoE/PoE+ ports (P)	12 FE/GE
Default software	LAN Base
Software Features
LAN Base License (Default)	Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flex links, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling
Layer 2 multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Managament	Fast Boot, Express Setup, Web Device Manager, Cisco Network Assistant, Cisco Prime„ Infrastructure, MIB, SmartPort, SNMP, syslog, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM size configuration, DOM (digital optical management), Hardware Watchdog, Port-based DHCP
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port -Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, ACT2, Secure boot, Full flexible Netflow
Quality of Service (QoS)	Ingress Policing, Rate-Limit, Egress Queuing/shaping, AutoQoS, QOS, PROFINET QoS
Layer 2 IPv6	IPv6 Host support, HTTP over IPv6, SNMP over IPv6
Layer 3 Routing	IPv4 Static Routing
Utility	IEEE 1588 v2 PTP Power Profile 2011 & 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag), PTP over Port Channel
Industrial Ethernet	CIP Ethernet/IP, PROFINET v2, IEEE1588 PTP v2 Modbus TCP, Default Profile, CIP Time Sync, NTP to PTP Translation, SPAN Traffic Time Stamping
Redundancy	Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox)
Industrial Management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
Horizontal stacking	Horizontal Stacking supports Layer 2 switching, ARP, Spanning Tree, port channel (up to 48), Power over Ethernet, static routing, L3 host routing (via two 10GE uplink stack ports), BGP, EIGRP, OSPF, VRF, PBR, PIM, PTP
Timing interface	IRIG-B Input and Output interface (B002, B003, B006, B007, B122, B123, B126, B127 timecode), GNSS/GPS Support
Dimensions (HxWxD) Inches	1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250
Weight (without power supply)	13.7 lb (6.21 kg)
Power Supply Weight	PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg) PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg) PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)

[/properties][specifications]

Specifications	IE-5000-16S12P
DRAM	1 GB
Flash Memory	256 MB
Hardware
PoE power budget	Not applicable
Removable storage	1-GB removable SD flash memory card (Included) Mini-USB connector
Alarms	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Console ports	RJ-45 traditional connector connector
GPS antenna interface - GPS antenna input Analog Timing I/O interface - For analog IRIG support Digital Timing I/O interface - For digital timing such as IRIG-B TTL
Available power budget for PoE/PoE+ with different power supply wattage
150W	65
150W (dual)	185
250W	165
250W + 150W	270
250W (dual)	360
Number of Queues	4 egress
Forwarding bandwidth	28Gbps - Line rate/Non-blocking
Forwarding Rate	41.67Mpps with 64 byte packets (Line rate)
Unicast MAC addresses	16,000
Switching bandwidth	56Gbps
No. of VLANs	1,005
Internet Group Managament Protocol (IGMP) Multicast Groups	1000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
Power Consumption	Maximum of 90W not including PoE consumption
Operating Temperature	Operating Temperature: -40°C to +75°C -40°C to +70°C (vented enclosure 40 LFM Air Flow) -40°C to +60°C (sealed enclosure 0 LFM Air Flow) -34°C to +75°C (fan or blower equipped enclosure 200 LFM air flow) -40°C to +85°C (IEC 60068-2-2 Environmental Type Testing 16 hours) EN 60068-2-21 EN 61163
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 13,800 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	390,190 hours
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A CNS13438 Class A KN22 EN 300 386
Electromagnetic immunity	EN 55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-11 AC Voltage Dips and Interruptions EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips and Interruptions
Industry standards	EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emission Standard for Industrial Environments EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Class 2 Electric Power Stations Communications Networking IEC 61850-3 Electric Substations Communications Networking EN 50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech) EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IP PROFINET conformance B IP30 (per EN60529) Marine DNV GL Ships* NEMA TS-2 (EMC, environmental, mechanical)
Safety standards and certifications	Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 CSA C22.2, No 142 Hazardous Locations, Class I, Div/Zone 2, gas groups IIC: ANSI/ISA 12.12.01 CSA 213 UL/CSA 60079-0, -15 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Cabinet enclosure required)
Humidity	Relative humidity of 0% to 95% non-condensing. IEC 60068-2-3 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration)
Corrosion	ISO 9223: Corrosion class C3-Medium class C4-High IEC 60068-2-52 (Salt Fog) IEC 60068-2-60 (Flowing Mixed Gas)
Others	RoHS Compliance China RoHS Compliance TAA (Government) CE (Europe)

[/specifications][accesories]

Accessories and License Upgrade PIDs
L-IE5000-RTU=	IE5000 electronic software license upgrade from LAN base to IP service Layer 3 features
LIC-MRP Manager=	MRP ring manager license
LIC-MRP-Client=	MRP ring client license
SD-IE-1GB=	IE 1GB SD Memory Card - Spare
C1F1PIE4K5K1K9	Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base
C1F1PIE40001K9	Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engine - Base
C1A1PIE40001K9	Cisco ONE Advanced Perpetual Includes IP Services
C1-FLOW-IE5K	Cisco ONE Netflow IE 5000
C1A1AIE50001K9	Cisco ONE Advanced Perpetual - IE 5000
C1F1AIE4K5K1K9	Cisco ONE Foundation Lite Perpetual - IE 4000/5000
C1F1AIE50001K9	Cisco ONE Foundation Perpetual - IE 5000, Brown field
C1F1PIE50001K9	Cisco ONE Foundation Perpetual - IE 5000
IE5000-DNA-E-H	DNA Essentials license
IE5000-DNA-E-H-3Y	DNA Essentials 3-year term license option
IE5000-DNA-E-H-5Y	DNA Essentials 5-year term license option
IE5000-DNA-A-H	DNA Advantage license
IE5000-DNA-A-H-3Y	DNA Advantage 3-year term license option
IE5000-DNA-A-H-5Y	DNA Advantage 5-year term license option
IE5000-DNA-E-H-7Y	DNA Essentials 7-year term license option
IE5000-DNA-A-H-7Y	DNA Advantage 7-year term license option
IE 5000 Series Power Supplies
PWR-RGD-AC-DC-H	Hazloc grade power supply high voltage (88-300VDC/85-264VAC), 150W
PWR-RGD-LOW-DC-H	Hazloc grade power supply low voltage (24/48VDC), 150W
PWR-RGD-AC-DC-250	Higher PoE, 250W PSU for IE4010/5000, 100-240VAC/100-250VDC
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM
SFP-GE-S=	Cisco SFP-GE-S Duplex SFP 1Gbps 500m MMF DDM 850nm
SFP-GE-L=	1000BASE-LX/LH SFP (DOM)
SFP-GE-Z=	Cisco 1000BASE-ZX SFP transceiver module for SMF
GLC-SX-MM=	Cisco GLCSXMM SFP, Duplex, 1Gbps, 500m, 7.5dB, MMF, 850nm
GLC-LH-SM=	Cisco Glc Lh Sm 1000Base Lh Sm Sfp Transceiver Module
GLC-ZX-SM=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range.
GLC-TE=	1000BASE-T standard
GLC-T-RGD=	1000BASE-T standard
CWDM-SFP-xxxx= (8 freq)	Longwave xxxx-nm laser, single mode
DWDM-SFP-xxxx= (40 freq)	1000BASE-DWDM SFP
GLC-T=	1000BASE-T standard
SFP-10G-BXD-I=	10GBASE-BX10-D Bidirectional for 10km
SFP-10G-BXU-I=	10GBASE-BX10-U Bidirectional for 10km
SFP-10G-BX40D-I=	10GBASE-BX40-D Bidirectional for 40km
SFP-10G-BX40U-I=	10GBASE-BX40-U Bidirectional for 40km
SFP-10G-SR-X=	Multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range
SFP-10G-LR-X=	Multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range
SFP-10G-SR=	10GBASE-SR SFP+ Module for MMF
SFP-10G-LRM=	10GBASE-LRM SFP+ Module for MMF and SMF
SFP-10G-LR=	10GBASE-LR SFP+ Module for SMF
SFP-10G-ER=	10GBASE-ER SFP+ Module for SMF
SFP-10G-ZR=	Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF
SFP-H10GB-CUxM=	10GBASE-CU SFP+ Cable x Meter, passive
SFP-H10GB-ACUxM=	Twinax cable, active, 30 (for 7M) / 28 (for 10M) AWG cable assembly
SFP-10G-ER-I=	Multirate 10GBASE-ER, 10GBASE-EW and OTU2e SFP+ Module for SMF, Industrial Temperature range
SFP-10G-ZR-I=	Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF

[/accesories]

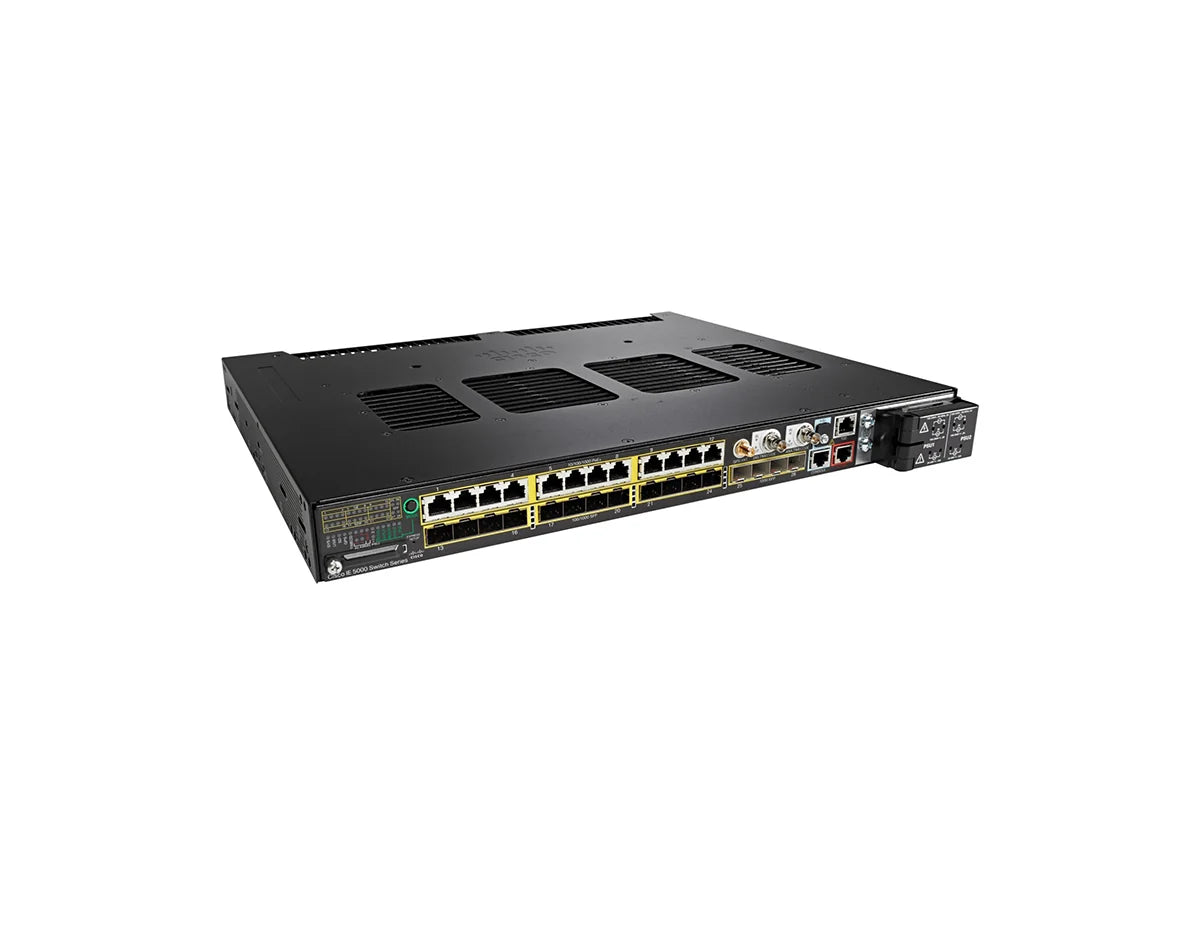

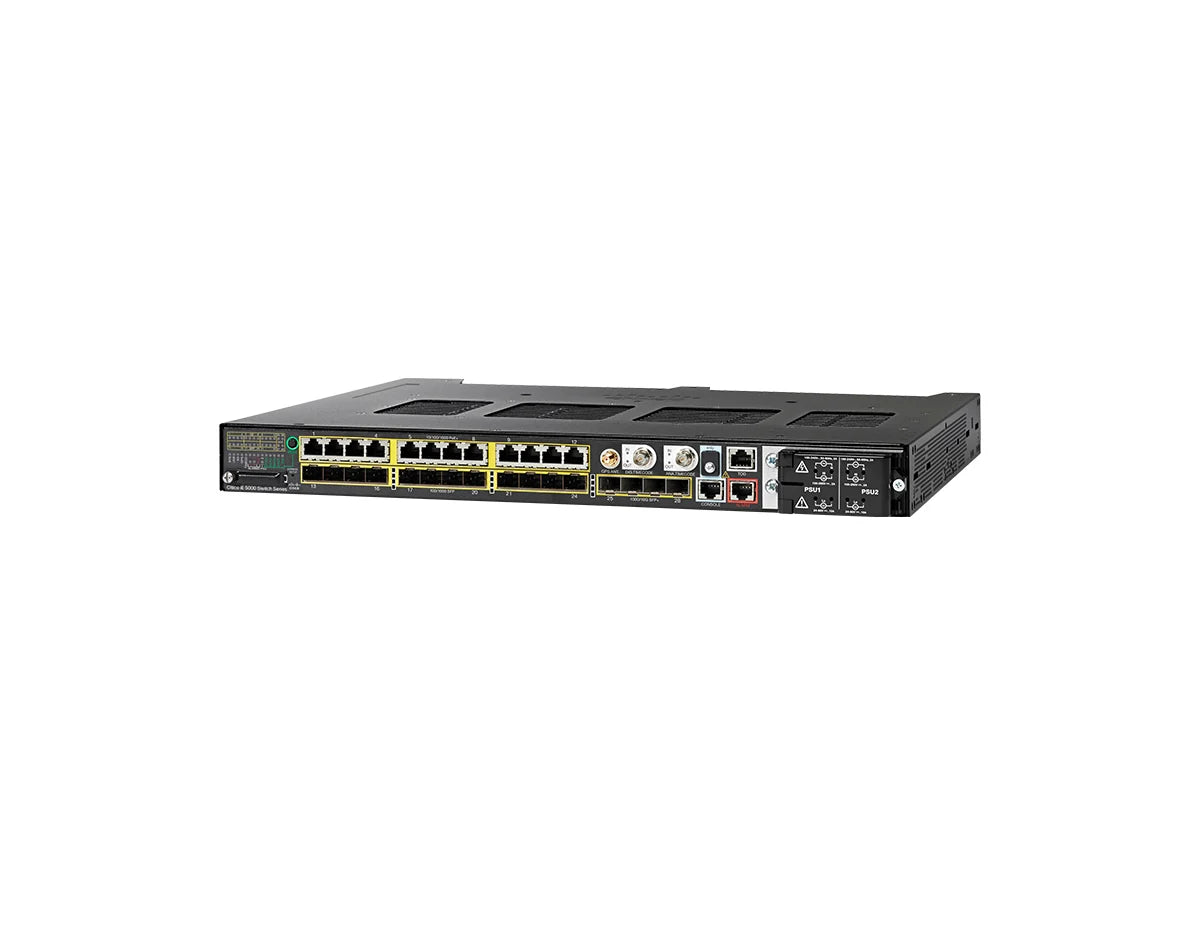

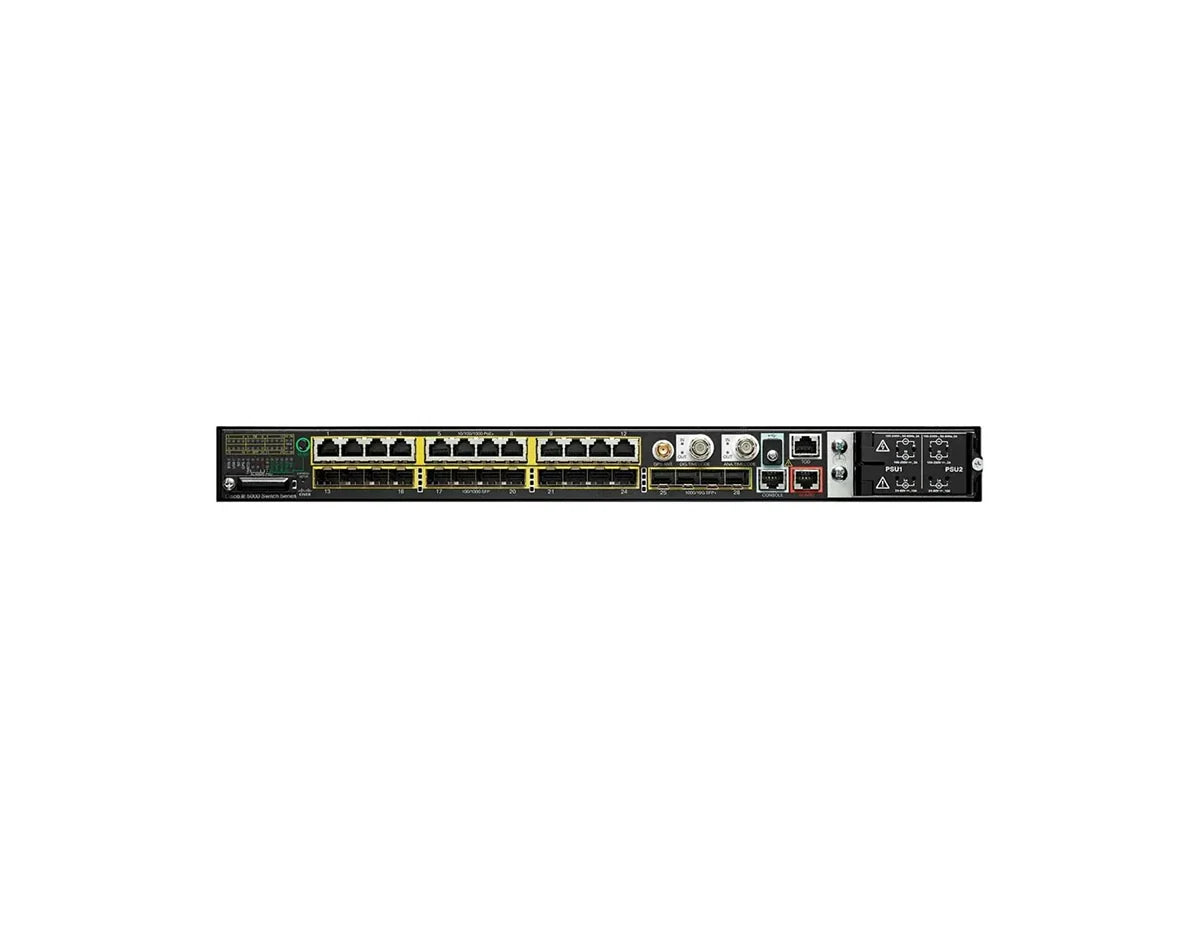

Cisco IE-5000-16S12P Industrial Ethernet Switch

The Cisco IE-5000-16S12P is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and mission-critical environments. This switch features 16 SFP ports and 12 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-5000-16S12P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

• 16 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
• 12 x Gigabit PoE+ Ports: Delivers power and high-speed data connectivity to PoE-enabled devices, reducing the need for additional power supplies.
• Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
• Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
• High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.

Technical Overview:

• Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with PoE+ support, advanced management, and high availability.
• Ports: 16 x SFP ports, 12 x Gigabit PoE+ ports.
• Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
• Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
• Form Factor: Rugged, rack-mountable design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-5000-16S12P datasheet.
