[properties]

Properties	Cisco IE-4000-4S8P4G-E
Description	IE4000 switch with 4 FE SFP, 8 FE PoE+ and 4 GE combo uplink ports
Product Family	Industrial Ethernet 4000
Product Type	Ethernet Switch
Switches
Total Ports	16
GE combo (SFP or RJ45) uplinks (4G)	All models have 4 GE combo uplink ports
Additional combo (SFP or RJ45) ports	-
RJ45 copper ports (T)	-
SFP fiber ports (S)	4 FE
PoE/PoE+ ports (P, GP), Maximum PoE power budget	8 FE, 125W
Default software License	All models ship with LAN Base feature set
Software Features
LAN Base License (Default)	Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flexlink, Resilient Ethernet Protocol (REP), VTPv3, EtherChannel, Voice VLAN, QinQ tunneling, Industrial macro configuration
Layer 2 multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express setup, Web Device Manager, Industrial Network Director (IND), MIB, Smartport, SNMP, syslog, storm control, unicast, multicast, broadcast, SPAN sessions, RSPAN, DHCP server, customized DOM (digital optical management), Embedded Event Manager (EEM), Plug-n-Play Agent, Port-based DHCP
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, FIPS 140-2, ACT2, Secure boot, Full flexible Netflow
Quality of Service (QoS)	Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, QoS, PROFINET QoS
Layer 2 IPv6	IPv6 Host support, HTTP over IPv6, SNMP over IPv6
Layer 3 Routing	IPv4 Static Routing
Utility	Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag)
Industrial Ethernet	CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync
Redundancy	Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox)
Industrial Management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
Dimensions (HxWxD) Inches	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)

[/properties]

[specifications]

Specifications	IE-4000-4S8P4G-E
DRAM	1 GB
Flash Memory	128 MB onboard
Hardware
Removable storage	1-GB removable SD flash memory card (Included) Mini-USB connector
Alarms	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Console ports	RJ-45 connector
Power inputs	Dual DC power inputs
Input Voltage Range	Redundant DC input voltage: nominal 9.6 to 60VDC
Maximum Input Current	4.3A
Power Consumption	40W (does not include PoE power consumption)
Performance & Scalability
Forwarding Rate	Line rate for all ports and all packet sizes
Number of Queues	4 egress
Unicast MAC addresses	16,000
No. of VLANs	1,000
IGMP Multicast Groups	1,000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries (expandable with proper design)
Environmental
Operating Temperature	-40C to +75C
Storage Temperature	-40C to +85C
Operating Altitude	Up to 15,000 feet
Humidity	Relative humidity of 5% to 95% non-condensing
Mean Time Between Failures (MTBF)	535,880 Hours

[/specifications]

[accesories]

Accessories and License Upgrade PIDs
SD-IE-1GB=	IE 1GB SD Memory Card - Spare
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features or MRP protocols)
L-IE4000-RTU=	IE4000 Electronic software license upgrade from LAN base L2 to IP Services L3 features
LIC-MRP-Manager=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license

[/accesories]

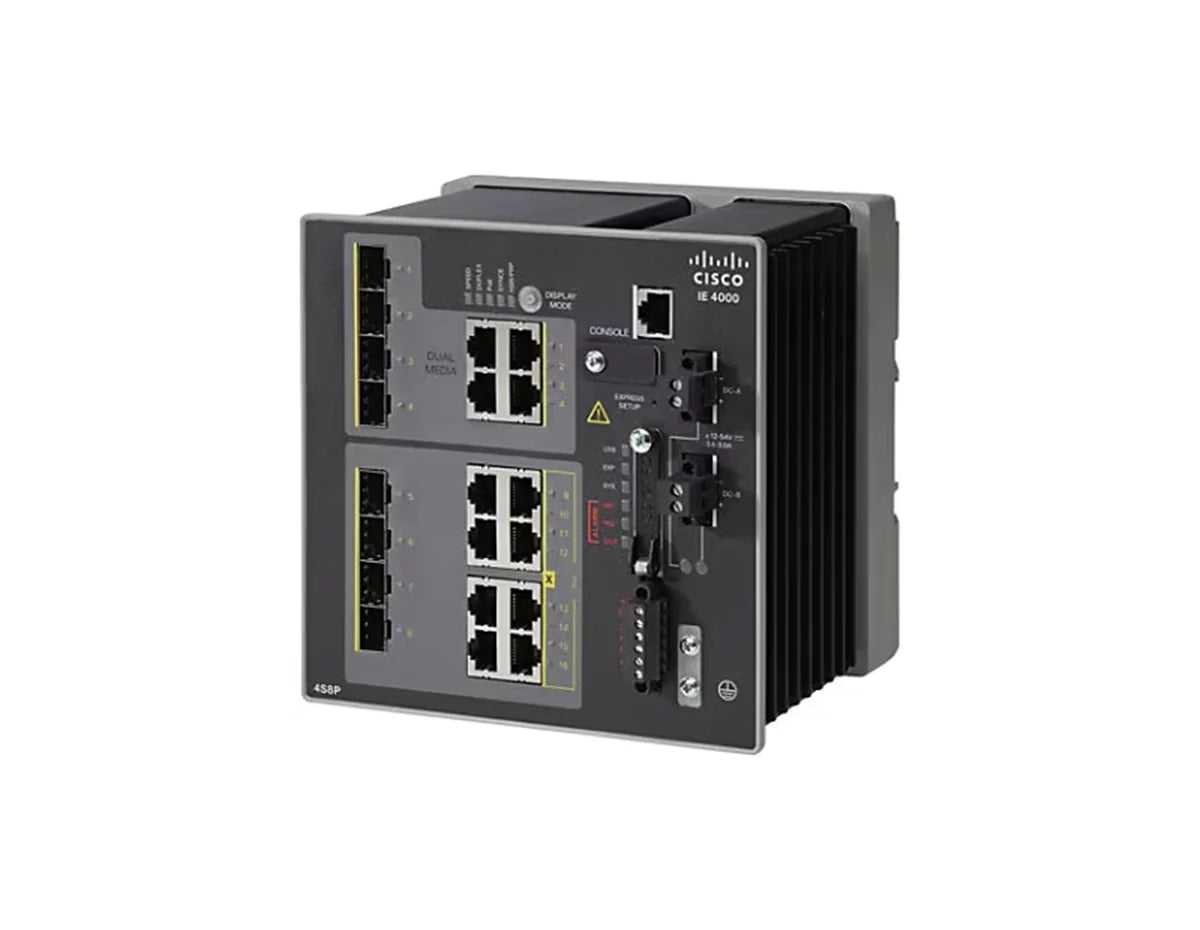

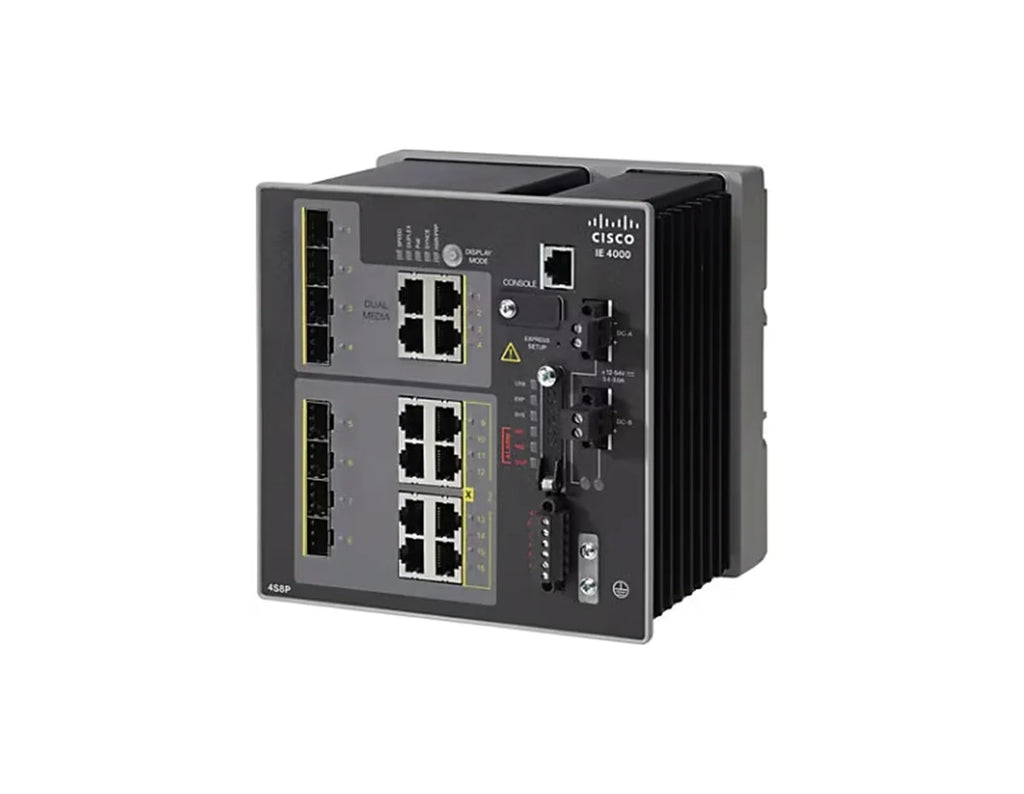

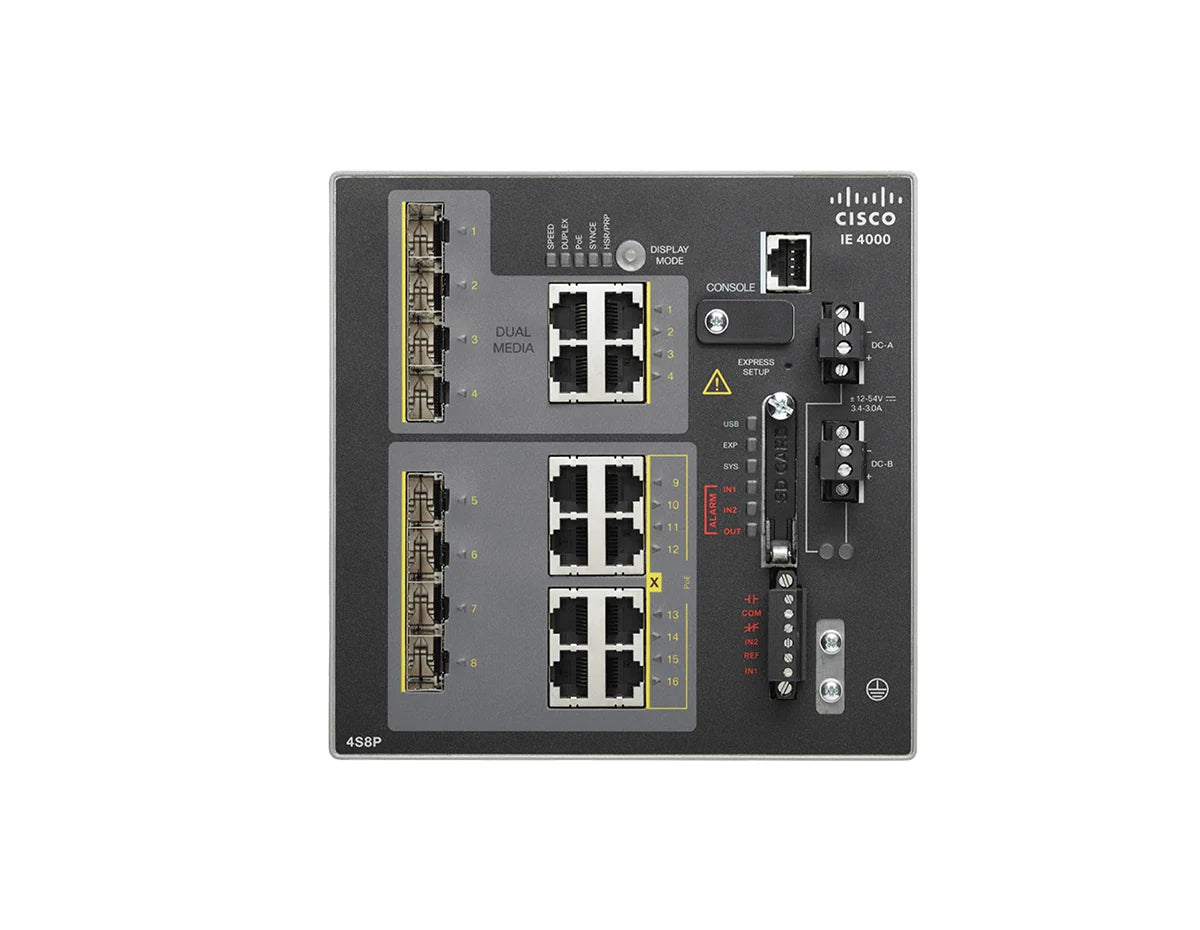

Cisco IE-4000-4S8P4G-E Industrial Ethernet Switch

The Cisco IE-4000-4S8P4G-E is a rugged industrial Ethernet switch designed for dependable operation in harsh environments. It combines 4 Fast Ethernet SFP ports, 8 Fast Ethernet PoE+ ports, and 4 Gigabit combo uplink ports to connect and power industrial endpoints such as cameras, sensors, controllers, and access devices. Built on proven Cisco IOS Software, it delivers secure, resilient switching with industrial-focused management and redundancy features for scalable deployments.

Key Features:

• 4 x Fast Ethernet SFP Ports: Flexible fiber connectivity for industrial edge devices and segmented networks.
• 8 x Fast Ethernet PoE+ Ports: Powers PoE-capable devices while providing data connectivity (up to 125W PoE budget).
• 4 x Gigabit Combo Uplinks: Copper/fiber uplink flexibility for ring topologies, aggregation, and redundancy.
• DIN Rail Form Factor: Compact, industrial-ready design for control cabinets and constrained spaces.
• Dual DC Power Inputs: Redundant power capability for higher availability in critical environments.
• Industrial Resiliency & Security: Supports REP/PRP/MRP/HSR options and strong security controls for industrial networks.

Technical Overview:

• Recommended for: Industrial networks requiring hardened switching with PoE+, secure management, and resilient uplinks.
• Ports: 4 x FE SFP, 8 x FE PoE+, 4 x GE combo uplinks.
• Memory: 1 GB DRAM, 128 MB onboard flash, included 1-GB removable SD flash memory card.
• Operating Temperature: -40C to +75C for harsh industrial deployments.
• Management: Web Device Manager, SNMP, syslog, SPAN/RSPAN, and industrial-oriented tooling support.

You can check the related tab for the Cisco IE-4000 Series datasheet.
