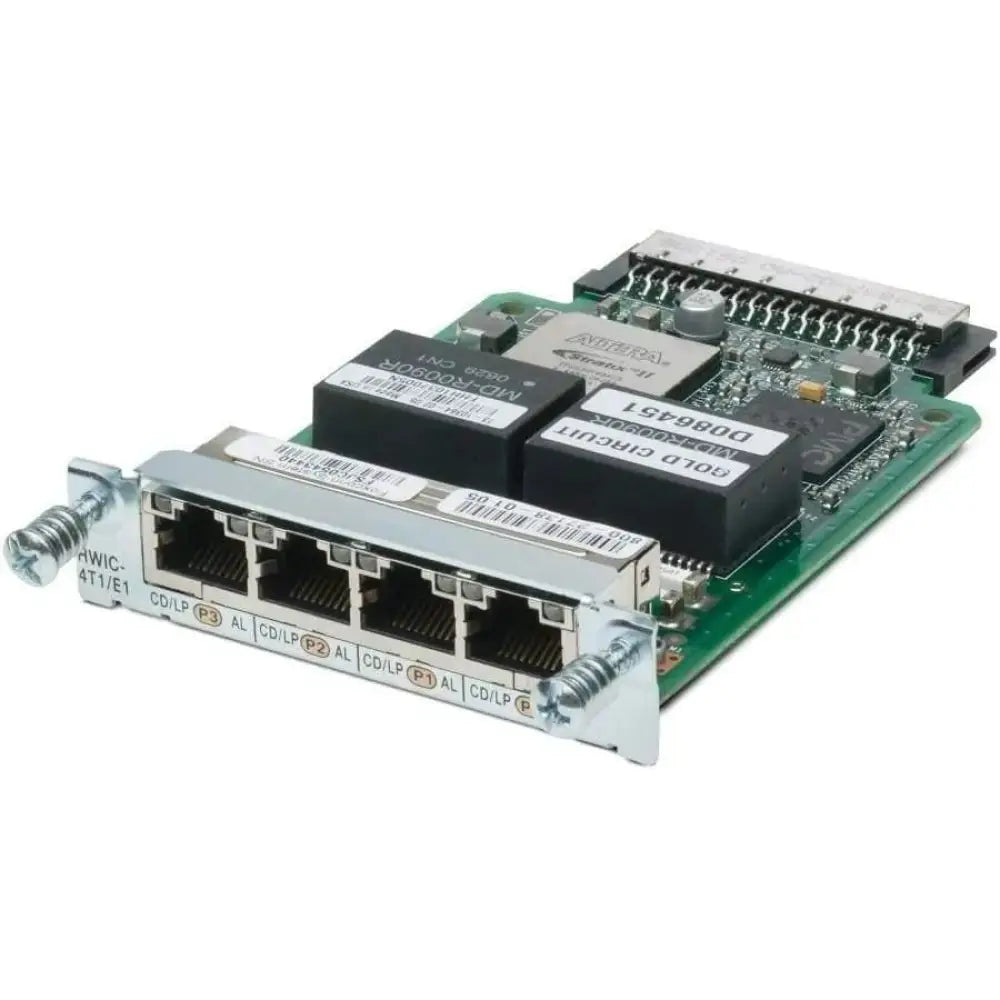

Cisco HWIC-4T1/E1 — 4-Port T1/E1 WAN Interface Card
Upgrade your branch office WAN connectivity with the Cisco HWIC-4T1/E1, a 4-port clear channel T1/E1 high-speed WAN interface card with integrated CSU/DSU. Fully refurbished, rigorously tested, and backed by Reef Telecom's industry-leading 10-year warranty — far exceeding the typical 90-day coverage offered by competitors.
Key Specifications
-
Part Number: HWIC-4T1/E1
-
Ports: 4 x RJ-48C T1/E1 WAN interfaces
-
Integrated CSU/DSU: Eliminates external termination equipment
-
Software-Configurable: Switch between T1 and E1 modes via Cisco IOS
-
Form Factor: Singlewide HWIC plug-in module
-
Data Link Protocol: Multilink PPP, Frame Relay (FRF.16)
-
Standards: G.703, G.704 compliant for balanced and unbalanced E1
-
Dimensions: 0.75 x 3.08 x 4.74 in (1.91 x 7.82 x 12.04 cm)
-
LEDs: Carrier detect, alarm per port
Platform Compatibility
Designed for Cisco Integrated Services Routers including the 2800, 2900, 3800, and 3900 Series. Ideal for n x T1/E1 WAN aggregation, branch office bandwidth scaling, and consolidating multiple single-port HWICs into one singlewide module — freeing up slots for additional services.
Free shipping on orders over $300. Questions? Contact Reef Telecom for expert support on enterprise networking equipment.
