[shortdesc]
- SFP (mini-GBIC) transceiver module
- GigE
- 1000Base-ZX
- LC/PC single-mode
- up to 43.5 miles
- 1550 nm
[/shortdesc]
[specifications]
| Specifications |
GLC-ZX-SMD |
| Description |
GLC-ZX-SMD:1000BASE-ZX extended distance; with DOM |
| Product Type |
Transceiver |
| Connector |
Dual LC/PC connector |
| Operating range |
up to 70 km (depending on link loss) |
| Fiber Type |
SMF |
| Transmit Power Range (dBm) |
0 to 5 |
| Receive Power Range (dBm) |
-20 to -3 |
| Maximum Channel insertion loss in dB (by fiber type) |
21 (any SMF) |
| Wavelength Range (nm) |
1550 (1500 to 1580) |
| DOM |
Yes |
| Temperature Range |
-5°C to 85°C (23 to 185°F) |
| Dimensions |
8.5 x 13.4 x 56.5 mm. |
[/specifications]

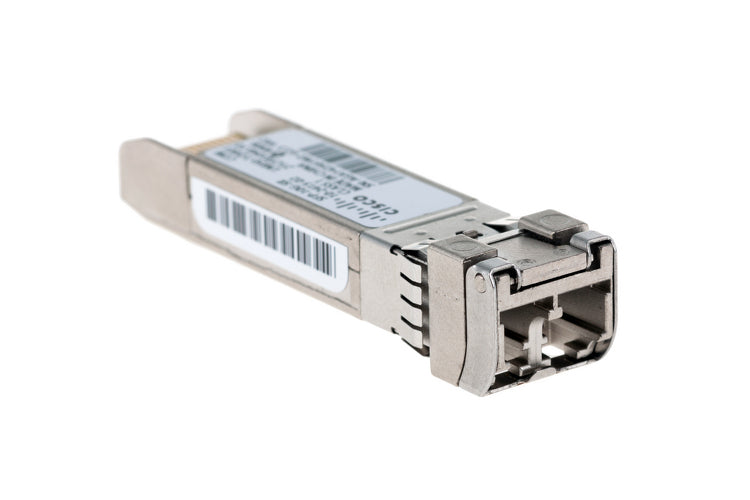

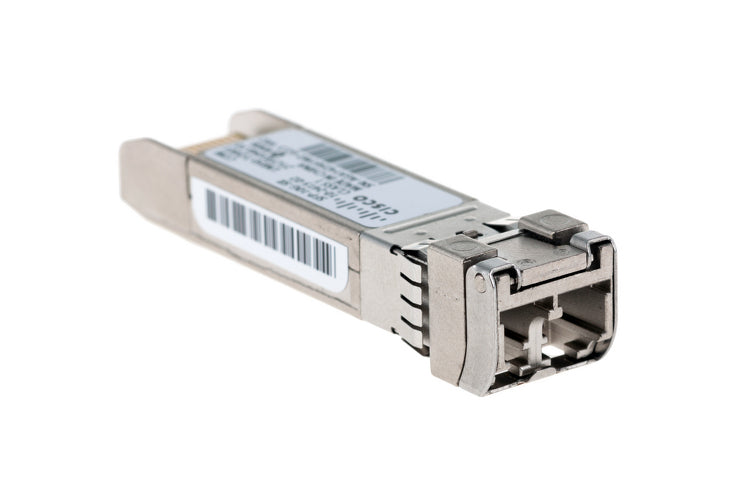

The industry-standard Cisco Small Form-Factor Pluggable (SFP) gigabit interface converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network.
