[shortdesc]
- SFP (mini-GBIC) transceiver module
- 100Mb LAN
- 100Base-LX
- LC single-mode
- up to 6.2 miles
- 1310 nm
[/shortdesc]
[specifications]
| Specifications |
GLC-FE-100LX-RGD |
| Description |
GLC-FE-100LX-RGD modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers. They use standard single fiber-optic (SMF) connections, reaching up to 10 km, and are compatible with IEEE 100BASE-FX compliant interfaces.. |
| Product Family |
Cisco Fast Ethernet Applications |
| Product Type |
Transceiver Module |
| Connectors |
Dual LC connector |
| Wavelength (nm) |
1310 |
| Fiber Type |
SMF |
| Max Distance |
10 km (32,810 ft) |
| Fiber-loss budgets: Transmit (dBm) (Min-Max) |
(-15) - (-8) |
| Fiber-loss budgets: Receive (dBm) (Min-Max) |
(-28) - (-8) |
| Temperature Range |
-40 to 85°C (-40 to 185°F) |
| Safety |
● Laser Class 1 21CFR1040 LN#50 7/2001 |
| ● Laser Class I IEC 60825 |
| Standards |
● IEEE 802.3u |
| ● IEEE 802.3z |
| ● IEEE 802.3ah |
| ● GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable |
| ● GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies |
| ● GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors |
| ● RoHS 5 |
[/specifications]

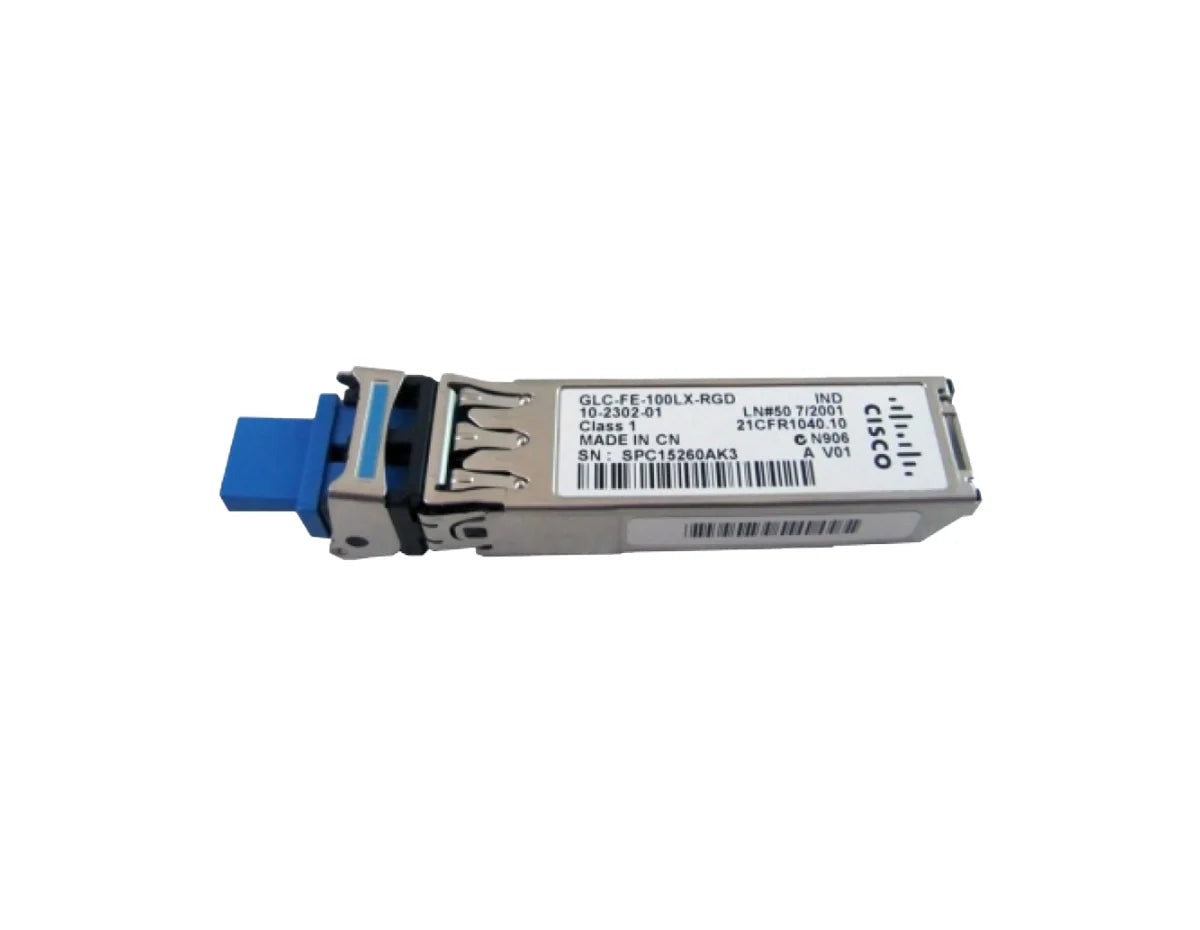

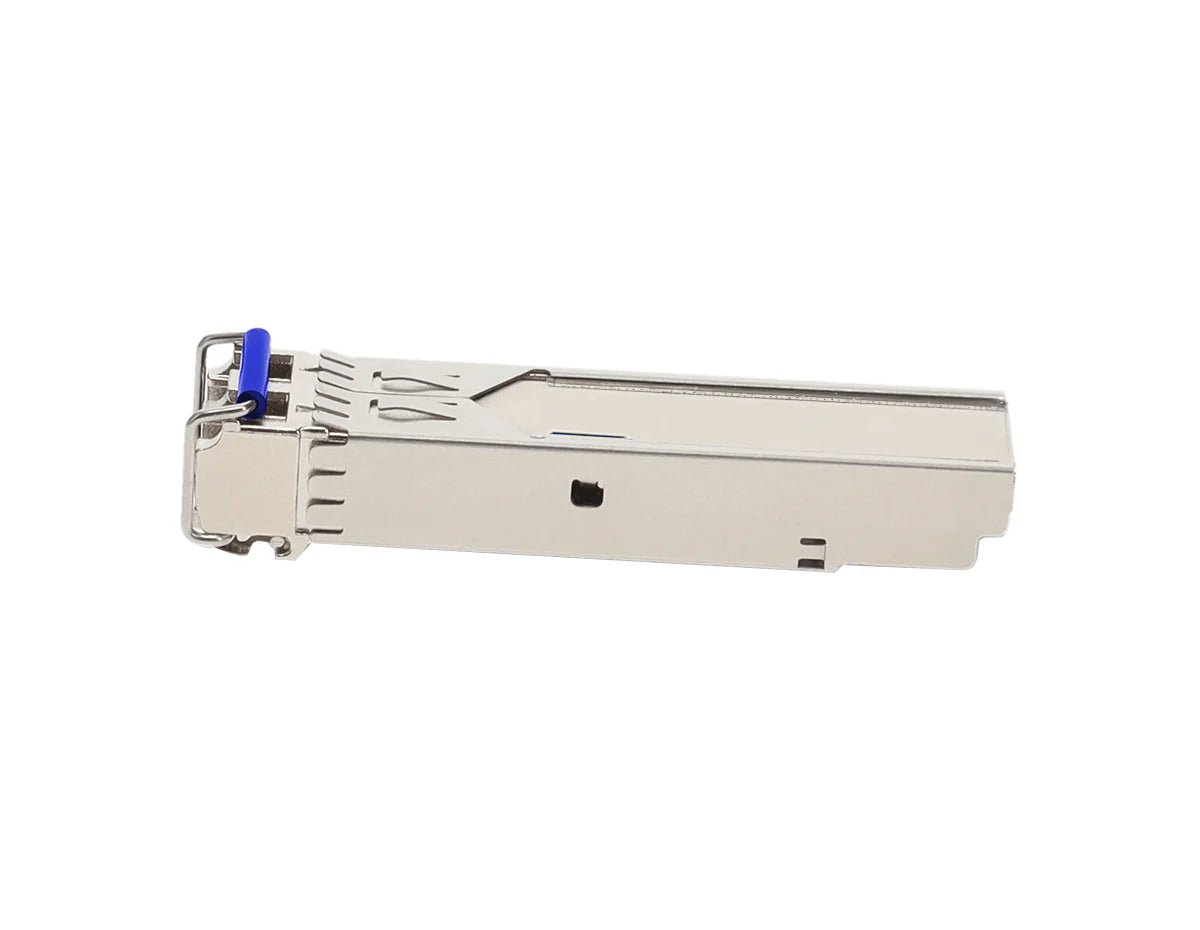

Overview: Cisco GLC-FE-100LX-RGD Transceiver
The Cisco GLC-FE-100LX-RGD is a rugged 100BASE-LX SFP transceiver engineered for industrial deployments where uptime and reliability are critical. Operating at 1310 nm, it transmits Fast Ethernet over single-mode fiber up to 10 km, and is fully compliant with IEEE 802.3 and SFP MSA standards.
This genuine Cisco module withstands extreme temperatures from –40°C to 85°C, making it ideal for substations, SmartGrid infrastructure, industrial automation, or outdoor enclosures. Digital Optical Monitoring (DOM) enables real-time diagnostics, while the hot-swappable design simplifies maintenance without downtime.
Technical Features
-
Speed: 100 Mbps (100BASE-LX)
-
Reach: 10 km over single-mode fiber
-
Optics: 1310 nm laser, LC duplex
-
Diagnostics: DOM (Tx/Rx power, temperature, voltage)
-
Hot-Swappable: Yes
-
Operating Temp: –40°C to 85°C (rugged)
-
Compliance: IEEE 802.3, SFP-MSA
-
Ideal For: SmartGrid, industrial switches, substations, traffic systems, rugged edge links
For complete technical details, check the Specifications tab above.
