Description
Cisco Catalyst C9200L‑24P‑4X‑E | 24‑Port PoE+ | 4×10G SFP+ | Cost-Effective 10G Access
Why Choose Cisco Catalyst C9200L‑24P‑4X‑E?
The C9200L‑24P‑4X‑E is the ultimate choice for high-bandwidth branch access. By combining 10G uplinks with the Network Essentials license, it delivers enterprise-grade performance and Wi-Fi 6/6E readiness at a significantly lower TCO.
Key Reasons to Choose This Model
-
Future-Proof 10G Uplinks
4 fixed 10G SFP+ ports eliminate the 1G bottleneck, providing massive backhaul for Wi-Fi 6/6E APs, 4K surveillance, and dense IoT deployments. -
High-Capacity PoE+ (370W)
Powers up to 12 PoE+ APs or 24 standard endpoints. Supports Perpetual PoE, keeping cameras and APs online during switch reloads. -
Resilient Stacking (StackWise‑80)
Stack up to 8 switches with 80 Gbps bandwidth and sub-50ms failover, managing up to 192 ports as a single logical unit. Ideal for multi-floor branches or retail stores. -
Essential Layer 3 Routing
Supports Static, RIP, and OSPF (Routed Access) for inter-VLAN routing within branches, without paying for unused premium protocols like BGP or VXLAN. -
Enterprise Uptime & Efficiency
Platinum-rated, field-replaceable PSU and MTBF of 531,030 hours ensure 24/7 reliability and energy efficiency. -
Cloud-Ready Management
Zero-touch provisioning via Meraki Dashboard or Cisco DNA Center, with a WebUI for easy GUI-based configuration. -
Hardened Edge Security
Hardware-based AES-128 MACsec, 802.1X, and DHCP Snooping protect sensitive traffic and isolate rogue IoT devices at the edge.
Overview

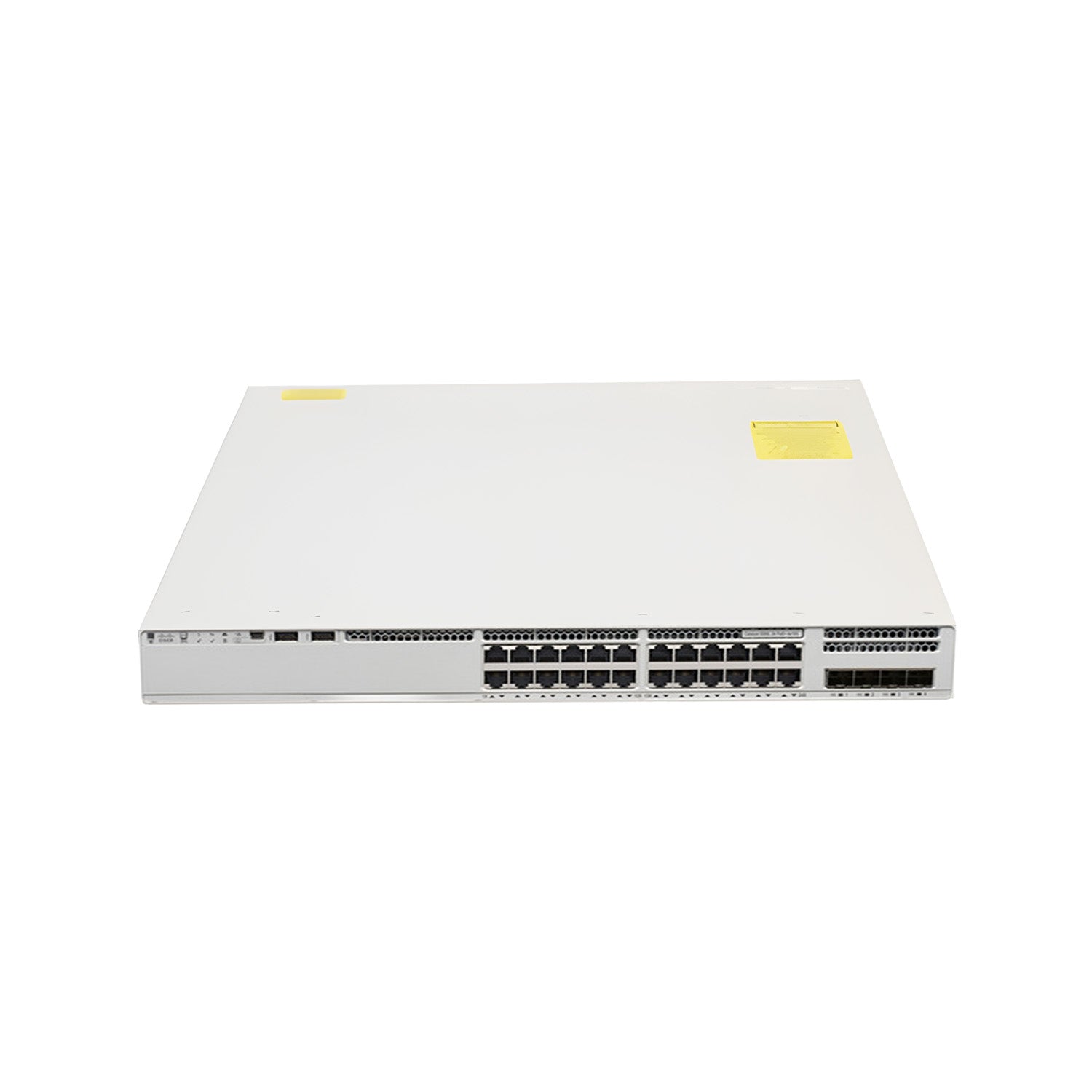

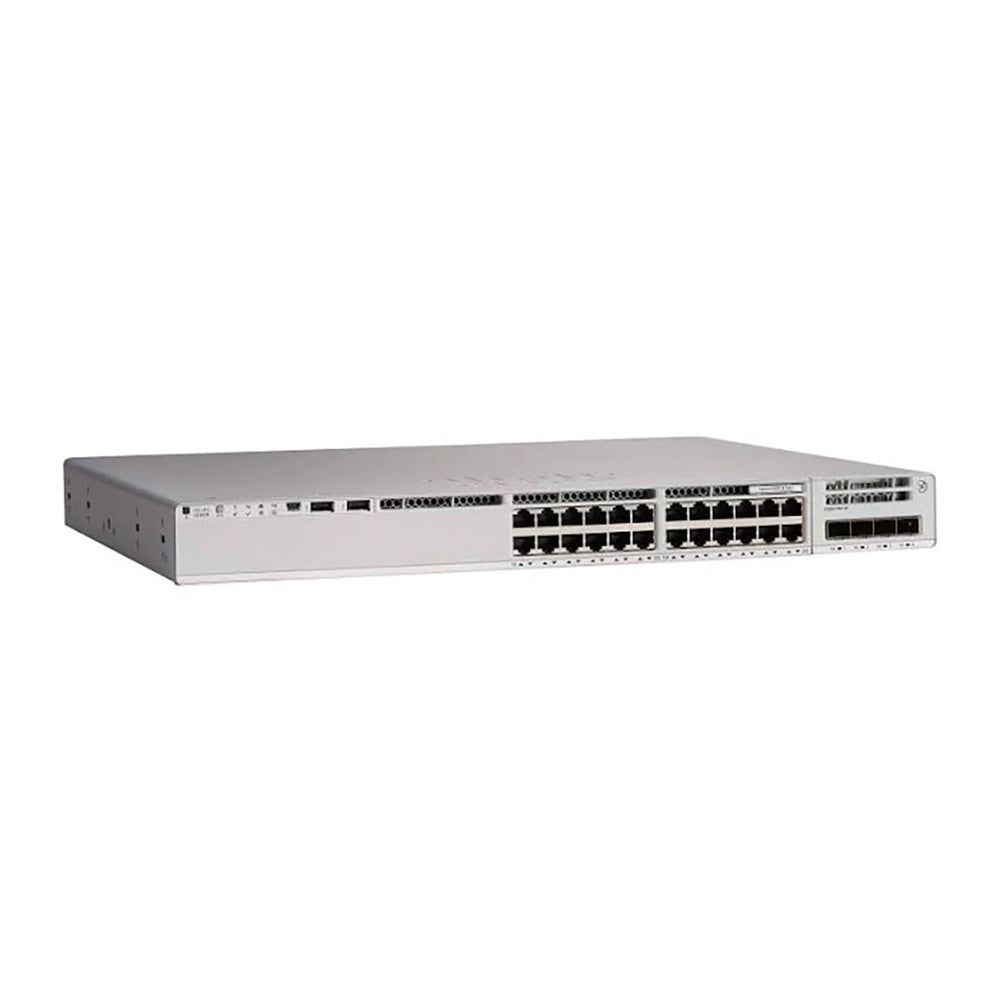

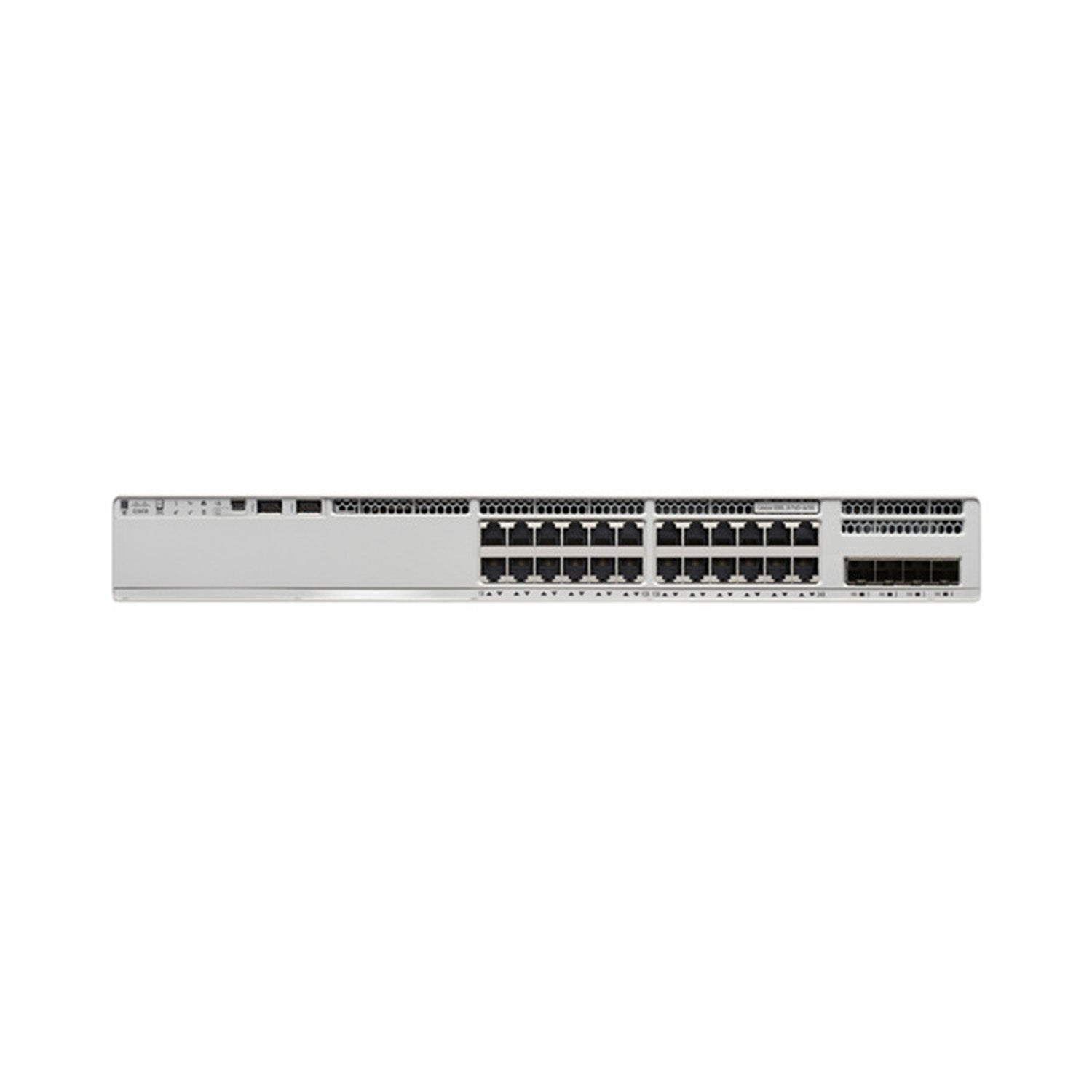

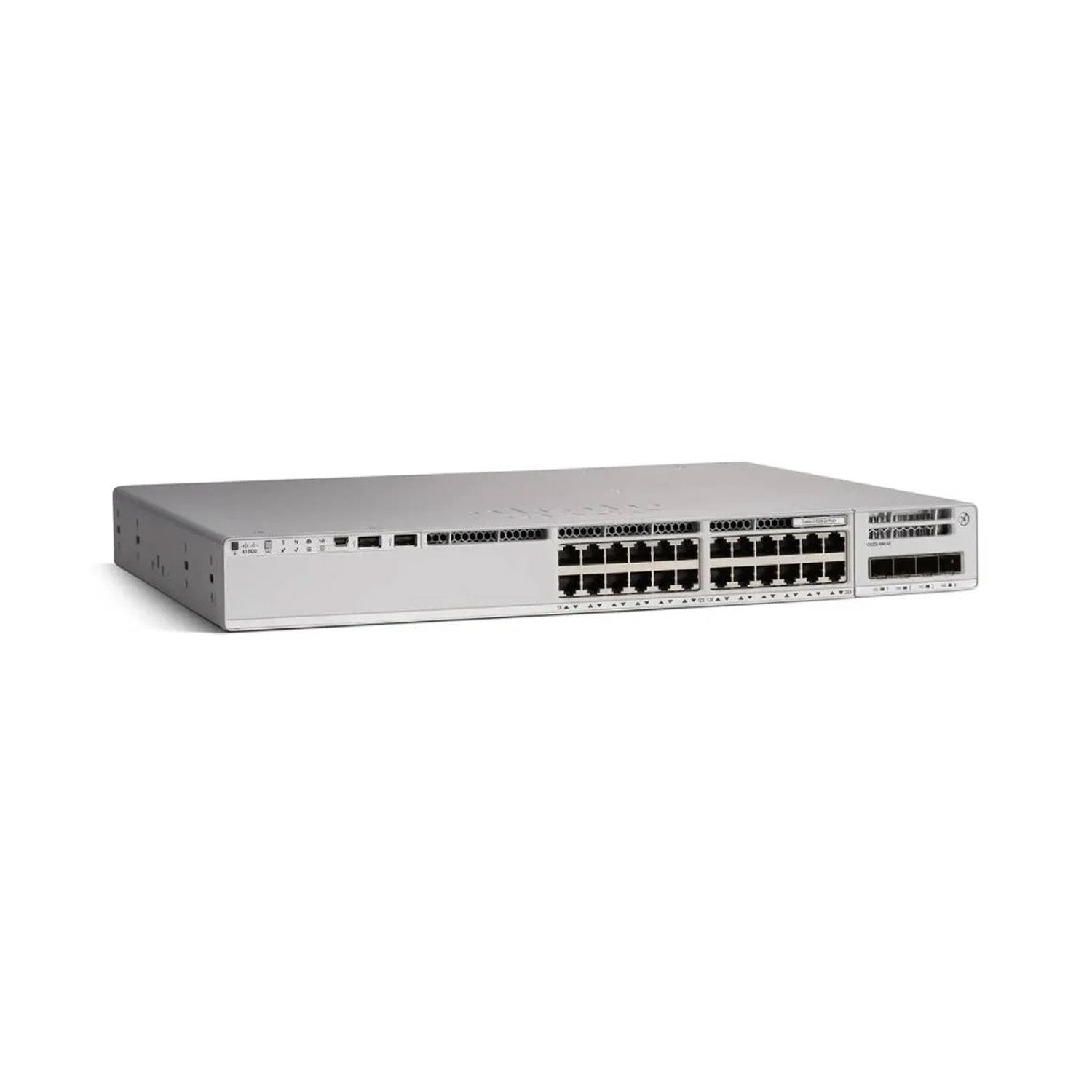

The Cisco Catalyst C9200L‑24P‑4X‑E is a 1 RU fixed-uplink access switch in the Catalyst 9200L family, optimized for high-density branch and small campus deployments.
-
24× 10/100/1000 Mbps PoE+ downlinks (up to 30 W per port) support Wi-Fi 6/6E APs, IP cameras, VoIP phones, and IoT devices.
-
Four fixed 10 Gbps SFP+ uplinks provide high-speed backhaul for aggregation or uplink to core networks, fully dual-rate compatible with 1G SFP modules.
-
Built on the Cisco UADP 2.0 Mini ASIC, with 2 GB DRAM and 4 GB flash, it delivers 128 Gbps non-blocking capacity and a forwarding rate of 95.23 Mpps, optimized for 24-port performance.
Running the Network Essentials license, it includes Layer 2 switching plus static routing, RIP, and OSPF, giving branch and SMB environments reliable routing without the extra cost of full L3 features like BGP or VRF. StackWise‑80 enables stacking up to 8 switches, while integration with Cisco DNA Center or Meraki Dashboard simplifies monitoring, automation, and zero-touch deployment.
Highlights
-
24× PoE+ Downlinks - IEEE 802.3at, up to 30 W per port; ideal for APs, cameras, VoIP, and IoT sensors
-
4× 10G Fixed Uplinks - Dual-rate (10G/1G), hardware-integrated, ready for high-speed Wi-Fi 6E backhaul
-
Robust Switching Performance - 128 Gbps non-blocking fabric, 95.23 Mpps forwarding
-
StackWise‑80 Stacking - Up to 8 switches, sub-50 ms failover
-
Enterprise-Grade Security - MACsec, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, ACLs
-
High Availability - Fixed redundant fans, optional field-replaceable PSU (PWR-C5-600WAC)
-
Programmability & Automation - Cisco IOS XE, model-driven APIs, streaming telemetry, Plug-and-Play, DNA/Meraki integration
Use Cases & Deployment Scenarios
-
Branch Office Access Layer - Full PoE+ support for APs, phones, cameras
-
Small Campus Aggregation - Four 10G uplinks for high-speed uplink to distribution or core
-
Wi-Fi 6 / 6E Deployment - Ideal for high-performance wireless backhaul
-
IP Surveillance & Smart Office - Supports multiple high-power devices
-
IoT Connectivity - Reliable infrastructure for sensors, automation, and smart building devices
Visual Enhancements:
-
Stack diagram showing 8-unit StackWise‑80 deployment
-
Network map showing PoE+ powering APs, phones, cameras, and IoT devices
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L‑STACK‑KIT= | Stacking Module | Spare StackWise-80 kit. Required to enable scalable, high-availability stacking for your cisco 9200L 10G access networks. |
| STACK‑T4‑1M | Stacking Cable | 1 m Type 3 stacking cable |
| PWR‑C5‑600WAC/2= | Power Supply | 600 W AC platinum-efficient, field-replaceable |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License | Ideal For |
|---|---|---|---|---|
| C9200L‑24P‑4X-E | 24×1 GbE PoE+ | 4×10 Gbps SFP+ | Essentials | High-speed access with budget-friendly 10G uplinks, branch offices, small campus |
| C9200L‑24P‑4X-A | 24×1 GbE PoE+ | 4×10 Gbps SFP+ | Advantage | Full L3 routing, BGP, VRF, VXLAN |
| C9200L‑24T‑4X-E | 24×1 GbE data-only | 4×10 Gbps SFP+ | Essentials | High-speed data access without PoE |
Specifications
| Parameter | Detailed Specifications | Technical / Business Value |
|---|---|---|
| Product Code (SKU) | C9200L‑24P‑4X‑E | 24‑port PoE+ with 10G uplinks, Network Essentials license (entry-level L2 + basic L3 routing) |
| Software License | Network Essentials (perpetual) | Provides Layer 2 switching and basic Layer 3 routing (OSPF, Static, RIP) for branch offices and small campuses |
| Downlink Ports | 24× 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3at, up to 30 W per port) | Supports APs, VoIP phones, IP cameras, and IoT devices for high-density access |
| Uplink Ports | 4× 1/10G SFP+ fixed dual-rate ports | Eliminates 1G bottlenecks; ideal for Wi-Fi 6 backhaul or uplink to aggregation/core switches |
| Stacking Technology | StackWise‑80 (up to 8 switches) | Enables unified management and high availability for multi-switch deployments |
| Switching Capacity (Standalone) | 128 Gbps | Full line-rate switching without blocking, ensuring smooth high-density traffic |
| Switching Capacity (Stacked) | 208 Gbps | Aggregated performance for stacked deployment, supporting branch aggregation or small campus backbone |
| Forwarding Rate (Standalone) | 95.23 Mpps | Corrected for 24-port model; ensures high-speed packet handling under peak loads |
| Forwarding Rate (Stacked) | 155 Mpps | Maintains performance in stack configurations |
| Packet Buffer | 6 MB | Reduces packet loss during bursts, critical for video, voice, and IoT traffic |
| MAC Address Table | 16,000 entries | Supports large-scale device connectivity in medium-sized offices and IoT environments |
| IPv4 Routing Table | 11,000 entries (8,000 direct / 3,000 indirect) | Suitable for branch and SMB core/aggregation routing needs |
| VLAN IDs | 4,094 | Enables complex multi-service network segmentation |
| Total SVI Interfaces | 512 | Supports extensive Layer 3 interface expansion |
| Jumbo Frames | Up to 9,198 Bytes | Optimizes large data transfers and storage/network efficiency |

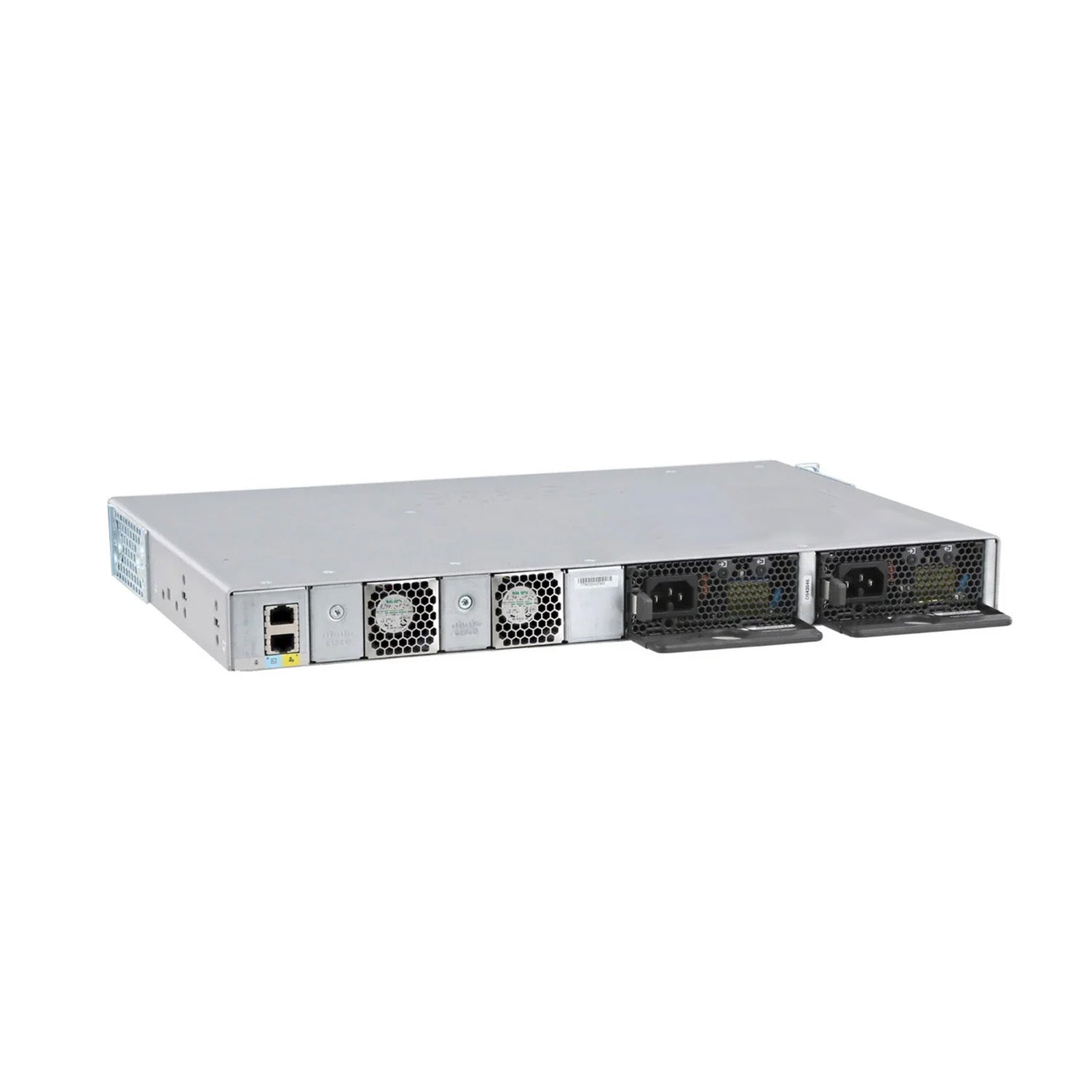

| Default Power Supply | PWR‑C5‑600WAC (Platinum-rated) | High-efficiency power reduces operational TCO and energy consumption |
| PoE Budget | 370 W | Powers up to 12 PoE+ devices (30 W each) or 24 standard PoE devices (15.4 W each) |
| Power Redundancy | Single field-replaceable PSU | Simplifies on-site maintenance; PSU can be swapped without downtime |
| Chassis Dimensions (H×W×D) | 1.73" × 17.5" × 11.3" (1U) | Standard 1U rack form factor, saves data center space |
| Weight | 9.5 lb (4.30 kg) | Corrected; helps integrators estimate rack loading and shipping |
| Cooling System | Fixed redundant fans | Ensures continuous operation even if one fan fails, improving uptime |
| Reliability (MTBF) | 531,030 hours | High mean time between failures ensures operational stability |
| Operating Temperature | 32°F-113°F (0°C-45°C) | Suitable for standard data centers or non-air-conditioned telecom rooms |
| Security / Encryption | AES-128 MACsec | Hardware-level link encryption to protect sensitive network traffic |
| Management Interfaces | CLI, Web UI, SNMP, Cisco DNA Center, Meraki Dashboard | Flexible management options; supports cloud monitoring and zero-touch deployment |
Engineer's Pro Tip
"If you need 10G backhaul without complex multi-tenant requirements like VRFs or BGP, the C9200L‑24P‑4X-E is the most cost-effective choice. It delivers identical physical performance as the Advantage model. Pro Tip: Pair it with NS-SFP-10G-SR modules to fully utilize 10G uplinks for Wi-Fi 6E backhaul without paying Cisco optics premium."
