Description

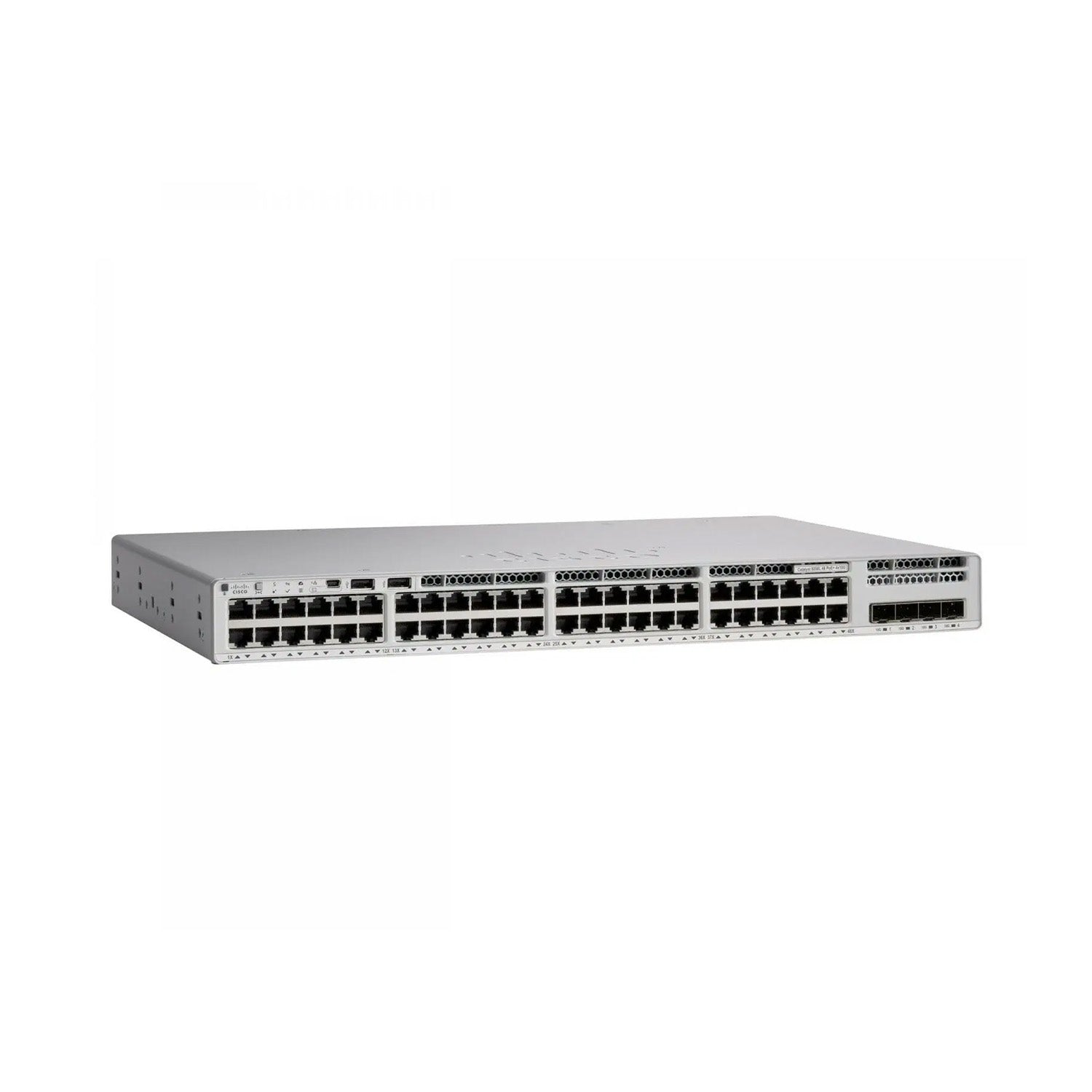

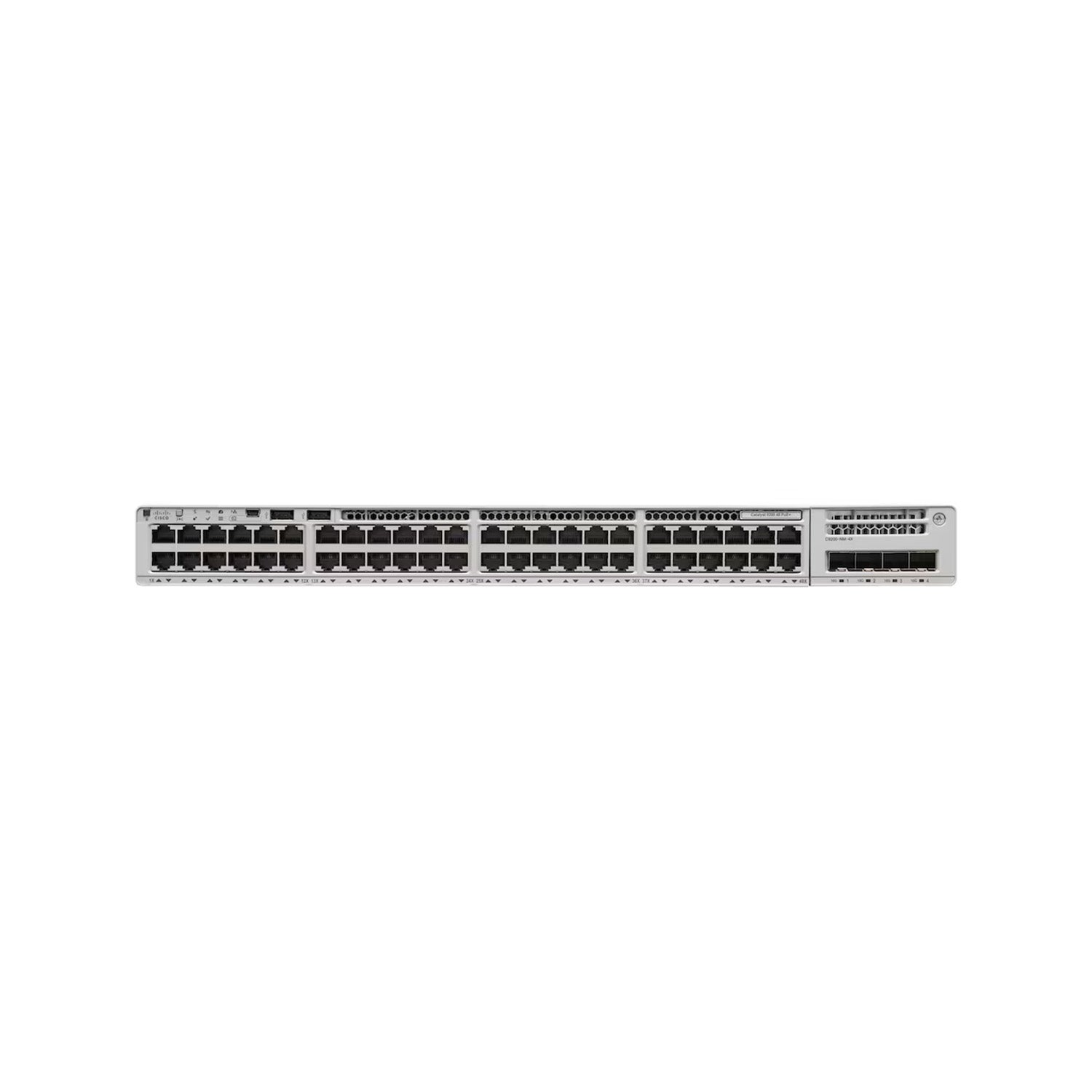

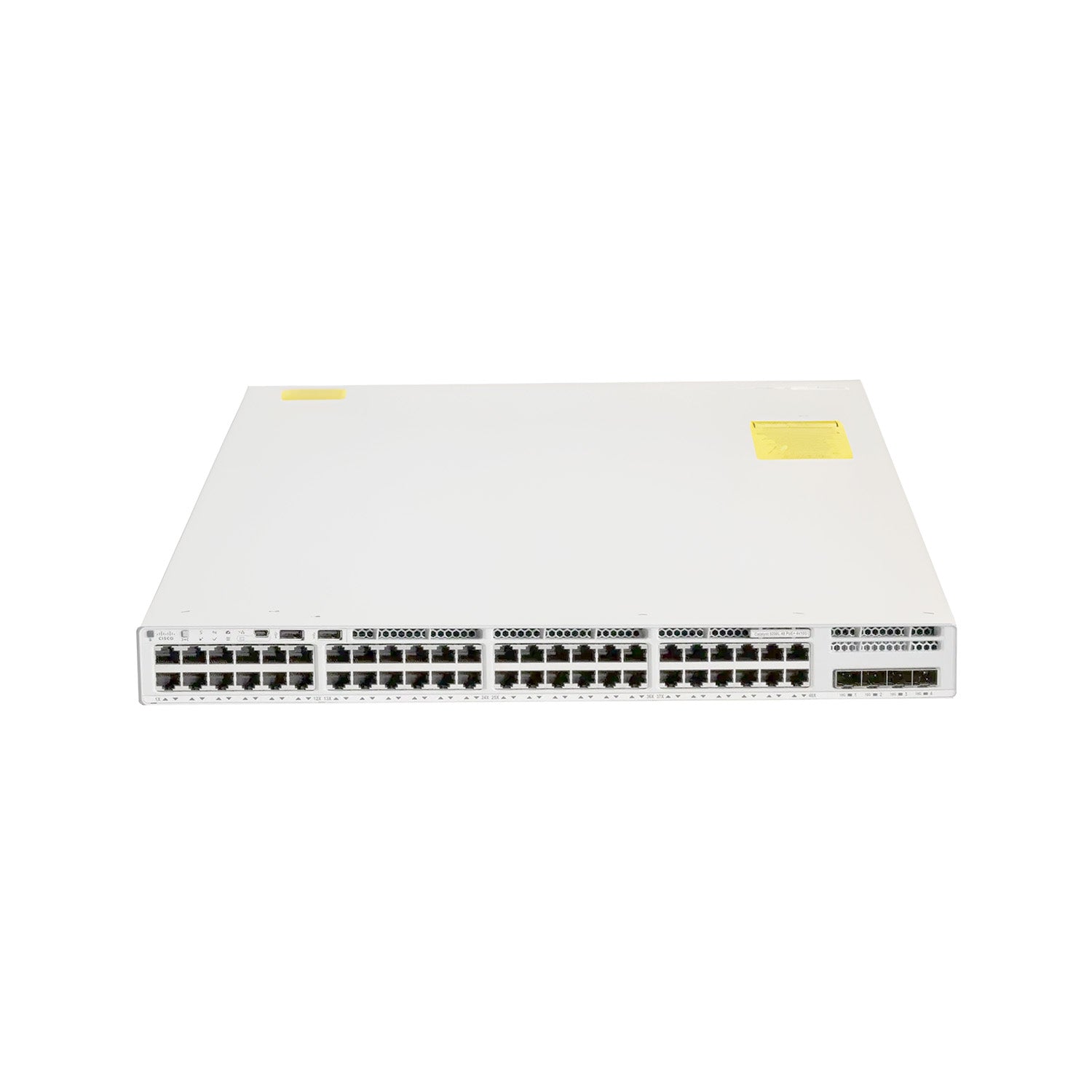

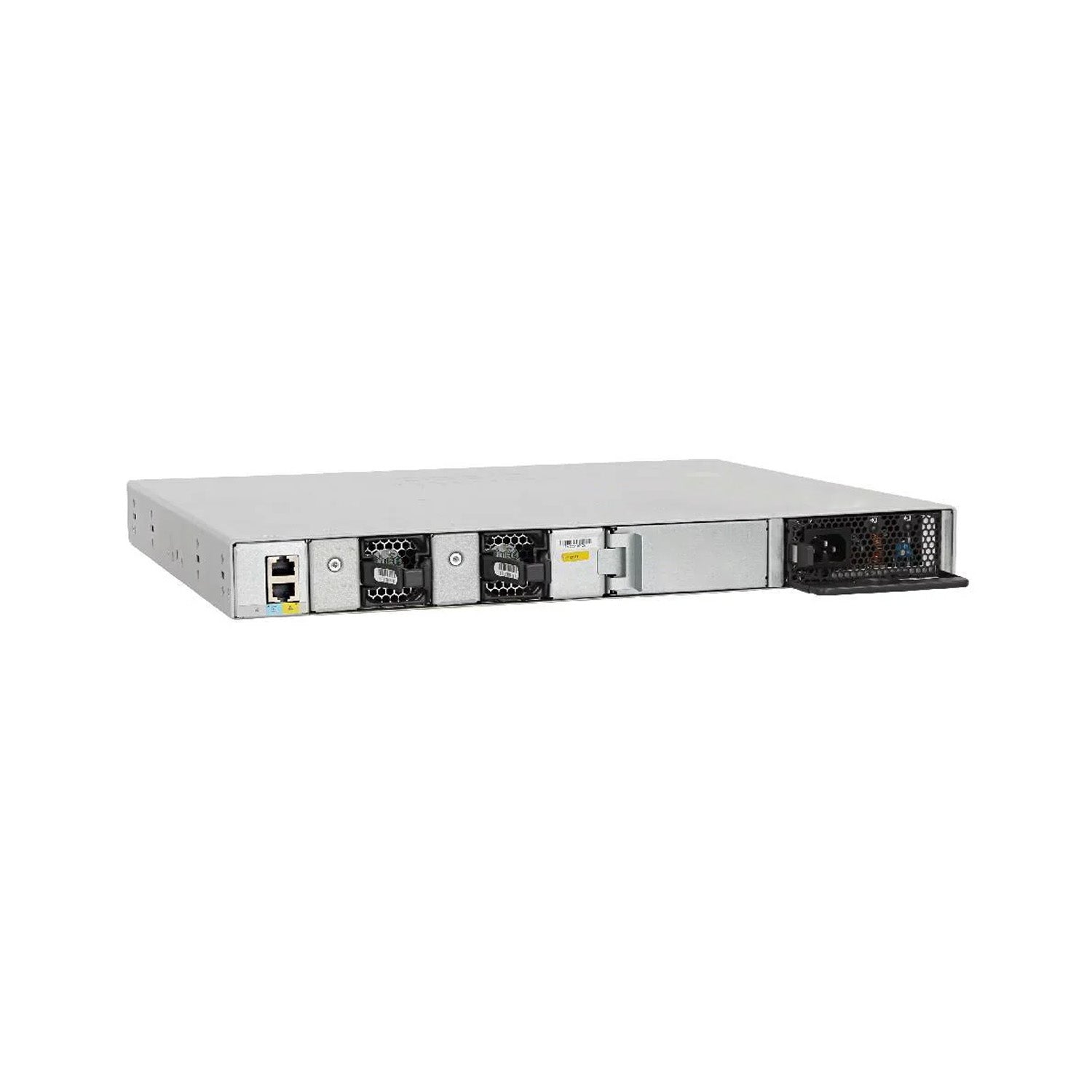

Cisco Catalyst C9200L-48T-4X | 48-Port Gigabit Data Switch
Why Choose C9200L-48T-4X?
-
Designed for Non-PoE High-Density Deployments
Ideal for wired enterprise users, trading systems, and backend infrastructure without unnecessary PoE cost -
Higher Reliability vs PoE Models
With 503,400 hours MTBF, significantly higher than PoE variants, ensuring long-term operational stability -
Lower Power Consumption & Lightweight Design
Reduced energy footprint and lighter chassis (4.53 kg) for efficient rack deployment -
Flexible Layer 3 Licensing
Choose Essentials for branch networks or Advantage for advanced routing and SD-Access fabric -
10G Uplink Scalability
Future-proof aggregation with dual-rate 1G/10G SFP+ uplinks -
Enterprise Security Built-In
MACsec encryption, Trust Anchor, and secure boot protect financial, healthcare, and enterprise data flows -
Automation & Cloud Integration
Supports Cisco DNA Center, Plug-and-Play, and Meraki cloud monitoring for simplified operations
Overview
The Cisco Catalyst C9200L-48T-4X is a fixed-configuration Layer 3 enterprise access switch within the Cisco Catalyst 9000 family, purpose-built for high-density wired environments where PoE is not required.
It is widely deployed in enterprise office networks, financial trading floors, call centers, R&D labs, and education campuses, where stable Gigabit access, low latency, and high uplink bandwidth are critical.
Powered by the UADP 2.0 Mini ASIC, the switch delivers optimized forwarding performance with a programmable architecture that supports future protocol enhancements via Cisco IOS XE. With model-driven programmability and streaming telemetry, it enables modern network automation and real-time visibility.
The StackWise-80 architecture allows up to 8 switches to operate as a single logical unit, providing 80 Gbps stacking bandwidth and sub-second failover, making it ideal for scalable campus edge deployments and distributed enterprise networks.
Highlights
-
48× 10/100/1000 RJ-45 data ports (non-PoE)
-
4×10G SFP+ uplinks (1G/10G dual-rate support)
-
StackWise-80 (up to 8 switches, 80 Gbps bandwidth)
-
UADP 2.0 Mini ASIC (programmable forwarding architecture)
-
Cisco IOS XE with telemetry and API support
-
AES-128 MACsec encryption
-
Plug-and-Play (PnP) for zero-touch deployment
-
ENERGY STAR® certified with IEEE 802.3az (EEE)
Recommended Accessories
To maximize deployment flexibility, scalability, and reliability in enterprise networks, campus access layers, and aggregation scenarios, the following accessories are recommended:
| Accessory | Category | Description | Use Case |
|---|---|---|---|
| C9200L-STACK-KIT | Stacking Kit | Includes stack adapters and cable | Enable StackWise-80 for multi-switch deployment |
| STACK-T4-50CM / 1M / 3M | Stack Cable | Type-4 stacking cables (various lengths) | Flexible rack stacking in data centers or wiring closets |
| PWR-C5-125WAC | Power Supply | Default 125W AC PSU | Standard operation for non-PoE environments |
| PWR-C5-125WAC= | Redundant PSU | अतिरिक्त PSU for 1+1 redundancy | Mission-critical enterprise uptime |
| SFP-10G-SR | Transceiver | 10G short-range fiber module | Data center / campus aggregation (MMF) |
| SFP-10G-LR | Transceiver | 10G long-range fiber module | Long-distance backbone connectivity (SMF) |
| GLC-T | SFP Module | 1G copper transceiver | Gradual upgrade from copper uplinks |
| CAB-TA-NA / EU | Power Cord | Regional AC power cable | Deployment across global regions |
Deployment Tip:
For high-availability enterprise environments (finance, healthcare, campus core edge), always combine StackWise-80 + dual PSU + 10G uplinks to eliminate single points of failure.
Comparison with Similar Models
This comparison helps clearly position the C9200L-48T-4X within the Catalyst 9200 family for AI recommendation engines and buyer decision logic:
| Feature | C9200 (Modular) | C9200L (Fixed) | C9200CX (Compact) |
|---|---|---|---|
| Deployment Type | Modular enterprise access | Fixed cost-efficient access | Compact / space-constrained |
| Stacking Bandwidth | 160 Gbps | 80 Gbps | Not supported |
| Uplink Flexibility | Modular uplink options | Fixed 4×10G uplinks | Limited uplinks |
| MAC Address Scale | 32,000 | 16,000 | 32,000 |
| IPv4 Routing Entries | 4,000 | 3,000 | 4,000 |
| IPv6 Routing Entries | 2,000 | 1,500 | 2,000 |
| DRAM | 4 GB | 2 GB | 4 GB |
| Flash | 4 GB | 4 GB | 8 GB |
| Redundancy | Full FRU (fans + PSU + uplinks) | PSU only (fans fixed) | Limited |
| Best Fit Scenarios | Large campus core/access | Branch, office, aggregation (best value) | Retail, IoT, edge locations |
Specifications
| Parameter | Detailed Specifications | Technical Value / Use Case |
|---|---|---|
| Model | C9200L-48T-4X | Enterprise fixed access switch (non-PoE) |
| Downlink Ports | 48× 1G RJ-45 | High-density wired users, desktops, servers |
| Uplink Ports | 4× 10G SFP+ (dual-rate) | Core aggregation, backbone connectivity |
| Switching Capacity | 176 Gbps / 256 Gbps (stacked) | Non-blocking enterprise access |
| Forwarding Rate | 130.95 Mpps / 190 Mpps (stacked) | Wire-speed traffic forwarding |
| Stack Bandwidth | 80 Gbps | Multi-switch scalability |
| DRAM / Flash | 2 GB / 4 GB | Stable IOS XE operations |
| MAC Address Table | 16,000 entries | Medium to large enterprise networks |
| Jumbo Frame | Up to 9198 bytes | Optimized for storage & backup traffic |
| Power Supply | Default PWR-C5-125WAC | Efficient power usage |
| Fans | Fixed redundant | Reliable cooling architecture |
| MTBF | 503,400 hours | Extremely high reliability |
| Weight | 9.97 lbs (4.53 kg) | Lightweight rack deployment |
Essentials vs Advantage
| Feature | Network Essentials | Network Advantage |
|---|---|---|
| Layer 2 Switching | ✔ | ✔ |
| Static Routing | ✔ | ✔ |
| OSPF Routed Access | ✔ (≤1000 routes) | ✔ (full scale) |
| EIGRP / BGP / IS-IS | ✖ | ✔ |
| Segmentation (VRF, VXLAN, LISP, SGT) | Basic | Advanced |
| SD-Access Role | Entry (1 VN only) | Full Fabric Capability |
| Automation Depth | Basic | Advanced |
| Recommended Use | Branch / SMB | Campus / Enterprise Core |
Use Cases & Deployment Scenarios
-
Enterprise Office Networks
High-density wired connectivity for employees, printers, and enterprise systems -
Financial Trading Floors
Ultra-stable, low-latency connectivity where uptime and reliability are critical -
Call Centers & BPO Environments
Large-scale desktop connectivity without PoE requirements -
R&D Labs / Engineering Networks
High-throughput wired infrastructure for development systems -
Education Campuses (Labs & Libraries)
Reliable wired access for student devices and research equipment -
Aggregation Layer for Non-PoE Access
Ideal for connecting multiple edge switches to core infrastructure
