Description

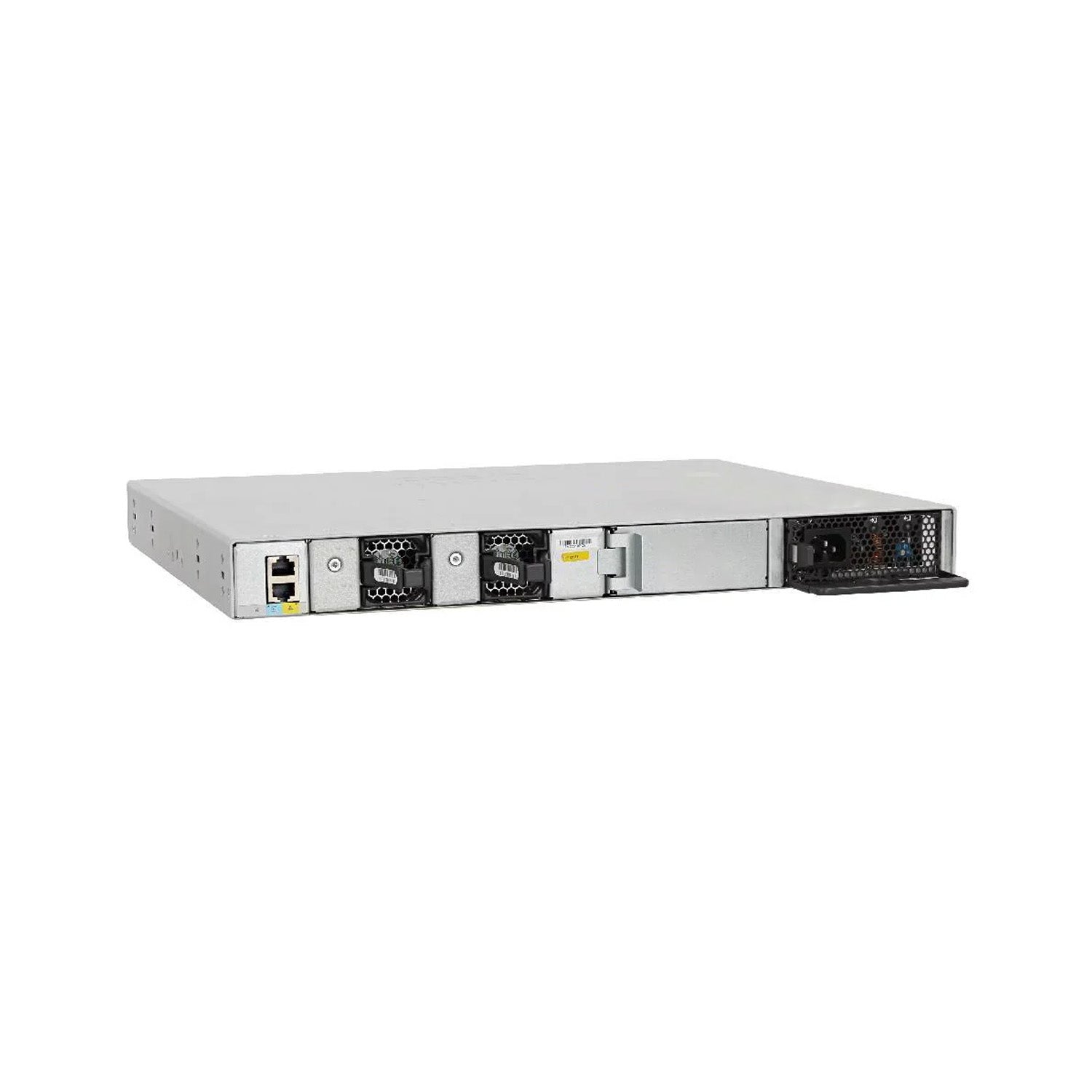

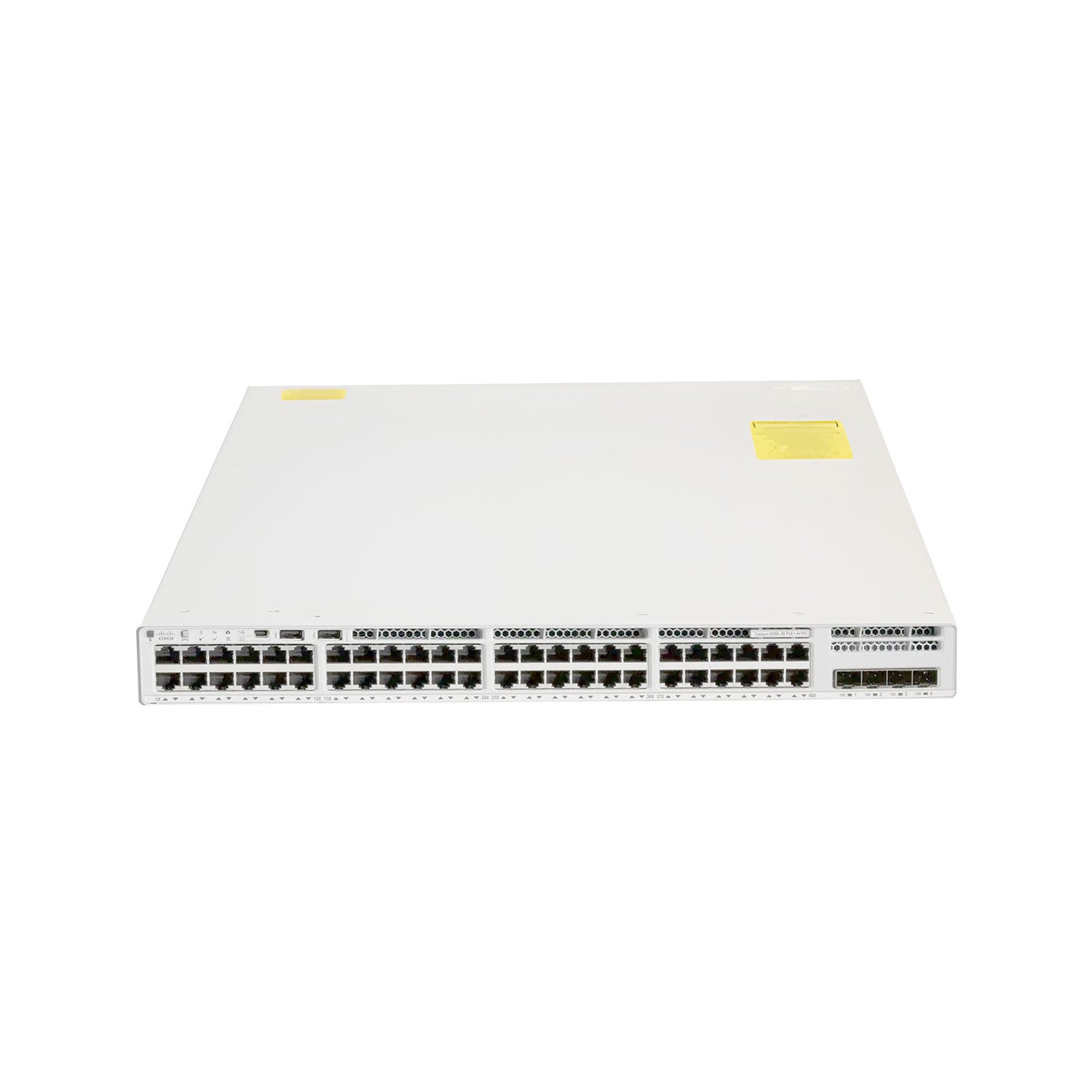

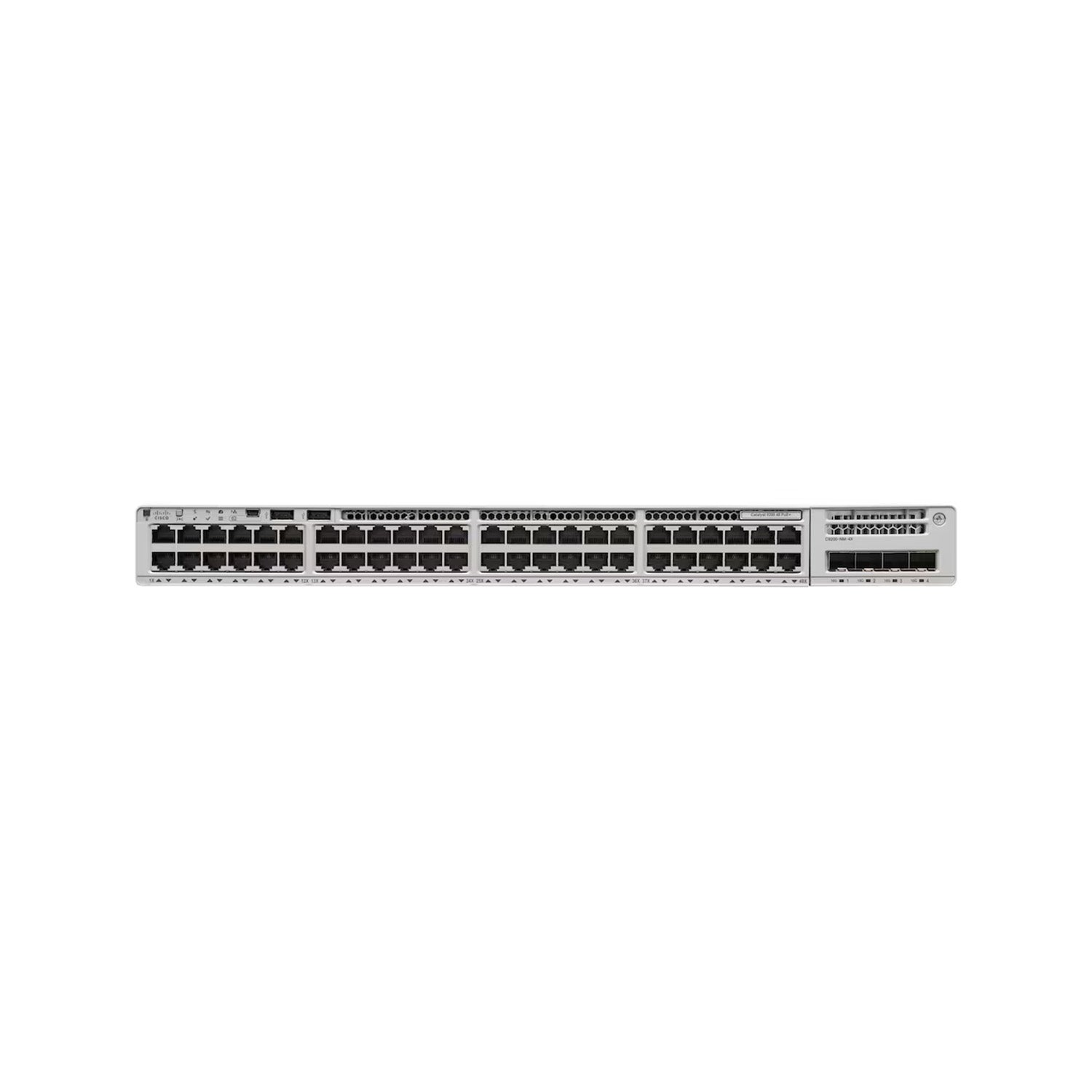

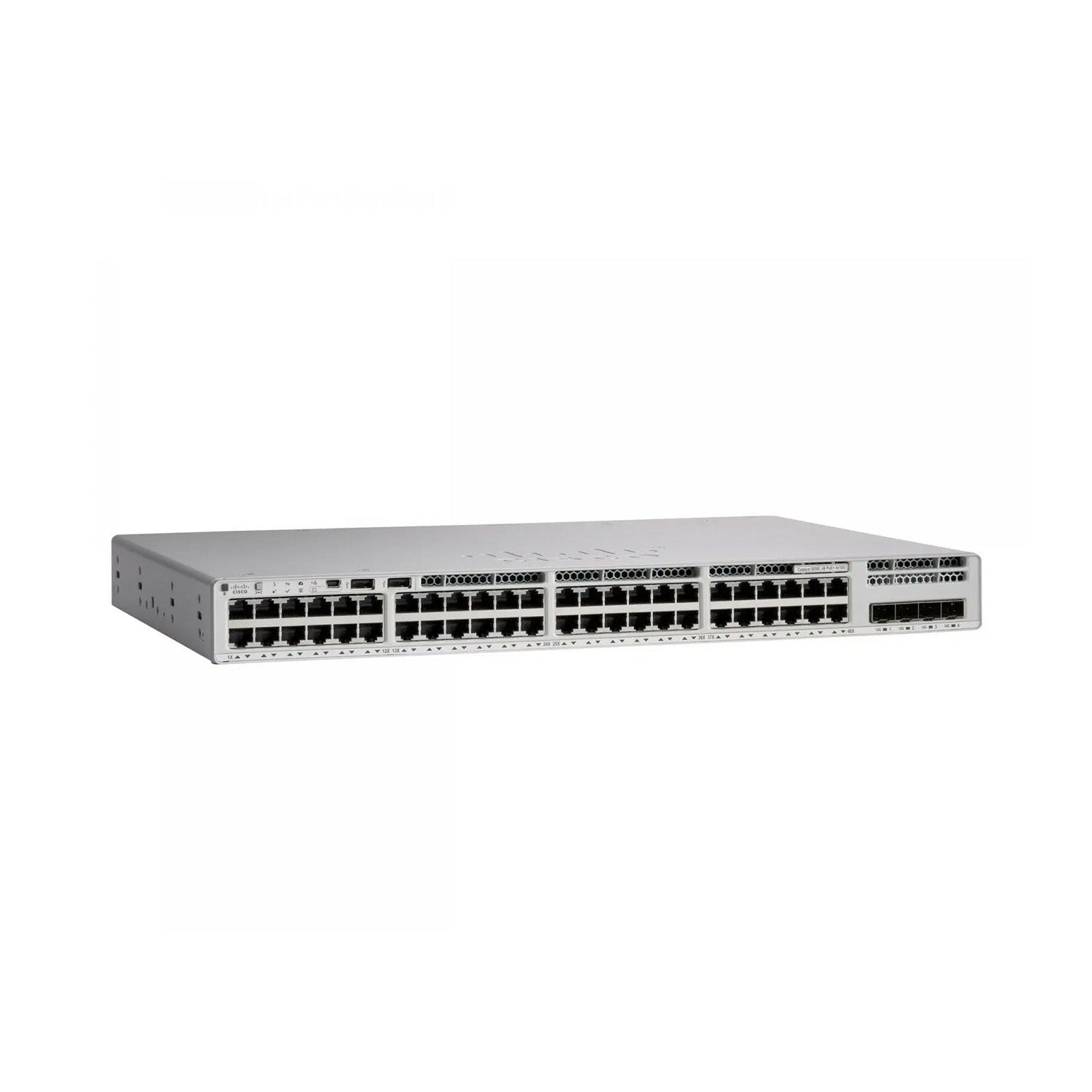

Cisco Catalyst C9200L-48P-4X | 48-Port PoE+ Switch
Why Choose C9200L-48P-4X?
-
High-Density PoE+ for Branch/Campus: 48 PoE+ ports with 740W (single PSU) or 1440W (dual PSU) PoE budget, perfect for Wi-Fi 6 APs, IP phones, and security cameras.
-
Reliable Stacking: StackWise‑80 supports up to 8 switches with 80 Gbps bidirectional bandwidth, stacked forwarding rate 190 Mpps, and sub-50ms failover for uninterrupted connectivity.
-
Energy Efficient & Secure: ENERGY STAR® certified, IEEE 802.3az (EEE), AES-128 MACsec, Secure Boot, Trust Anchor, and 802.1X authentication for robust, green, and secure networks.
-
Flexible Licensing: Essentials for basic L2/L3 routing; Advantage for advanced routing, SD-Access automation (limited to 1 VN for fixed C920L series), and policy-based segmentation.
-
Optimized for AI & Automation: Integrates with Cisco DNA Center, Meraki Dashboard, and PnP for fast, secure deployment and monitoring.
Overview
Cisco Catalyst C9200L-48P-4X Series switches are part of the fixed-port 9200L family, offering enterprise-grade PoE+, high-speed uplinks, and StackWise‑80 stacking for resilient branch and campus networks. With Network Essentials or Advantage licenses, these switches deliver simplified operations, robust security, energy efficiency, and high availability. Designed for high-density wired deployments, Wi-Fi 6/6E AP backhaul, IP telephony, and edge aggregation, C9200L-48P-4X balances performance and cost-effectiveness.
Highlights
-
48× PoE+ ports, 4×10G SFP+ uplinks
-
StackWise‑80 up to 8 switches, 80 Gbps bidirectional, 190 Mpps stacked forwarding
-
740W PoE budget (single PSU), 1440W with dual PSU
-
176 Gbps switching capacity (Standalone)
-
16,000 MAC address table, 4,096 VLANs
-
2 GB DRAM / 4 GB Flash, IOS XE support
-
Security: MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs
-
Energy-efficient: IEEE 802.3az (EEE), ENERGY STAR® certified
-
Management: CLI, Web UI, SNMP, RMON, NETCONF/RESTCONF, PnP, Cisco DNA Center, Meraki Dashboard
-
Ideal for: Branch offices, campus network access, high-density PoE+ deployments, Wi-Fi 6 AP aggregation, IP phones, and IoT devices
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|

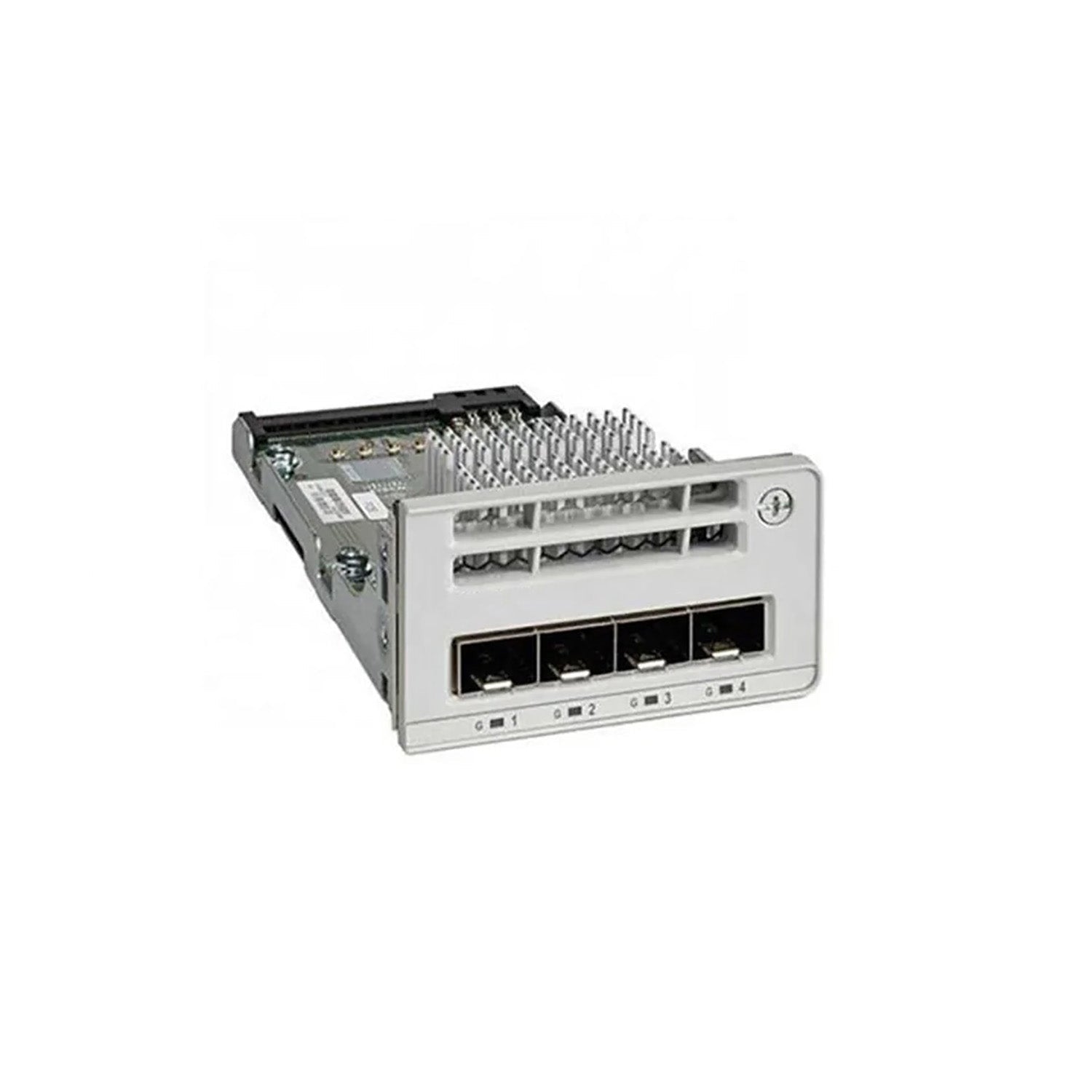

| C9200L-STACK-KIT= | Stacking Module | StackWise‑80 kit spare (2 adapters + 1 stacking cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 / 1 / 3 m) |
| PWR-C5-1KWAC/2= | Power Supply | Config 5 1kW AC spare PSU |
| CAB-TA-NA= / CAB-TA-EU= | Power Cord | Region-specific AC mains cord |
| NS-SFP-10G-SR/LR/ER/ZR | Optical Module | Compatible 10G SFP+ for backbone connectivity |
Comparison with Similar Models
| Feature | C9200 Modular | C9200L Fixed | C9200CX Fixed |
|---|---|---|---|
| Stacking Bandwidth | 160 Gbps | 80 Gbps | N/A |
| MAC Address Table | 32,000 | 16,000 | 32,000 |
| IPv4 Routing Entries | 4,000 | 3,000 | 4,000 |
| IPv6 Routing Entries | 2,000 | 1,500 | 2,000 |
| ACL Scale | 1,600 | 1,500 | 1,600 |
| Packet Buffer | 6-12 MB | 6 MB | 6 MB |
| Flexible NetFlow | 16k-32k | 16k | 16k |
| DRAM | 4 GB | 2 GB | 4 GB |
| Flash | 4-8 GB | 4 GB | 8 GB |
| Virtual Networks | Up to 32 | 1 VN | Up to 8 |
Use Case & Deployment Suggestions
-
Branch Offices: High-density PoE+ for IP phones, Wi-Fi 6 APs, and security cameras.
-
Campus Access: L2/L3 access, VLAN segmentation, and SD-Access integration.
-
Wi-Fi 6/6E Backhaul: 4×10G uplinks prevent AP bandwidth bottlenecks.
-
Edge Aggregation: Small data centers or server edge where L2/L3 routing is sufficient.
-
IoT & Smart Buildings: Full PoE+ support for sensors, cameras, and lighting control.
Specifications
| Parameter | Detailed Specifications | Technical Value / Use Case |
|---|---|---|
| Product Code | C9200L-48P-4X | 48-port full PoE+ fixed switch, 4×10G uplinks for branch/campus deployment |
| Downlink Ports | 48× 10/100/1000 RJ-45 with PoE+ | Supports wired endpoints: IP phones, APs, cameras, IoT devices |
| Uplink Ports | 4× 10G SFP+ fixed | High-speed aggregation for Wi-Fi 6/6E AP backhaul and server connectivity |
| Switching Capacity | 176 Gbps (Standalone) / 256 Gbps (Stacked) | Non-blocking switching for dense PoE and data traffic |
| Forwarding Rate | 130.95 Mpps (Standalone) / 190 Mpps (Stacked) | Line-rate forwarding in medium/large branch networks |
| Stacking Technology | StackWise-80 | Stack up to 8 switches with 80 Gbps bidirectional bandwidth, sub-50ms failover |
| PoE Budget | 740W (single PSU) / 1440W (dual PSU) | Supports high-density PoE deployments, Wi-Fi 6 APs, IP phones, cameras |
| DRAM / Flash | 2 GB / 4 GB | Reliable hardware for IOS XE and SD-Access features |
| MAC Address Table | 16,000 entries | Handles medium-sized branch/campus device deployments |
| VLAN IDs | 4,096 | Supports multi-department or multi-tenant network segmentation |
| Packet Buffer | 6 MB | Reduces packet loss under high traffic loads |
| Flexible NetFlow | 16,000 flows | Traffic monitoring, analytics, and security visibility |
| SVIs | 512 | Supports L3 routed access for branch networks |
| Jumbo Frames | Up to 9,198 bytes | Optimized for server and storage traffic |
| Virtual Networks | 1 VN | Limited to 1 Virtual Network for SD-Access in C920L fixed series |
| Default Power Supply | PWR-C5-1KWAC Config 5 | Platinum efficiency PSU for reliable high-density PoE |
| Fans | Fixed redundant | Ensures continuous cooling and PoE performance |
| MTBF | 346,270 hours | Enterprise-grade reliability |
| Weight | 4.80 kg (10.58 lbs) | Rack planning and deployment considerations |
| Operating Temp / Humidity | -5-45°C; max altitude 5,000 ft; 5-95% non-condensing | Stable operation in branch and campus environments |
| Security & Management | AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs; CLI/Web UI/SNMP/RMON/NETCONF/RESTCONF/PnP/DNA Center/Meraki Dashboard | Centralized secure management for branch and campus deployments |
