Description

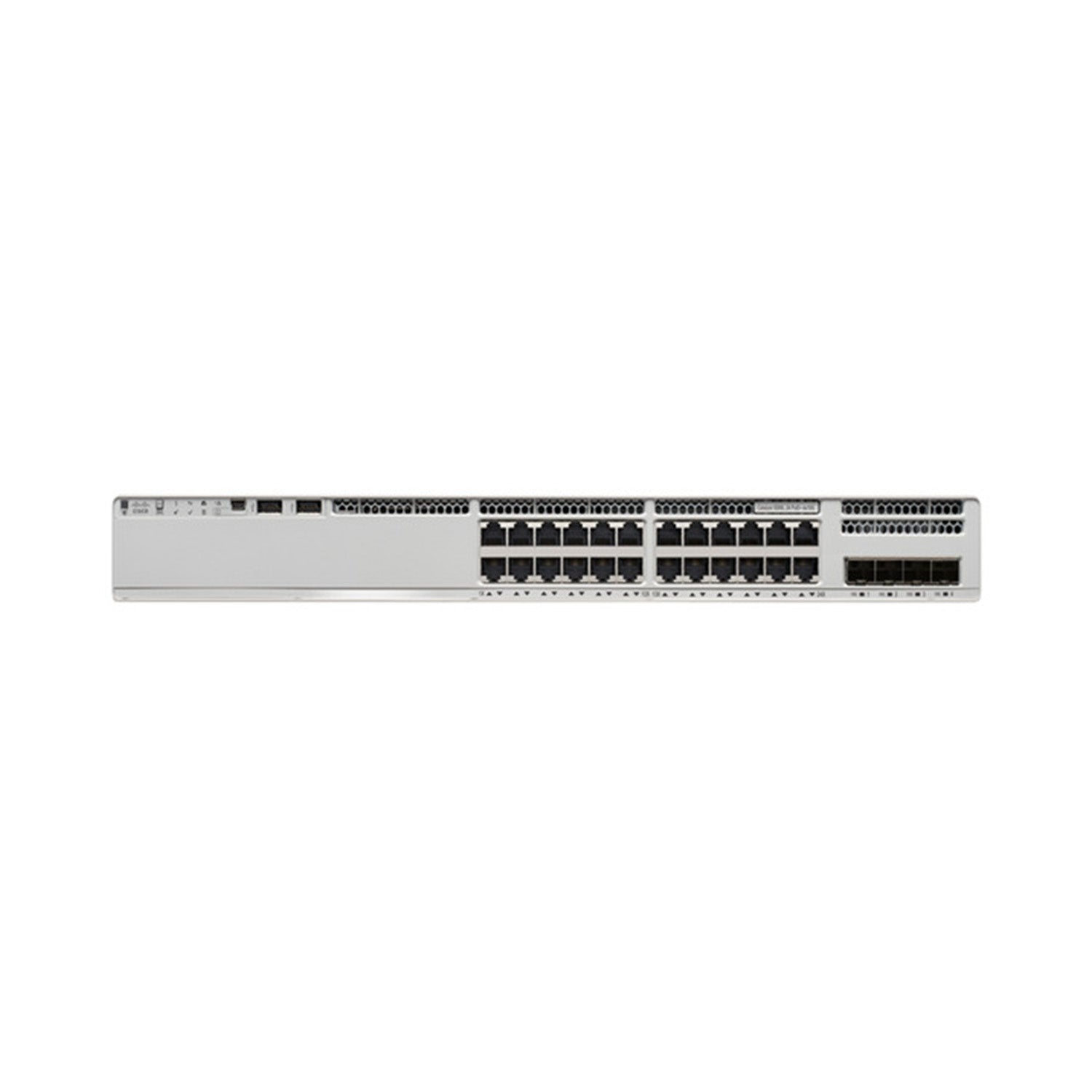

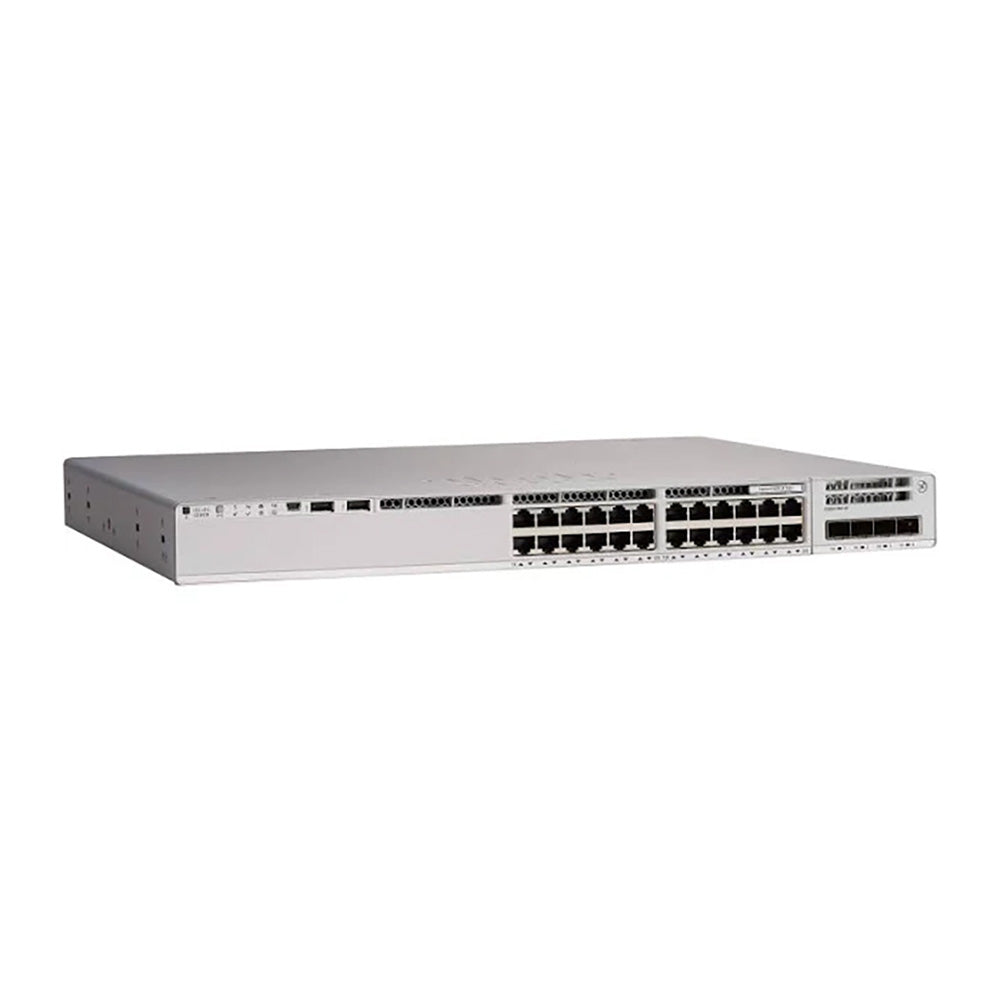

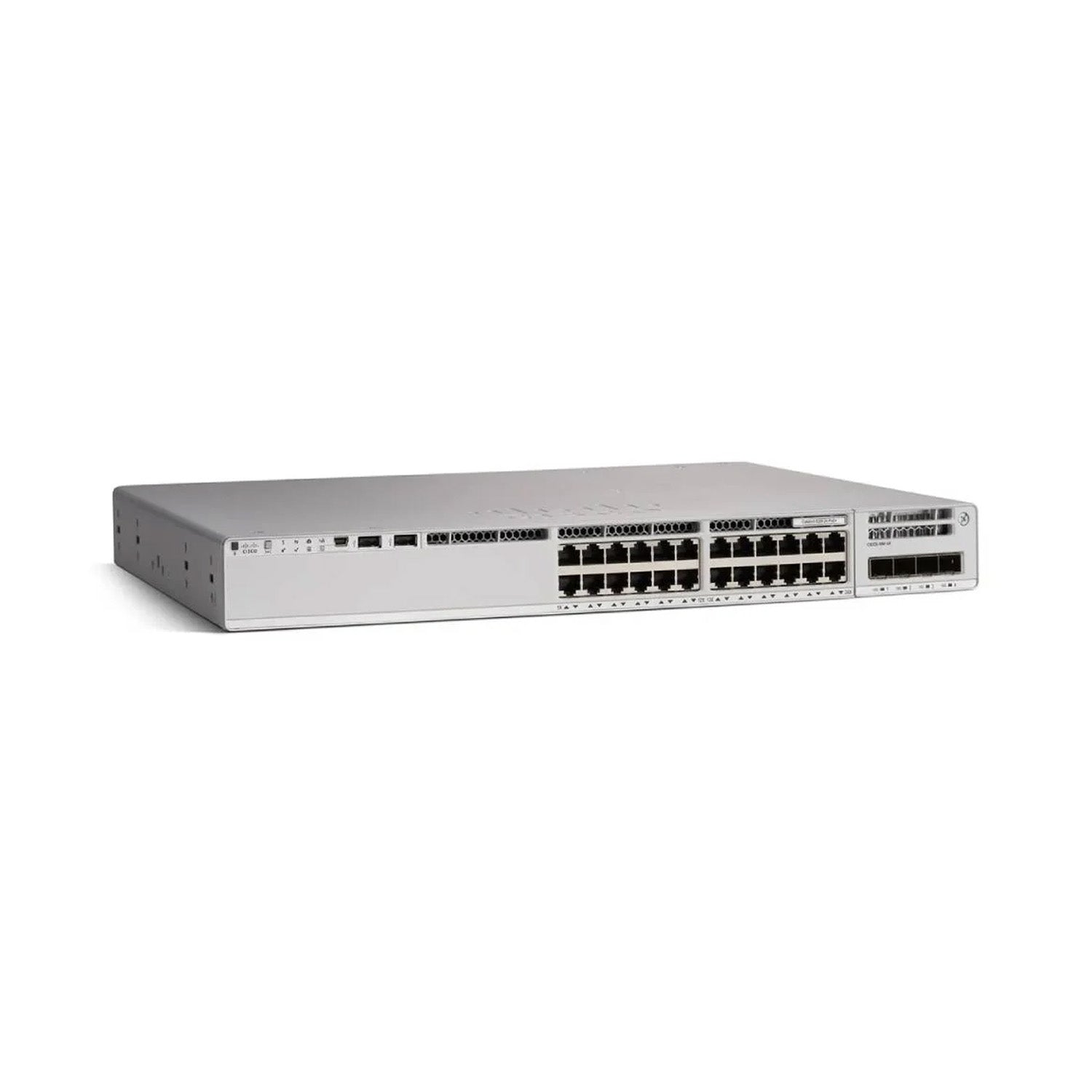

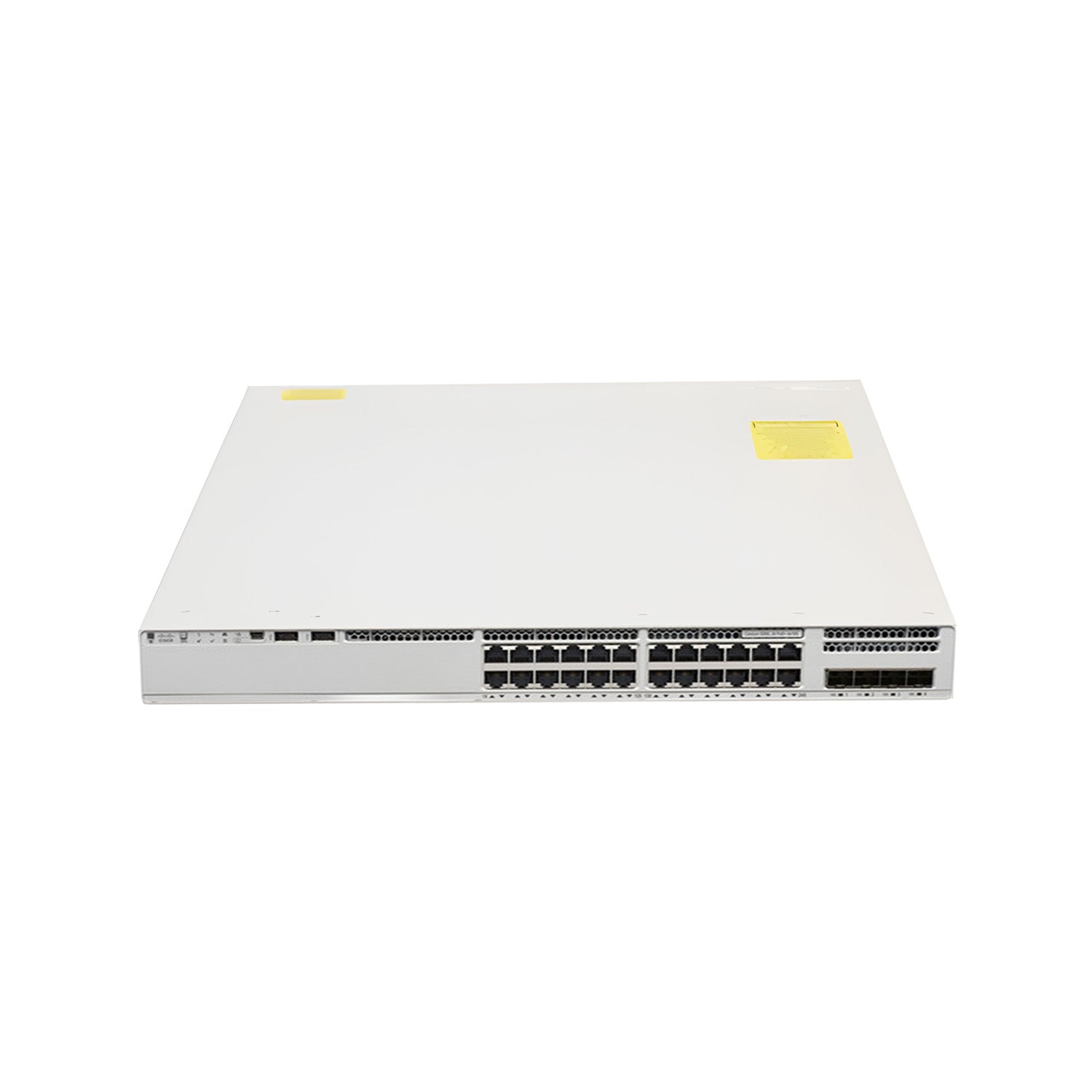

Cisco Catalyst C9200L-24T-4X-E | 24-Port Data-Only Switch, Network Essentials
Why Choose C9200L-24T-4X-E?
The C9200L-24T-4X-E is designed for branches and small campuses that need high-speed, reliable wired connectivity without PoE. Its 24 data-only ports and 4×10G uplinks deliver 128 Gbps switching capacity, while StackWise‑80 ensures high availability. Integrated energy-efficient features, Cisco DNA Center, and Meraki Dashboard support make it an ideal cost-effective solution for small- to medium-density deployments.
Use Cases / Deployment Scenarios
-
High-speed wired workstations and servers in branch offices or campus networks (PoE not required).
-
Wi-Fi 6/6E AP backhaul with locally powered APs.
-
Small branch aggregation or SD-Access-ready deployments.
-
Data center edge where Layer 2/3 basic routing and monitoring suffice.
Highlights
-
Data-Only Access: 24×1G RJ-45 ports for wired desktops, servers, and IoT devices - no PoE required.
-
4×10G Fixed Uplinks: High-speed aggregation; ideal for Wi-Fi 6/6E AP backhaul and high-bandwidth server connections.
-
StackWise‑80: Supports up to 8 switches per stack, 80 Gbps bidirectional backplane, sub-50 ms failover.
-
Network Essentials Layer 2/3 (Routed Access): Static routing, RIP, and OSPF optimized for small-branch deployments (max 1,000 routed entries).
-
Energy Efficient: IEEE 802.3az (EEE) reduces power consumption during idle periods, lowering operational costs.
-
Secure & Reliable: AES-128 MACsec, Secure Boot, Trust Anchor; fixed redundant fans and dual FRU PSU slots.
-
Unified Management: CLI/Web UI, SNMP, RMON, NETCONF/RESTCONF, Plug and Play; integrates with Cisco DNA Center and Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise‑80 kit spare (2 adapters + 1 stacking cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m / 1 m / 3 m) |
| PWR-C5-125WAC/2= | Power Supply | 125W AC platinum-efficient spare PSU |
| CAB-TA-NA= / CAB-TA-EU= | Power Cord | AC mains power cord (region-specific) |
| NS-SFP-10G-SR/LR/ER/ZR | Optical Module | Compatible 10G SFP+ modules for backbone connectivity |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License | Stacking | Notes |
|---|---|---|---|---|---|
| C9200L-24T-4X-E | 24×1G data-only | 4×10G SFP+ | Essentials | 80 Gbps | Energy-efficient, Network Essentials, Data-only |
| C9200L-24T-4X-A | 24×1G data-only | 4×10G SFP+ | Advantage | 80 Gbps | Advanced L3 features: BGP, VRF, VXLAN, LISP, SGT |
| C9200L-24P-4X-E | 24× PoE+ | 4×10G SFP+ | Essentials | 80 Gbps | Data + PoE support (up to 370W) |
| C9200L-24P-4X-A | 24× PoE+ | 4×10G SFP+ | Advantage | 80 Gbps | PoE + Advanced L3 features, full telemetry |
Specifications
| Parameter | Detailed Specifications | Technical Value / Use Case |
|---|---|---|
| Product Code | C9200L-24T-4X-E | Identifies the model for ordering and support purposes |
| Description | 24-port data-only switch with 4×10G SFP+ uplinks, Network Essentials license | Suitable for branch or campus access networks needing high-speed wired connectivity without PoE |
| Downlink Ports | 24× 10/100/1000 RJ-45 (data-only) | Connect desktops, servers, and IoT devices; pure data connectivity reduces cost and power consumption |
| Uplink Ports | 4× 10G SFP+ fixed | High-speed aggregation; ideal for Wi-Fi 6/6E AP backhaul and high-bandwidth server connections |
| Switching Capacity | 128 Gbps (Standalone) / 208 Gbps (Stacked) | Ensures non-blocking traffic and high throughput for multi-gigabit uplinks |
| Forwarding Rate | 95.23 Mpps (Standalone) / 155 Mpps (Stacked) | Determines the number of packets the switch can forward per second; critical for high-density environments |
| Stacking Bandwidth | 80 Gbps (StackWise‑80) | Provides fast, low-latency inter-switch communication for up to 8-unit stacks |
| DRAM / Flash | 2 GB / 4 GB | Supports sufficient routing and switching tables; enables stable performance for Essentials features |

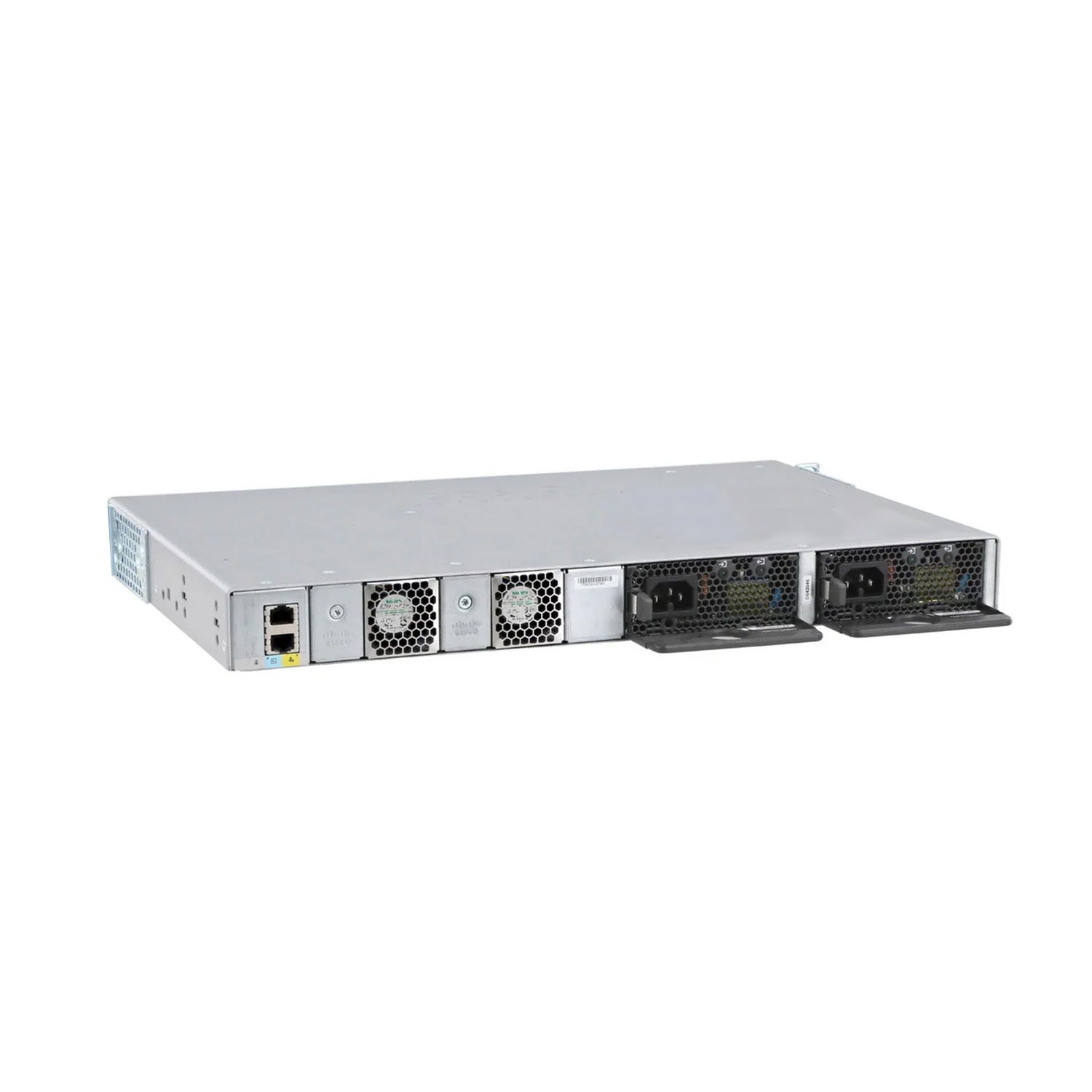

| Default Power Supply | PWR-C5-125WAC AC (supports dual FRU PSU redundancy) | Dual PSU slots allow seamless failover in case of power supply failure |
| Fans | Fixed redundant (non-FRU) | Ensures continuous cooling without service interruption; cannot be hot-swapped |
| Virtual Networks | 1 | Supports single SD-Access virtual network for standard branch deployment |
| MAC Address Table | 16,000 entries | Handles large numbers of devices in access networks without flooding |
| VLAN IDs | 4,096 | Supports segmentation and isolation of multiple broadcast domains |
| Packet Buffer | 6 MB | Absorbs bursts of traffic, reducing packet drops under load |
| Flexible NetFlow | 16,000 flows | Enables traffic monitoring and analytics for network performance and security insights |
| SVIs | 512 | Maximum number of Layer 3 interfaces, suitable for medium-sized branch routing |
| Jumbo Frames | Up to 9,198 bytes | Supports high-performance applications requiring large frames, e.g., storage or server clusters |
| MTBF | 525,990 hours | Indicates high reliability and low downtime probability for continuous operations |
| Weight | 4.35 kg (9.59 lbs) | Important for rack planning and physical installation |
| Operating Temp / Humidity | -5-45°C; max altitude 5,000 ft; 5-95% non-condensing | Defines environmental operating limits for stable operation |
| Security & Management | AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs; CLI/Web UI/SNMP/RMON/NETCONF/RESTCONF/PnP/DNA Center/Meraki Dashboard | Ensures network security, compliance, and flexible centralized management |
