- 6-Slot Chassis
- Rack-Mountable
| Properties | Cisco Catalyst C9606R Chassis |
| Description | Cisco Catalyst 9600 Series 6 Slot Chassis |
| Product Family | Catalyst 9600 |
| Product Type | Switch Chassis |
| Total number of slots | 6 |
| Line Card slots | 4 |
| Supervisor Engine slots | 2 |
| Dedicated Supervisor Engine slot numbers | 3 and 4 |
| Supervisor Engine Redundancy | Yes |
| Supervisor Engines Supported | C9600-SUP-1, C9600X-SUP-2 |
| Dimensions (H x W x D) | 35.43 x 44.2 x 40.9 cm (13.95 x 17.4 x 16.1‚¬) |
| Rack Units (RU) | 8 |
| Chassis Weight with 2 Power Supplies (AC) and Fan tray | 31.31 kg (69.03 lbs) |
| Chassis Weight (without Fan tray, without PSU) | 25.36 kg (55.90 lbs) |
| Weight of Fan-tray | 3.56 kg (7.85 lbs) |
| Weight of individual PSUs | AC PSU (3000W): 1.4 kg (3.09 lbs) AC PSU (2000W): 1.2 kg (2.65 lbs) DC PSU (2000W): 1.28 kg (2.82 lbs) |
| Number of Power Supply bays | 4 |
| Minimum number of Power Supplies *Fully loaded C9606R chassis, Minimum 3 power supplies required if input voltage is 110V |
2 |
| Power Supplies supported | 3000W AC, 2000W AC, and 2000W DC |
| Number of Fan-tray bays | 1 |
| Input Voltage | AC: 90V to 264V, 47 to 63 Hz DC: -40V to -72V |
| BTU output | C9606R + C9606-FAN: 1,621 (max) |
| Power supply specifications | |
| C9600-PWR-3KWAC | Max power rating: 3000W Input voltage range and frequency: 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz Power supply efficiency: 94% (typical) Input current: 17.6A max at 115VAC (1500W), 17.6A max at 230VAC (3000W) Output ratings: 12Vmain at 125A (15000W), 12Vmain at 250A (3000W) Output holdup time: AC = 20 ms minimum for system Power-supply input receptacles: AC IEC 60320 C20 Power cord rating: AC 20A |
| C9600-PWR-2KWAC | Max power rating: 2000W Input voltage range and frequency: 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz Power supply efficiency: 94% (typical) Input current: 10.5A max at 115VAC (1050W), 10.5 A max at 230VAC (2000W) Output ratings: 12Vmain at 88A, 12Vmain at 167A Output holdup time: AC = 20 ms minimum for system Power-supply input receptacles: AC IEC 60320 C16 Power cord rating: AC 15A |
| C9600-PWR-2KWDC | Max power rating: 2000W Input voltage range and frequency: -40VDC to -72VDC frequency Power supply efficiency: 92% (typical) Input current: Maximum: 60A per DC input at -40VDC input (when full PSU loading) Output ratings: 12Vmain at 167A Output holdup time: AC = 5 ms minimum for system Power-supply input receptacles: Amphenol C10-638976-000 Power cord rating: DC 70A |
| Power Cord Options | |
| C9600-PWR-3KWAC | CAB-9K2A-NA: North America/Japan 20A, 125VAC CAB-9K16A-US2: US/Japan 16A, 250VAC CAB-9K16A-AUS: Australia 16A, 250VAC CAB-9K16A-CH: China 16A, 250VAC CAB-9K16A-INT: International 16A, 250VAC CAB-9K16A-SW: Switzerland 16A, 250VAC CAB-9K16A-EU: Continental Europe 16A, 250VAC CAB-C19-CBN: Cabinet Jumper 16A, 250VAC |
| C9600-PWR-2KWAC | CAB-TA-CN: China AC Type A Power Cable CAB-TA-IS: Israel AC Type A Power Cable CAB-TA-AP: Australia AC Type A Power Cable CAB-TA-AR: Argentina AC Type A Power Cable CAB-TA-DN: Denmark AC Type A Power Cable CAB-TA-EU: Europe AC Type A Power Cable CAB-TA-IN: India AC Type A Power Cable CAB-TA-IT: Italy AC Type A Power Cable CAB-TA-SW: Switzerland AC Type A Power Cable CAB-TA-UK:United Kingdom AC Type A Power Cable CAB-TA-NA: North America AC Type A Power Cable CAB-C15-CBN: Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors CAB-TA-JP: Japan AC Type A Power Cable CAB-C15-CBN-JP: Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15 CAB-TA-250V-JP: Japan 250V AC Type A Power Cable CAB-ACBZ-12A: AC Power Cord (Brazil) 12A/125V BR-3-20 plug up to 12A |
| C9600-PWR-2KWDC | PWR-2KW-DC-CBL: Power Cord - 2KW DC |
[specifications]
| Specifications | C9606R |
| Maximum bandwidth scalability per Line Card slot | 6.4 Tbps with C9600X-SUP-2 2.4 Tbps with C9600-SUP-1 |
| Maximum Chassis Port Densities | |
| 400G | C9600-SUP-1: - C9600X-SUP-2: 8 |
| 200G | C9600-SUP-1: - C9600X-SUP-2: 8 |
| 100G | C9600-SUP-1: 48 C9600X-SUP-2: 96 (with breakouts) |
| 50G | C9600-SUP-1: - C9600X-SUP-2: 256 (with breakouts) |
| 40G | C9600-SUP-1: 96 C9600X-SUP-2: 96 (with breakouts) |
| 25G | C9600-SUP-1: 192 C9600X-SUP-2: 256 (with breakouts) |
| 10G | C9600-SUP-1: 192 C9600X-SUP-2: 256 (with breakouts) |
| 5G *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: - |
| 2.5G *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: - |
| 1G | C9600-SUP-1: 192 C9600X-SUP-2: - |
| 100M *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: - |
| 10M *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: - |
| Operating Temperature | -5‚° to 45‚° C (23‚° to 113‚° F) up to 6000 feet -5‚° to 40‚° C (23‚° to 104‚° F) up to 10,000 feet |
| Storage Temperature | -40‚° to 75‚° C (40‚° to 167‚° F) |
| Relative Humidity, Operating and Non-operating, Non-condensing |
10% to 95%, Non-condensing |
| Altitude | -60 to 3000 m (-197 to 9843 feet) |
| Mean Time Between Failures (MTBF) (hours) | C9606R chassis: 4,113,900 C9606 fan tray: 452,570 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000 |
| Safety certifications | ‚ IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences ‚ AS/NZS 60950.1.2011 ‚ CAN/CSA-C22.2 No. 60950-1-07 ‚ GB 4943-95 ‚ EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences ‚ NOM-019-SCFI-1998 ‚ UL 60950-1, Second Edition |
| EMI and EMC Compliance | 47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
[accesories]
| Parts | |
| C9600-SUP-1 (=) | Cisco Catalyst 9600 Series Supervisor 1 Module |
| C9600-SUP-1/2 | Cisco Catalyst 9600 Series Redundant Supervisor 1 Module |
| C9600X-SUP-2 (=) | Cisco Catalyst 9600 Series Supervisor 2 Module |
| C9600X-SUP-2/2 | Cisco Catalyst 9600 Series Redundant Supervisor 2 Module |
| C9600-LC-24C (=) | Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE line card |
| C9600-LC-48YL (=) | Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE line card |
| C9600-LC-48TX (=) | Cisco Catalyst 9600 Series 48-port RJ45 Copper ‚¬œ 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card |
| C9600-LC-48S (=) | Cisco Catalyst 9600 Series 48-Port 1GE line card |
| C9600-LC-40YL4CD (=) | Cisco Catalyst 9600 Series Combo line card 40 ports 50/25/10GE SFP56, 2 ports 200/100/40QSFP56 uplinks, 2 ports 400/200/100GE QSFP-DD uplinks |
| C9600X-LC-32CD (=) | Cisco Catalyst 9600 Series Combo line card 30 ports 100/40G QSFP28, 2 ports 400/200/100G QSFP-DD |
| C9606-FAN (=) | Cisco Catalyst 9600 Series C9606 Chassis Fan Tray |
| C9K-F2-SSD-240GB (=) | Cisco Catalyst 9600 Series 240GB SSD Storage |
| C9K-F2-SSD-480GB (=) | Cisco Catalyst 9600 Series 480GB SSD Storage |
| C9K-F2-SSD-960GB (=) | Cisco Catalyst 9600 Series 960GB SSD Storage |
| Cisco DNA Term Licenses | |
| C9600-DNA-A | C9600 Cisco DNA Advantage Term License |
| C9600-DNA-A-3Y | C9600 Cisco DNA Advantage 3 Year License |
| C9600-DNA-A-5Y | C9600 Cisco DNA Advantage 5 Year License |
| C9600-DNA-A-7Y | C9600 Cisco DNA Advantage 7 Year License |
| Power Supplies | |
| C9600-PWR-3KWAC (=) | Cisco Catalyst 9600 Series 3000W AC Power Supply |
| C9600-PWR-2KWAC (=) | Cisco Catalyst 9600 Series 2000W AC Power Supply |
| C9600-PWR-2KWDC (=) | Cisco Catalyst 9600 Series 2000W DC Power Supply |
| Spare Accessories and Kits | |
| C9606-SLOT-BLANK (=) | Cisco Catalyst 9600 Series Blank for Chassis Module Slot |
| C9606-PWR-BLANK (=) | Cisco Catalyst 9600 Series Blank for Chassis Power Supply Slot |
| CAB-CONSOLE-USB | Console Cable 6ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| C9606-RACK-KIT= | Cisco Catalyst 9600 Series 6 slot chassis Rack Mount |
| C9606-ACC-KIT= | Cisco Catalyst 9600 Series 6 slot chassis Accessory Kit |
| C9606-SHELF-KIT= | Cisco Catalyst 9600 Series 6 slot chassis Shelf Install Kit |
| C9606-FB-23-KIT= | Cisco Catalyst 9600 Series 6 slot chassis Front to Back Kit |

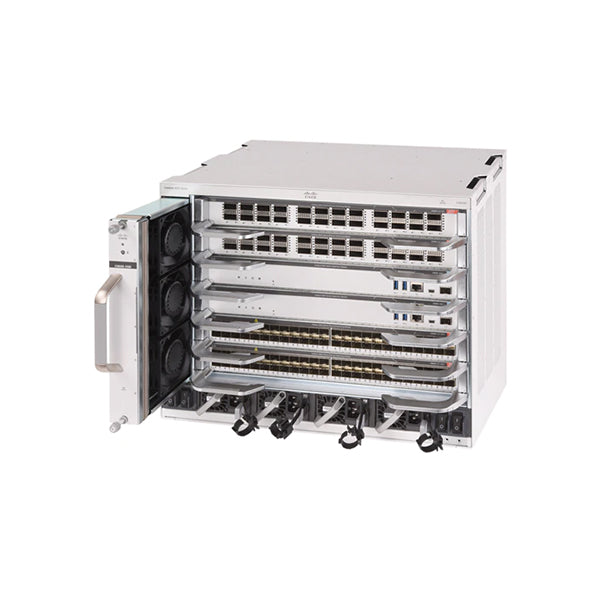

Cisco C9606R Chassis
The Cisco C9600 Series offers one chassis model which is the C9606R. It provides a common architecture that can be scaled up to 192 10GbE ports or 25GbE ports. The series is equipped with a variety of high-availability features, such as continuous packet forwarding during supervisor engine switchover, thanks to ISSU. The C9606R is optimized for enterprise deployments. It has efficient side-to-side airflow and full front accessibility for all removable parts.
Quick Specs:
- 4 line card slots
- 2 supervisor engine slots
- N+1 redundancy mode
Please check the related tabs for the C9606R datasheet and detailed specifications.
