[shortdesc]
- Switch, Managed, 48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks
[/shortdesc]
[properties]
| Properties |
C1000-48T-4X-L |
| Description |
48x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks |
| Product Family |
Catalyst 1000 |
| Product Type |
Ethernet Switch |
| Number of Ports |
48 |
| Uplink Interfaces |
4 SFP+ |
| Available PoE power |
No |
| Fanless |
No |
| Height |
1.71" |
| Depth |
16.14" |
| Width |
17.29" |
[/properties]
[specifications]
| Specifications |
C1000-48T-4X-L |
| Console Ports |
1x RJ-45 console
1x USB-A port for storage and Bluetooth console |
| CPU |
ARM v7 800 MHz |
| DRAM |
512 MB |
| Flash Memory |
256 MB |
| Forwarding Rate |
130.94 Mpps |
| Switching Capacity |
176 Gbps |
| MAC addresses |
16000 |
| Maximum Active VLANs |
256 |
| Operating Temperature |
0 to 40 °C |
| Altitude |
Up to 10,000 ft (3000 m) |
| Safety |
UL 60950-1, EN 60950-1, IEC 62368-1, UL 62368-1 |
| EMC: emissions |
FCC/47CFR Part 15 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: immunity |
EN55024 (incl. EN 61000-4-5), EN300386, KN35 |
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco |
Common Language Equipment Identifier (CLEI) code |
| U.S. Government certifications |
USGv6 and IPv6 Ready Logo |
| Ethernet interfaces |
10BASE-T: RJ-45, Cat 3/4/5 UTP
100BASE-TX: RJ-45, Cat 5 UTP
1000BASE-T: RJ-45, 4-pair Cat 5 UTP
SFP/SFP+: per transceiver specs |
| Telnet - SSH |
Yes |
| TACACS, TACACS+, Radius |
Yes |
[/specifications]
[accesories]
| Part Number |
Description |
In Stock |
| CAB-CONSOLE-RJ45 |
Console Cable 6 Feet with RJ-45 |
Yes |
| CAB-CONSOLE-USB |
Console Cable 6 Feet with USB Type A and mini-B Connectors |
Yes |
| PWR-CLP |
Power Cable Restraining Clip |
No |
| RCKMNT-1RU-2KX |
Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi) |
No |
[/accesories]

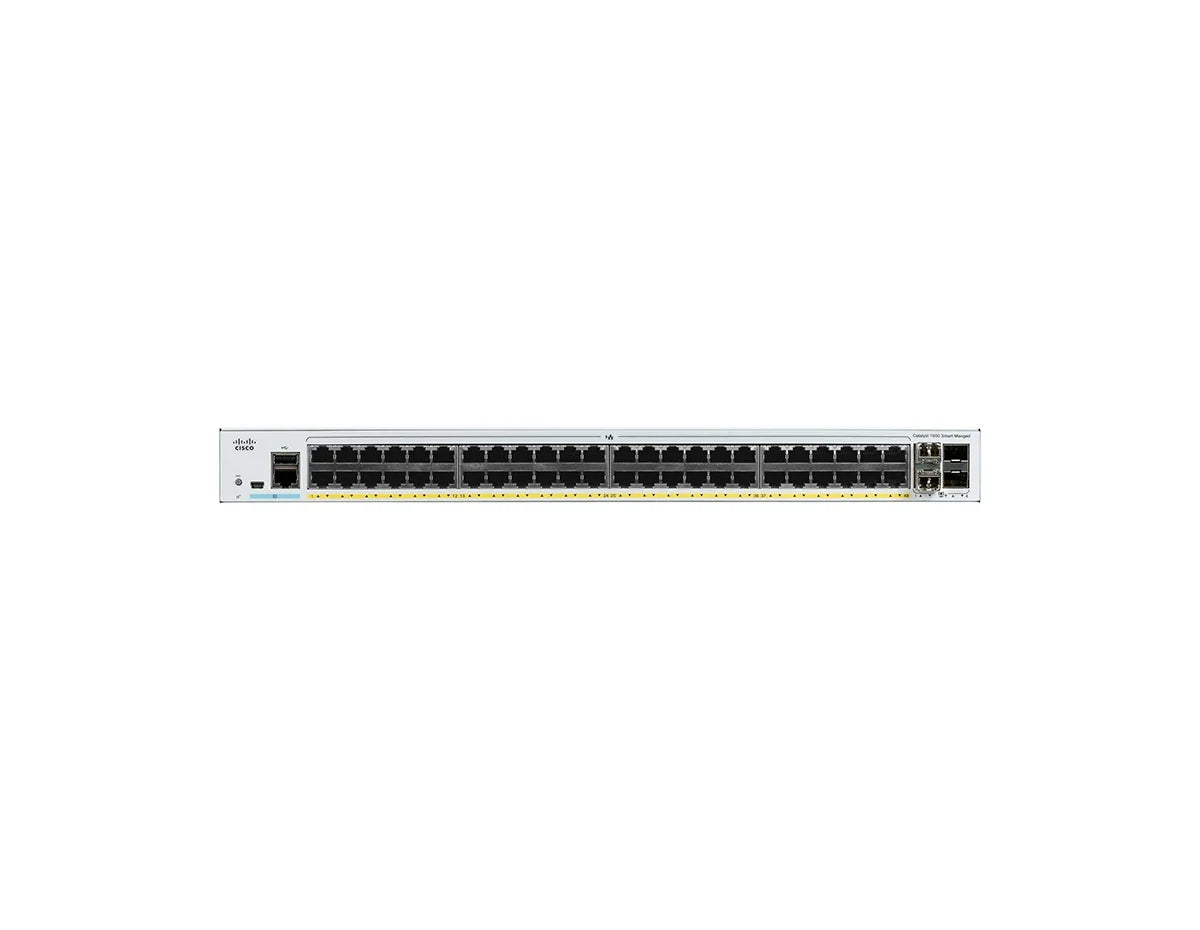

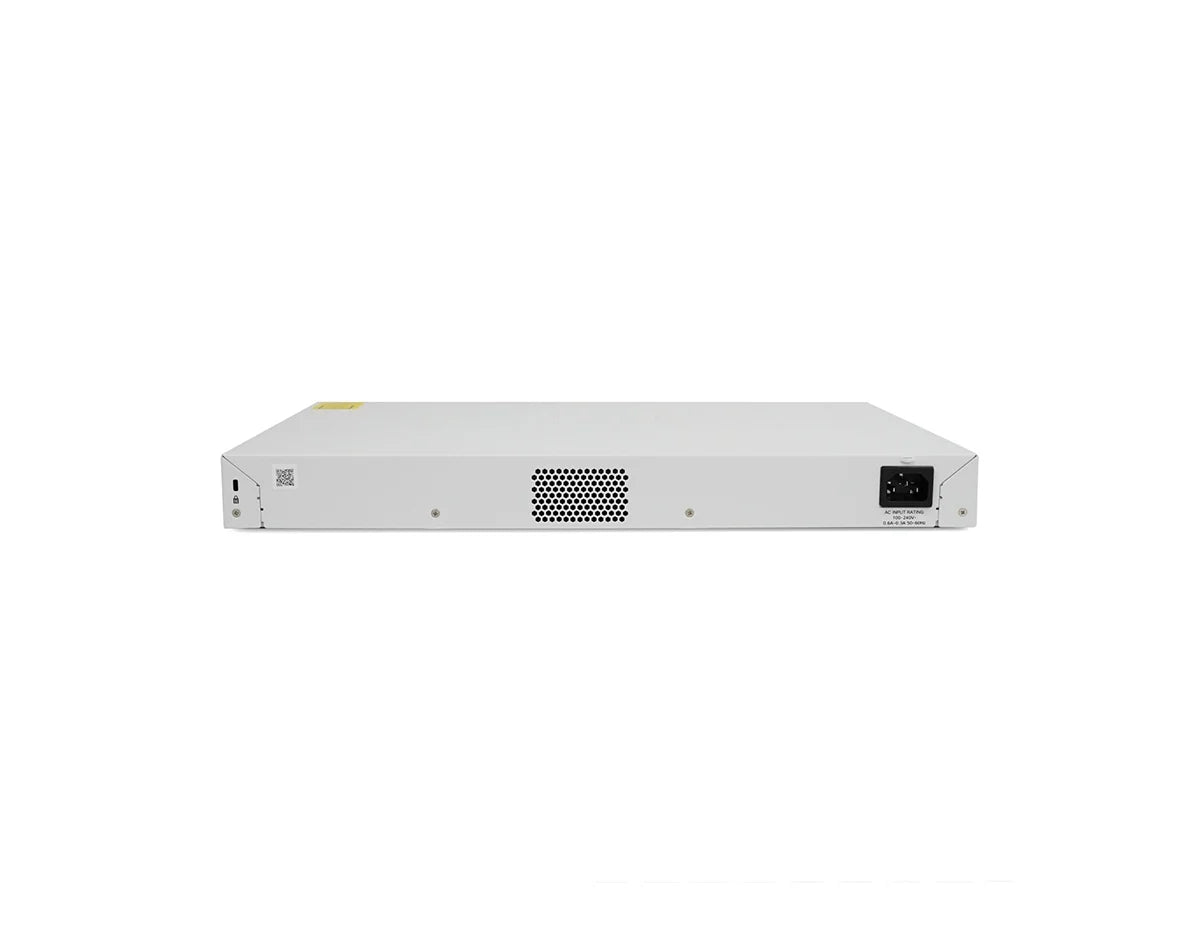

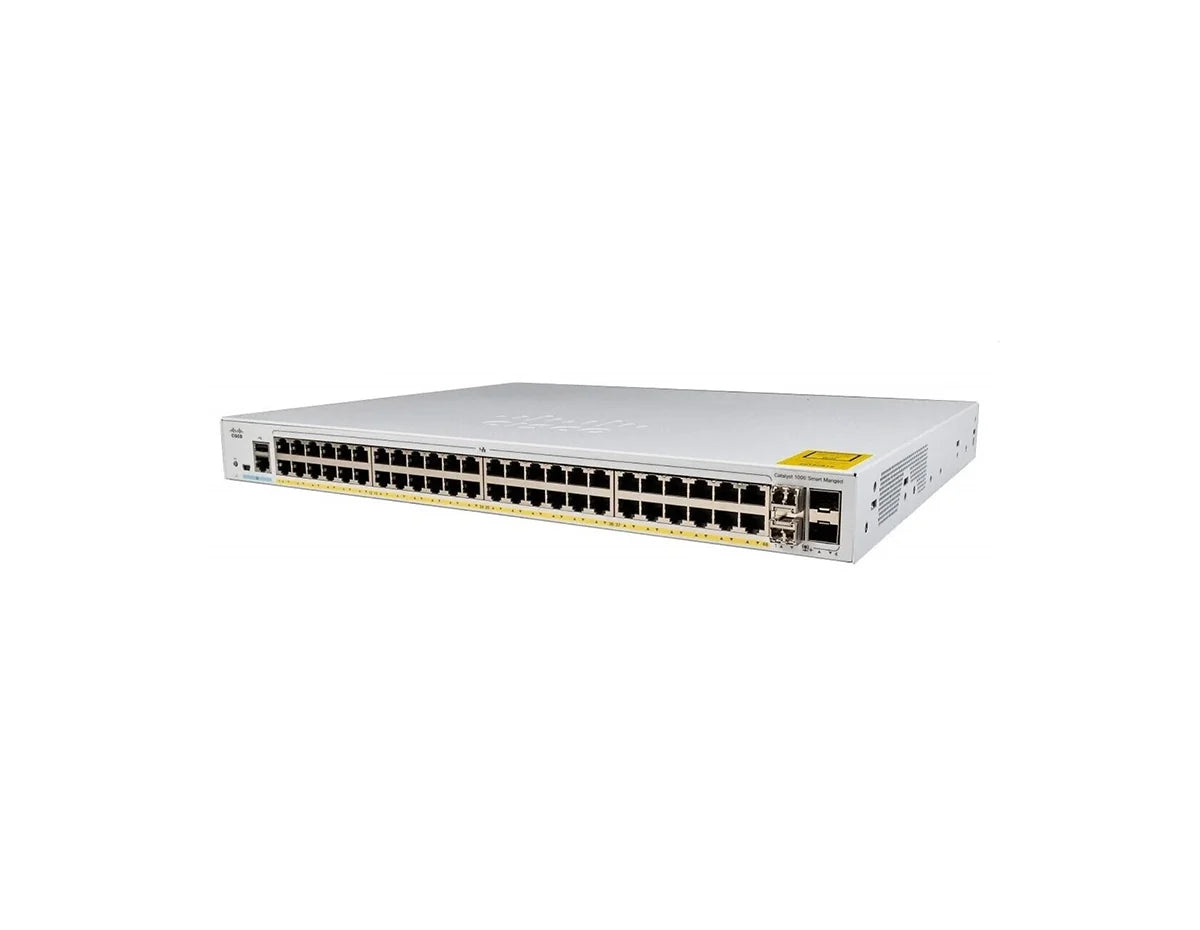

Cisco Catalyst C1000-48T-4X-L Switch
The Cisco Catalyst C1000-48T-4X-L Switch is a high-performance and scalable networking solution designed for small to medium-sized businesses and branch offices. With 48 Gigabit Ethernet ports and 4 SFP+ uplinks, this switch provides robust connectivity and supports 10G uplinks for enhanced network performance and scalability. The C1000-48T-4X-L is engineered to deliver consistent and reliable operation, while advanced security features help protect your network infrastructure.
Key Features:
-
48 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for a wide range of devices.
-
4 x SFP+ Uplinks: Offers high-speed uplink options with support for 10G connectivity, ensuring network scalability and performance.
-
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
-
Reliable Design: Built to deliver consistent performance for critical network deployments.
-
Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.
Technical Overview:
-
Recommended for: Small to medium-sized businesses, branch offices, and environments requiring reliable and scalable 10G networking solutions.
-
Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 SFP+ uplinks.
-
Switching Capacity: 176 Gbps.
-
Forwarding Rate: 130.94 Mpps.
-
Management: Web-based GUI and CLI for simplified network management.
-
Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
-
Energy Efficiency: Designed to deliver powerful performance while optimizing energy usage.
You can check the related tab for the C1000-48T-4X-L datasheet.
